Monroe Sensa-Trac Load Adjusting Shock Absorber (MPN: 58241)

Enhance vehicle stability and comfort with advanced damping technology.

The Monroe Sensa-Trac load adjusting shock absorber is engineered to improve ride quality and handling for light trucks, especially when towing or hauling. Featuring position sensitive damping (PSD) technology, these shock absorbers utilize precision tapered grooves in the pressure tube to adapt to varying road conditions, ensuring a consistent and controlled ride. The nitrogen gas charged design enhances handling by reducing aeration, which helps maintain optimal tire-to-road contact under load.

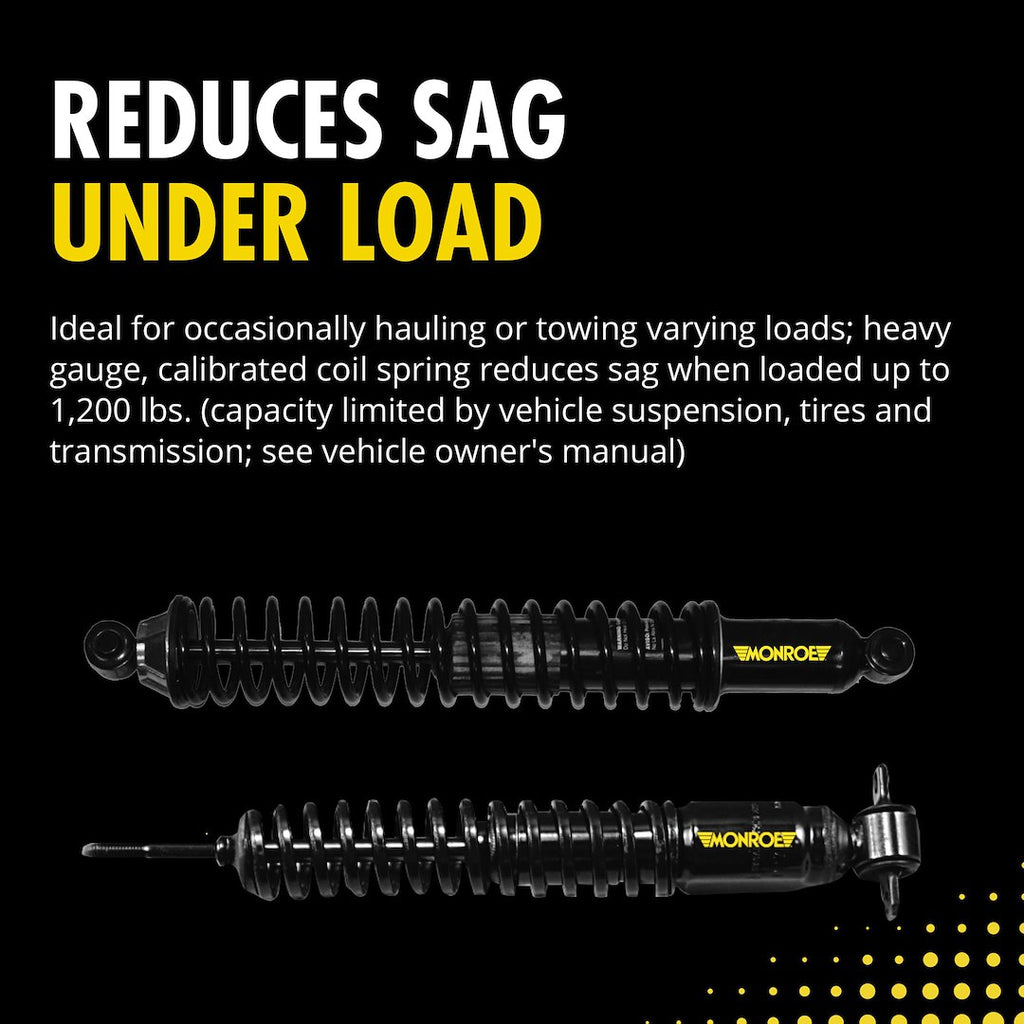

These shock absorbers are designed to support up to 1,200 pounds of additional weight, making them suitable for vehicles that frequently carry varying loads or tow trailers. The heavy gauge calibrated coil spring is computer designed to provide maximum performance without increasing ride harshness, while the Fluon banded piston ensures durability and better control by maintaining a consistent seal between the piston and pressure tube.

In addition to their robust construction, the Monroe Sensa-Trac shock absorbers feature all-weather fluid that reduces friction for smooth operation, and application-specific valving that automatically adjusts to road extremes. This combination of features results in improved safety characteristics and overall vehicle performance.

Features

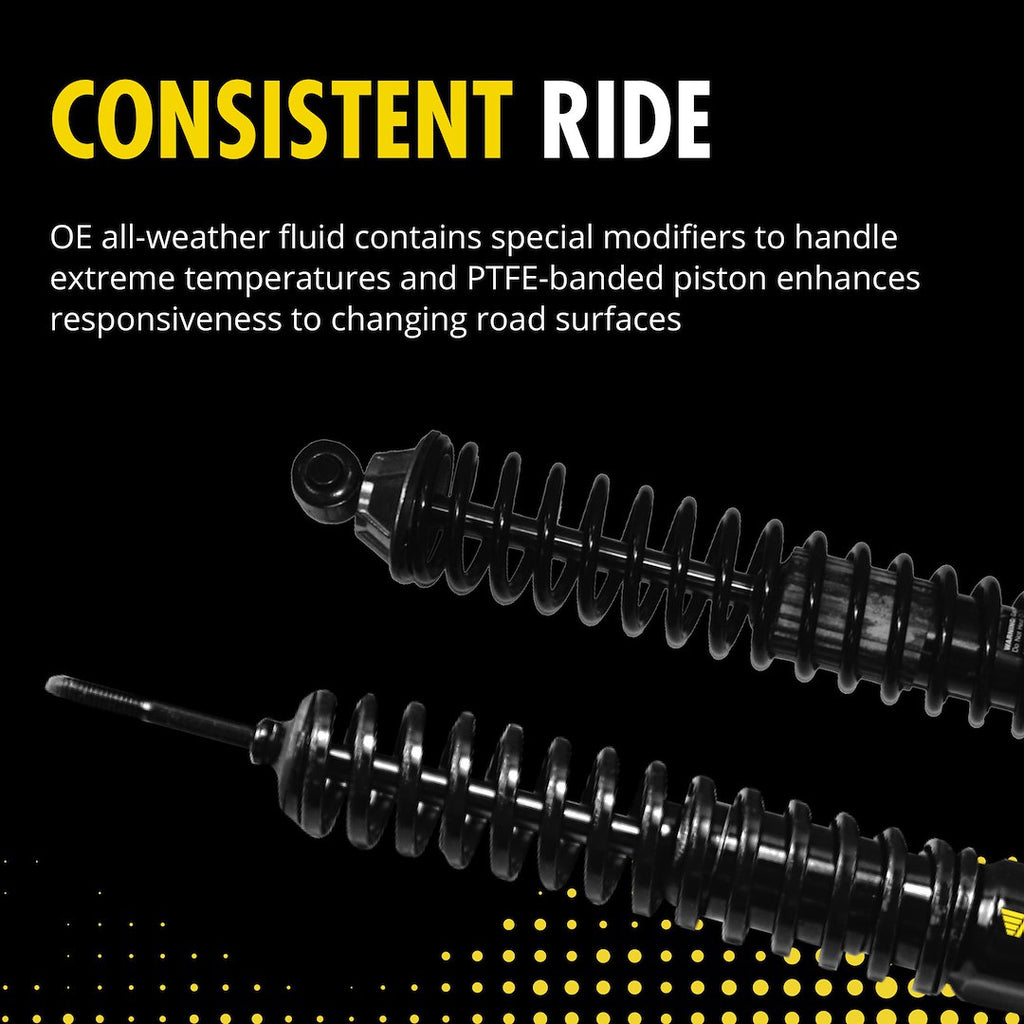

• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

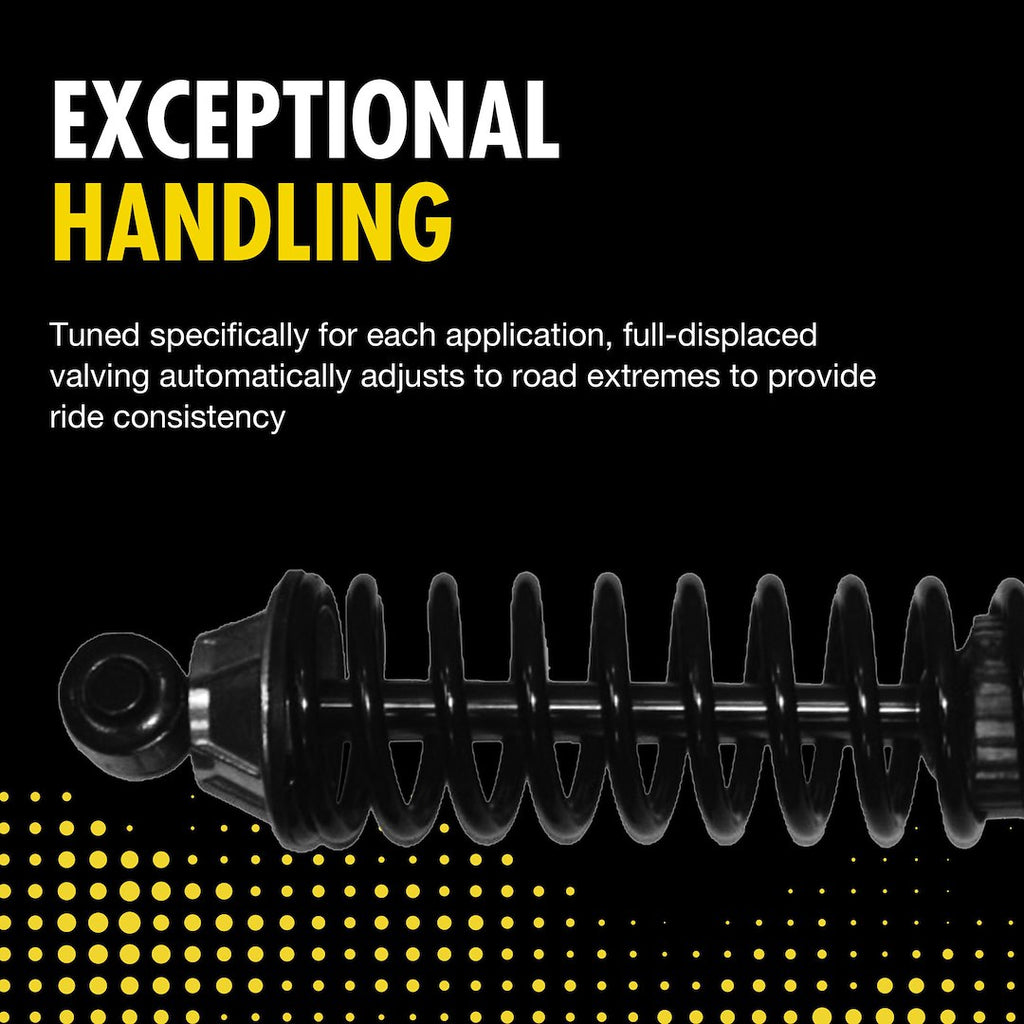

• Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
• Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
• Heavy Gauge Calibrated Coil Spring: Computer Designed For Maximum Performance Without An Increase In Ride Harshness
• Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning

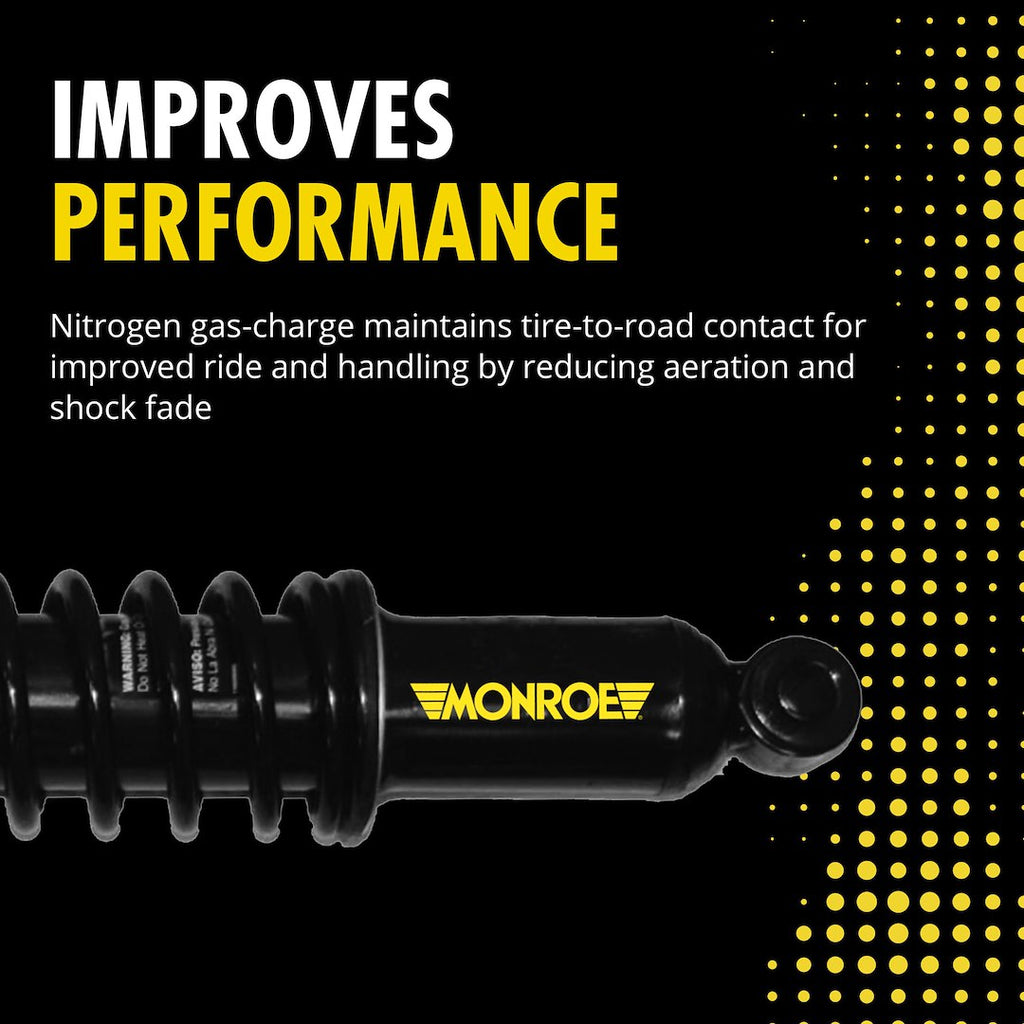

• Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
• Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 58241
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 14-3/8 Inch
• Compressed Length (IN): 9-3/4 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes

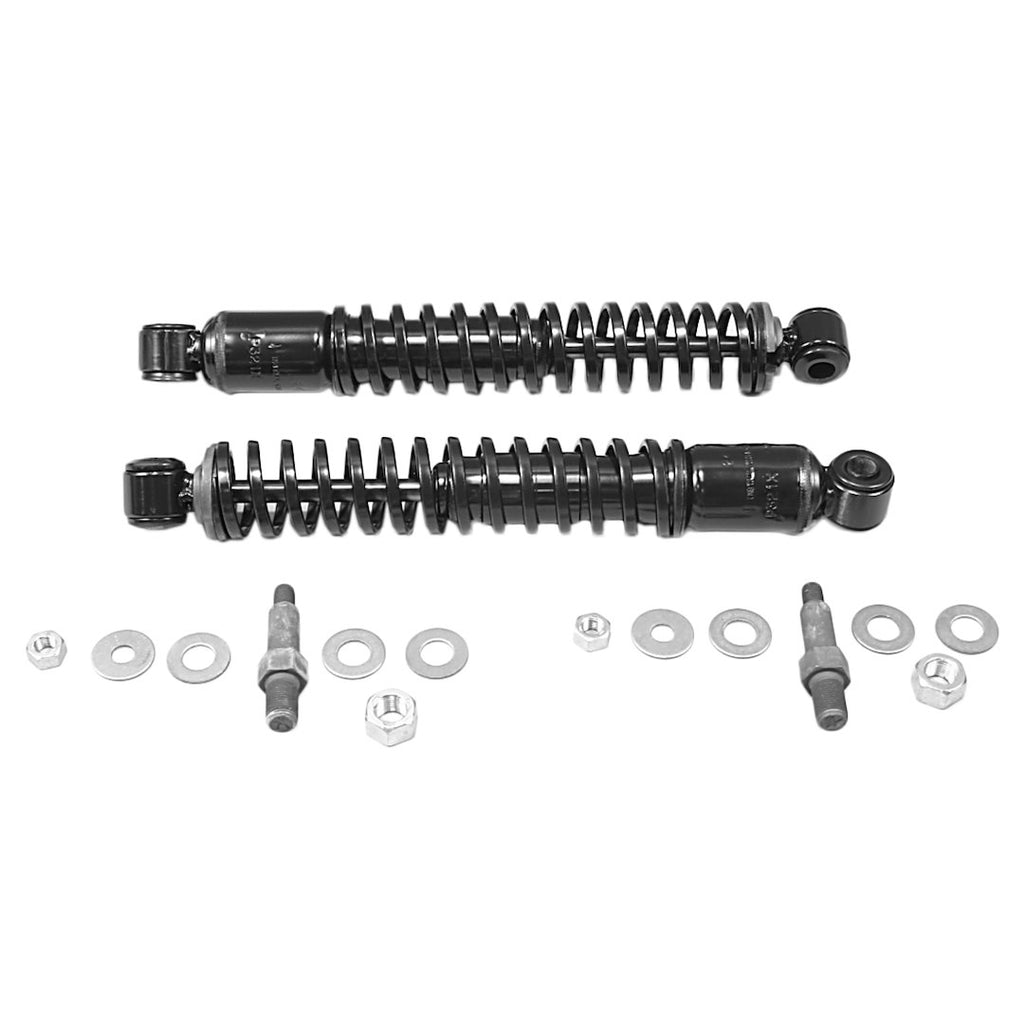

• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1969-1974 Chevrolet Blazer
• 1975-1986 Chevrolet C10
• 1963-1967 Chevrolet C10 Panel
• 1963-1974 Chevrolet C10 Pickup
• 1967-1986 Chevrolet C10 Suburban
• 1975-1982 Chevrolet K5 Blazer
• 1975-1980 Chevrolet P10
• 1963-1967 Chevrolet P10 Series
• 1967-1974 Chevrolet P10 Van
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R10 Suburban
• 1989-1991 Chevrolet R1500 Suburban
• 1963-1966 Chevrolet Suburban
• 1966-1966 GMC 1000
• 1963-1965 GMC 1000 Series
• 1975-1978 GMC C15
• 1975-1978 GMC C15 Suburban
• 1967-1974 GMC C15/C1500 Pickup
• 1967-1974 GMC C15/C1500 Suburban
• 1979-1986 GMC C1500
• 1979-1986 GMC C1500 Suburban
• 1967-1967 GMC C25/C2500 Suburban
• 1963-1963 GMC G1000 Series
• 1966-1966 GMC I1000
• 1966-1966 GMC I1500
• 1970-1982 GMC Jimmy
• 1975-1978 GMC P15
• 1967-1974 GMC P15/P1500 Van
• 1979-1980 GMC P1500
• 1963-1966 GMC PB1000 Series
• 1966-1966 GMC PB15 Series
• 1963-1965 GMC PB1500 Series
• 1987-1987 GMC R1500
• 1987-1991 GMC R1500 Suburban

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
