Experience enhanced handling and comfort with advanced shock absorber technology.

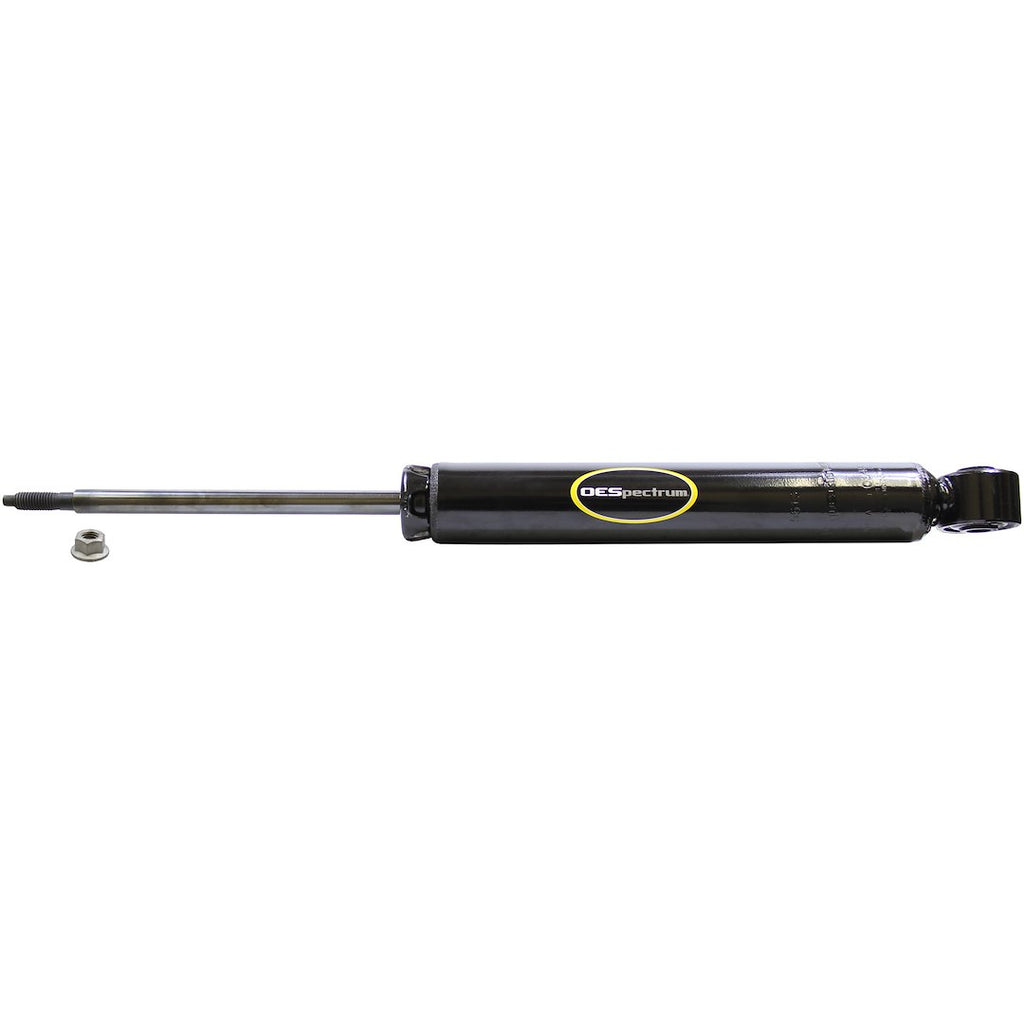

The Monroe OESpectrum Nitrogen Gas Charged Shock Absorber is engineered to provide superior handling precision and control for passenger vehicles. This shock absorber features a nitrogen gas charge that improves ride quality and handling by reducing aeration, ensuring consistent tire-to-road contact. The full displaced valving automatically adjusts to varying road conditions, delivering a smooth and comfortable ride while filtering out noise and vibrations.
Constructed with a 1-3/16 inch bore, this shock absorber offers more efficient control compared to standard options. The Fluon banded piston enhances durability and control by providing a consistent seal between the piston and pressure tube. Additionally, the self-lubricating fluid seal is designed to retain gas without excessive wear, contributing to the longevity of the product.
With a robust design that includes a 1/2 inch diameter nitrocarburized piston rod and a body made of steel, the Monroe OESpectrum shock absorber is built to withstand the demands of everyday driving. It is specifically engineered to match the original equipment specifications of your vehicle, ensuring optimal ride and handling performance.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

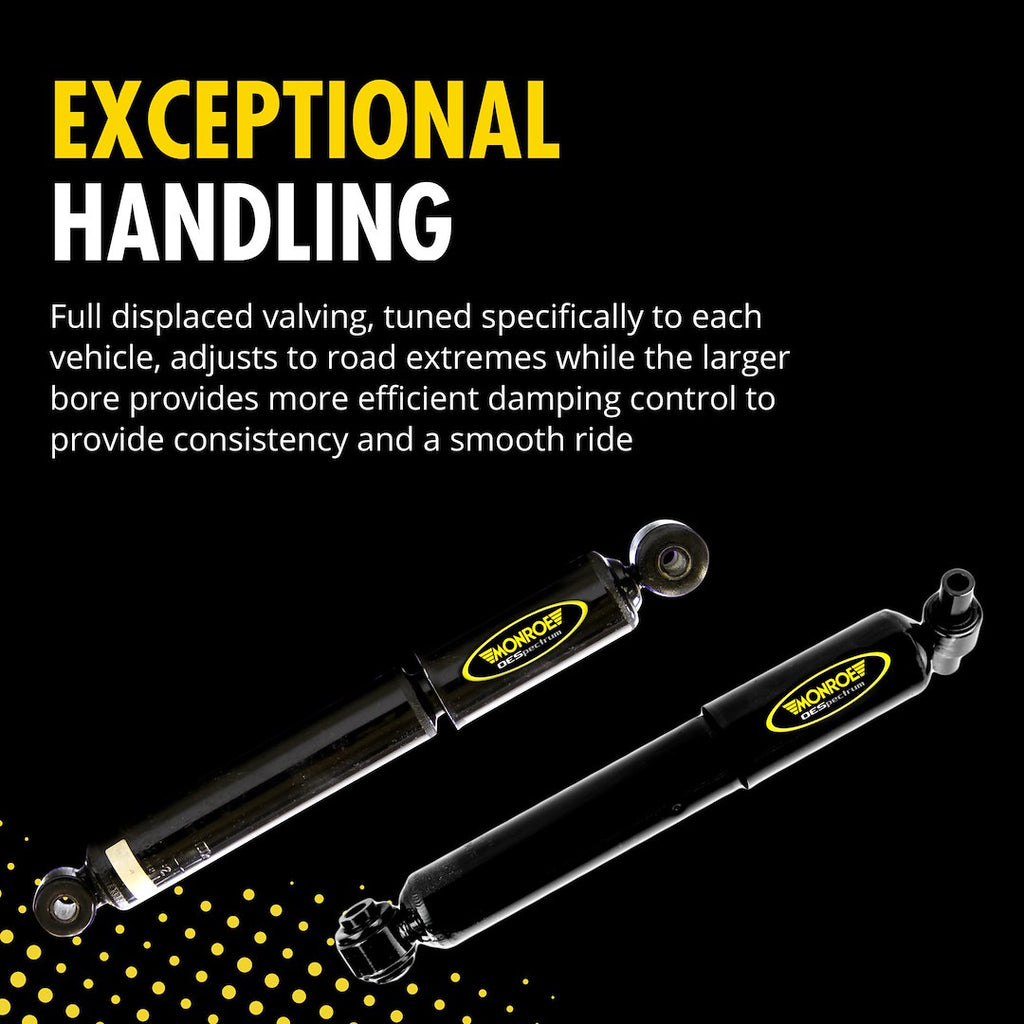

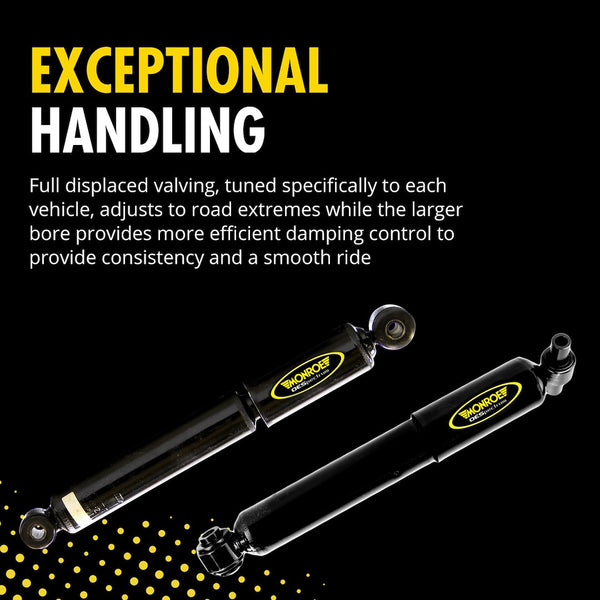

- Full Displaced Valving: Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride Comfort
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- 1-3/16 Inch Bore: Larger Bore Than Most Shocks To Provide More Efficient And Consistent Control
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 1/2 Inch Diameter Piston Rod: Nitrocarburized Rod For Long Service Life

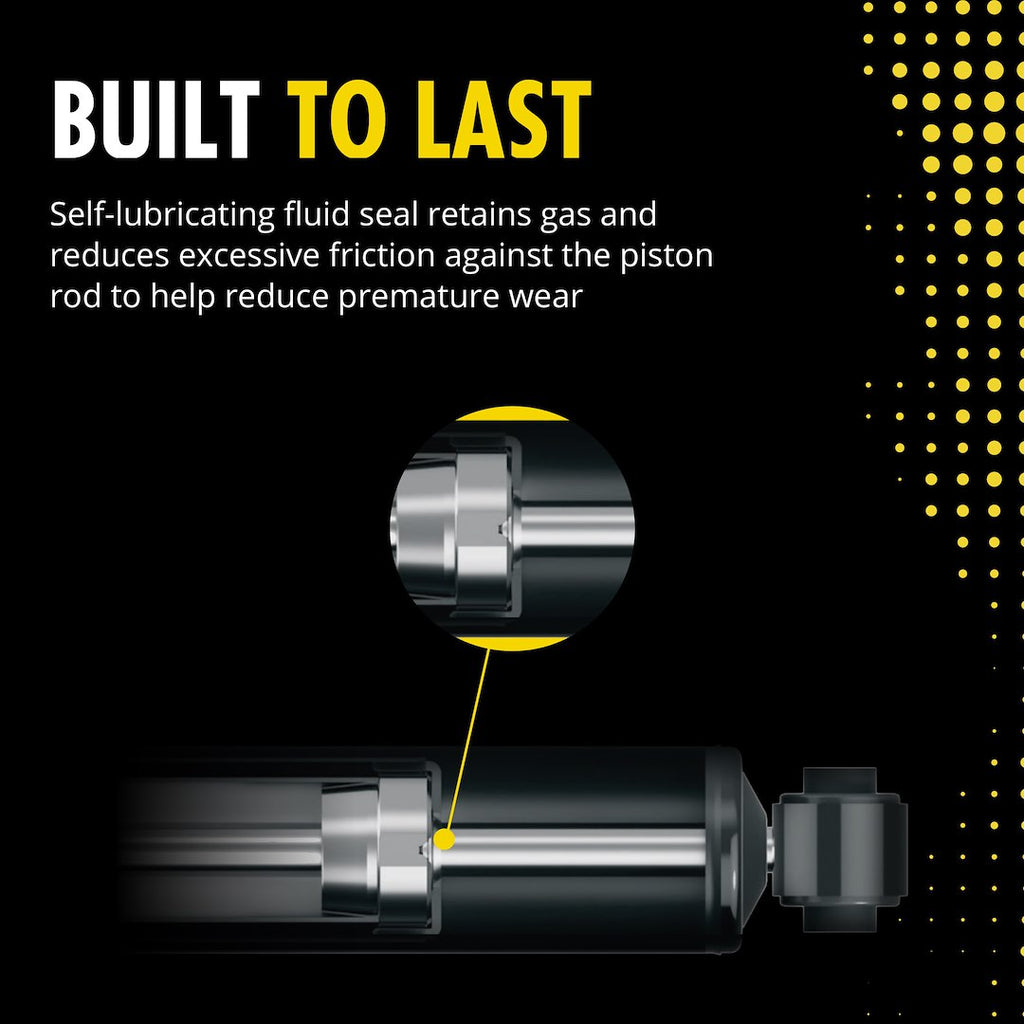

- Special Seal: "Self-Lubricating" Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Features Latest Original Equipment Valving Technologies Specific To Each Vehicle
- Engineered To Match Your Vehicle’s OE-Specified Ride And Handling Profile
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 5513
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22.34 Inch
- Compressed Length (IN): 14.35 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2013-2017 Cadillac XTS
- 2019-2019 Cadillac XTS
