Enhance towing and hauling capabilities with adjustable air support.

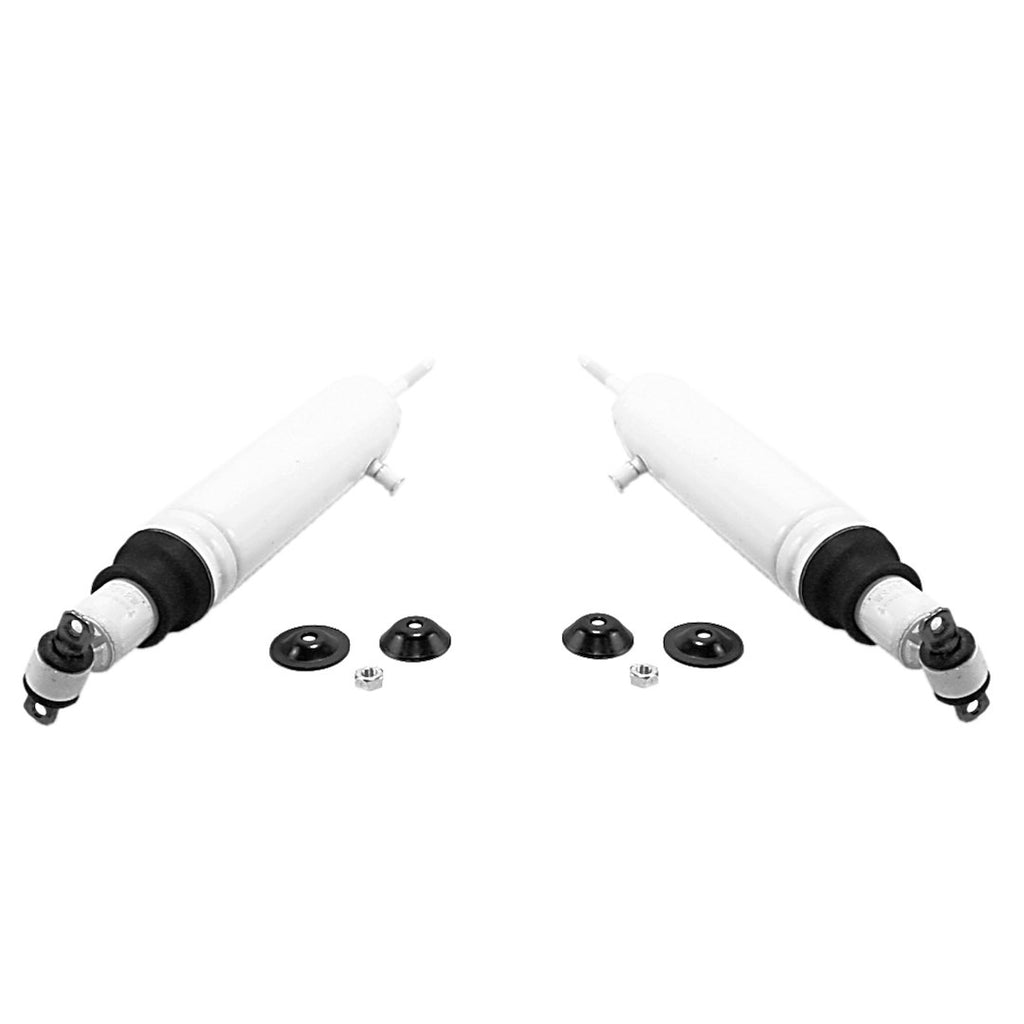

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air chamber that can be inflated from 20 PSI to 150 PSI, allowing for optimal vehicle height maintenance under load. The design ensures that the vehicle remains level, enhancing stability and control during operation.
Constructed with all-weather fluid, the Max-Air Shock Absorber minimizes friction and promotes smooth rod reaction, contributing to a comfortable ride. The full displaced valving range on both compression and extension cycles ensures consistent performance, while the sintered iron piston offers superior strength and durability compared to traditional materials. This shock absorber is designed for longevity, featuring a lubricated air sleeve that reduces friction and enhances service life.
Installation is straightforward, with a set of two shock absorbers included. The unit is vehicle specific and features adjustable valving for tailored performance. The robust construction includes a black steel body and a 1/2 inch iron rod, ensuring reliability under demanding conditions. The Monroe Max-Air Shock Absorber is a practical solution for those needing enhanced support for towing and hauling applications.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA822
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 24-3/8 Inch
- Compressed Length (IN): 14-1/2 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Cross Pin
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2000-2005 Buick LeSabre
- 2006-2011 Buick Lucerne
- 1997-2005 Buick Park Avenue
- 1995-1999 Buick Riviera
- 2000-2005 Cadillac DeVille
- 2006-2011 Cadillac DTS
- 1998-2004 Cadillac Seville
- 1995-1999 Oldsmobile Aurora
- 2001-2003 Oldsmobile Aurora
- 2000-2005 Pontiac Bonneville
