Enhance towing and hauling performance with adjustable air assist technology.

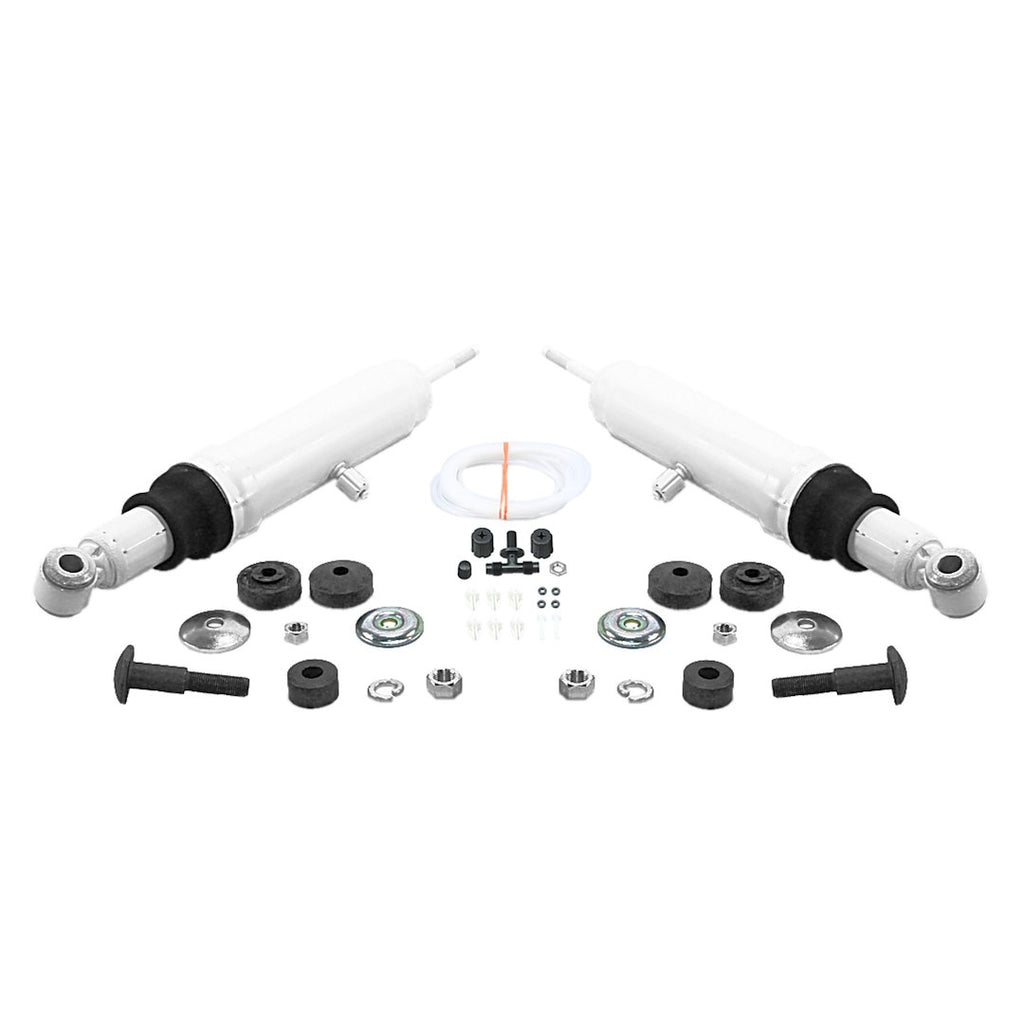

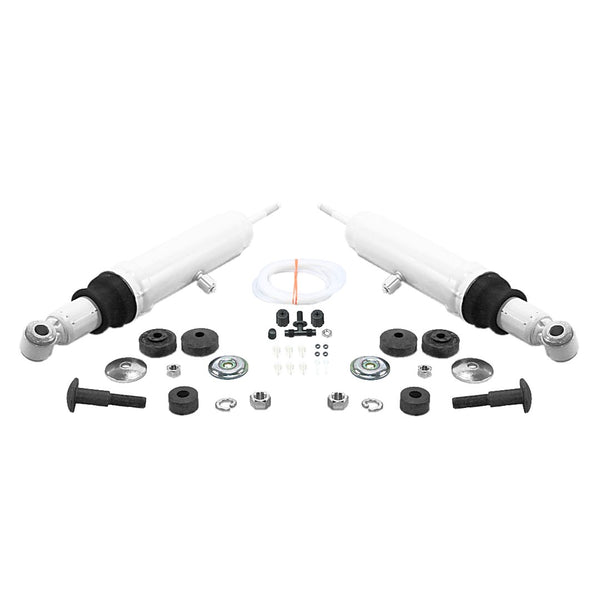

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying load conditions. The design accommodates the limitations of vehicle suspension, tires, and transmission, making it a versatile choice for heavy-duty applications.
Constructed with all-weather fluid that minimizes friction, the Max-Air shock absorber ensures smooth rod reaction and performance across diverse driving conditions. Its full displaced valving range provides a comfortable ride by effectively managing both compression and extension cycles. The large volume air chamber can be inflated to support heavy loads and deflated for normal driving, enhancing the overall driving experience.
Durability is a key feature of the Max-Air shock absorber, with a sintered iron piston that surpasses traditional materials in strength and longevity. The lubricated air sleeve reduces friction, contributing to a longer service life and smoother operation during suspension movement. Additionally, the shock absorber includes a special air fitting designed to resist air leakage, ensuring consistent performance over time.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA810
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 20-1/2 Inch
- Compressed Length (IN): 12-3/8 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1976-1987 Chevrolet Chevette
- 1978-1983 Ford Fairmont
- 1981-1982 Ford Granada
- 1983-1986 Ford LTD
- 1979-1993 Ford Mustang
- 1979-1986 Mercury Capri
- 1981-1982 Mercury Cougar
- 1979-1982 Mercury Grand Marquis
- 1983-1986 Mercury Marquis
- 1978-1983 Mercury Zephyr
- 1968-1970 Nissan 2000
- 1969-1973 Nissan 510
- 1974-1977 Nissan 710
- 1981-1987 Pontiac T1000
