Enhance vehicle stability for towing and hauling with adjustable air assist.

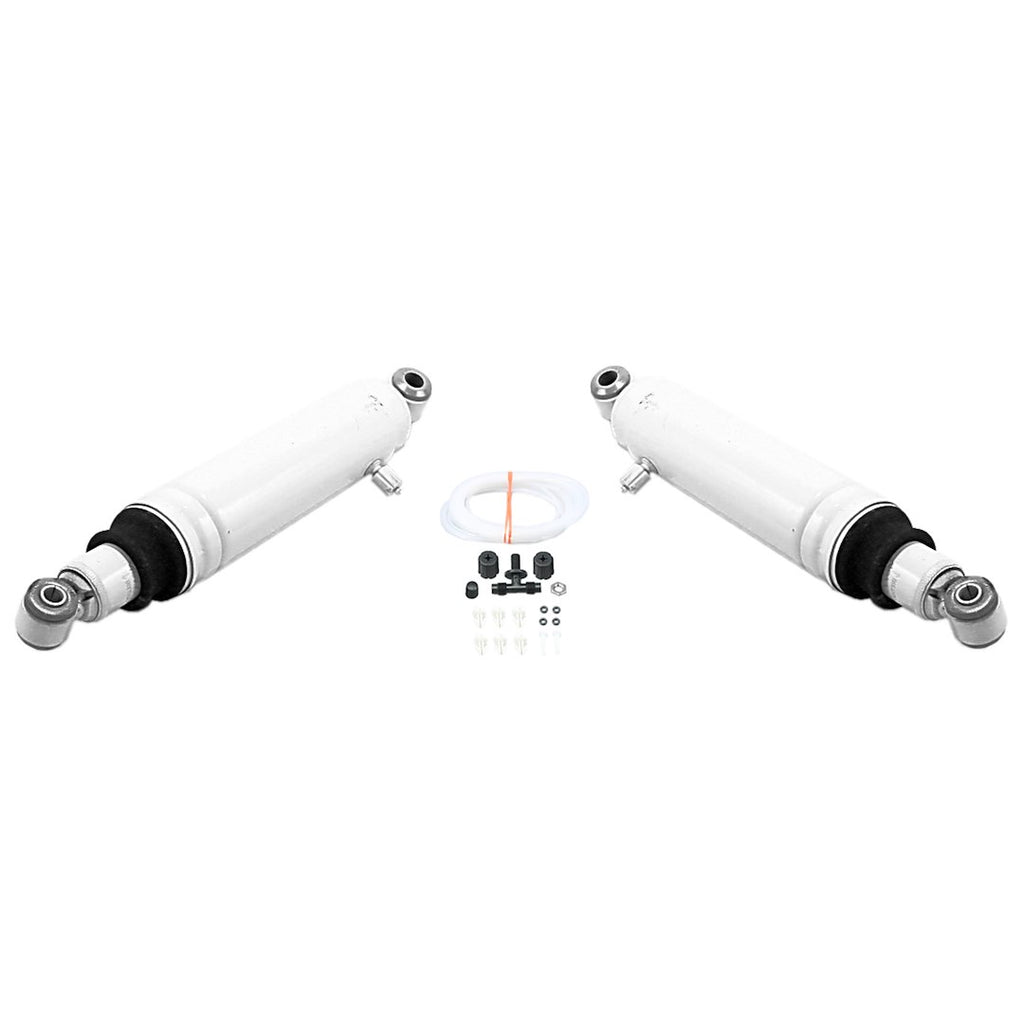

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows inflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under load. Designed to accommodate the demands of towing, it maintains a level ride height while providing a smooth driving experience.
Constructed with all-weather fluid that minimizes friction, the Max-Air shock absorber ensures a responsive ride through its full displacement valving range during both compression and extension cycles. The large volume air chamber can be inflated or deflated as needed, making it versatile for various driving conditions. Additionally, the lubricated air sleeve enhances durability and reduces friction, contributing to a longer service life.
The shock absorber is built with a sintered iron piston, which is stronger than traditional metals, further enhancing its durability. It also features a special air fitting designed to resist air leakage, ensuring consistent performance. With a monotube internal design and velocity proportional valving, the Monroe Max-Air Shock Absorber is a reliable choice for maintaining vehicle control and comfort during heavy-duty applications.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA771
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 22-7/8 Inch
- Compressed Length (IN): 14-1/8 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1985-1996 Ford F-150
- 1980-1996 Ford F-250
