Enhance vehicle stability and comfort for towing and hauling tasks.

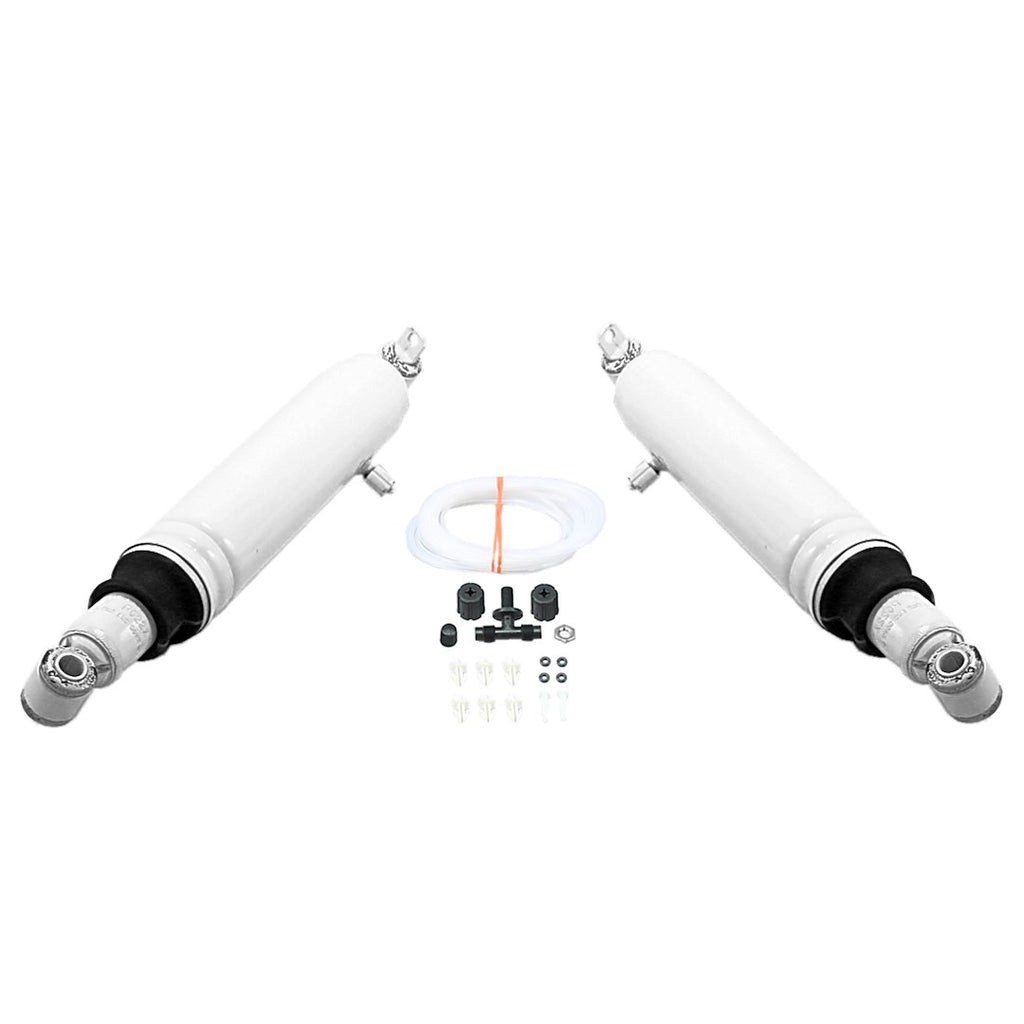

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system, allowing inflation from 20 PSI to 150 PSI to maintain optimal vehicle height under load. The design ensures that the vehicle remains level, enhancing stability and control during operation.
Constructed with all-weather fluid, the shock absorber minimizes friction and promotes smooth rod reaction, contributing to a comfortable ride. The full displaced valving range on both compression and extension cycles ensures consistent performance, while the large volume air chamber allows for easy inflation and deflation as needed. The sintered iron piston provides superior strength and durability compared to traditional materials, extending the service life of the product.
Additional features include a lubricated air sleeve that reduces friction during suspension movement and a special air fitting designed to resist air leakage. This shock absorber is vehicle specific and comes as a set of two, making it a practical choice for those looking to enhance their vehicle's suspension system.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA764
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 27-1/8 Inch
- Compressed Length (IN): 15-7/8 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1988-1999 Chevrolet C1500
- 1988-2000 Chevrolet C2500
- 1988-1999 Chevrolet K1500
- 1988-2000 Chevrolet K2500
- 1988-1999 GMC C1500
- 1988-2000 GMC C2500
- 1988-1999 GMC K1500
- 1988-2000 GMC K2500
