Enhance vehicle stability for towing and hauling with adjustable air assist.

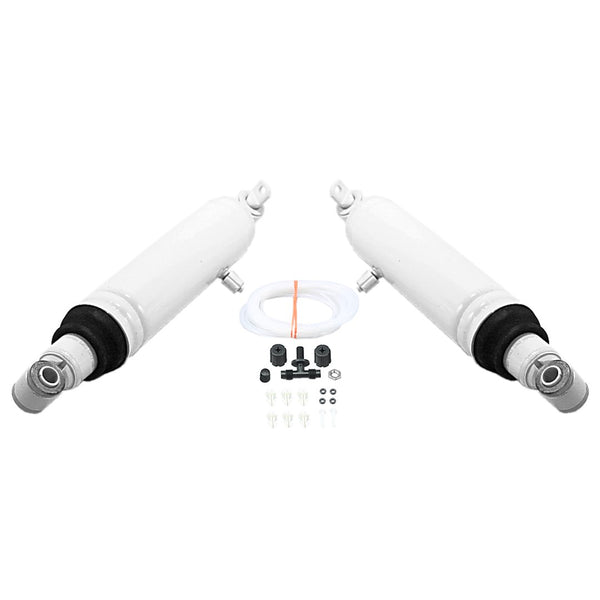

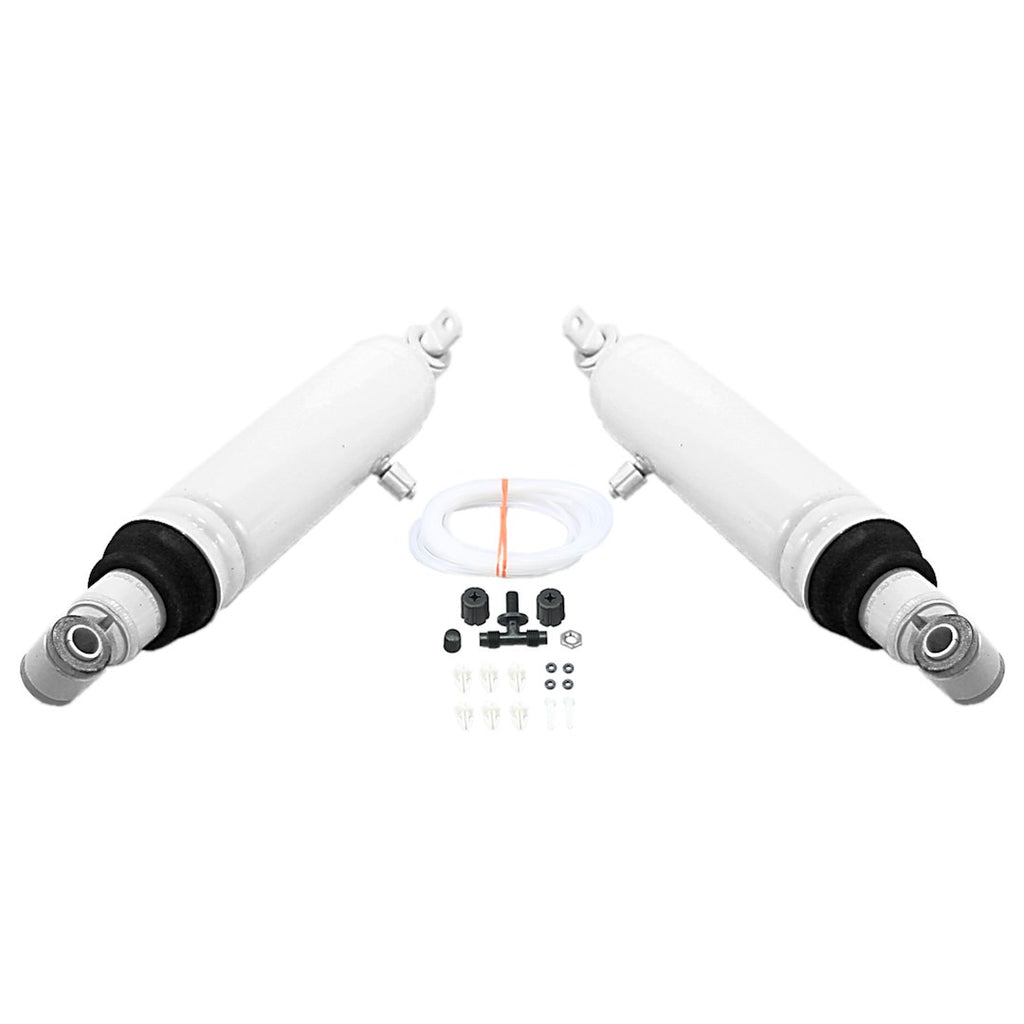

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying loads. The design incorporates a large volume air chamber that can be inflated to accommodate heavy loads while deflating for normal driving conditions.
Constructed with all-weather fluid, the shock absorber minimizes friction and promotes smooth rod reaction, enhancing ride comfort. The full displaced valving range on both compression and extension cycles ensures a consistent and comfortable driving experience. Additionally, the sintered iron piston provides superior strength compared to traditional metals, contributing to the overall durability and longevity of the product.
The Monroe Max-Air Shock Absorber is designed with a lubricated air sleeve that reduces friction, further extending service life and improving operational smoothness during suspension movement. With features such as a special air fitting to resist air leakage and a robust construction, this shock absorber is a reliable choice for maintaining vehicle performance during towing and hauling activities.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

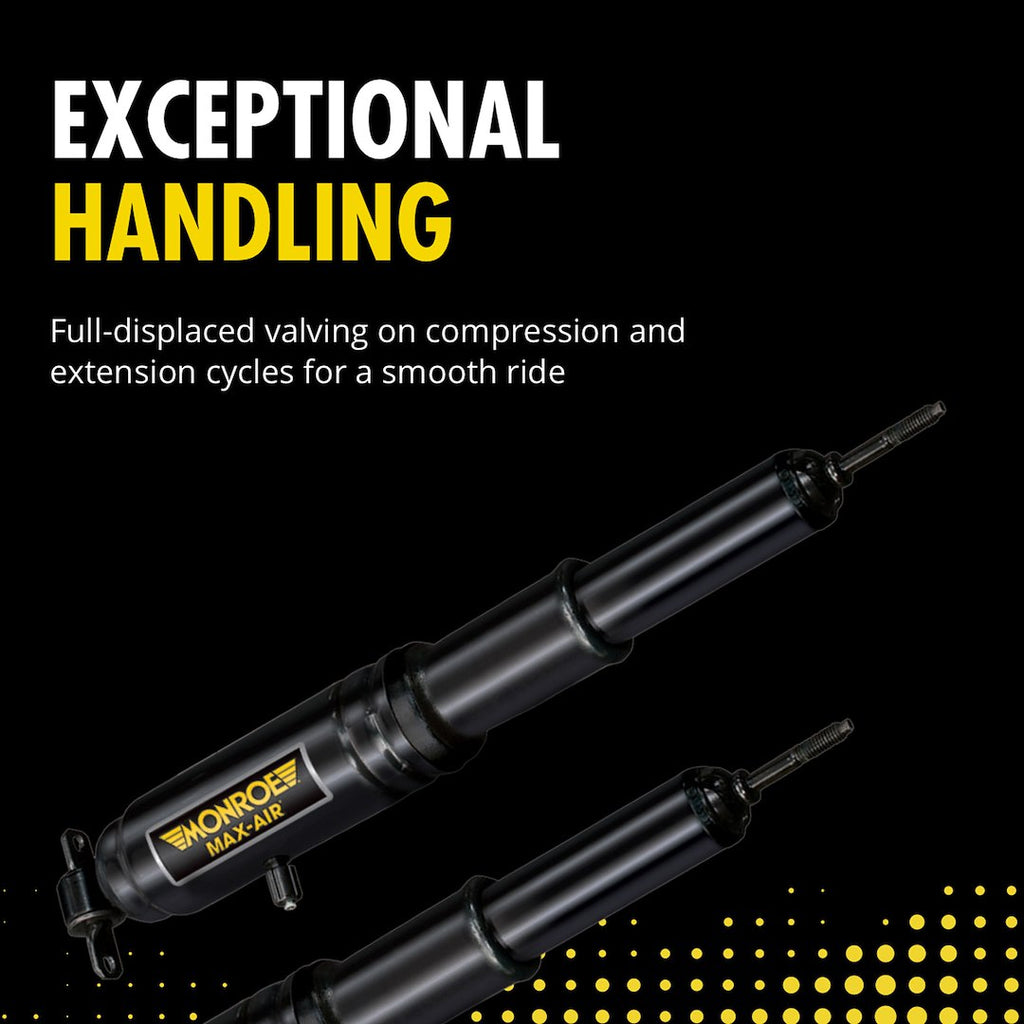

- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride

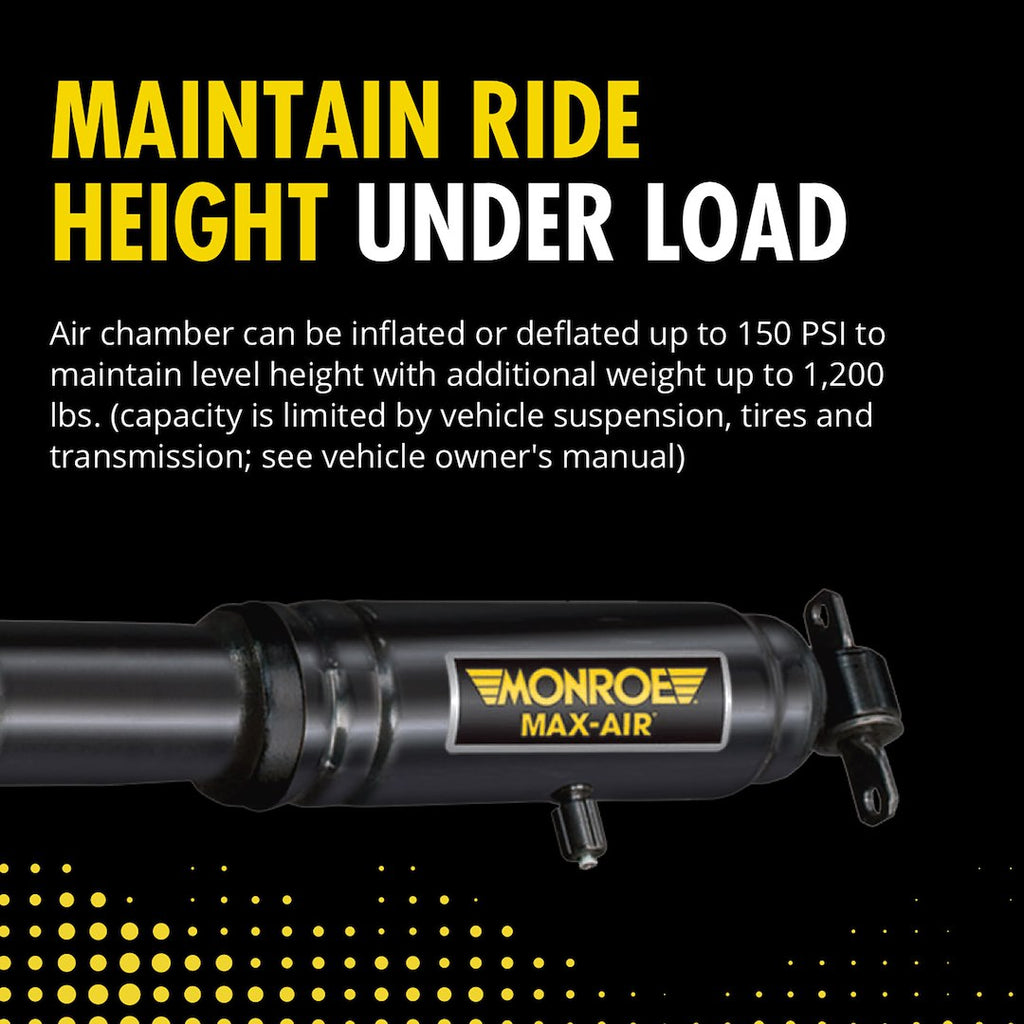

- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement

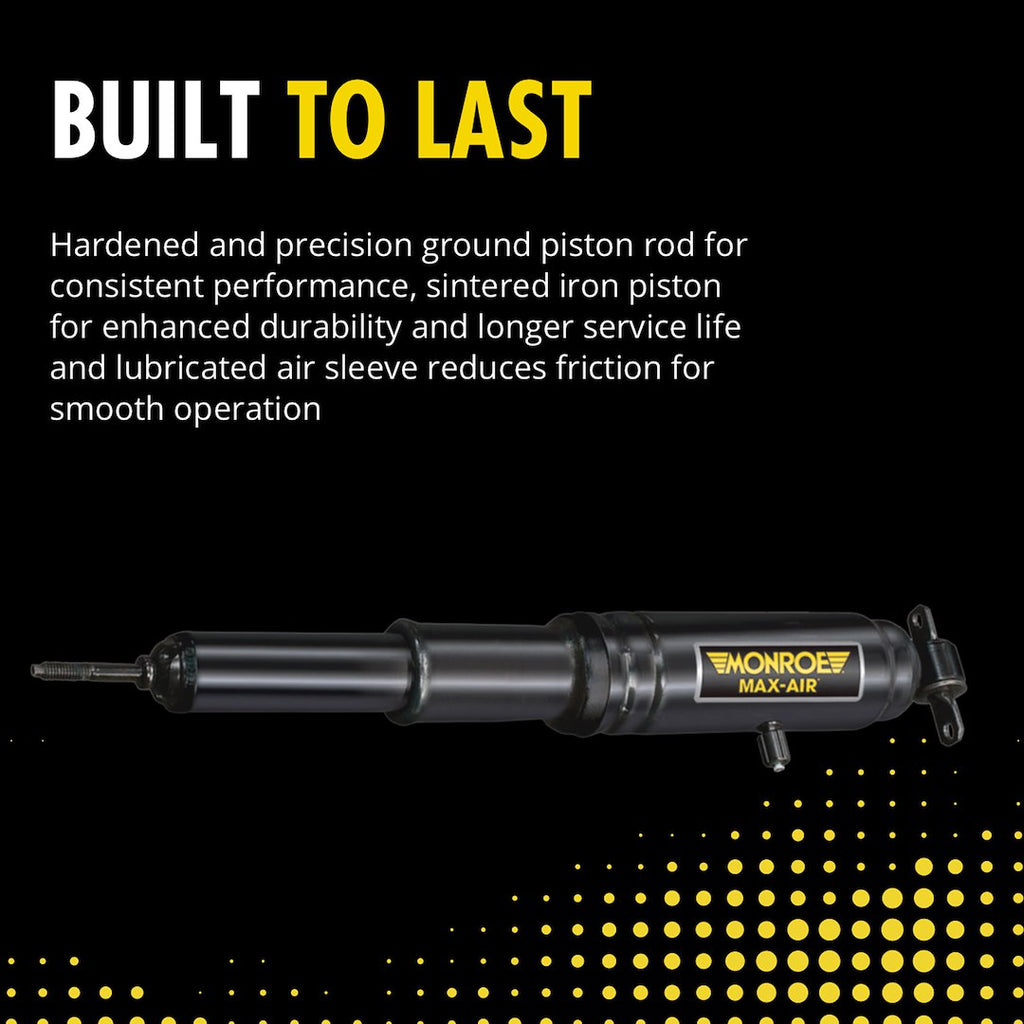

- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life

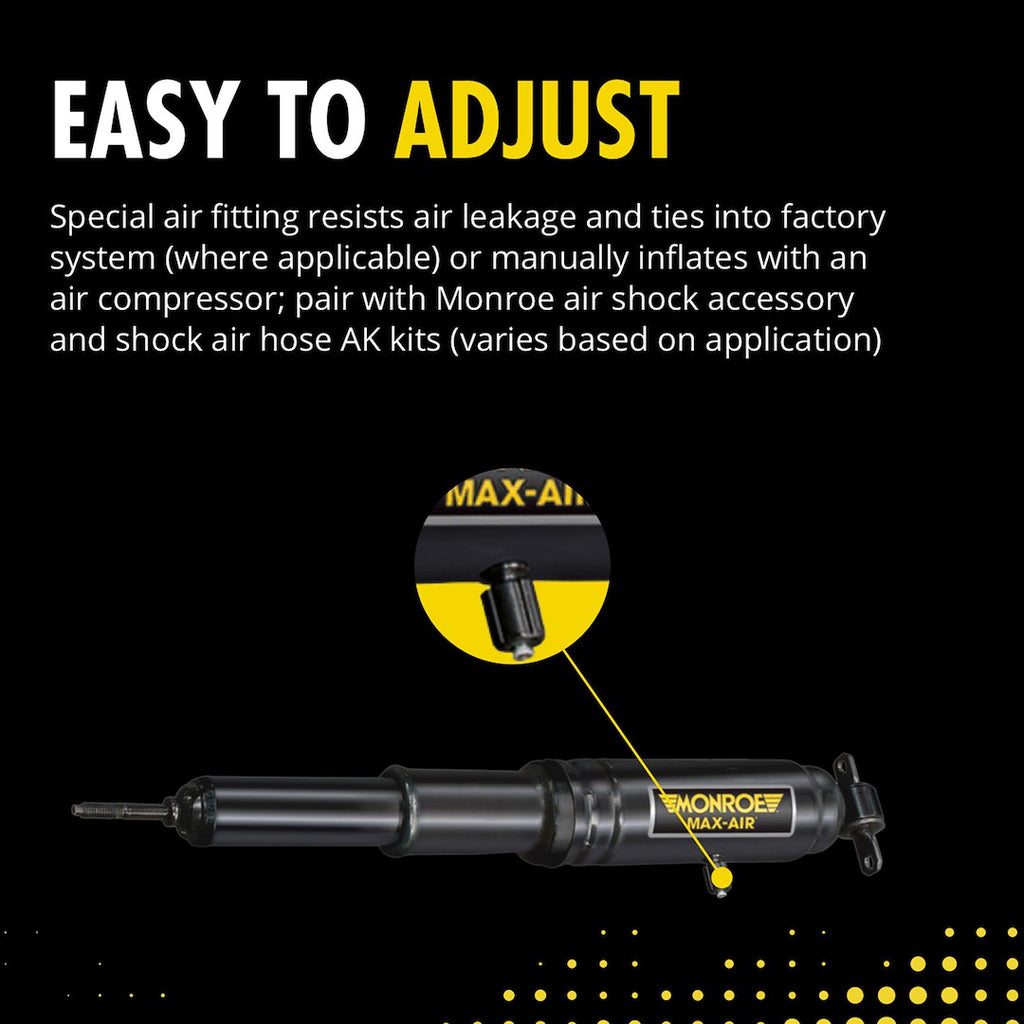

- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA759
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 24 Inch
- Compressed Length (IN): 14-5/8 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1995-2005 Chevrolet Blazer
- 1982-2004 Chevrolet S10
- 1983-1994 Chevrolet S10 Blazer
- 1992-2001 GMC Jimmy
- 1982-1990 GMC S15
- 1983-1991 GMC S15 Jimmy
- 1991-2004 GMC Sonoma
- 1991-1991 GMC Syclone
- 1992-1993 GMC Typhoon
- 1996-2000 Isuzu Hombre
- 1991-1994 Oldsmobile Bravada
- 1996-2001 Oldsmobile Bravada
Technical Documents
