Enhance towing and hauling capabilities with adjustable air support.

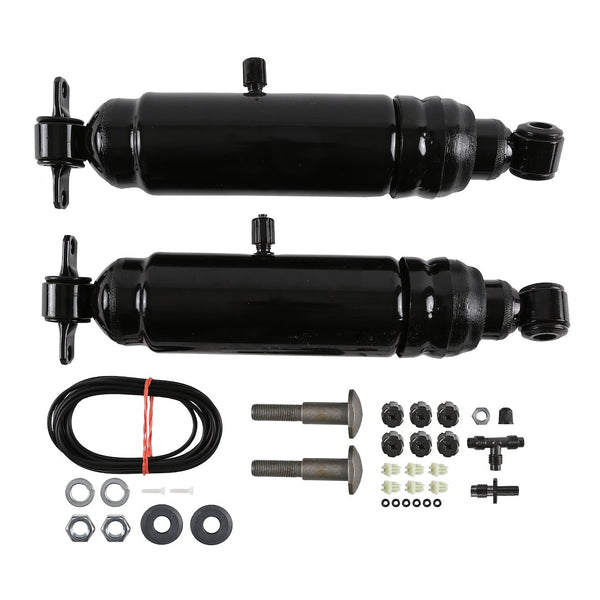

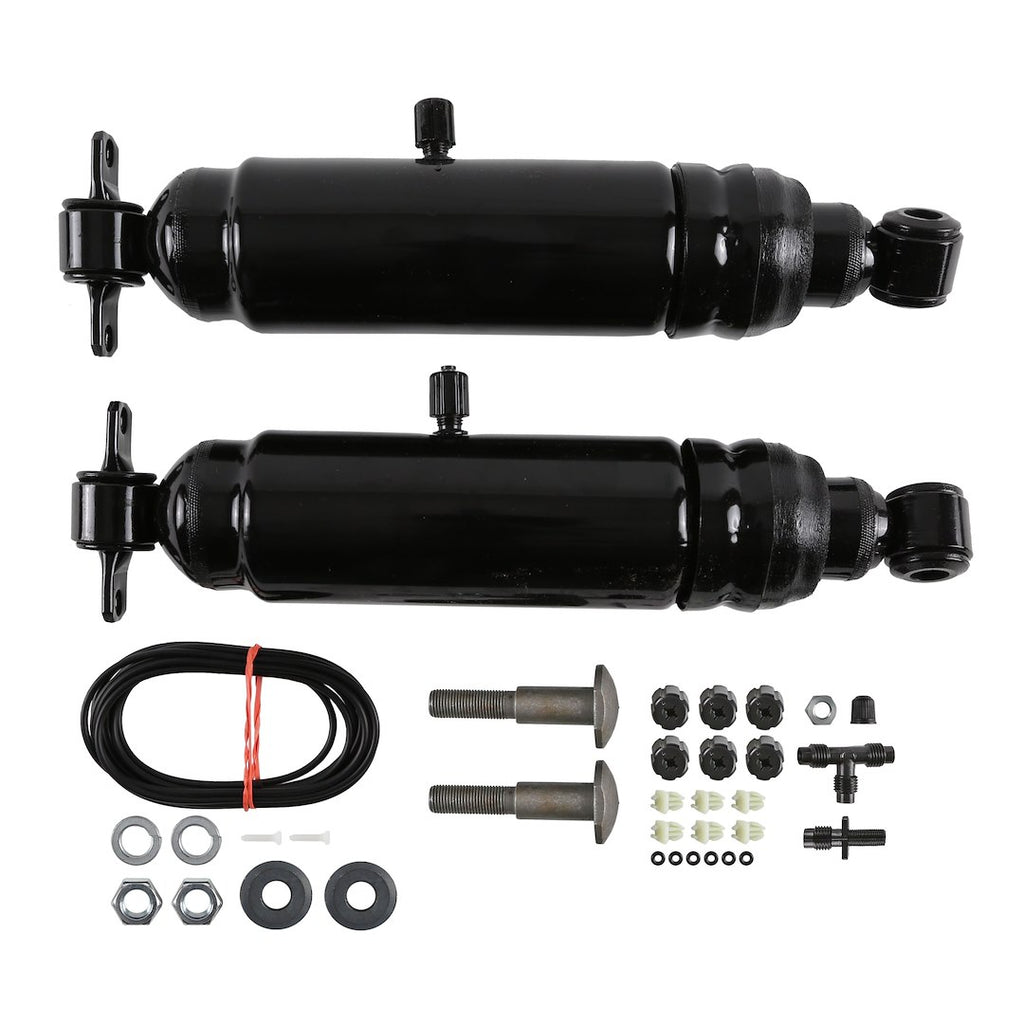

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air chamber that can be inflated or deflated from 20 PSI to 150 PSI, allowing for optimal vehicle height maintenance under varying load conditions. The design ensures that the vehicle remains level, enhancing stability and control during operation.
Constructed with all-weather fluid that minimizes friction, the Max-Air Shock Absorber provides a smooth ride through its full displaced valving range during both compression and extension cycles. The sintered iron piston offers superior strength compared to traditional metals, contributing to the overall durability and longevity of the product. Additionally, the lubricated air sleeve reduces friction, promoting smoother operation and extending service life.
This shock absorber is semi-universal and features a monotube internal design, making it suitable for a variety of applications. It includes a special air fitting that resists air leakage, ensuring reliable performance. The Max-Air Shock Absorber is sold as a set of two and is designed to be installed with minimal effort, making it a practical choice for enhancing vehicle performance.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

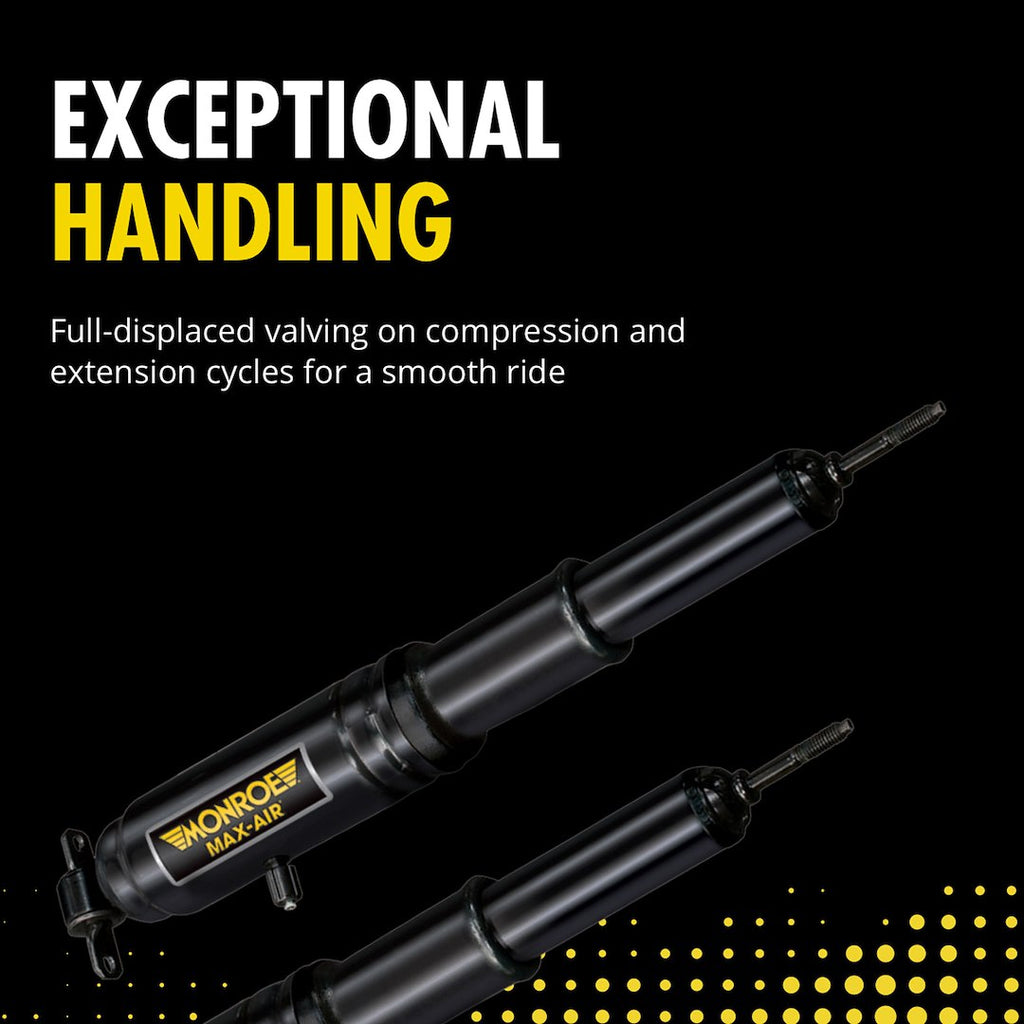

- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride

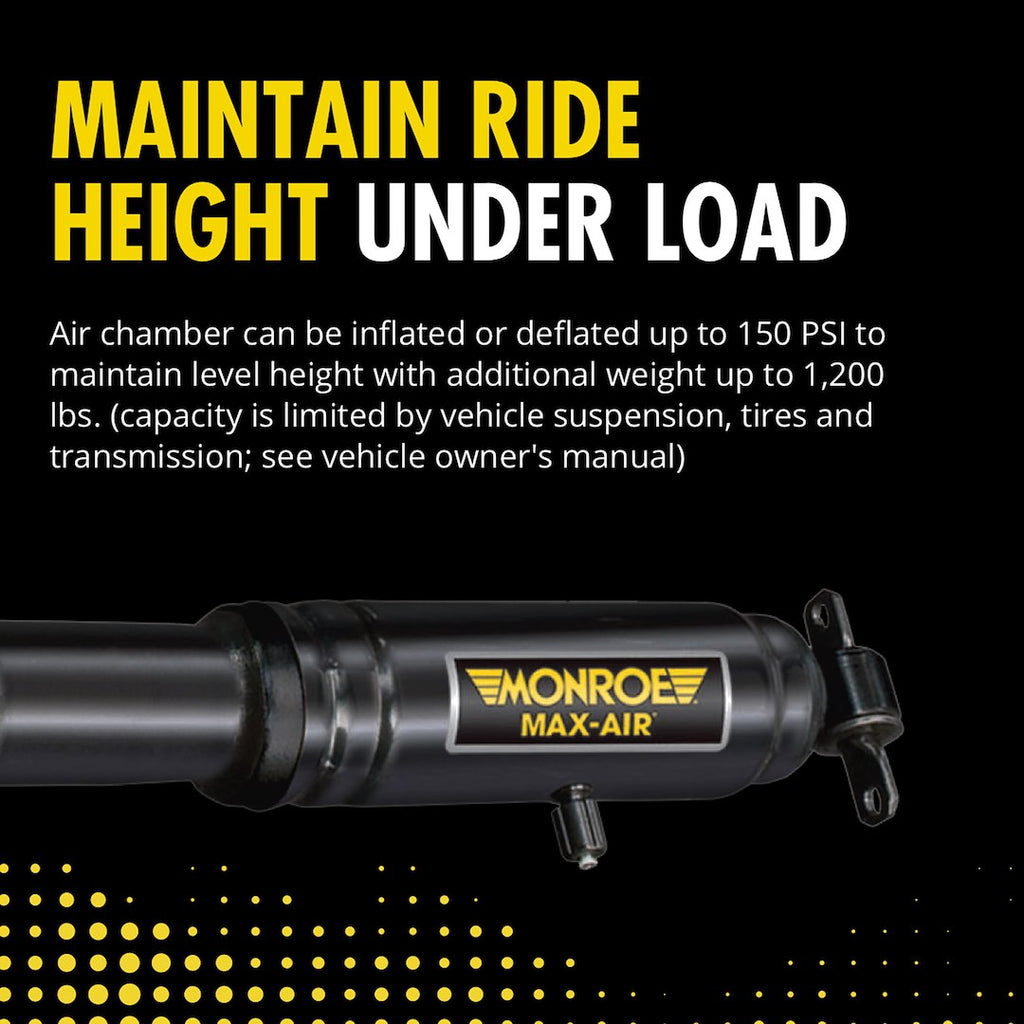

- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement

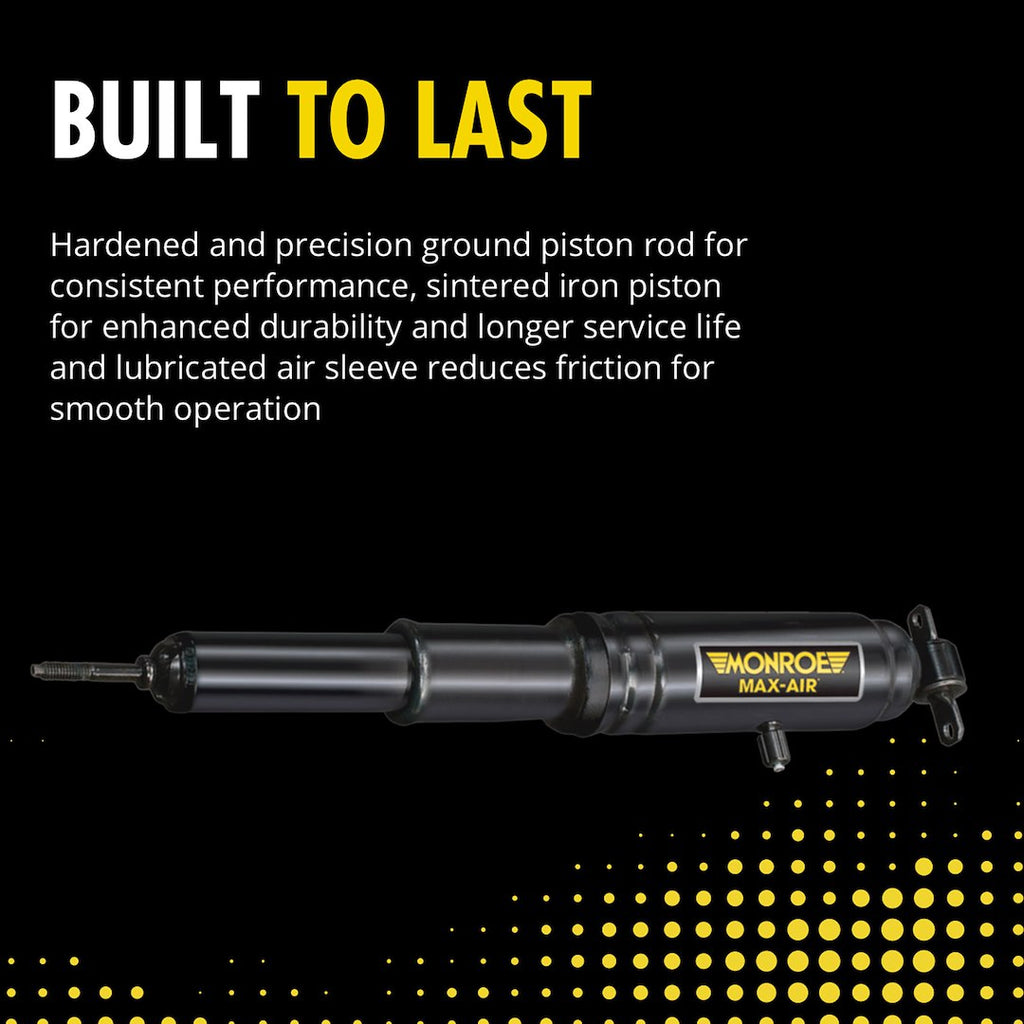

- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life

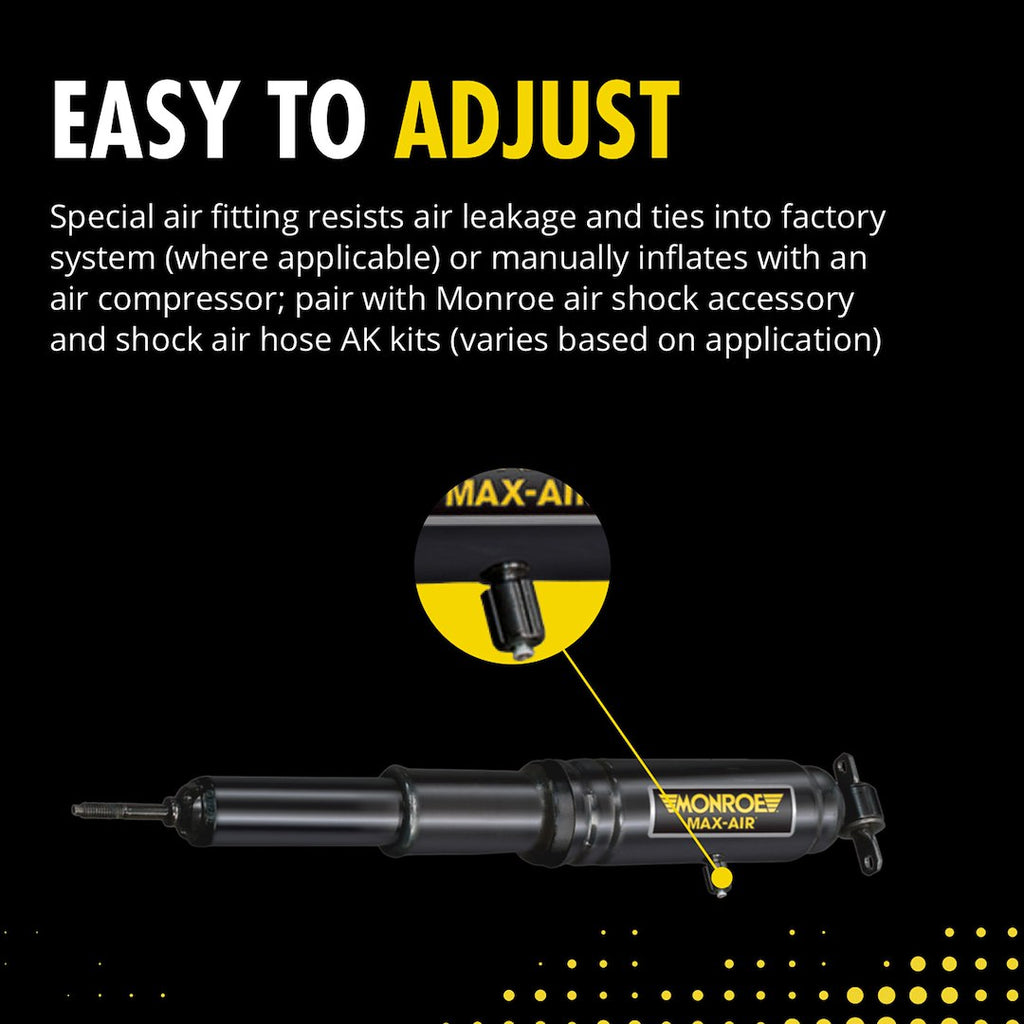

- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA751
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 20-5/8 Inch
- Compressed Length (IN): 13 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1971-1973 Buick Centurion
- 1971-1984 Buick Electra
- 1971-1985 Buick LeSabre
- 1971-1978 Buick Riviera
- 1983-1984 Cadillac Commercial Chassis
- 1977-1984 Cadillac DeVille
- 1971-1978 Cadillac Eldorado
- 1977-1986 Cadillac Fleetwood
- 1971-1975 Chevrolet Bel Air
- 1971-1981 Chevrolet Caprice
- 1971-1985 Chevrolet Impala
- 1971-1984 Oldsmobile 98
- 1971-1985 Oldsmobile Delta 88
- 1971-1978 Oldsmobile Toronado
- 1971-1981 Pontiac Bonneville
- 1971-1981 Pontiac Catalina
- 1971-1975 Pontiac Grandville
- 1983-1986 Pontiac Parisienne
