Enhance towing and hauling with adjustable air assist technology.

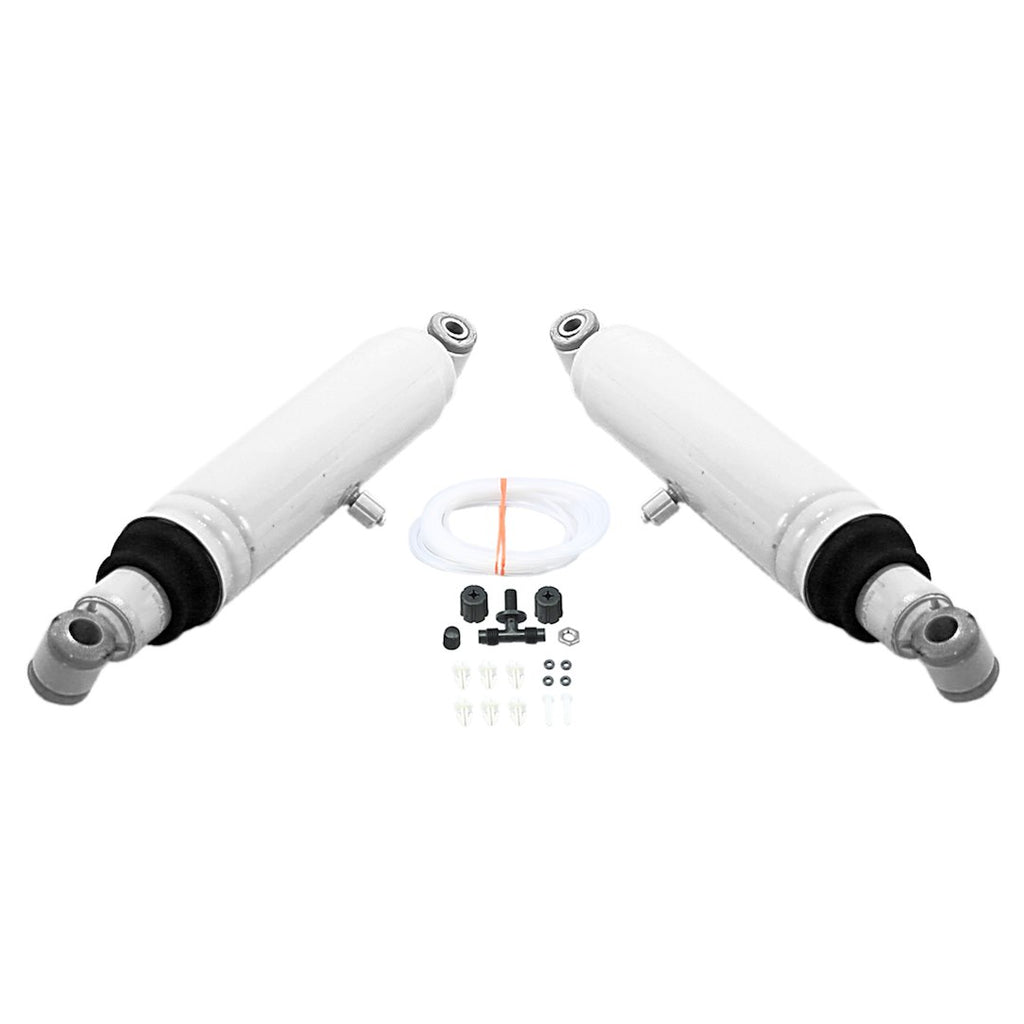

The Monroe Max-Air shock absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under load. The design is focused on maintaining a level ride, which is crucial for safe towing and hauling operations.
Constructed with a hardened and precision ground rod, the Max-Air shock absorber delivers consistent performance and longevity. The all-weather fluid used in the unit contains special modifiers that minimize friction, promoting smooth operation during suspension movement. Additionally, the large volume air chamber can be inflated to accommodate heavy loads and deflated for normal driving conditions, enhancing versatility.
The shock absorber is built with a sintered iron piston, which is stronger than traditional metals, providing enhanced durability. The full displaced valving range on both compression and extension cycles ensures a comfortable ride, while the lubricated air sleeve reduces friction for extended service life. With a vehicle-specific design and included hardware, the Monroe Max-Air shock absorber is a reliable choice for those needing robust suspension support.
Features
- Hardened And Precision Ground Rod For Consistent Performance And Long Service Life
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA733
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 26-1/4 Inch
- Compressed Length (IN): 15-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1975-1979 Dodge D100
- 1984-1989 Dodge D100
- 1972-1974 Dodge D100 Pickup
- 1977-1993 Dodge D150
- 1975-1980 Dodge D200
- 1972-1974 Dodge D200 Pickup
- 1981-1993 Dodge D250
- 1974-1993 Dodge Ramcharger
- 1975-1977 Dodge W100
- 1984-1989 Dodge W100
- 1972-1974 Dodge W100 Pickup
- 1977-1993 Dodge W150
- 1975-1980 Dodge W200
- 1972-1974 Dodge W200 Pickup
- 1981-1993 Dodge W250
- 1974-1981 Plymouth Trailduster
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
