Enhance vehicle stability for towing and hauling with adjustable air assist.

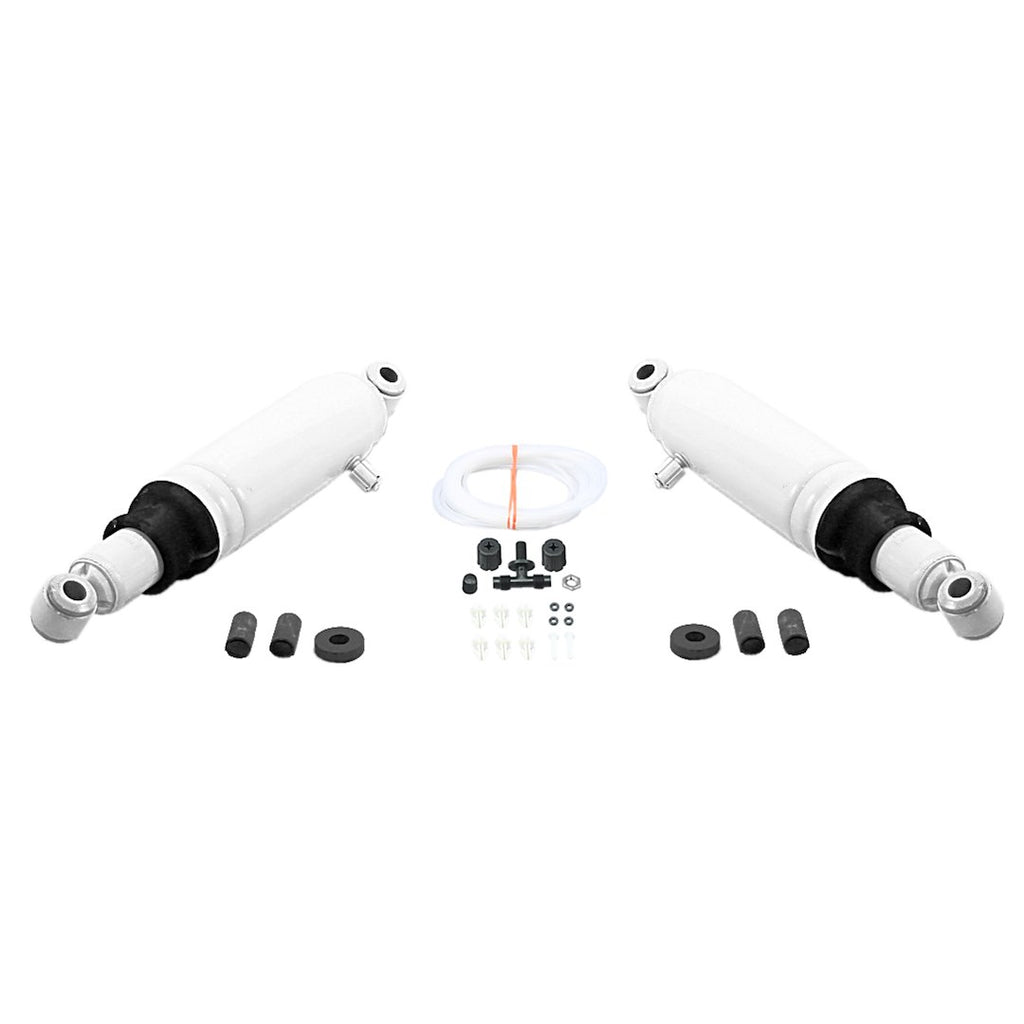

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows inflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under load. Designed to accommodate the demands of towing, it maintains a level ride height while providing a smooth driving experience.
Constructed with all-weather fluid that minimizes friction, the Max-Air Shock Absorber ensures a responsive ride through its full displacement valving range. The large volume air chamber can be inflated or deflated as needed, adapting to varying load conditions. Additionally, the sintered iron piston enhances durability, making it a reliable choice for heavy-duty applications.
The shock absorber's design includes a lubricated air sleeve that reduces friction, contributing to a longer service life and smoother operation during suspension movement. With features such as velocity proportional valving and a robust steel body, the Monroe Max-Air Shock Absorber is a practical solution for maintaining vehicle performance while towing or hauling.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

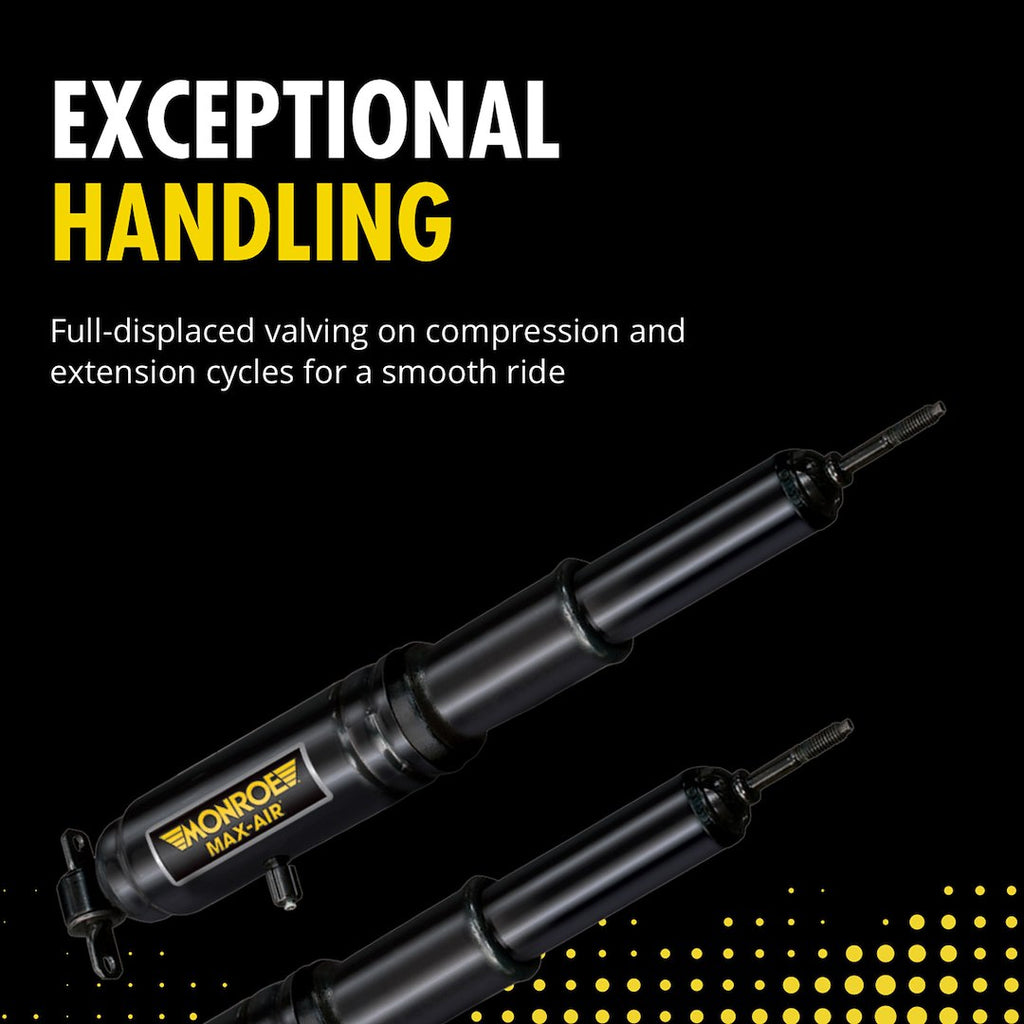

- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride

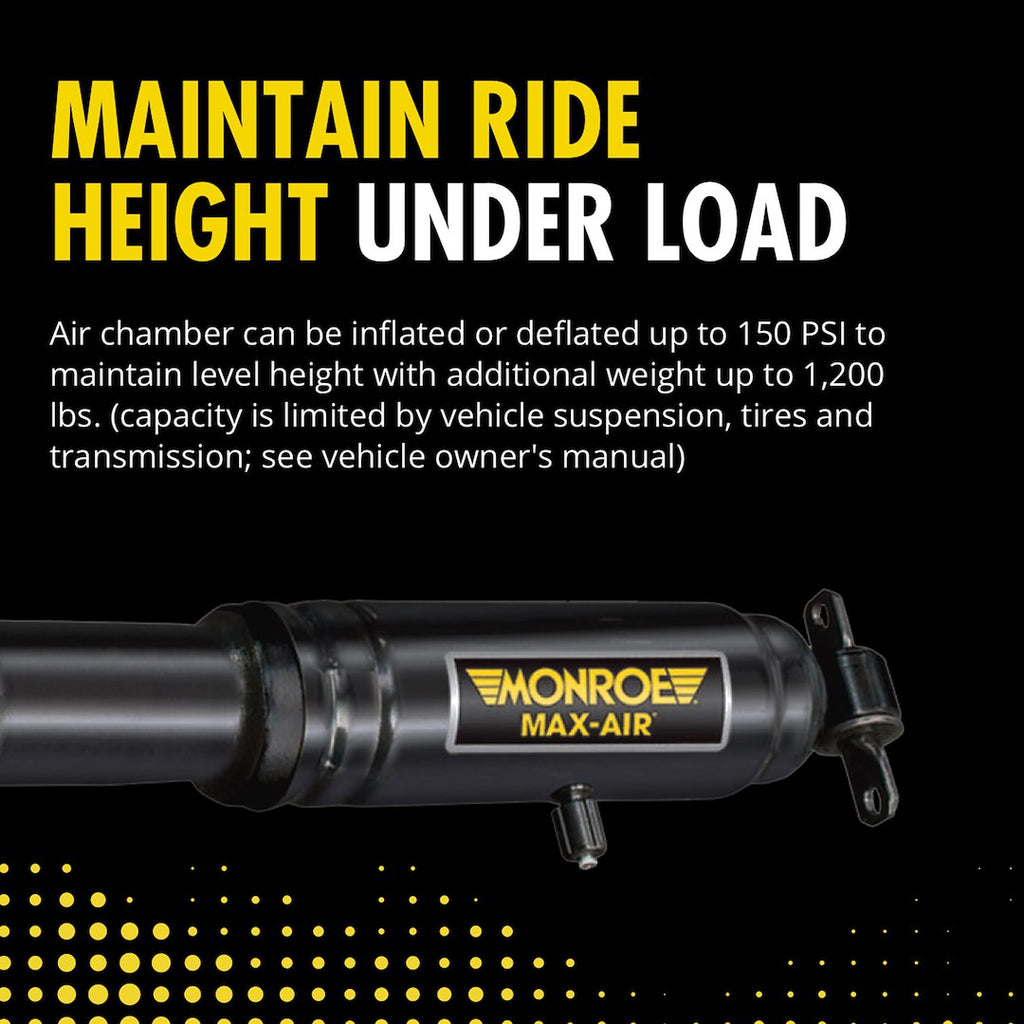

- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement

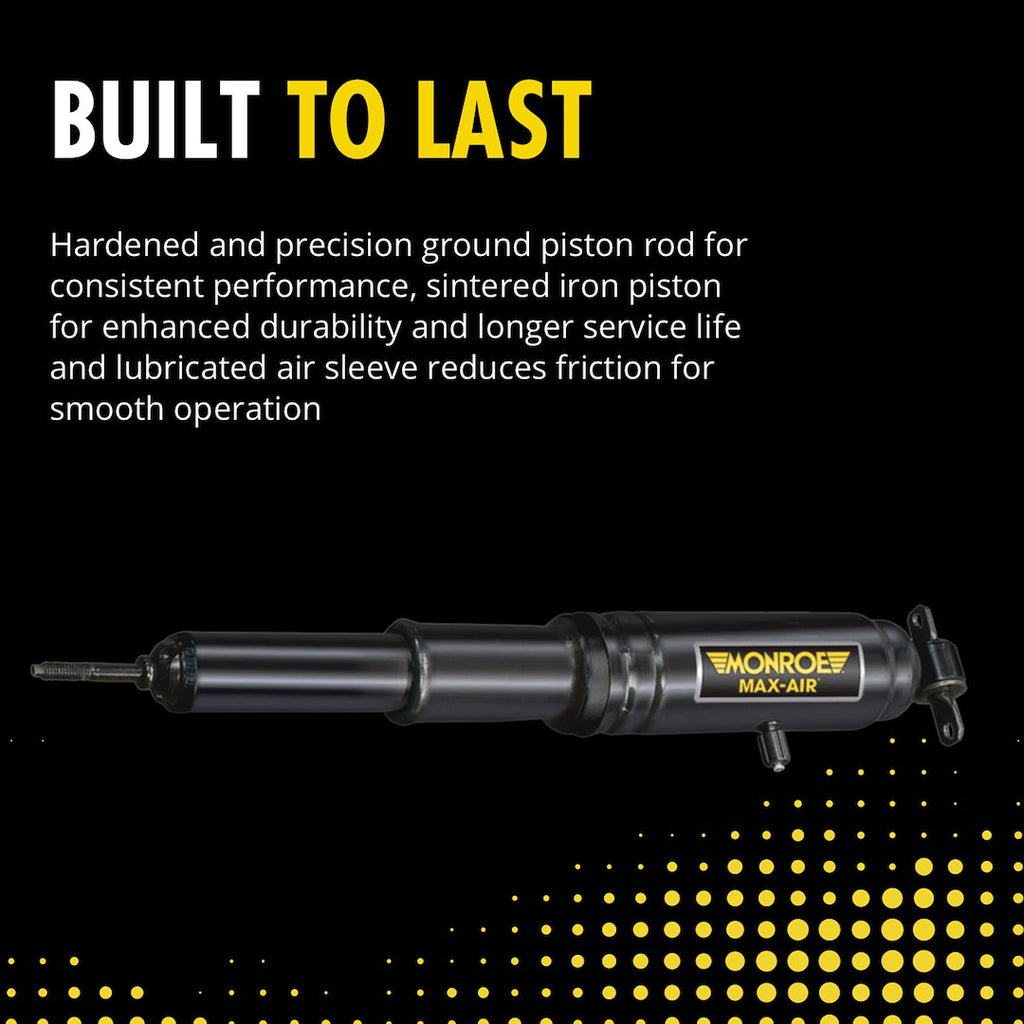

- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life

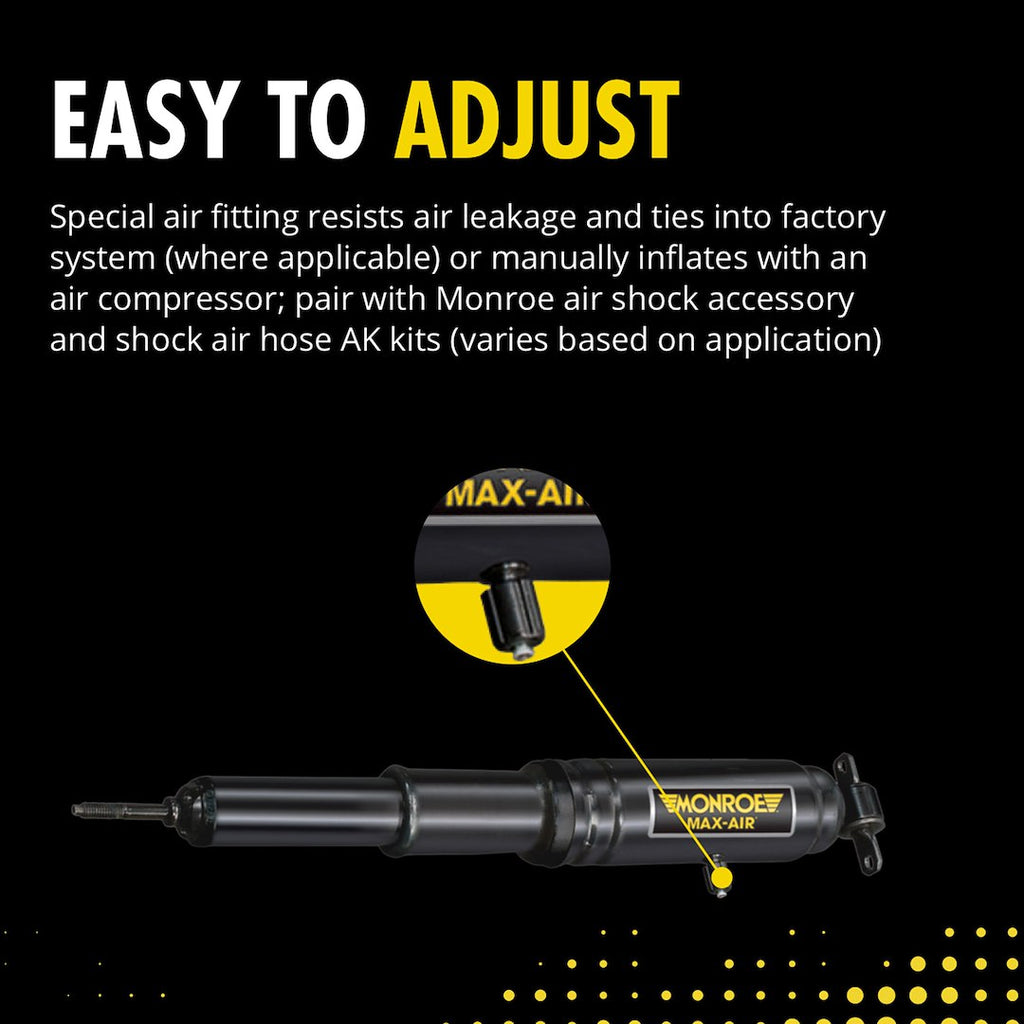

- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA728
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 23-3/8 Inch
- Compressed Length (IN): 14-1/4 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1965-1970 Cadillac Calais
- 1965-1970 Cadillac DeVille
- 1965-1966 Cadillac Eldorado
- 1966-1970 Cadillac Fleetwood
- 1981-1995 Isuzu Pickup
- 1971-1987 Toyota Land Cruiser
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
