Enhance vehicle stability for towing and hauling with adjustable air assist.

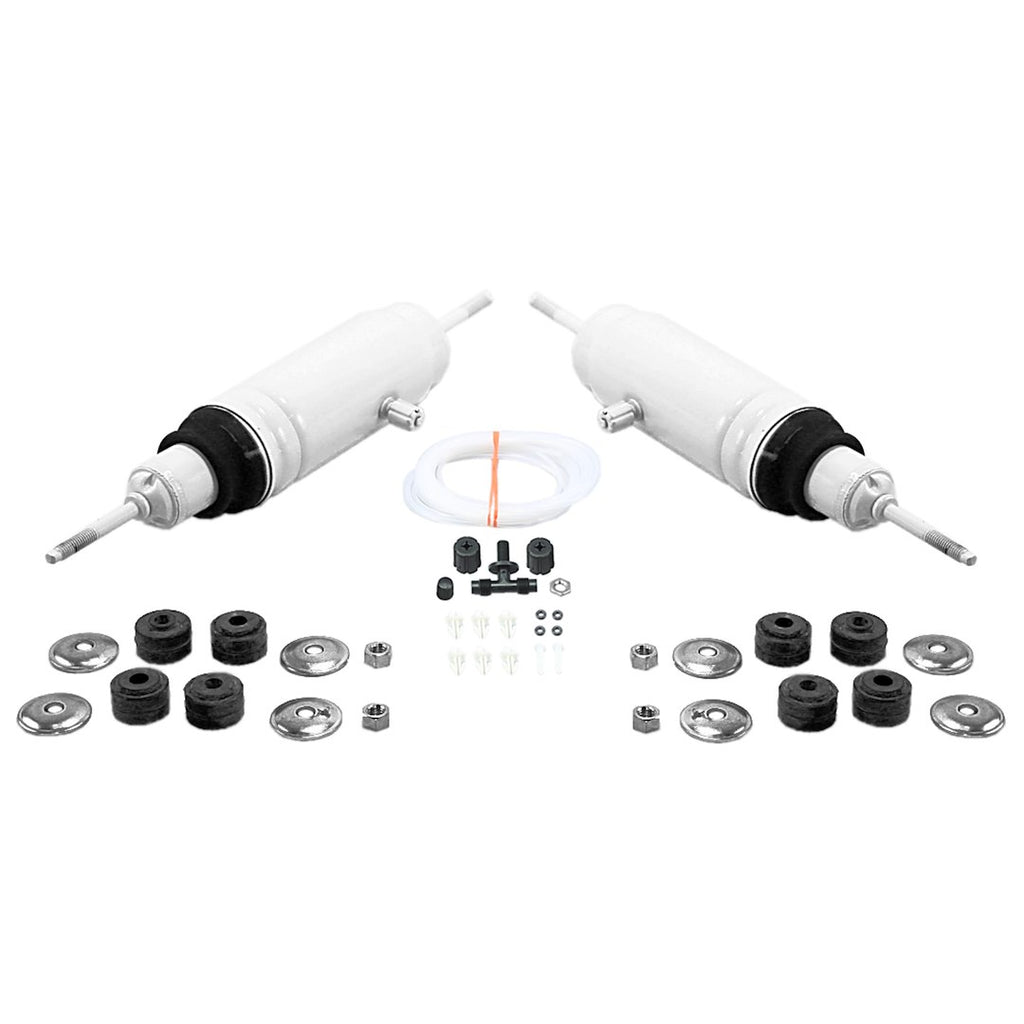

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying load conditions. The design is focused on maintaining a level vehicle height, which is crucial for safe towing and hauling operations.
Constructed with all-weather fluid that minimizes friction, the Max-Air Shock Absorber provides a smooth ride by utilizing full displaced valving for both compression and extension cycles. The large volume air chamber can be inflated to accommodate heavy loads and deflated for normal driving, enhancing versatility. Additionally, the lubricated air sleeve reduces friction, contributing to a longer service life and improved performance during suspension movement.
Durability is a key feature of the Monroe Max-Air Shock Absorber, with a sintered iron piston that is stronger than traditional metals, ensuring longevity and reliability. The shock absorber also includes a special air fitting designed to resist air leakage, further enhancing its performance. This product is sold as a set of two, making it suitable for semi-universal applications, and includes necessary hardware for installation.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA705
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 17-3/8 Inch
- Compressed Length (IN): 10-7/8 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Stud
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1975-1980 American Motors Pacer
- 1958-1958 Edsel Bermuda
- 1958-1958 Edsel Citation
- 1958-1958 Edsel Corsair
- 1958-1958 Edsel Pacer
- 1958-1958 Edsel Ranger
- 1958-1958 Edsel Roundup
- 1958-1958 Edsel Villager
- 1957-1957 Ford Custom
- 1957-1958 Ford Custom 300
- 1957-1958 Ford Fairlane
- 1966-1970 Ford Fairlane
- 1960-1970 Ford Falcon
- 1961-1965 Ford Falcon Sedan Delivery
- 1965-1973 Ford Mustang
- 1960-1965 Ford Ranchero
- 1961-1963 Ford Thunderbird
- 1968-1971 Ford Torino
- 1979-1983 Mazda GLC
- 1960-1969 Mercury Comet
- 1967-1973 Mercury Cougar
- 1968-1971 Mercury Cyclone
- 1962-1963 Mercury Meteor
- 1968-1971 Mercury Montego
