Enhance vehicle stability for towing and hauling with adjustable air assist.

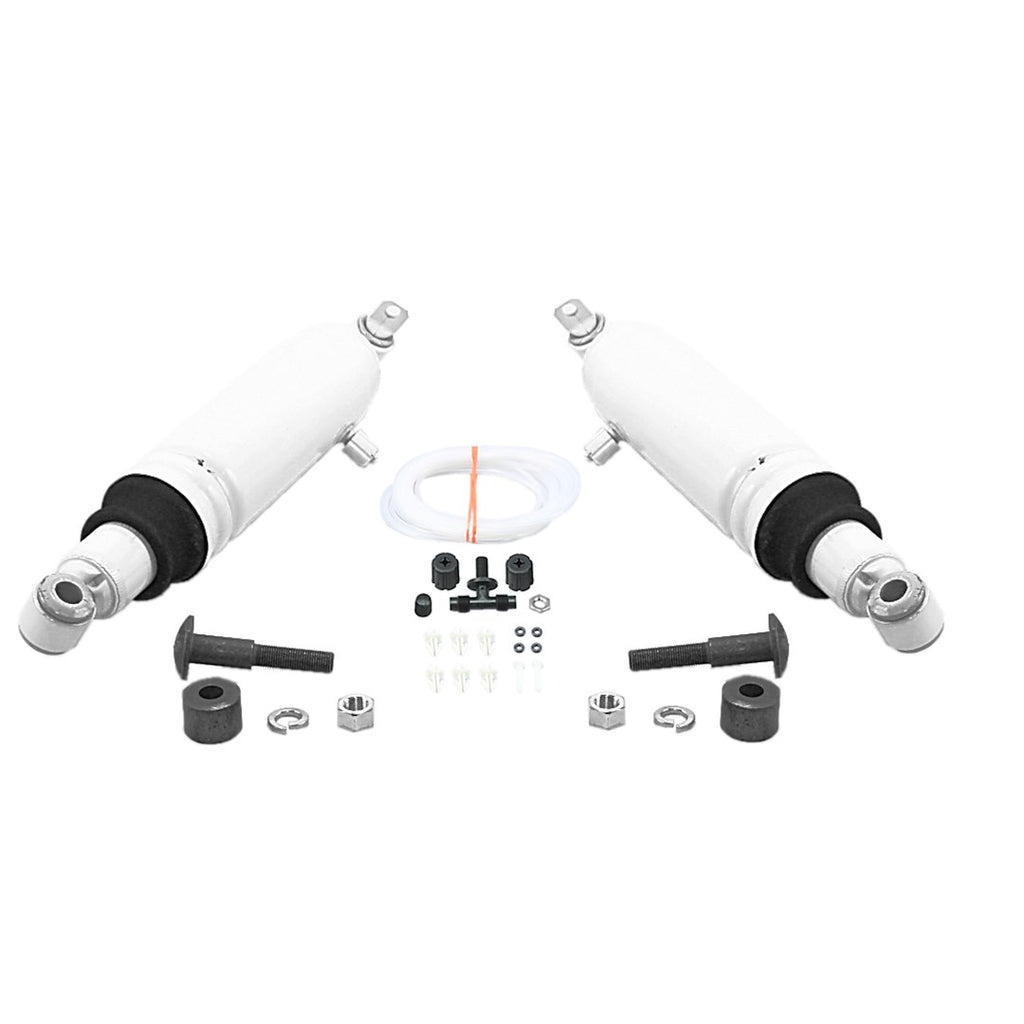

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying load conditions. The design is focused on maintaining a level vehicle height, which is crucial for safe towing and hauling operations.
Constructed with all-weather fluid that minimizes friction, the Max-Air Shock Absorber ensures smooth rod reaction and performance across diverse driving conditions. Its full displaced valving range provides a comfortable ride by effectively managing both compression and extension cycles. The large volume air chamber is capable of inflating to 150 PSI when loaded, while also allowing for deflation during normal driving.
Durability is a key feature of the Max-Air design, with a sintered iron piston that surpasses traditional metals in strength, enhancing the overall service life of the shock absorber. Additionally, the lubricated air sleeve reduces friction, contributing to smoother operation during suspension movement. The shock absorber also includes a special air fitting designed to resist air leakage, ensuring consistent performance over time.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA702
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 20-3/4 Inch
- Compressed Length (IN): 12-5/8 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1964-1967 Buick Skylark
- 1964-1967 Buick Special
- 1965-1970 Chevrolet Bel Air
- 1965-1970 Chevrolet Biscayne
- 1966-1970 Chevrolet Caprice
- 1964-1967 Chevrolet Chevelle
- 1964-1967 Chevrolet El Camino
- 1964-1971 Oldsmobile 442
- 1964-1967 Oldsmobile Cutlass
- 1967-1967 Oldsmobile Cutlass Supreme
- 1964-1967 Oldsmobile F85
- 1963-1964 Pontiac Bonneville
- 1963-1964 Pontiac Catalina
- 1963-1964 Pontiac Grand Prix
- 1964-1967 Pontiac GTO
- 1963-1964 Pontiac Star Chief
- 1964-1967 Pontiac Tempest
