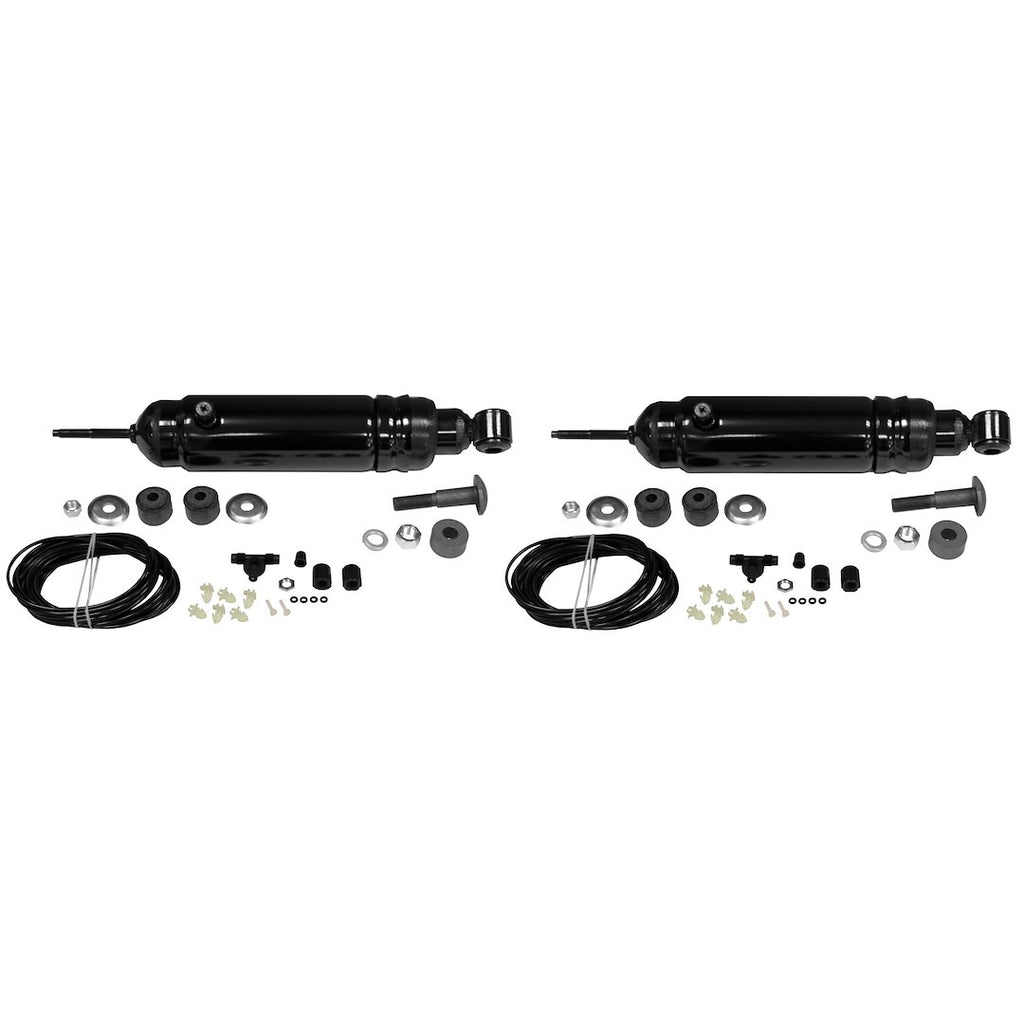

Monroe Max-Air Shock Absorber (MPN: MA700)

Enhance vehicle stability for towing and hauling with adjustable air assist.

The Monroe Max-Air Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This hydraulic shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying loads. The design incorporates a large volume air chamber that can be inflated to accommodate heavy loads and deflated for normal driving conditions, enhancing overall ride comfort.

Constructed with all-weather fluid that minimizes friction, the Max-Air Shock Absorber ensures smooth rod reaction and performance in diverse conditions. Its full displaced valving range on both compression and extension cycles contributes to a comfortable ride, while the lubricated air sleeve reduces friction, promoting a longer service life. The sintered iron piston offers superior strength compared to traditional metals, enhancing durability and reliability.

This shock absorber set includes two units, designed with a monotube internal structure and velocity proportional valving for responsive handling. The robust steel body and iron rod are built to withstand the demands of towing and hauling, while the special air fitting prevents air leakage, ensuring consistent performance. The Monroe Max-Air Shock Absorber is a practical solution for maintaining vehicle stability and comfort during heavy-duty applications.

Features

• All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
• Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
• Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
• Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
• Special Air Fitting To Resists Air Leakage

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: MA700
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 21-3/8 Inch
• Compressed Length (IN): 12-3/4 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Velocity Proportional Valving
• Rod Material: Iron
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1958-1969 American Motors Ambassador
• 1980-1988 American Motors Eagle
• 1965-1967 American Motors Marlin
• 1958-1960 American Motors Rambler
• 1969-1969 American Motors Rambler
• 1958-1961 American Motors Rebel
• 1966-1969 American Motors Rebel
• 1959-1960 Buick Invicta
• 1959-1960 Buick LeSabre
• 1953-1954 Cadillac Eldorado
• 1952-1954 Cadillac Series 60 Fleetwood
• 1952-1954 Cadillac Series 62
• 1952-1954 Cadillac Series 75 Fleetwood
• 1953-1957 Chevrolet Bel Air
• 1949-1952 Chevrolet Fleetline
• 1949-1952 Chevrolet Fleetline Truck
• 1953-1957 Chevrolet One-Fifty Series
• 1953-1957 Chevrolet Two-Ten Series
• 1965-1972 Ford Custom
• 1965-1977 Ford Custom 500
• 1965-1967 Ford Galaxie
• 1965-1974 Ford Galaxie 500
• 1967-1978 Ford LTD
• 1967-1971 Ford Thunderbird
• 1970-1979 Lincoln Continental
• 1968-1971 Lincoln Mark III
• 1965-1974 Mercury Colony Park
• 1965-1967 Mercury Cyclone
• 1975-1978 Mercury Grand Marquis
• 1965-1966 Mercury Marauder
• 1969-1970 Mercury Marauder
• 1967-1978 Mercury Marquis
• 1965-1974 Mercury Monterey
• 1966-1968 Mercury Park Lane
• 1956-1957 Nash Rambler

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
