Monroe Max-Air Hydraulic Shock Absorber (MPN: MA805)

Enhance vehicle stability with adjustable air assist technology.

The Monroe Max-Air Hydraulic Shock Absorber is engineered for vehicles that frequently carry heavy loads or tow trailers. This shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying load conditions. The design is focused on maintaining a level vehicle height, which is crucial for safe towing and hauling operations.

Constructed with all-weather fluid that minimizes friction, the Max-Air shock absorber ensures smooth rod reaction and performance in diverse conditions. Its full displaced valving range provides a comfortable ride by effectively managing both compression and extension cycles. The large volume air chamber is capable of inflating to 150 PSI when loaded, while also allowing for deflation during normal driving, enhancing versatility and comfort.

Durability is a key feature of the Monroe Max-Air, with a sintered iron piston that surpasses traditional materials in strength and longevity. The lubricated air sleeve further reduces friction, contributing to a longer service life and smoother operation during suspension movement. Additionally, the shock absorber includes a special air fitting designed to resist air leakage, ensuring consistent performance over time.

Features

• All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

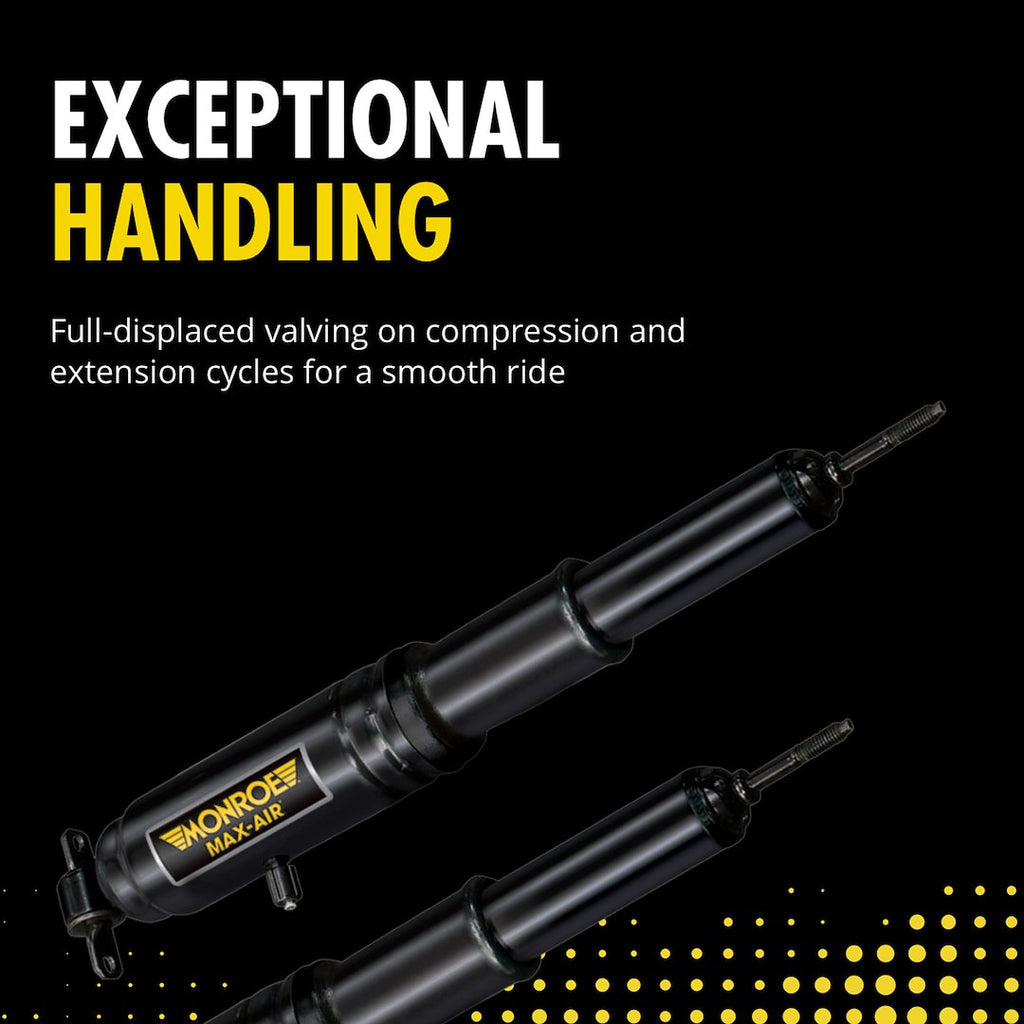

• Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride

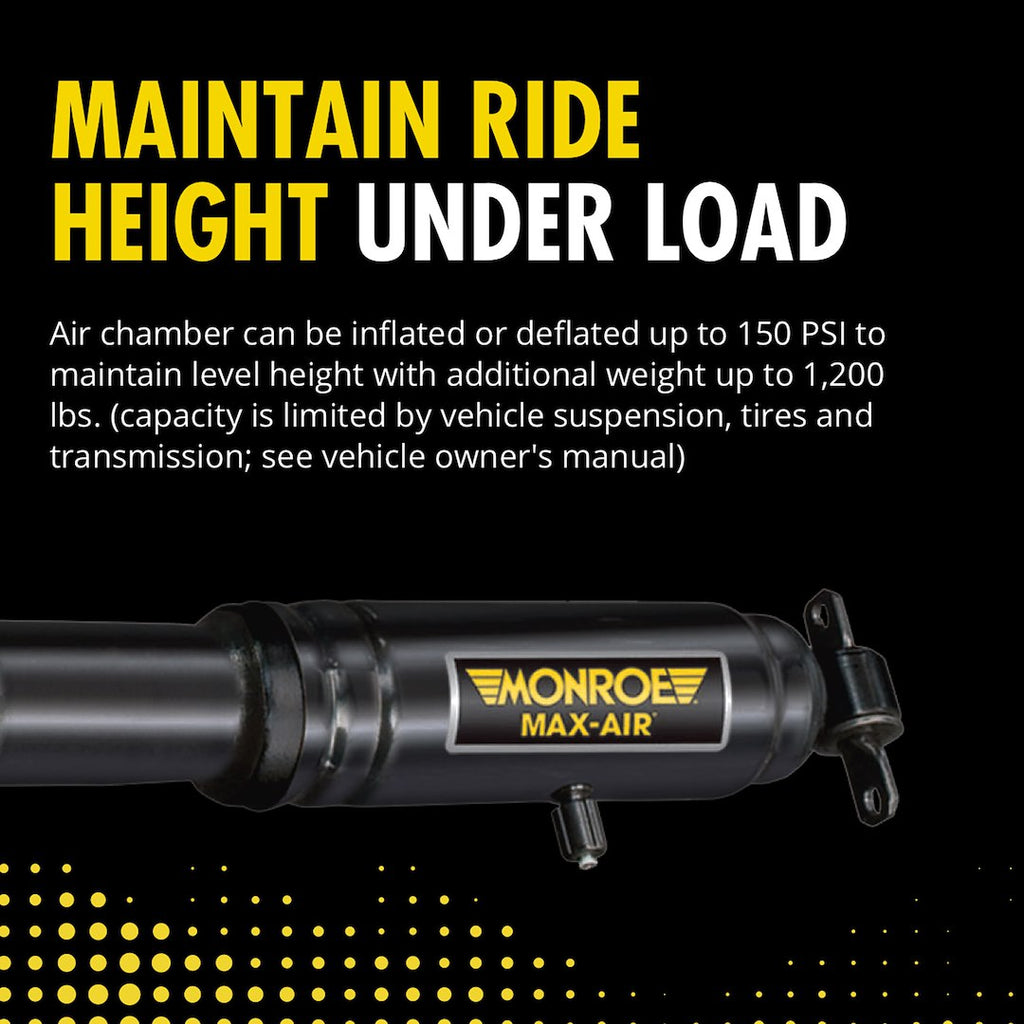

• Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
• Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement

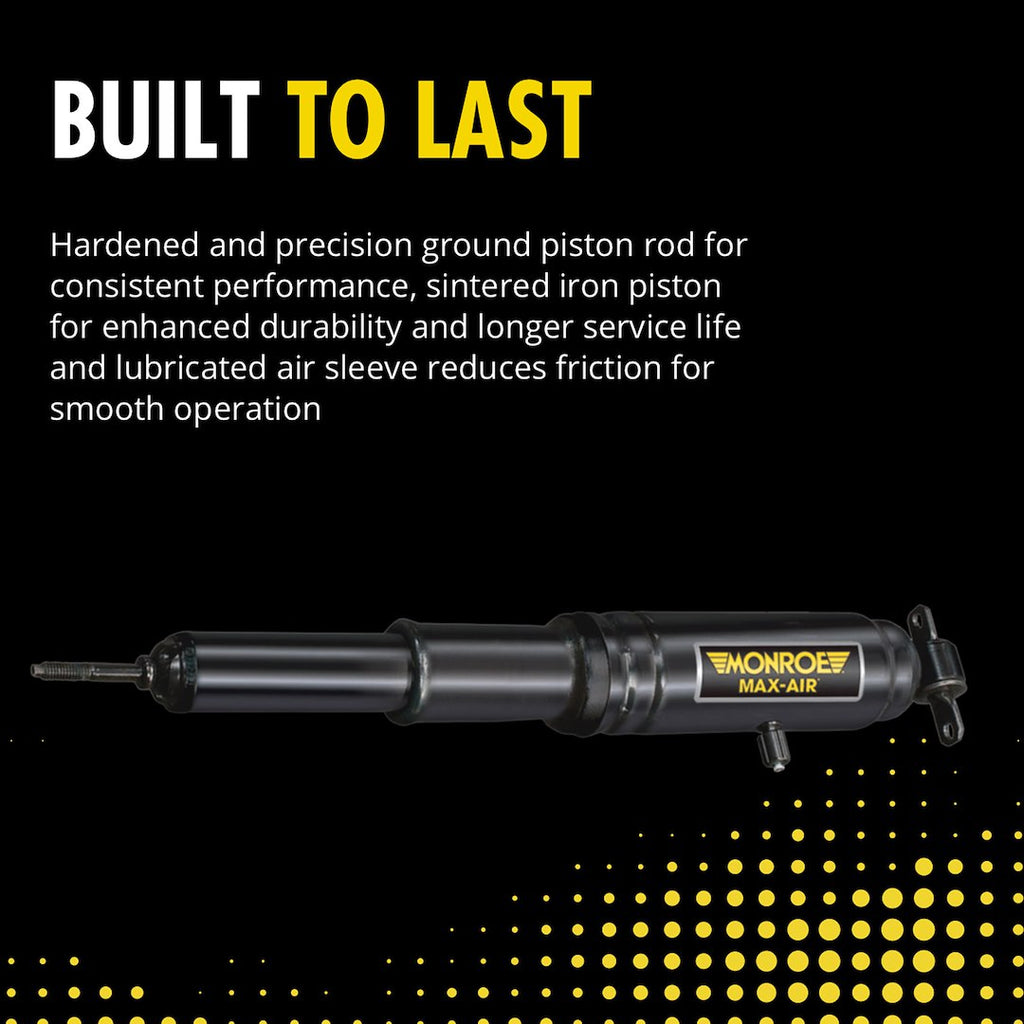

• Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life

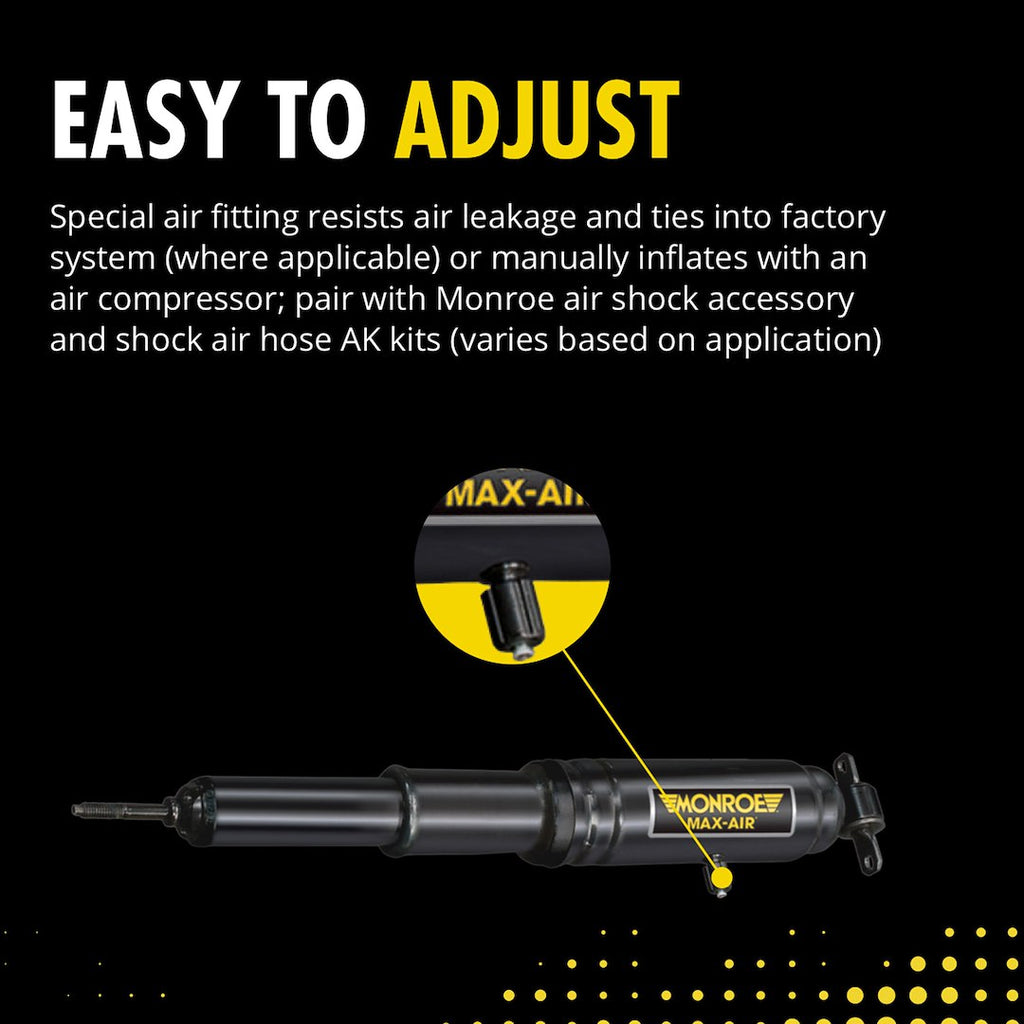

• Special Air Fitting To Resists Air Leakage

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: MA805
• Type: Hydraulic
• With Coil Spring: No
• Extended Length (IN): 19-1/2 Inch
• Compressed Length (IN): 12-3/4 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 1/2 Inch
• Valving Type: Velocity Proportional Valving
• Rod Material: Iron
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes

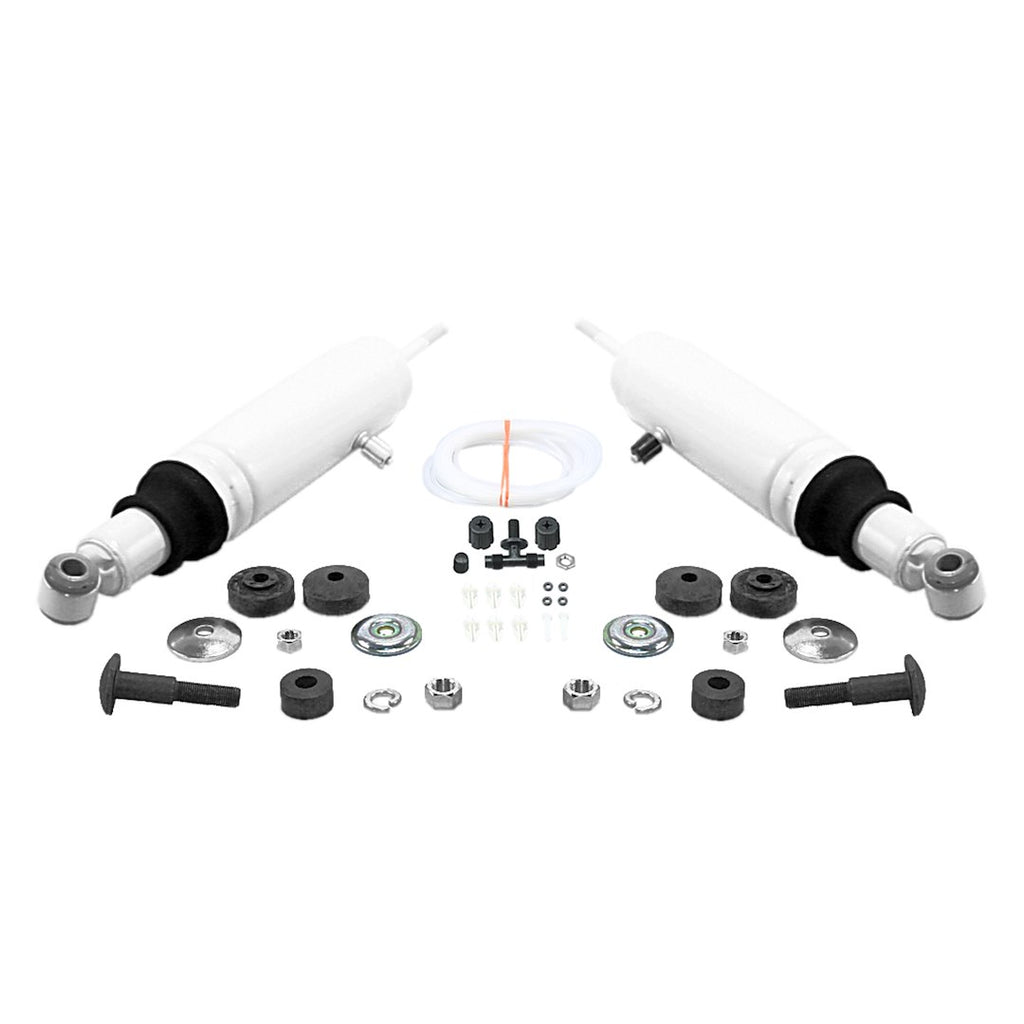

• Includes Hardware: Yes
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 1970-1974 American Motors Ambassador
• 1958-1968 American Motors American
• 1968-1974 American Motors Javelin
• 1971-1978 American Motors Matador
• 1964-1969 Buick Sportwagon
• 1982-2002 Chevrolet Camaro
• 1962-1967 Chevrolet Chevy II
• 1953-1962 Chevrolet Corvette
• 1956-1960 Ford F-100
• 1956-1960 Ford F-250
• 1966-1970 Ford Fairlane
• 1966-1970 Ford Falcon
• 1972-1976 Ford Gran Torino
• 1979-1982 Ford LTD
• 1977-1979 Ford LTD II
• 1966-1979 Ford Ranchero
• 1972-1972 Ford Thunderbird
• 1977-1979 Ford Thunderbird
• 1968-1976 Ford Torino
• 1980-1980 Lincoln Continental
• 1980-1983 Lincoln Mark VI
• 1974-1979 Mercury Cougar
• 1968-1971 Mercury Cyclone
• 1979-1982 Mercury Marquis
• 1968-1976 Mercury Montego
• 1953-1955 Nash Ambassador Custom
• 1953-1955 Nash Ambassador Super
• 1953-1955 Nash Rambler
• 1964-1965 Nissan 410
• 1964-1967 Nissan 411
• 1968-1973 Nissan 510
• 1964-1972 Oldsmobile Vista Cruiser
• 1968-1972 Opel Kadett
• 1982-2002 Pontiac Firebird

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
