Enhance towing and hauling performance with adjustable air assist technology.

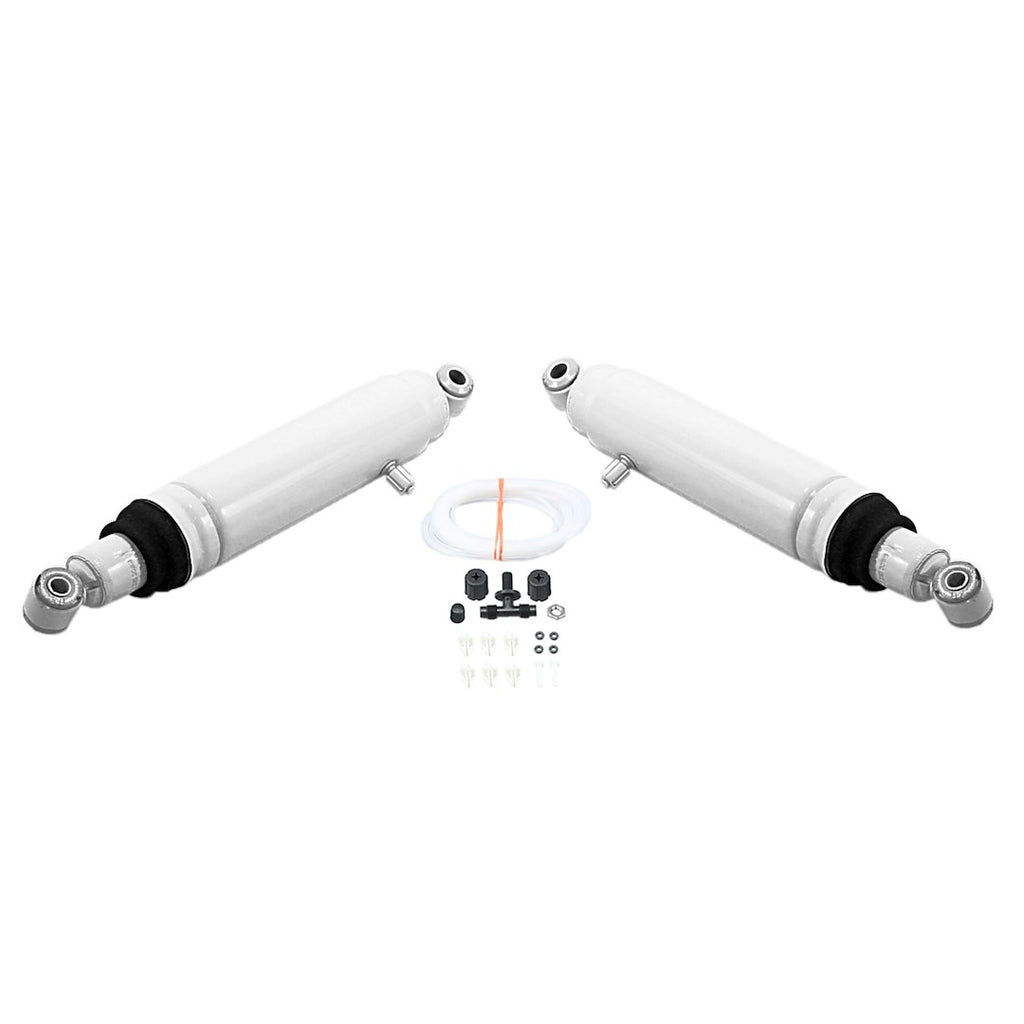

The Monroe Max-Air hydraulic shock absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This shock absorber features an adjustable air assist system that allows inflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under load. The design incorporates a hardened and precision ground rod, which contributes to consistent performance and an extended service life.
This shock absorber is equipped with all-weather fluid that minimizes friction, promoting smooth rod reaction across varying conditions. The full displaced valving range enhances both compression and extension cycles, resulting in a comfortable ride quality. Additionally, the large volume air chamber can be inflated to accommodate heavy loads and deflated for normal driving conditions, providing versatility for different driving scenarios.
Durability is a key feature of the Monroe Max-Air shock absorber, with a sintered iron piston that surpasses traditional metals in strength. The lubricated air sleeve further reduces friction, ensuring longevity and smoother operation during suspension movement. Designed specifically for vehicle compatibility, this set of two shock absorbers includes necessary hardware and a dust shield for added protection.
Features
- Hardened And Precision Ground Rod For Consistent Performance And Long Service Life
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA775
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 25-3/4 Inch
- Compressed Length (IN): 15-1/2 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1990-1996 Ford F-150
- 1992-1996 Ford F-250
