Enhance vehicle stability with adjustable air assist technology.
The Monroe Max-Air Hydraulic Shock Absorber is engineered for vehicles that frequently carry heavy loads or tow trailers. This shock absorber features an adjustable air assist system that allows inflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying loads. The design incorporates a large volume air chamber that can be deflated for normal driving conditions, enhancing ride comfort and control.
Constructed with all-weather fluid, the Max-Air shock absorber minimizes friction and promotes smooth rod reaction, contributing to a comfortable driving experience. The full displaced valving range on both compression and extension cycles ensures consistent performance, while the sintered iron piston offers superior strength and durability compared to traditional materials. This results in a longer service life and reliable operation during suspension movement.
Additionally, the shock absorber features a lubricated air sleeve that reduces friction, further extending its lifespan. The special air fitting is designed to resist air leakage, maintaining the desired pressure for optimal performance. With a semi-universal fit and easy installation, the Monroe Max-Air Shock Absorber is a practical choice for enhancing vehicle handling and stability.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

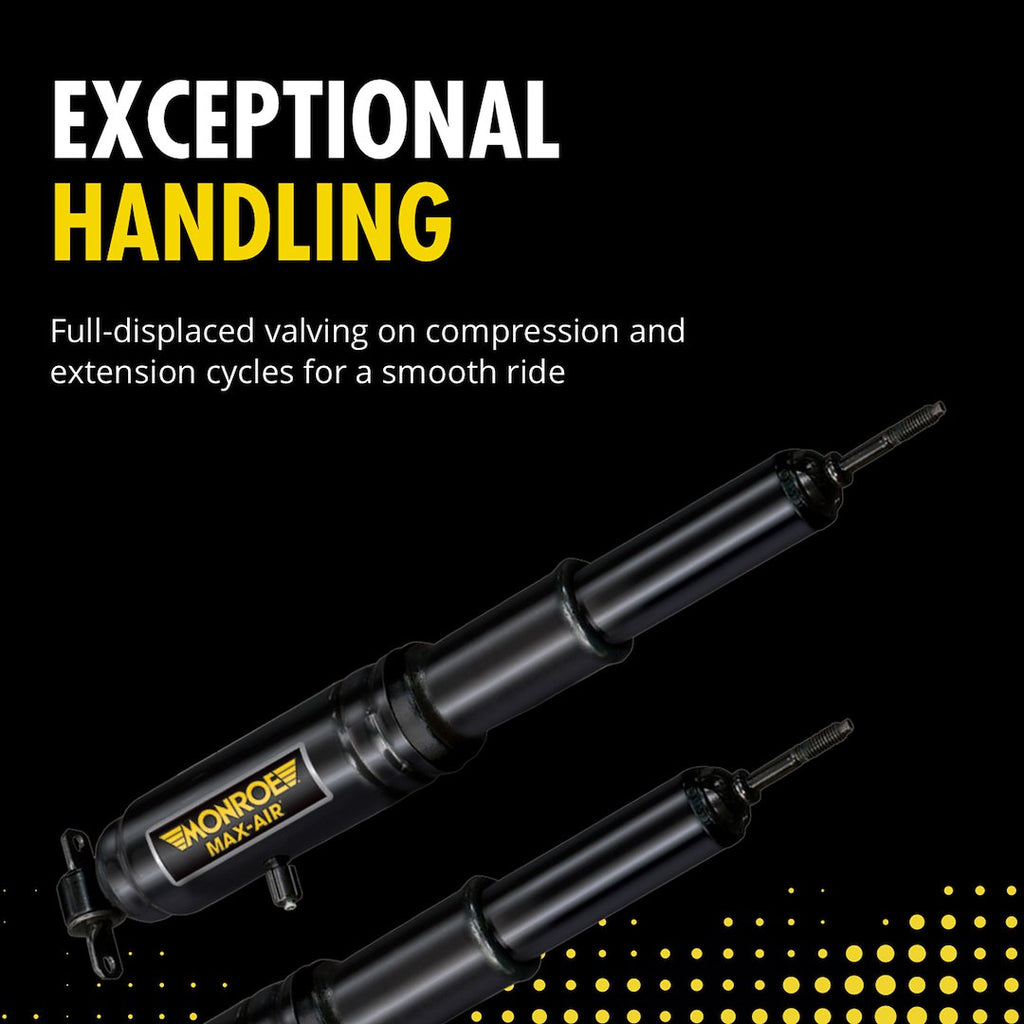

- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride

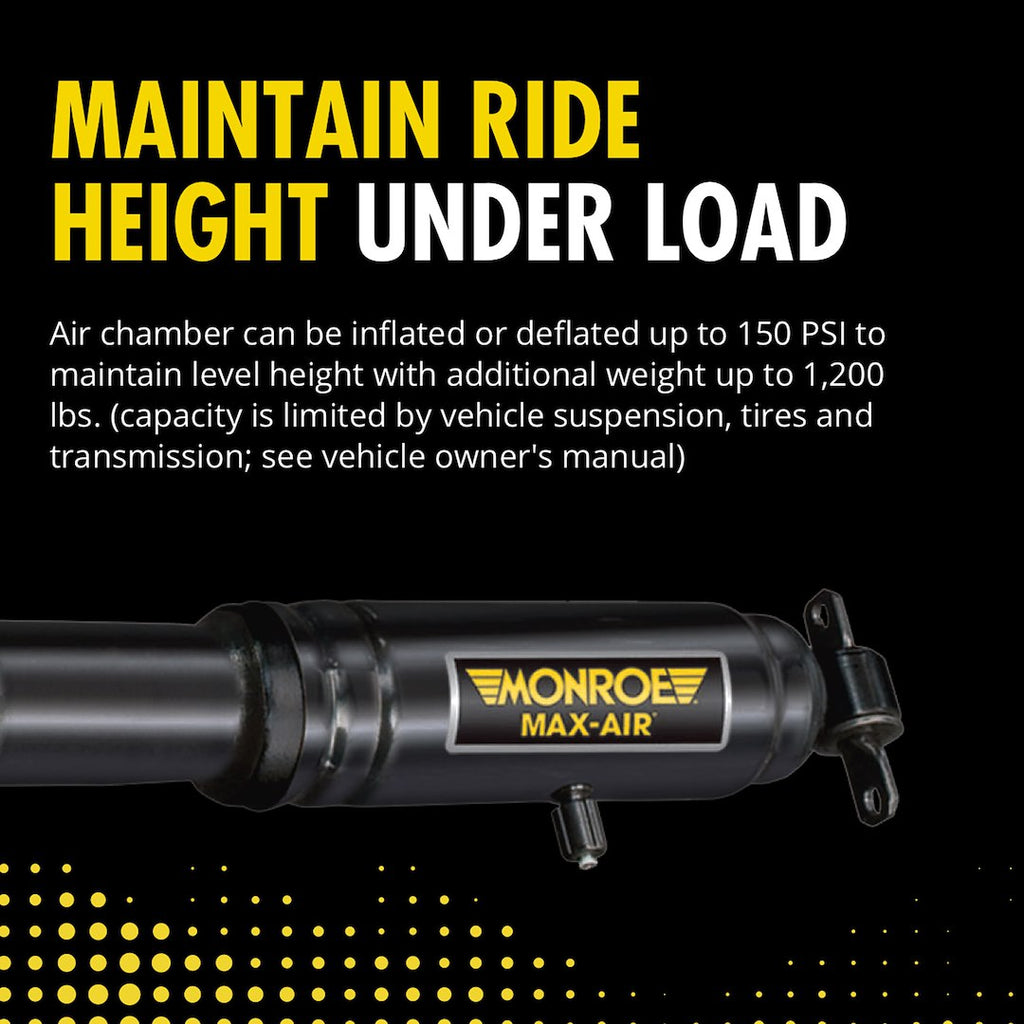

- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement

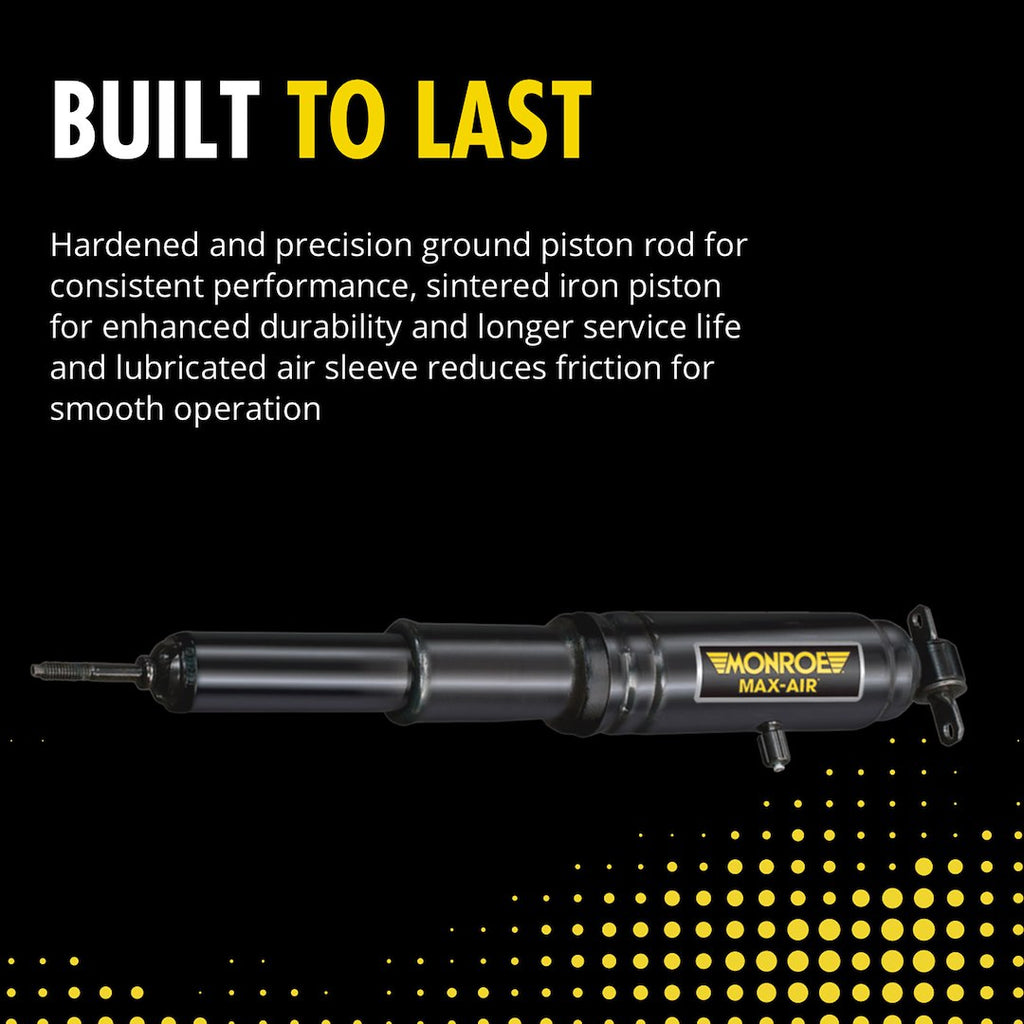

- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life

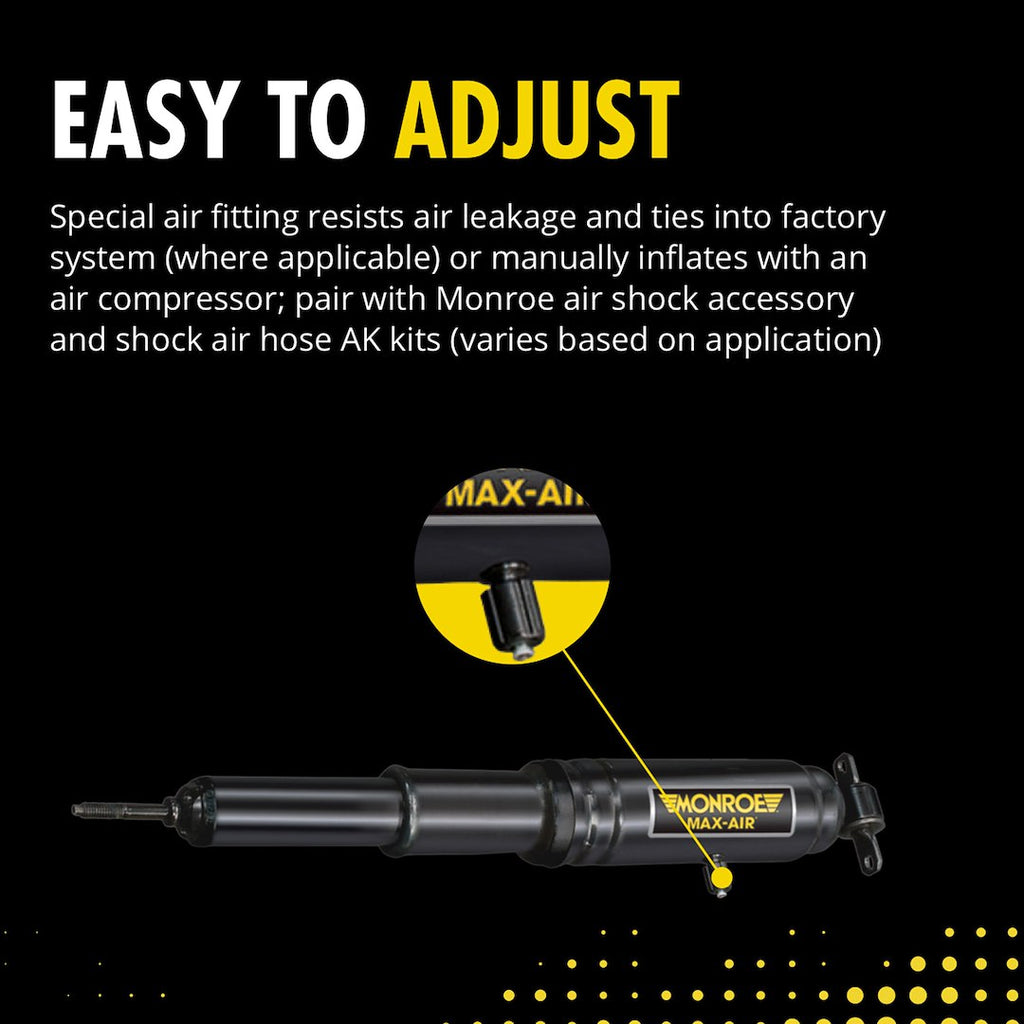

- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA719
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 23-3/4 Inch
- Compressed Length (IN): 14-1/2 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes

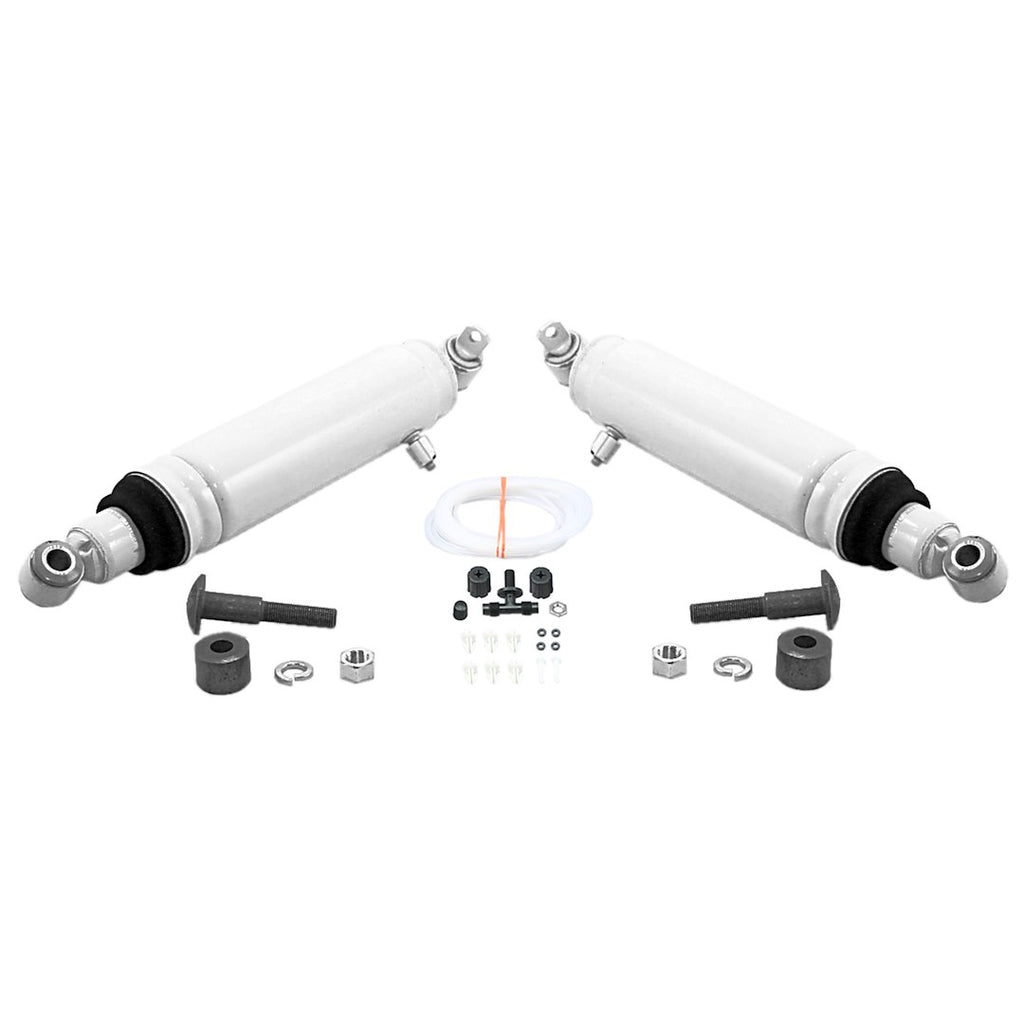

- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1965-1970 Buick Electra
- 1970-1970 Buick Estate Wagon
- 1965-1970 Buick LeSabre
- 1965-1970 Buick Wildcat
- 1971-1976 Cadillac Calais
- 1971-1976 Cadillac DeVille
- 1971-1976 Cadillac Fleetwood
- 1965-1970 Chevrolet Impala
- 1965-1970 Oldsmobile 98
- 1967-1968 Oldsmobile Delmont 88
- 1965-1970 Oldsmobile Delta 88
- 1965-1966 Oldsmobile Jetstar 88
- 1965-1966 Oldsmobile Starfire
- 1965-1970 Pontiac Bonneville
- 1965-1970 Pontiac Catalina
- 1967-1970 Pontiac Executive
- 1965-1968 Pontiac Grand Prix
- 1965-1966 Pontiac Star Chief
