Enhance vehicle stability and comfort for towing and hauling applications.

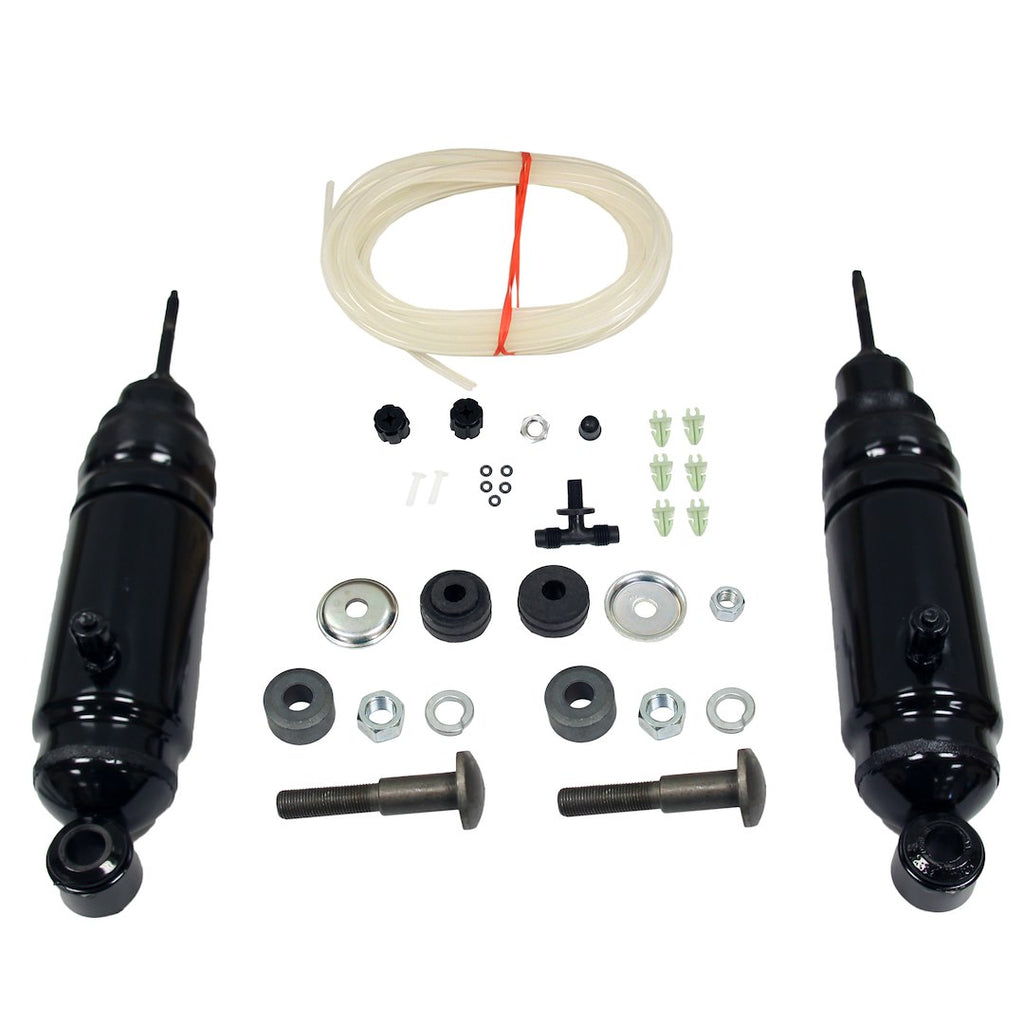

The Monroe Max-Air Hydraulic Shock Absorber is engineered for vehicles that frequently tow trailers or carry heavy loads. This shock absorber features an adjustable air chamber that allows inflation from 20 PSI to 150 PSI, enabling users to maintain a level vehicle height under varying load conditions. The design incorporates all-weather fluid with special modifiers to minimize friction, ensuring smooth operation and effective damping throughout the suspension travel.
Constructed with a sintered iron piston, the Max-Air shock absorber offers enhanced durability compared to traditional materials, contributing to a longer service life. The full displaced valving range on both compression and extension cycles provides a comfortable ride, while the lubricated air sleeve reduces friction, further improving performance. This product is specifically designed for vehicle-specific applications, ensuring optimal fit and functionality.
With a robust steel body and a velocity proportional valving system, the Monroe Max-Air shock absorber is built to withstand the demands of heavy-duty use. It includes a special air fitting to prevent air leakage, ensuring reliable performance over time. This set of two shock absorbers is an essential component for maintaining vehicle stability and comfort during towing and hauling tasks.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA709
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 17-3/8 Inch
- Compressed Length (IN): 10-3/4 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Stud
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1975-1980 Ford Granada
- 1970-1977 Ford Maverick
- 1977-1980 Lincoln Versailles
- 1971-1977 Mercury Comet
- 1975-1980 Mercury Monarch
