Enhance vehicle stability with adjustable air assist technology.

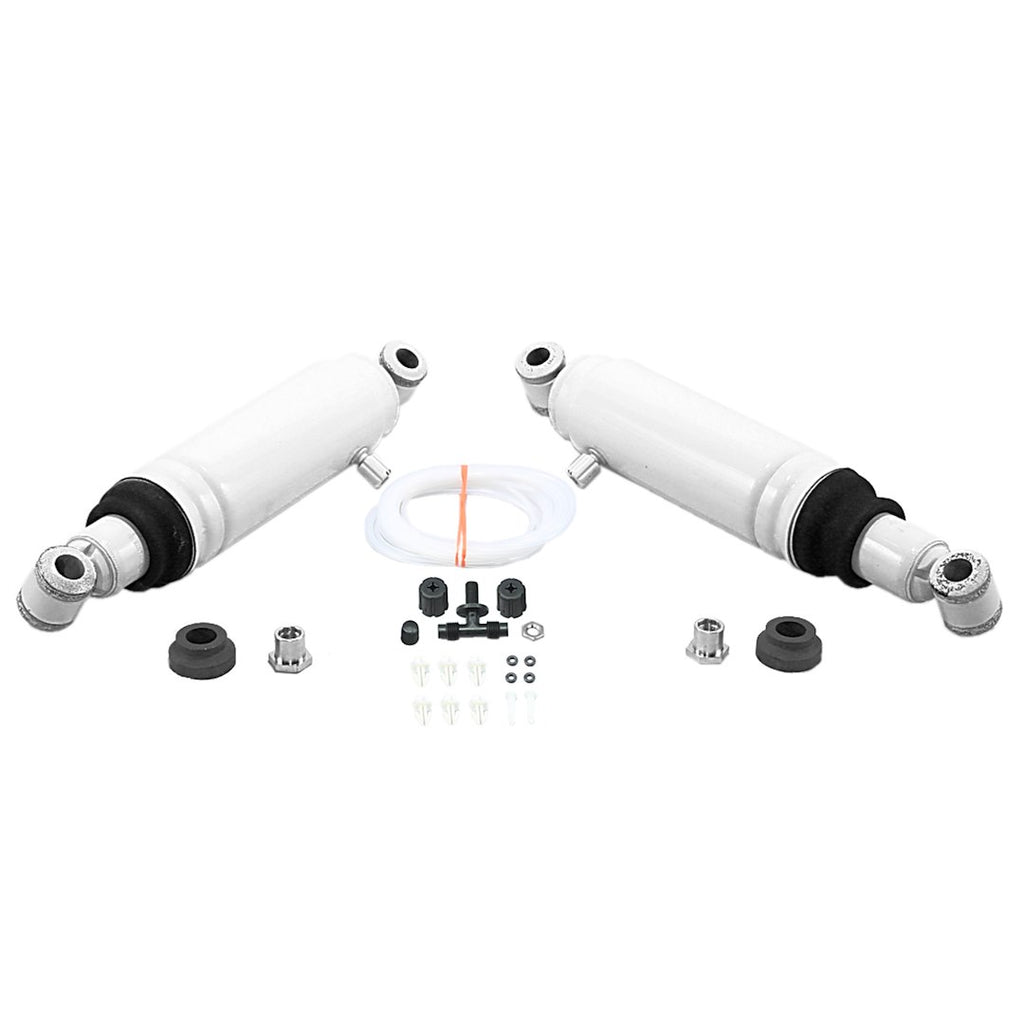

The Monroe Max-Air Hydraulic Shock Absorber is engineered for vehicles that frequently carry heavy loads or tow trailers. This shock absorber features an adjustable air assist system that allows for inflation and deflation from 20 PSI to 150 PSI, ensuring optimal vehicle height and stability under varying load conditions. The design is focused on maintaining a level vehicle height, which is crucial for safe towing and hauling operations.
Constructed with all-weather fluid that minimizes friction, the Max-Air shock absorber ensures smooth rod reaction and performance across diverse driving conditions. Its full displaced valving range provides a comfortable ride by effectively managing both compression and extension cycles. The large volume air chamber is capable of inflating to 150 PSI when loaded, while also allowing for deflation during normal driving, enhancing versatility and comfort.
Durability is a key feature of the Max-Air shock absorber, with a sintered iron piston that surpasses traditional materials in strength and longevity. The lubricated air sleeve further reduces friction, contributing to a longer service life and smoother operation during suspension movement. Additionally, the shock absorber includes a special air fitting designed to resist air leakage, ensuring consistent performance over time.
Features
- All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
- Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
- Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Special Air Fitting To Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA704
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 21-1/4 Inch
- Compressed Length (IN): 13-1/8 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Velocity Proportional Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 1955-1964 Chrysler 300
- 1955-1966 Chrysler Imperial
- 1955-1964 Chrysler New Yorker
- 1961-1964 Chrysler Newport
- 1957-1960 Chrysler Saratoga
- 1955-1961 Chrysler Windsor
- 1957-1960 DeSoto Adventurer
- 1961-1961 DeSoto DeSoto
- 1955-1959 DeSoto Firedome
- 1956-1960 DeSoto Fireflite
- 1957-1959 DeSoto Firesweep
- 1963-1964 Dodge 880
- 1960-1961 Dodge Dart
- 1963-1976 Dodge Dart
- 1962-1962 Dodge Lancer
- 1961-1963 Lincoln Continental
- 1964-1969 Plymouth Barracuda
- 1955-1961 Plymouth Belvedere
- 1970-1976 Plymouth Duster
- 1959-1961 Plymouth Fury
- 1955-1958 Plymouth Plaza
- 1955-1961 Plymouth Savoy
