Maintain vehicle height with adjustable air pressure for towing and hauling.

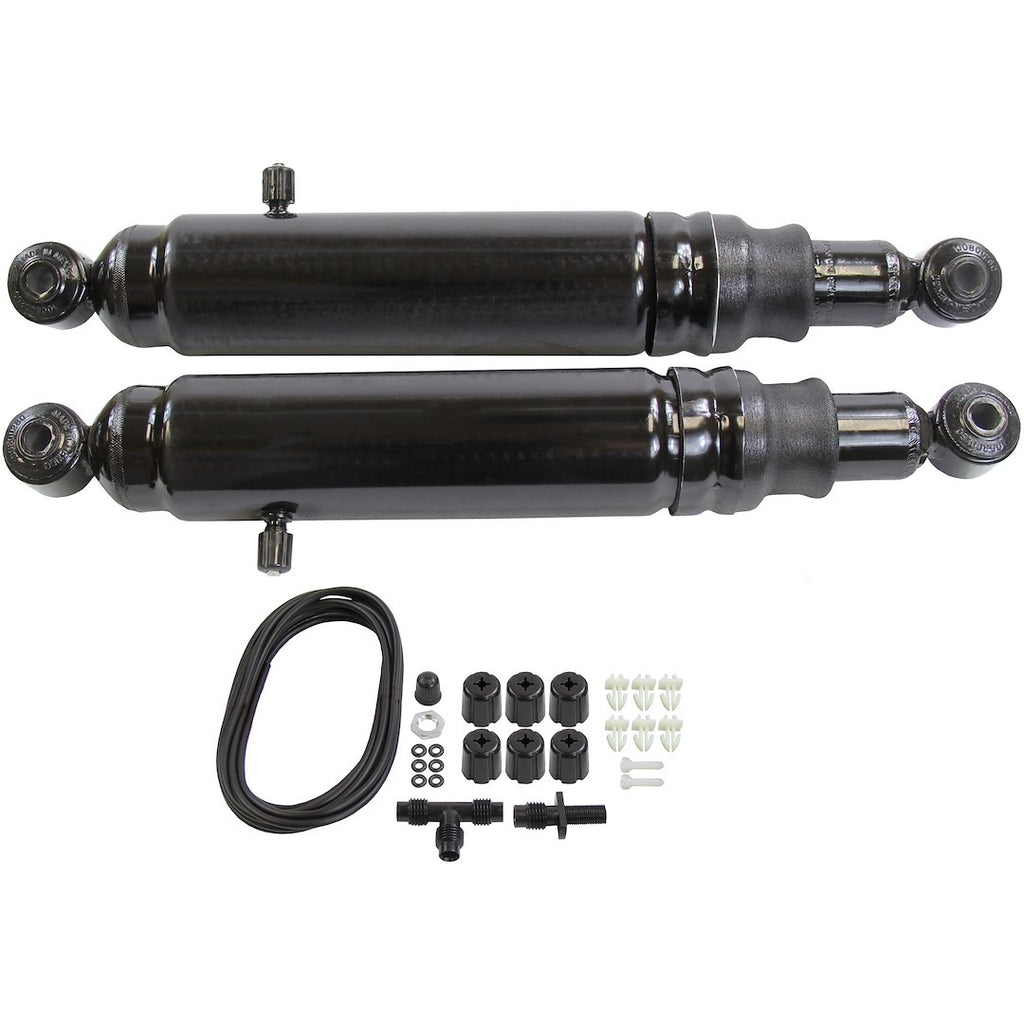

The Monroe Max-Air air shock absorber is engineered to provide optimal vehicle height maintenance, allowing for inflation or deflation from 20 PSI to 150 PSI when loaded. This feature is particularly beneficial for towing and hauling, ensuring stability and control under varying weight conditions. The shock absorber is constructed with a sintered iron piston, which offers enhanced durability compared to traditional metals, contributing to a longer service life.
Incorporating all-weather fluid, the Max-Air shock absorber minimizes friction and ensures smooth rod reaction, while the full displaced valving enhances performance during both compression and extension cycles. The lubricated air sleeve further reduces friction, promoting smoother operation during suspension movement. With a large volume air chamber, this shock absorber can support up to 1,100 pounds of additional weight, making it adaptable for most vehicles equipped with automatic leveling systems.
Designed with a 1/2 inch hardened and precision ground piston rod, the Max-Air air shock absorber guarantees consistent performance and longevity. The eyelet mounting style on both the upper and lower ends ensures a secure fit, while the special air fitting resists air leakage, maintaining optimal performance over time. This set of two air shock absorbers is a reliable choice for those seeking to enhance their vehicle's suspension system.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Lubricated Air Sleeve: Reduces Friction For Longer Service Life, Provides Smoother Operation During Suspension Movement
- 1/2 Inch Piston Rod: Hardened And Precision Ground Rod For Consistent Performance And Long Service Life
- Large Volume Air Chamber: Inflates Up To 150 PSI With Vehicle Loaded, Deflates For Normal Driving
- A Pair Can Maintain Ride Height When Up To 1,100 Pounds Of Additional Weight Is Loaded
- Can Be Adapted For Most Vehicles Equipped With Automatic Leveling Systems
- Special Air Fitting: Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA836
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 29.26 Inch
- Compressed Length (IN): 17.4 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Full Displaced Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2009-2014 Ford F-150
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
