Maintain vehicle height with adjustable air pressure for towing and hauling.
The Monroe Max-Air air shock absorber is engineered to provide optimal vehicle height maintenance, allowing for inflation or deflation from 20 PSI to 150 PSI based on load conditions. This feature is particularly beneficial for towing and hauling, ensuring stability and control under varying weight loads. The shock absorber is constructed with a sintered iron piston, which offers enhanced durability compared to traditional metals, contributing to a longer service life.
Incorporating all-weather fluid, the Max-Air shock absorber minimizes friction and ensures smooth rod reaction, enhancing overall performance. The full displaced valving design allows for improved valving range during both compression and extension cycles, resulting in a comfortable ride. Additionally, the lubricated air sleeve reduces friction, further extending the lifespan of the unit and providing smoother operation during suspension movement.
With a large volume air chamber, this shock absorber can support up to 1,100 pounds of additional weight while maintaining ride height. It is compatible with most vehicles equipped with automatic leveling systems and features a special air fitting that resists air leakage, ensuring reliable performance. The Monroe Max-Air air shock absorber is a robust solution for those requiring adjustable suspension support.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction

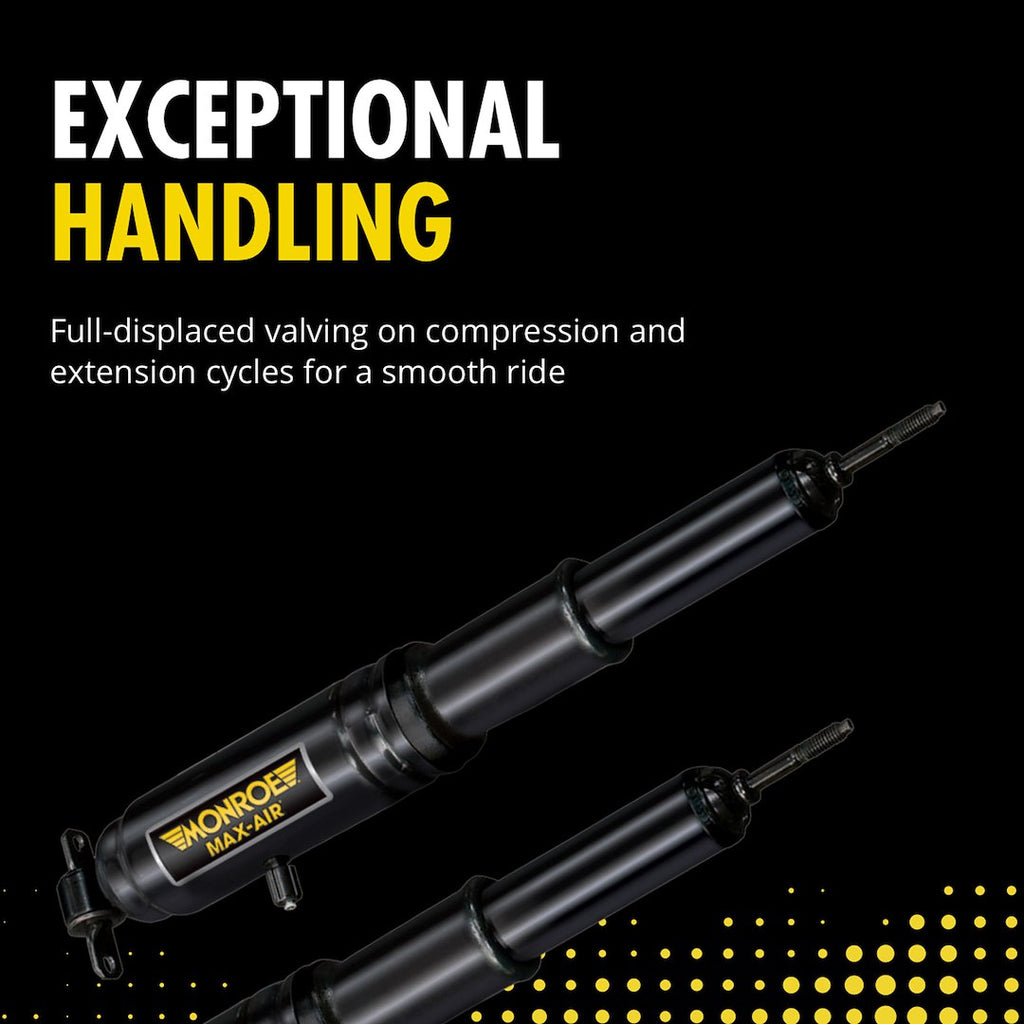

- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Lubricated Air Sleeve: Reduces Friction For Longer Service Life, Provides Smoother Operation During Suspension Movement

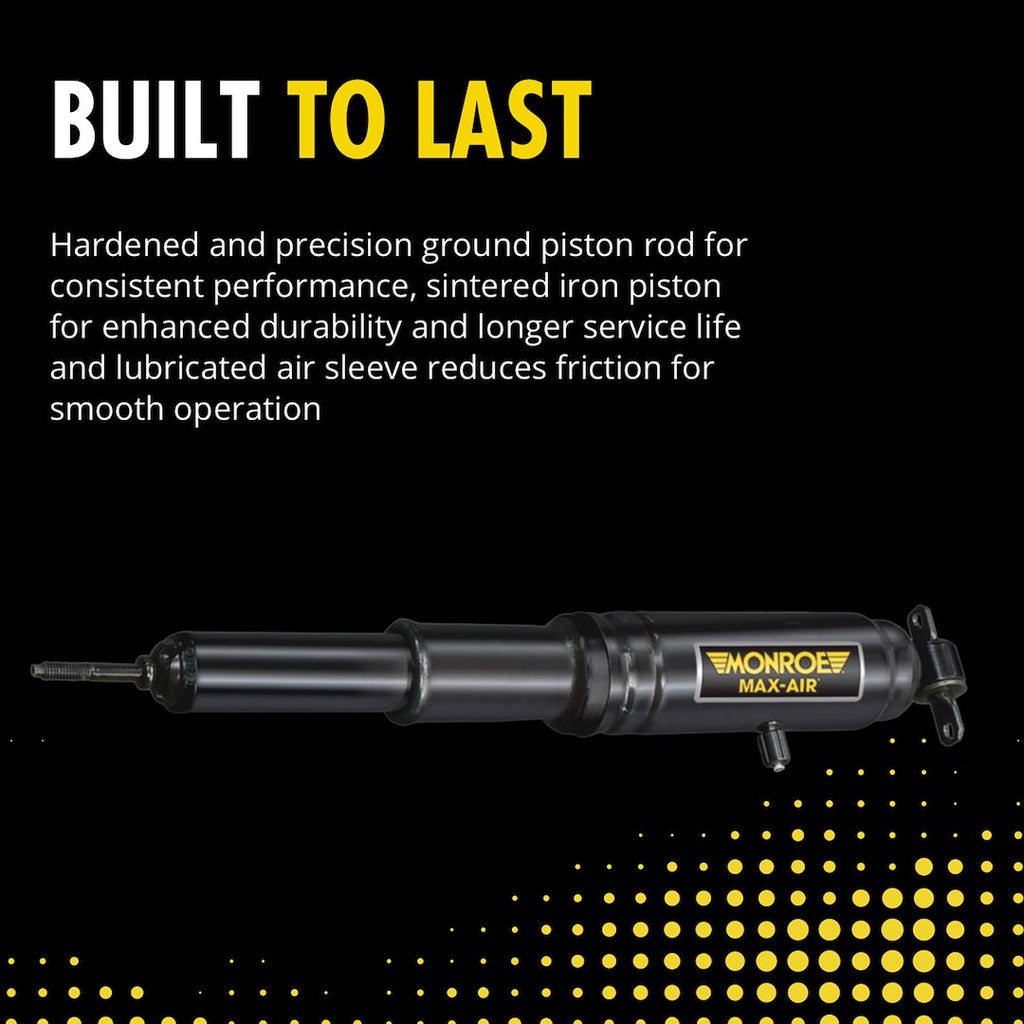

- 1/2 Inch Piston Rod: Hardened And Precision Ground Rod For Consistent Performance And Long Service Life

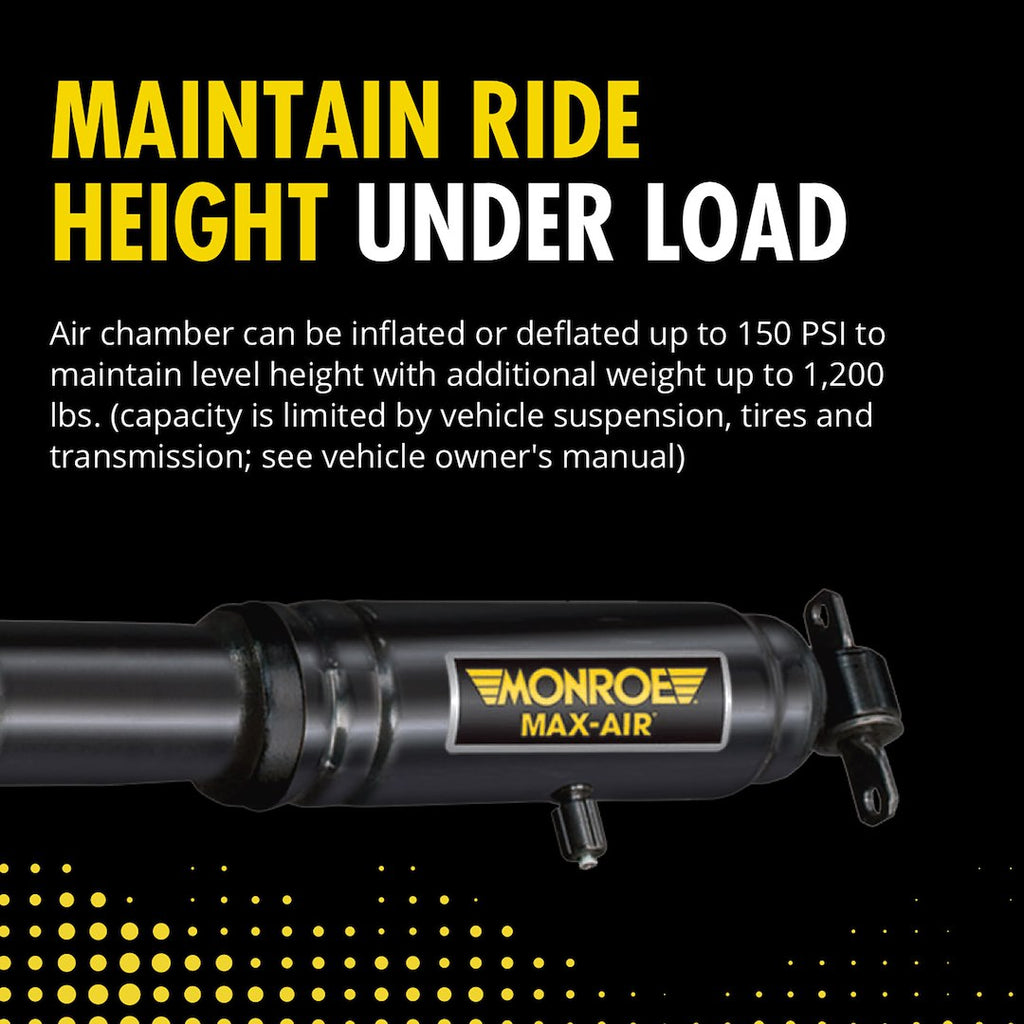

- Large Volume Air Chamber: Inflates Up To 150 PSI With Vehicle Loaded, Deflates For Normal Driving
- A Pair Can Maintain Ride Height When Up To 1,100 Pounds Of Additional Weight Is Loaded
- Can Be Adapted For Most Vehicles Equipped With Automatic Leveling Systems

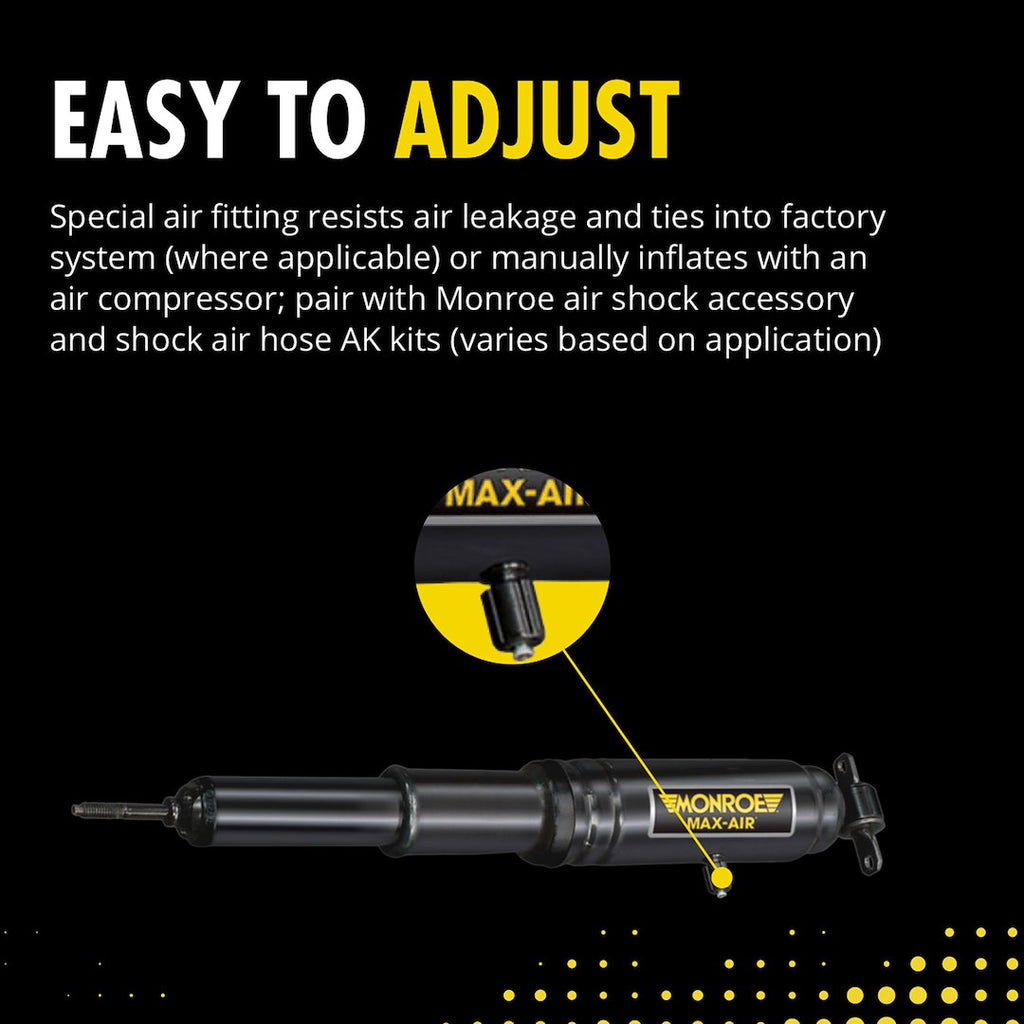

- Special Air Fitting: Resists Air Leakage
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: MA833
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 15.98 Inch
- Compressed Length (IN): 11.06 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Cross Pin
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1/2 Inch
- Valving Type: Full Displaced Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No

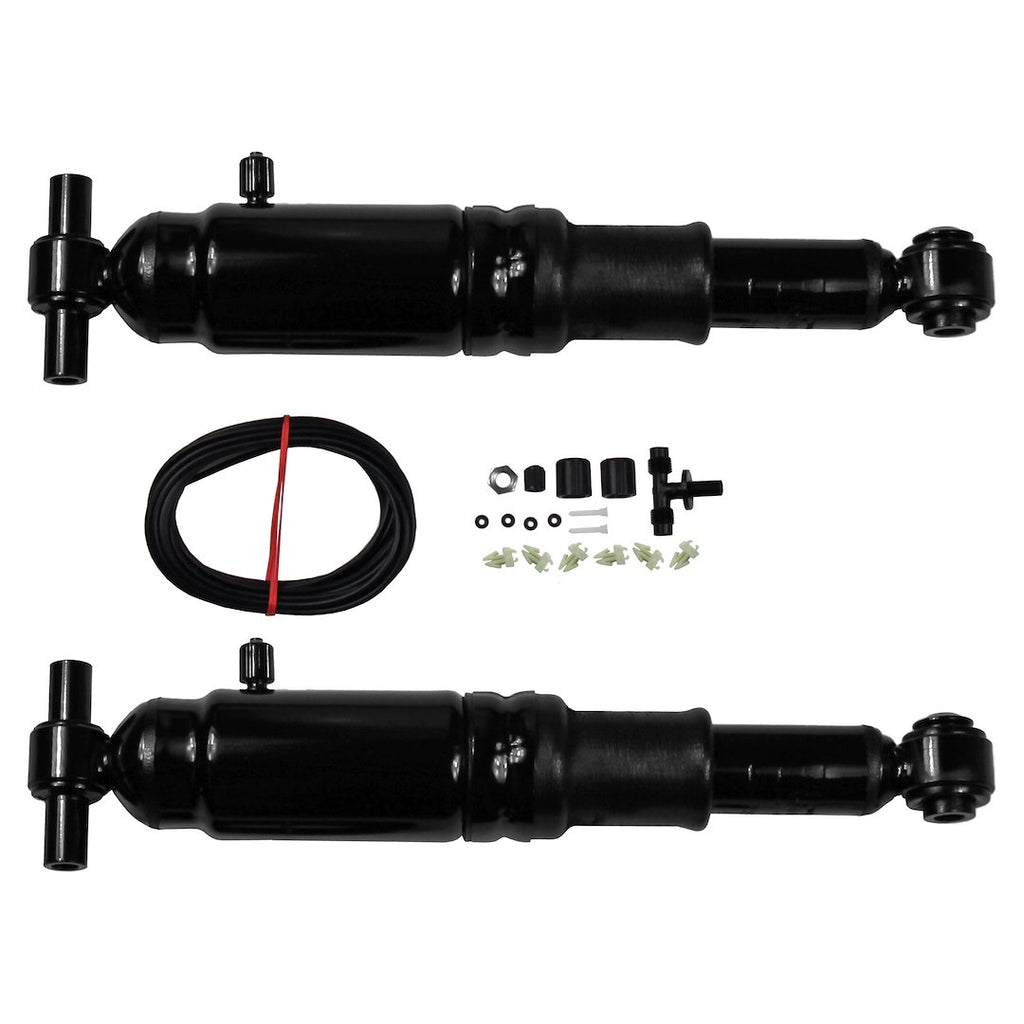

- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2008-2017 Buick Enclave
- 2009-2017 Chevrolet Traverse
- 2007-2016 GMC Acadia
- 2017-2017 GMC Acadia Limited
- 2007-2010 Saturn Outlook
