Engineered for heavy-duty performance in commercial vehicles.

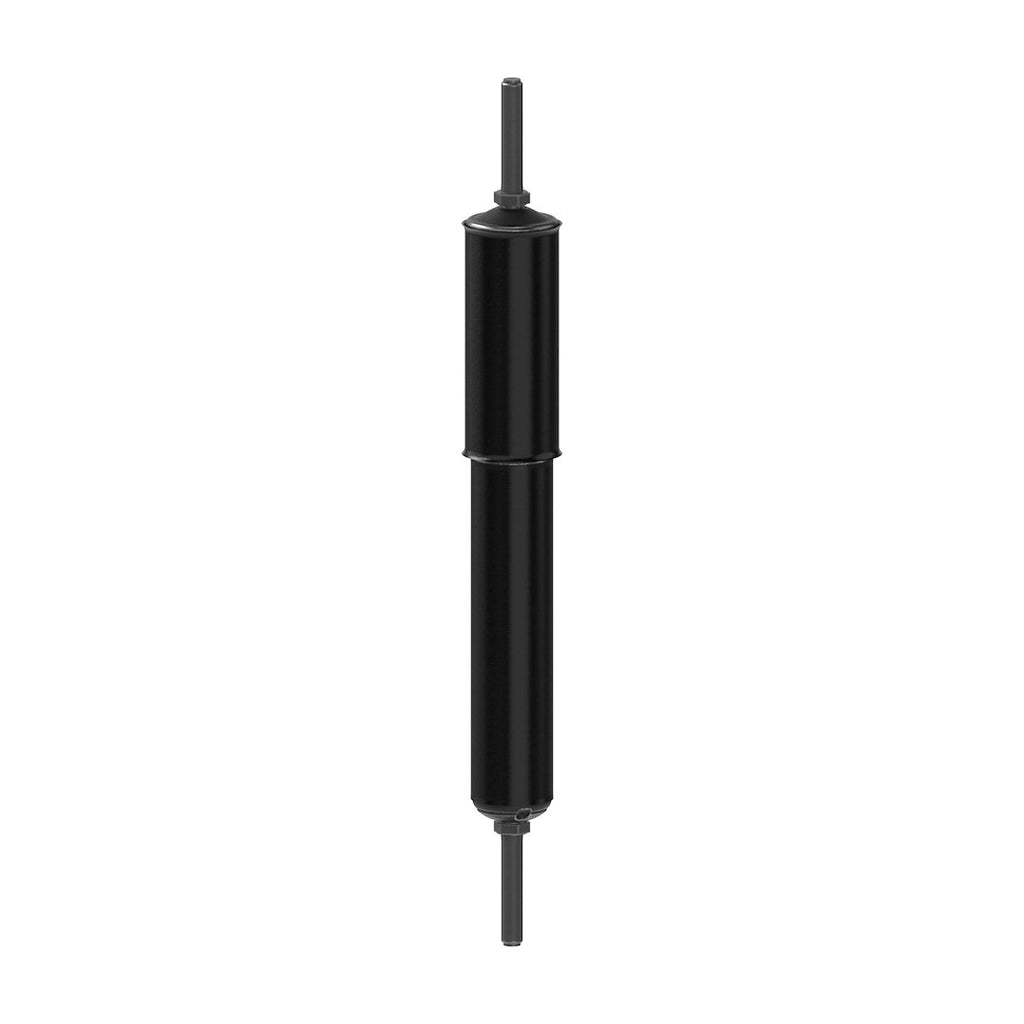

The Monroe Magnum shock absorber is designed specifically for class 6-8 vehicles, providing superior performance for air spring and taper leaf suspensions. This nitrogen gas charged shock features a large bore design that ensures fast response and consistent ride quality, essential for the demands of high mileage and severe use in commercial trucks and buses. With 10-stage valving tuned to each vehicle, it adapts to road extremes, enhancing handling and control.
Constructed for durability, the Monroe Magnum includes a robust hydraulic lock-out to prevent over-extension and damage to the seal assembly. The shouldered bushing and bonded bushing with sleeve protect against bushing walkout, ensuring long-lasting performance. Additionally, the PTFE coated bearing reduces friction, contributing to a longer service life.
This shock absorber also minimizes noise, vibration, and harshness, delivering exceptional control under various driving conditions. The nitrogen gas charge maintains optimal tire-to-road contact, improving ride quality and handling by reducing aeration and shock fade. The Monroe Magnum shock absorber is a reliable choice for maintaining the performance and safety of heavy-duty vehicles.
Features
- For Hardworking Commercial Vehicles: Designed To Handle The Demands Of High Mileage And Severe Use Class 6 To 8 Trucks And Buses
- Consistent Ride: All-Weather Fluid Contains Special Additives To Assist With Extreme Temperatures And Help Reduce Oil Breakdown
- Exceptional Handling: 10-Stage Valving, Tuned Specifically To Each Vehicle, Adjusts To Road Extremes While The Larger 1-3/4 Inch Bore Provides More Efficient Damping Control
- Strong And Durable: Shouldered Bushing And Bonded Bushing With Sleeve Protects From Bushing Walkout For Improved Quality
- Built To Last: Robust Hydraulic Lock-Out Prevents Over Extension Of Air Bags, Top-Out Of The Piston And Averts Damage To Seal Assembly
- Longer Service Life: Bearing With PTFE Coating Reduces Friction Between Rod And Rod Guide Combined With Nitrocarburized Piston Rod Provides Durability And Longer Service Life
- Reduced Noise, Vibration And Harshness: Delivers Exceptional Control And Isolates Impact-Related Noise, Vibration And Harshness Under Most Driving Conditions
- Improves Performance: Nitrogen Gas-Charge Maintains Tire-To-Road Contact For Improved Ride And Handling By Reducing Aeration And Shock Fade
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 65404
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 18.79 Inch
- Compressed Length (IN): 12.01 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Stud
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Twin Tube
- Body Color: Black
- Rod Diameter (IN): 0.7 Inch
- Valving Type: 10 Stage Full Displaced Valving
- Ride Height Adjustable: No
- With Reservoir: Yes
- Includes Dust Shield: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
