Engineered for control and durability in demanding conditions.

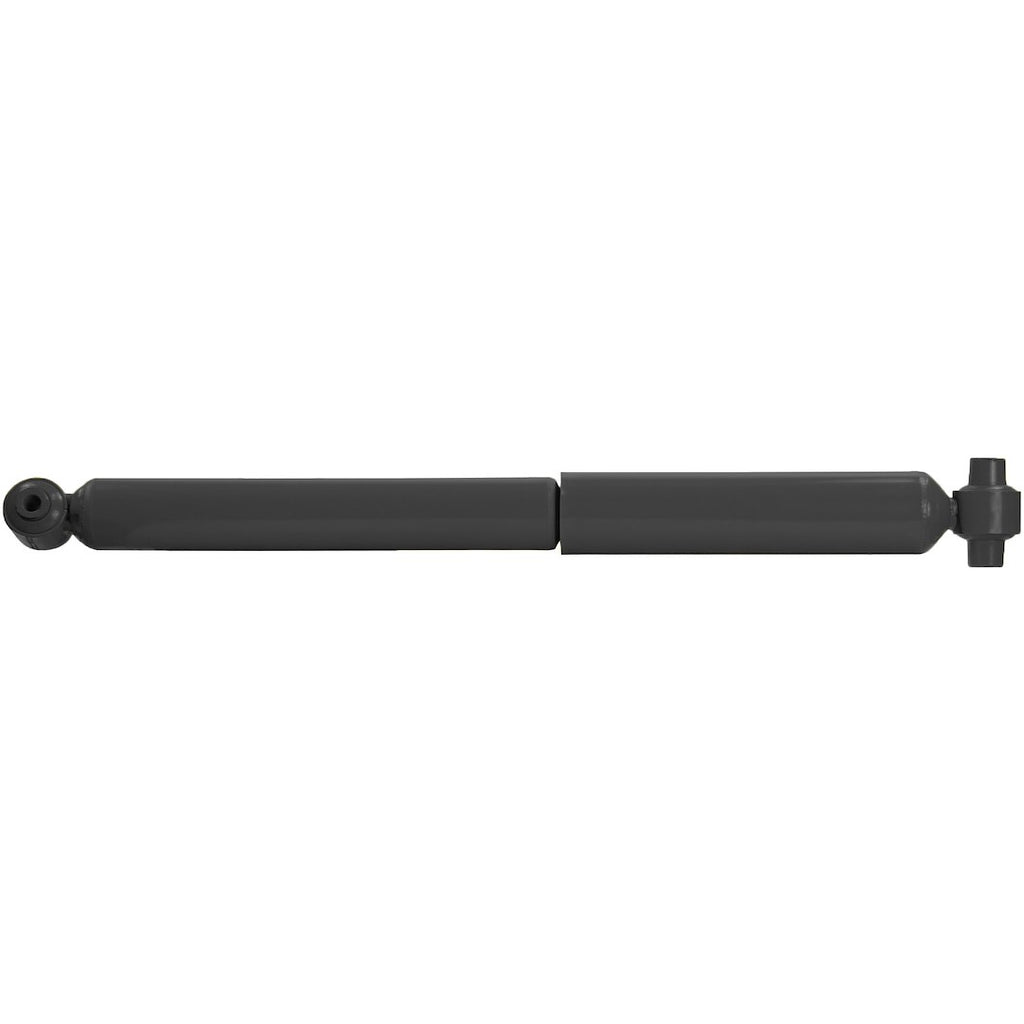

The Monroe Magnum Nitrogen Gas Charged Shock Absorber is designed to enhance vehicle control and extend service life, making it suitable for high mileage and heavy-duty applications. This shock absorber features all weather fluid that reduces friction, ensuring smooth rod reaction and improved performance in various conditions. The full displaced valving provides a better range on both compression and extension cycles, contributing to a comfortable ride even under challenging circumstances.
Constructed with a sintered iron piston, this shock absorber offers superior strength and durability compared to traditional metals, ensuring longevity in demanding environments. The nitrogen gas charge improves ride quality and handling by maintaining tire-to-road contact and reducing aeration. With a 2-inch reserve tube, it provides greater oil capacity for consistent performance and effective heat dissipation.
Designed specifically for mid to full-size light-duty work trucks and vans, the Monroe Magnum shock absorber features a 5/8-inch heavy-duty piston rod and a special self-lubricating seal that retains gas while minimizing wear and friction. This shock absorber is a reliable choice for emergency, municipal fleet, and construction vehicles, delivering the performance needed for rigorous applications.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Designed For Mid To Full-Size Light-Duty Work Trucks And Vans
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 66451
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 25.96 Inch
- Compressed Length (IN): 15.93 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Cross Pin
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Multi Stage High Displacement Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2015-2019 Ford Transit-250
- 2015-2019 Ford Transit-350
- 2022-2026 Ford Transit-350
- 2015-2019 Ford Transit-350 HD
- 2022-2026 Ford Transit-350 HD
