Engineered for control and durability in severe service applications.

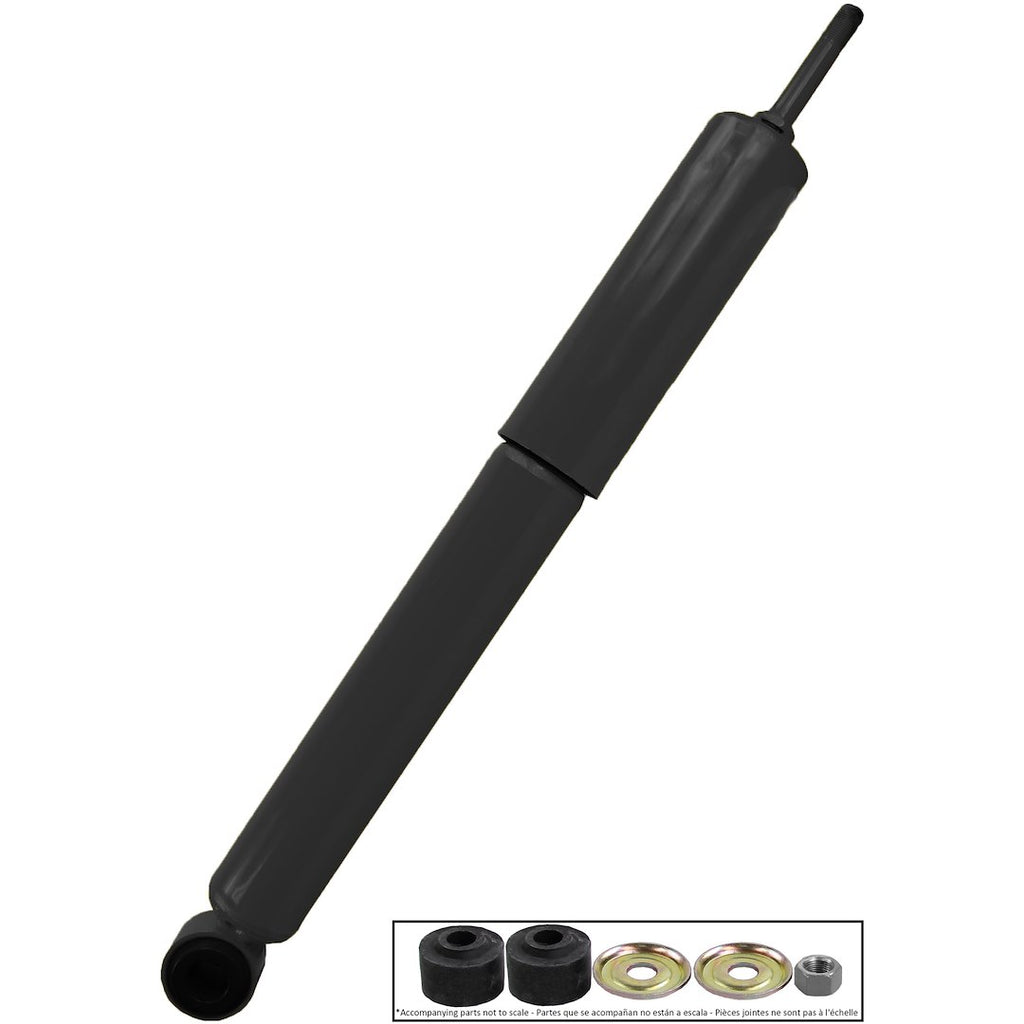

The Monroe Magnum Nitrogen Gas Charged Shock Absorber is designed to enhance vehicle control and extend service life, particularly in demanding environments such as emergency, municipal fleet, and construction vehicles. This shock absorber features all weather fluid that reduces friction, ensuring smooth rod reaction and improved ride quality. Its full displaced valving provides a better range of compression and extension cycles, contributing to a comfortable driving experience.
Constructed with a sintered iron piston, this shock absorber offers superior strength and durability compared to traditional metals, making it suitable for heavy-duty applications. The nitrogen gas charge improves ride and handling by maintaining tire-to-road contact and reducing aeration. With a 2-inch reserve tube, it provides greater oil capacity for consistent performance and better heat dissipation.
The Monroe Magnum is designed for mid to full-size light-duty work trucks and vans, featuring a 5/8-inch heavy-duty nitrocarburized piston rod for long service life. Its special self-lubricating fluid seal retains gas without excessive wear, ensuring reliable operation. This shock absorber is a single unit with a yellow body color, making it a practical choice for those seeking enhanced performance in severe service conditions.
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE
- 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Designed For Mid To Full-Size Light-Duty Work Trucks And Vans
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 65402
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24.06 Inch
- Compressed Length (IN): 15.06 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
