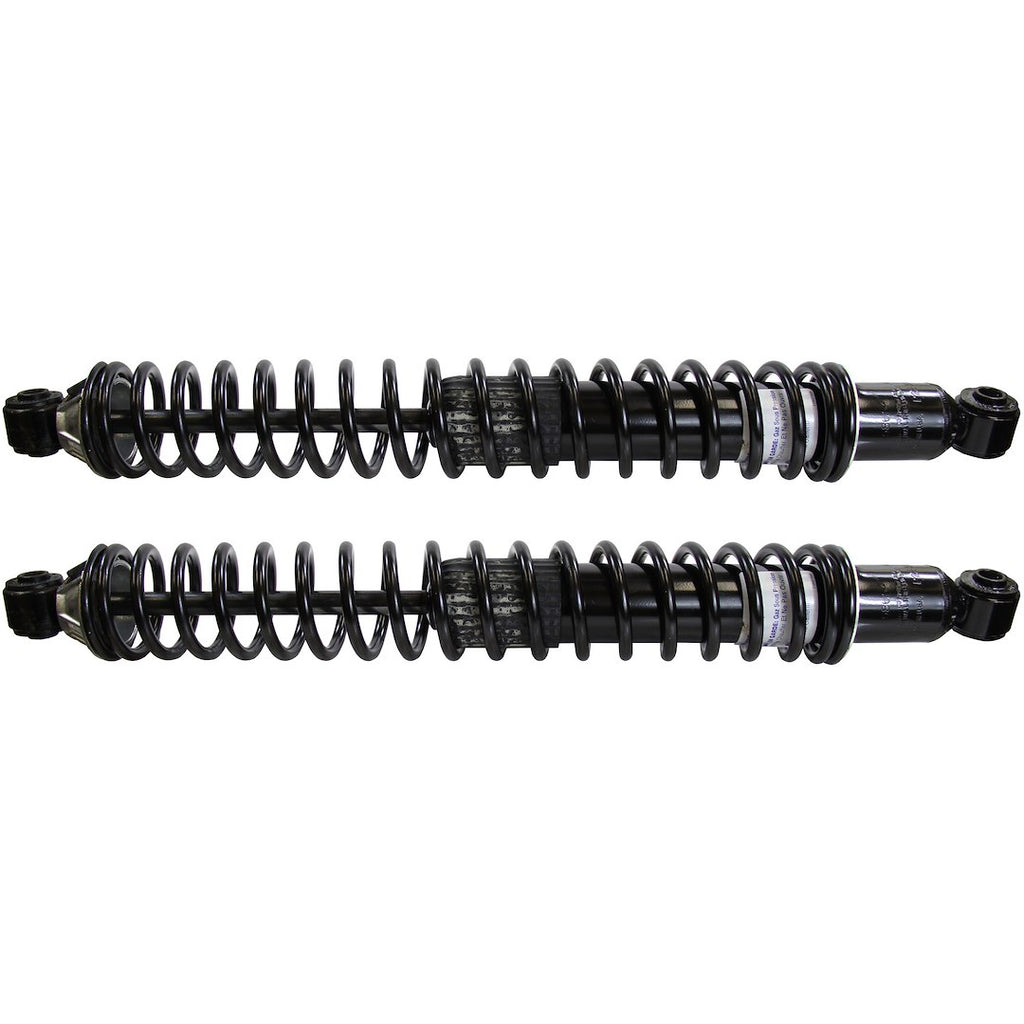

Monroe Load Adjusting Shock Absorber (MPN: 58654)

Enhance towing and hauling performance with advanced shock technology.

The Monroe Load Adjusting Shock Absorber is designed specifically for light trucks that frequently tow or carry varying loads. This shock absorber features a heavy gauge calibrated spring that adapts to road and weight conditions, providing enhanced control and stability during demanding driving situations. The nitrogen gas charge maintains optimal tire-to-road contact, improving ride quality and handling by minimizing aeration and shock fade.

Constructed with a self-lubricating fluid seal, this shock absorber retains gas effectively while reducing friction against the piston rod, which helps to prevent premature wear. The all-weather fluid is engineered to perform under extreme temperatures, and the PTFE-banded piston reduces friction between the piston and pressure tube, ensuring longevity and reliability.

Tuned specifically for each application, the full-displaced valving automatically adjusts to varying road conditions, delivering consistent ride quality. This shock absorber is particularly beneficial for those who occasionally haul or tow loads up to 1,200 pounds, as the heavy gauge calibrated coil spring minimizes sag when loaded. The Monroe Load Adjusting Shock Absorber is a robust solution for enhancing vehicle performance in challenging conditions.

Features

• Nitrogen Gas-Charge Maintains Tire-To-Road Contact For Improved Ride And Handling By Reducing Aeration And Shock Fade
• Self-Lubricating Fluid Seal Retains Gas And Reduces Excessive Friction Against The Piston Rod To Help Reduce Premature Wear While Heavy-Duty Nitro Carburized Rod Delivers Long Life
• OE All-Weather Fluid Contains Special Modifiers To Handle Extreme Temperatures And PTFE-Banded Piston Helps Reduce Friction Between The Piston And Pressure Tube
• Tuned Specifically For Each Application, Full-Displaced Valving Automatically Adjusts To Road Extremes To Provide Ride Consistency
• Ideal For Occasionally Hauling Or Towing Varying Loads; Heavy Gauge, Calibrated Coil Spring Reduces Sag When Loaded Up To 1,200 Pounds

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 58654
• Type: Nitrogen Gas Charged
• With Coil Spring: Yes
• Extended Length (IN): 24.83 Inch
• Compressed Length (IN): 15.54 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: Yes
• Quantity: Set Of 2
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): OEM
• Valving Type: OEM
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 2007-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2025 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2007-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2022-2022 GMC Sierra 1500- New Model

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
