Enhanced control and comfort for various school bus models.

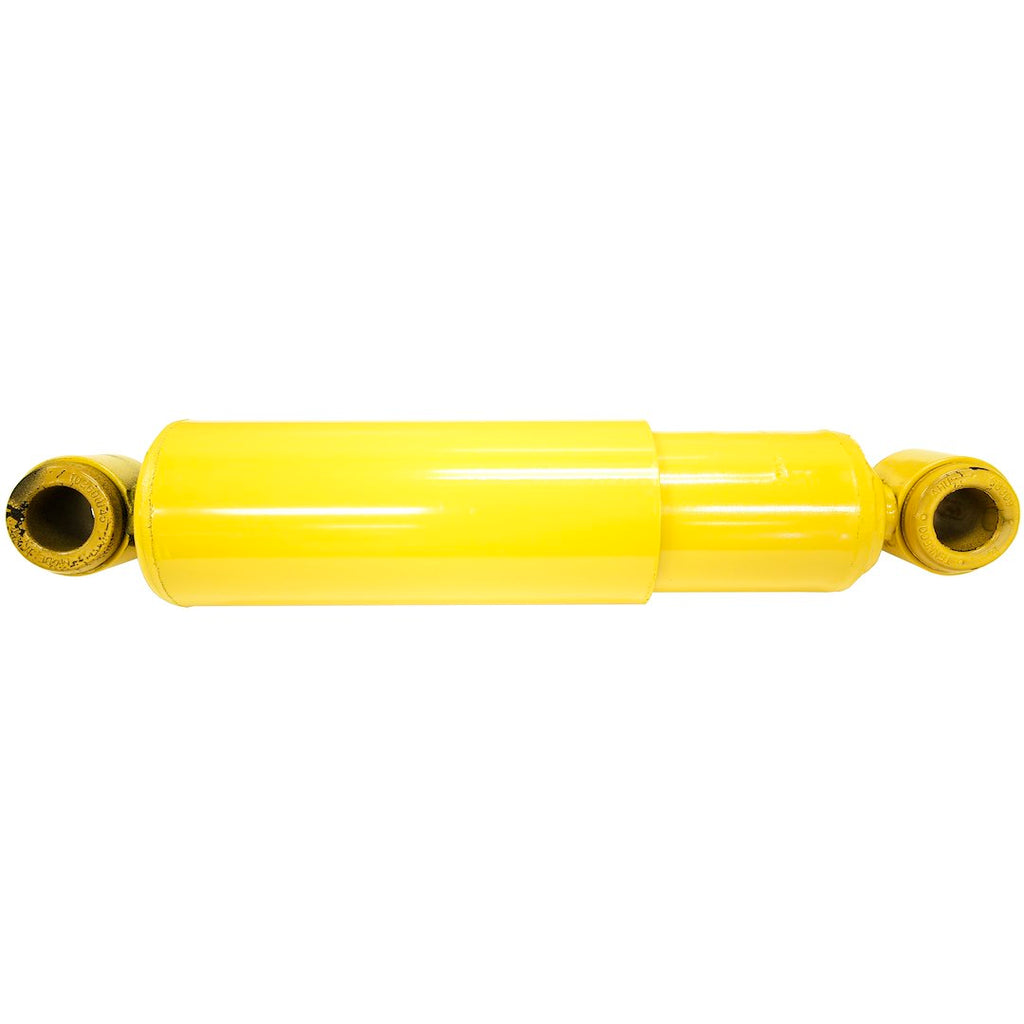

The Monroe Gas Magnum Shock Absorber is designed to provide superior control and comfort for a range of applications, particularly in school buses. This nitrogen gas-charged shock absorber features improved valving for both compression and extension cycles, ensuring a smooth and comfortable ride. Its construction includes a sintered iron piston, which is stronger than traditional metals, enhancing durability and extending service life.
With a focus on performance, the Gas Magnum shock absorber maintains tire-to-road contact by reducing aeration, which improves ride quality and handling. The all-weather fluid used in this shock absorber contains special modifiers that reduce friction, allowing for smooth rod reaction in various conditions. Additionally, the self-lubricating fluid seal is designed to retain gas without excessive wear or friction, further contributing to the longevity of the product.
This shock absorber is semi-universal and compatible with models such as the Blue Bird All American FE and RE from 1989 to 2016, as well as the Gillig School Bus from 1989 to 1993. Its robust design and efficient operation make it a reliable choice for maintaining optimal vehicle performance.
Features
- Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
- Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
- Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 74028
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22.74 Inch
- Compressed Length (IN): 14.72 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Twin Tube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: OEM
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
