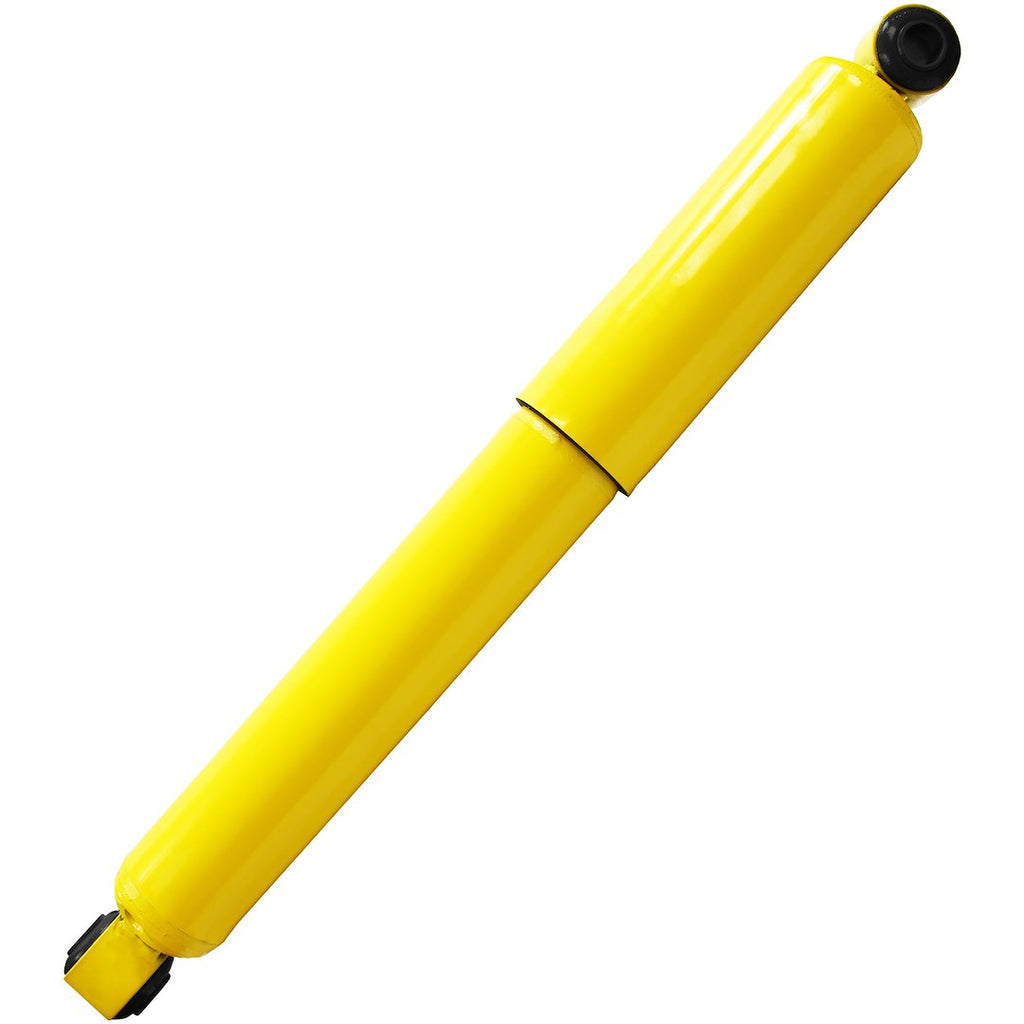

Monroe Gas Magnum Shock Absorber (MPN: 65503)

Enhance ride quality with advanced gas-charged technology.

The Monroe Gas Magnum Shock Absorber is engineered to provide superior control and comfort for vehicles such as the Blue Bird All American FE and RE models from 1989 to 2016. This shock absorber features a nitrogen gas charge that improves ride quality and handling, ensuring optimal tire-to-road contact by minimizing aeration. With a better valving range for both compression and extension cycles, it delivers a smooth and comfortable ride without compromising performance.

Constructed with a sintered iron piston, the Monroe Gas Magnum offers enhanced durability compared to traditional metals, ensuring a long service life. The shock absorber is designed with all-weather fluid that contains special modifiers to reduce friction, promoting smooth rod reaction in various conditions. Its robust design includes a self-lubricating fluid seal that retains gas effectively while minimizing wear and friction.

This single shock absorber is a semi-universal fit, featuring an extended length of 22-1/8 inches and a compressed length of 14.29 inches. The eyelet mounting style at both the upper and lower ends allows for straightforward installation. With a rod diameter of 5/8 inch and a body made of steel, the Monroe Gas Magnum is built to withstand the demands of the road.

Features

• Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
• Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
• Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Long Service Life
• Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 65503
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 22-1/8 Inch
• Compressed Length (IN): 14.29 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Monotube
• Body Color: Yellow
• Rod Diameter (IN): 5/8 Inch
• Valving Type: OEM
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• TITAN_SAF_5004_NA_200.pdf
