Enhance ride quality and control with advanced gas-charged technology.

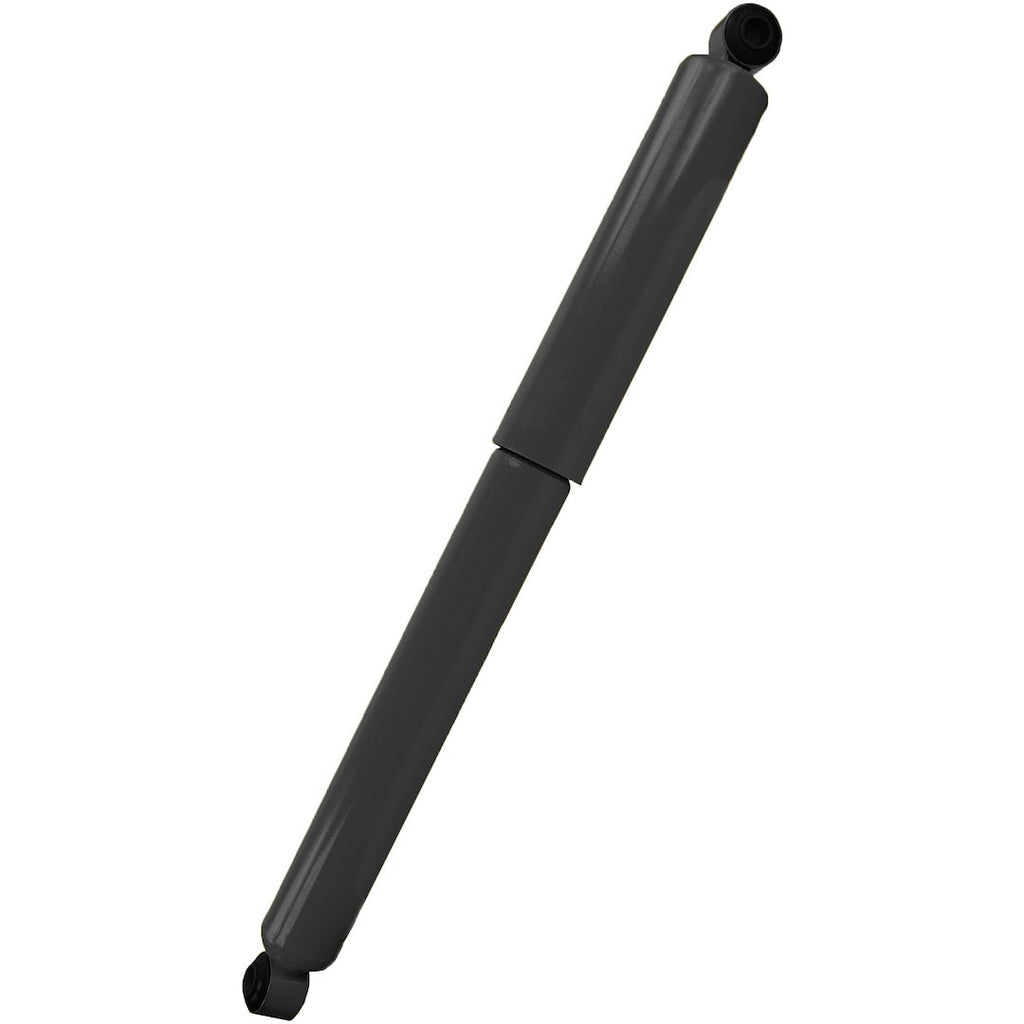

The Monroe Gas Magnum Shock Absorber is engineered to provide superior control and comfort for heavy-duty vehicles such as the Ford F650 and F750 from 2004 to 2009. This shock absorber features a nitrogen gas-charged design that improves ride quality and handling by maintaining optimal tire-to-road contact, effectively reducing aeration. With a better valving range on both compression and extension cycles, it ensures a smooth and comfortable ride even under demanding conditions.
Constructed with a sintered iron piston, the Gas Magnum offers enhanced durability compared to traditional metals, ensuring a long service life. The shock absorber is designed with all-weather fluid that contains special modifiers to minimize friction and promote smooth rod reaction, contributing to overall performance. Additionally, the self-lubricating fluid seal is engineered to retain gas without excessive wear or friction, further extending the lifespan of the unit.
With a robust design featuring a 5/8 inch rod diameter and a monotube internal design, this shock absorber operates efficiently with less effort, boasting up to twice the fluid capacity of standard 1 inch bore shocks. The eyelet mounting style at both the upper and lower ends allows for easy installation, making it a practical choice for those looking to enhance their vehicle's suspension system.
Features
- Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
- Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
- Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Long Service Life
- Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 65484
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 30 Inch
- Compressed Length (IN): 18.12 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: OEM
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
