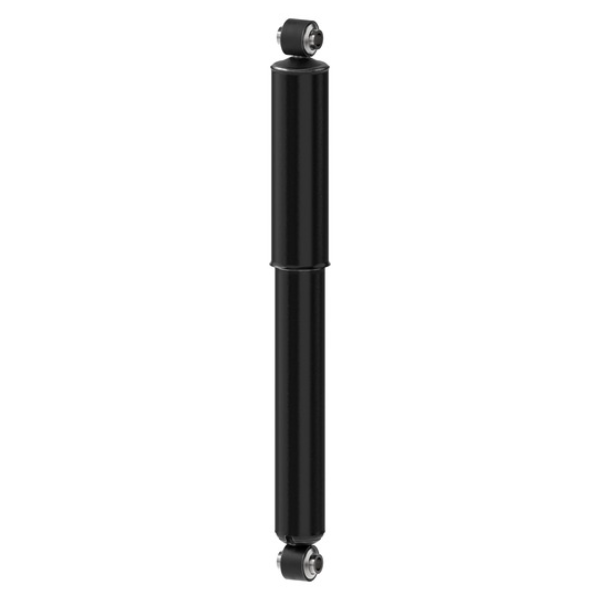

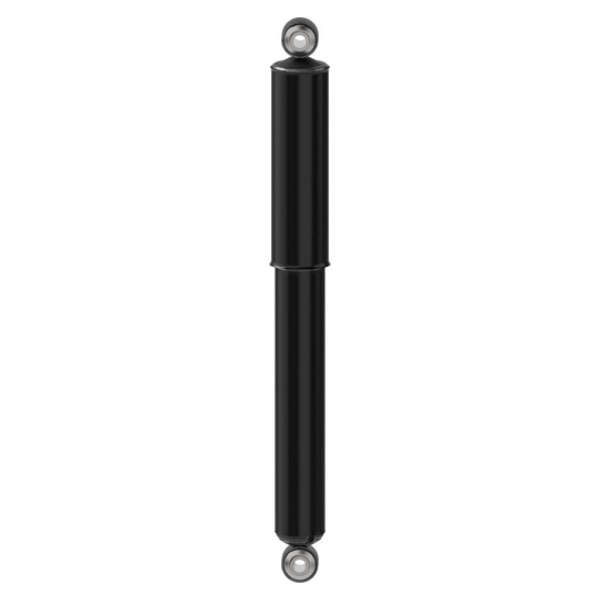

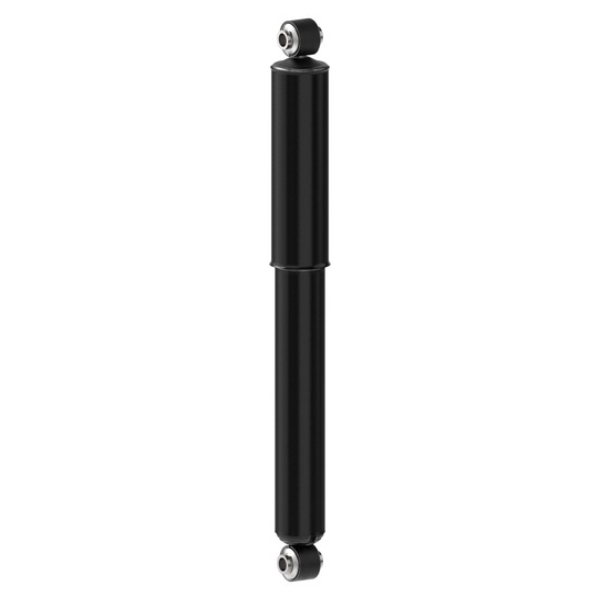

Monroe Gas Magnum Shock Absorber (MPN: 65409)

Enhance ride quality with advanced gas-charged technology.

The Monroe Gas Magnum Shock Absorber is engineered to provide superior control and comfort for a variety of heavy-duty applications. This nitrogen gas-charged shock absorber features an improved valving range that optimizes both compression and extension cycles, ensuring a smooth ride without sacrificing performance. Designed to maintain tire-to-road contact, it effectively reduces aeration, enhancing overall handling and stability.

Constructed with a sintered iron piston, the Gas Magnum shock absorber offers increased durability compared to traditional metals, promising a long service life. The all-weather fluid used in this shock absorber contains special modifiers that minimize friction, allowing for smooth rod reaction in various conditions. Additionally, the self-lubricating fluid seal is designed to retain gas while minimizing wear and friction, further extending the lifespan of the product.

With a semi-universal fit, this single shock absorber is suitable for a range of International and IC Corporation school bus models from 1981 to 2016. Its robust design includes a yellow body and a 5/8 inch rod diameter, making it a reliable choice for maintaining vehicle performance in demanding environments.

Features

• Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth, Comfortable Ride
• Nitrogen Gas-Charged For Improved Ride And Handling, Helps Maintain Tire-To-Road Contact By Reducing Aeration
• Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks
• All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
• Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Long Service Life
• Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction

Specifications

• Manufacturer: Monroe
• Manufacturer Part Number: 65409
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 24-3/4 Inch
• Compressed Length (IN): 15-3/4 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Twin Tube
• Body Color: Yellow
• Rod Diameter (IN): 5/8 Inch
• Valving Type: OEM
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: Yes
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• 65409_in.pdf
