Enhanced performance for mid to full size trucks and vans.

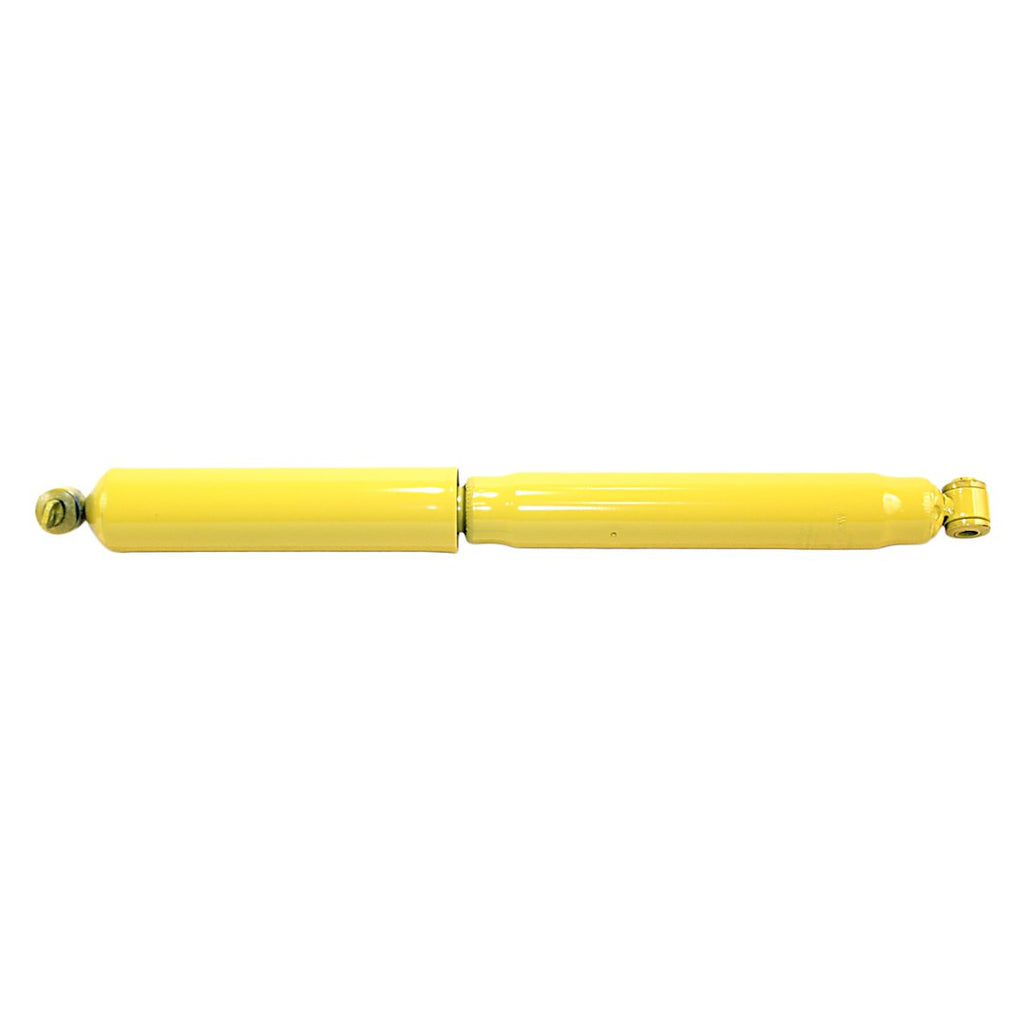

The Monroe Gas-Magnum shock absorber is engineered specifically for mid to full size pick-up trucks and vans, providing a balance of firm control and comfort. This nitrogen gas charged unit features a lower operating pressure than standard 1 inch bore shocks, allowing for improved efficiency and reduced wear. With an expanded reserve tube, it offers greater oil capacity which aids in heat dissipation, ensuring consistent performance under various driving conditions.
Constructed with a heavy-duty nitro carburized piston rod, the Monroe Gas-Magnum is designed for longevity and reliability. The all-weather fluid used in this shock absorber contains special modifiers that minimize friction, promoting smooth rod reaction. Additionally, the full displaced valving enhances the valving range during both compression and extension cycles, contributing to a smoother ride.
The nitrogen gas charge improves ride quality and handling by maintaining optimal tire-to-road contact, while the sintered iron piston provides superior strength compared to traditional metals. This shock absorber is a vehicle-specific monotube design, ensuring compatibility and performance tailored to your truck or van.
Features
- Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units. Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
- Reserve Tube: More Fluid For More Consistent Performance. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat
- Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life. Work More Efficiently With Less Effort
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
- Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 34985
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 26-3/4 Inch
- Compressed Length (IN): 16-1/8 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Iron
- Body Material: OEM
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1988-1999 Chevrolet C1500
- 1988-2000 Chevrolet C2500
- 1988-2000 Chevrolet C3500
- 1988-1999 Chevrolet K1500
- 1988-2000 Chevrolet K2500
- 1988-2000 Chevrolet K3500
- 1988-1999 GMC C1500
- 1988-2000 GMC C2500
- 1988-2000 GMC C3500
- 1988-1999 GMC K1500
- 1988-2000 GMC K2500
- 1988-2000 GMC K3500
