Advanced nitrogen gas charged technology for enhanced RV performance and comfort.

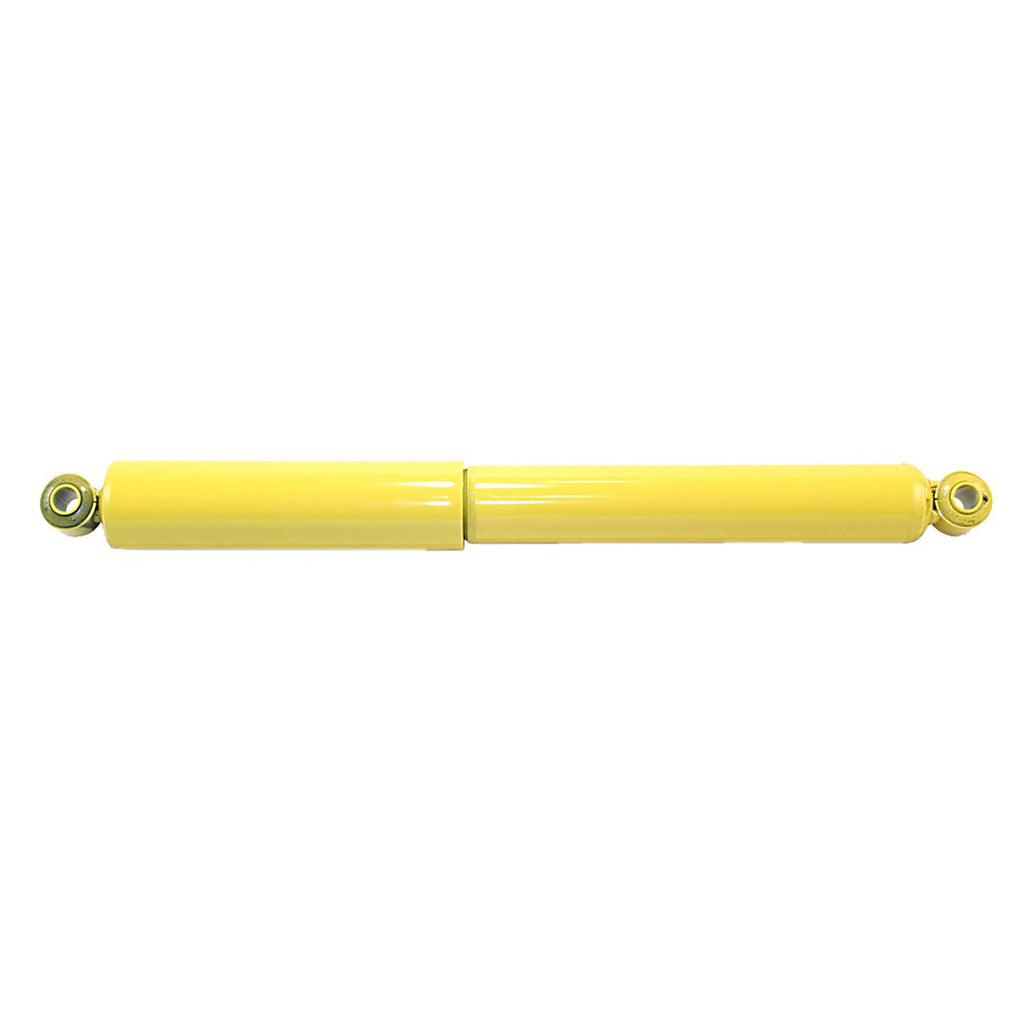

The Monroe Gas-Magnum RV shock absorber is engineered to provide superior performance for recreational vehicles. Utilizing advanced nitrogen gas charging and full displaced valving, this shock absorber significantly reduces bounce and wander, enhancing towing capacity and stability. The design includes a multi-lip fluid seal that ensures smooth operation and longevity while minimizing friction.
With a heavy-duty nitro carburized piston rod and robust resistance arc-welded mounts, the Monroe Gas-Magnum offers exceptional durability, capable of withstanding up to 9,000 pounds of tensile strength. The patented hydraulic rebound lockout feature further contributes to a controlled and comfortable ride by managing the rebound motion effectively.
This shock absorber is designed with a monotube internal structure, providing efficient performance with lower operating pressure compared to standard units. The 10-stage full displaced valving is application-specific, ensuring optimal handling and ride quality. The yellow body color and eyelet mounting style add to the aesthetic and functional appeal of this essential RV component.
Features
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life And Reduced Friction. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration. Work More Efficiently With Less Effort
- Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units
- Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life
- Resistance And Arc-Welded Mounts, Provides 9,000 Pounds (4,082 Kilogram) Tensile Strength For Maximum Durability
- Patented Unique Hydraulic Rebound Lockout
- 10-Stage Full Displaced Valving
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 557031
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 27 Inch
- Compressed Length (IN): 16-3/8 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
