Enhance your RV's performance with advanced nitrogen gas technology.

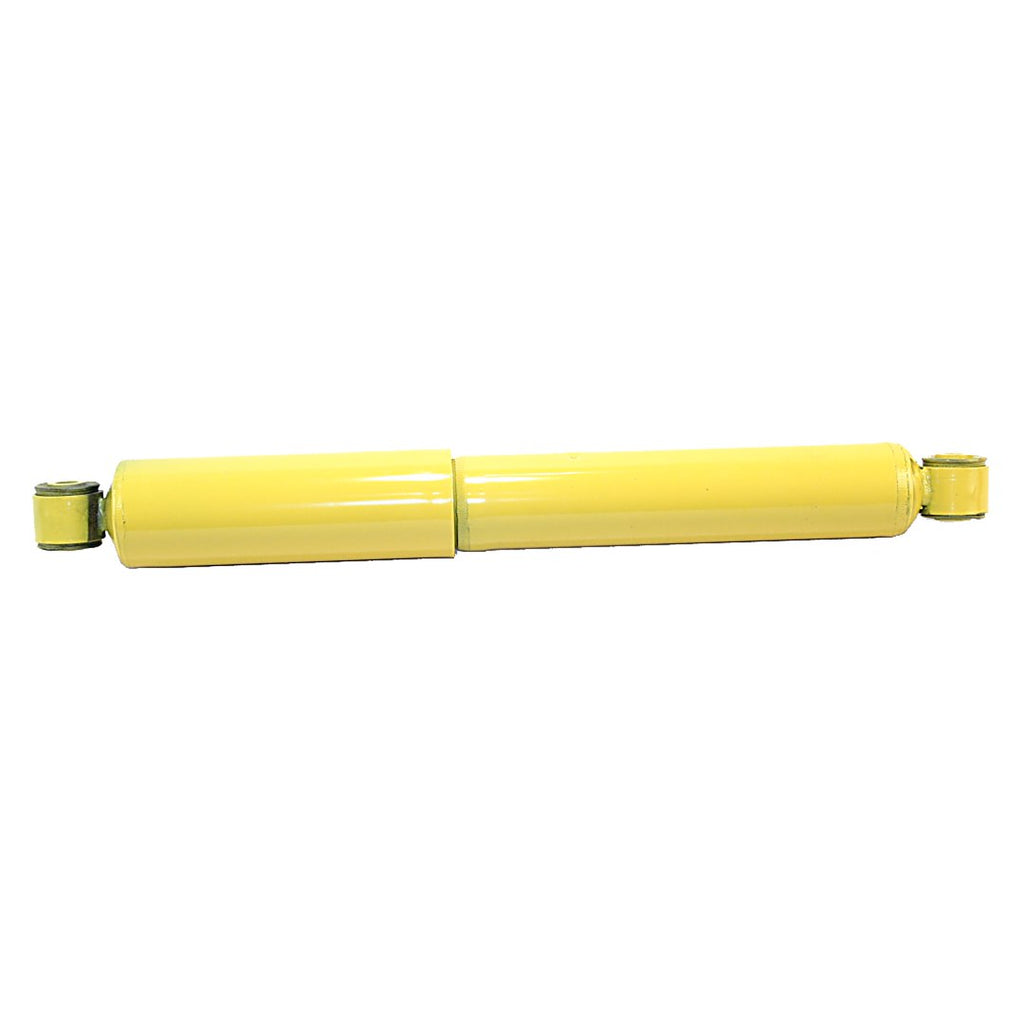

The Monroe Gas-Magnum RV shock absorber is engineered to provide superior performance for recreational vehicles. Utilizing a nitrogen gas charge and full displaced valving, this shock absorber significantly reduces bounce and wander, enhancing towing capacity and stability. The design minimizes surge caused by trailer motion feedback, resulting in a smoother ride for both the vehicle and its occupants.
Constructed with a multi-lip fluid seal, the shock absorber ensures smooth performance and longevity while reducing friction. The expanded reserve tube increases oil capacity, effectively dissipating heat during operation. With a heavy-duty nitro carburized piston rod and resistance arc-welded mounts, this shock absorber offers exceptional durability and a tensile strength of 9,000 pounds.
The Monroe Gas-Magnum features a patented hydraulic rebound lockout and 10-stage full displaced valving, optimizing ride quality and handling. Designed specifically for vehicle compatibility, this monotube shock absorber is a reliable choice for enhancing the performance of your RV.
Features
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life And Reduced Friction. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration. Work More Efficiently With Less Effort
- Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units
- Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life
- Resistance And Arc-Welded Mounts, Provides 9,000 Pounds (4,082 Kilogram) Tensile Strength For Maximum Durability
- Patented Unique Hydraulic Rebound Lockout
- 10-Stage Full Displaced Valving
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 557004
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22 Inch
- Compressed Length (IN): 14 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1975-1999 Chevrolet P30
- 1973-1974 Chevrolet P30 Van
- 1975-1978 GMC P35
- 1973-1974 GMC P35/P3500 Van
- 1979-1999 GMC P3500
- 2000-2003 Workhorse P30
