Advanced nitrogen gas charged technology for superior RV performance and control.

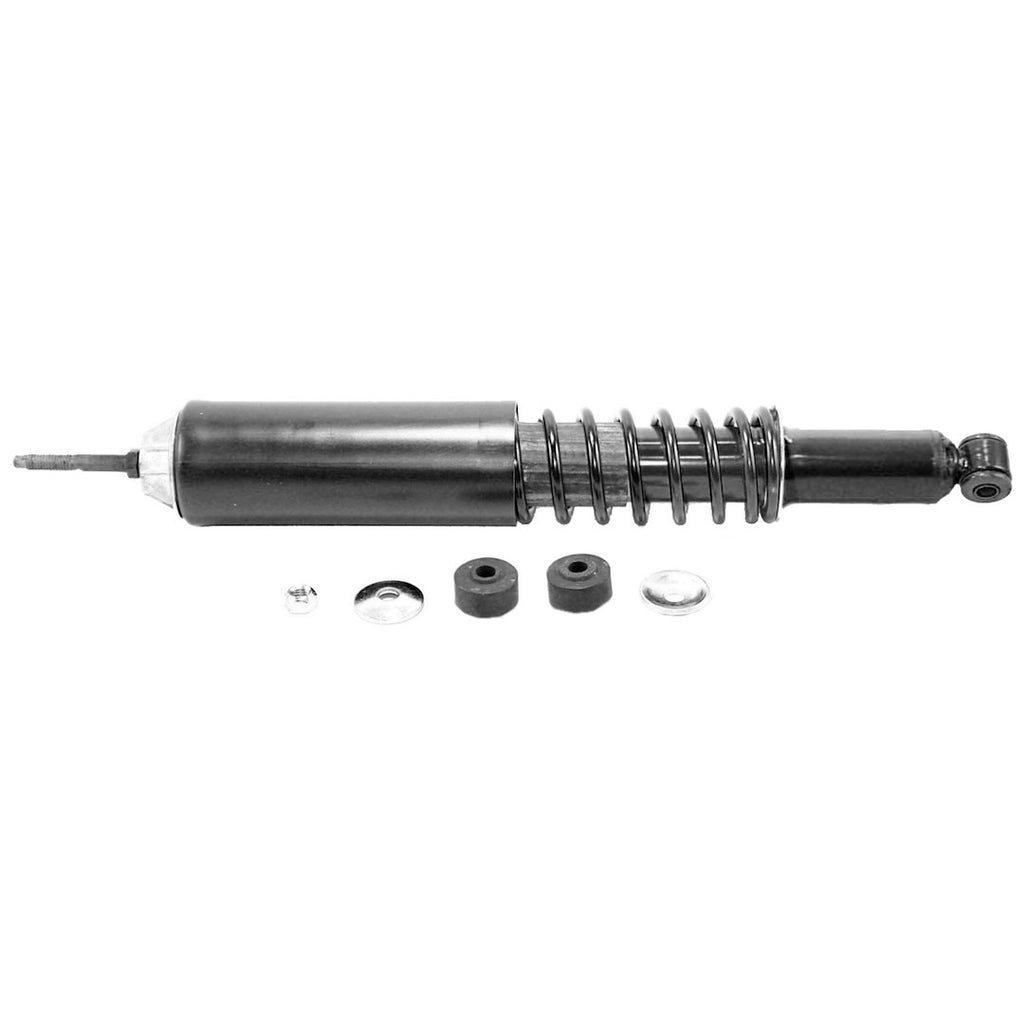

The Monroe Gas-Magnum RV shock absorber is engineered to enhance the performance of recreational vehicles through its innovative nitrogen gas charged design. This shock absorber features full displaced valving, which allows for superior comfort during normal driving conditions while providing additional control when faced with demanding situations such as towing and hauling. The multi-lip fluid seal ensures smooth operation and longevity, effectively reducing friction and maintaining ride height even with an additional load of up to 1,200 pounds.
Designed with a lower operating pressure than standard units, the 1 inch bore of the Monroe Gas-Magnum allows for rapid adjustments to changing road and weight conditions, delivering enhanced control without compromising ride comfort. The heavy-duty nitro carburized piston rod contributes to a long service life, while the expanded reserve tube increases oil capacity for better heat dissipation. With resistance and arc-welded mounts providing a tensile strength of 9,000 pounds, this shock absorber is built for maximum durability.
Incorporating patented hydraulic rebound lockout and 10-stage full displaced valving, the Monroe Gas-Magnum RV shock absorber is a reliable choice for those seeking improved ride and handling. Its vehicle-specific design ensures compatibility and optimal performance, making it a practical solution for enhancing the driving experience in recreational vehicles.
Features
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life And Reduced Friction. Assist In Maintaining Ride Height When Up To 1,200 Pounds Of Additional Weight Is Loaded
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration. Work More Efficiently With Less Effort
- Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units. Adjust Rapidly To Changing Road And Weight Conditions, Delivering Enhanced Control With Uncompromised Ride Comfort
- Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat
- Resistance And Arc-Welded Mounts, Provides 9,000 Pounds (4,082 Kilogram) Tensile Strength For Maximum Durability
- Patented Unique Hydraulic Rebound Lockout
- 10-Stage Full Displaced Valving
Specifications
- Manufacturer: Monroe
- Manufacturer Part Number: 555020
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22-1/2 Inch
- Compressed Length (IN): 13-1/2 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Yellow
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Iron
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1975-1991 Ford E-350 Econoline
- 1977-1991 Ford E-350 Econoline Club Wagon
