Engineered for optimal cooling in high-performance builds.

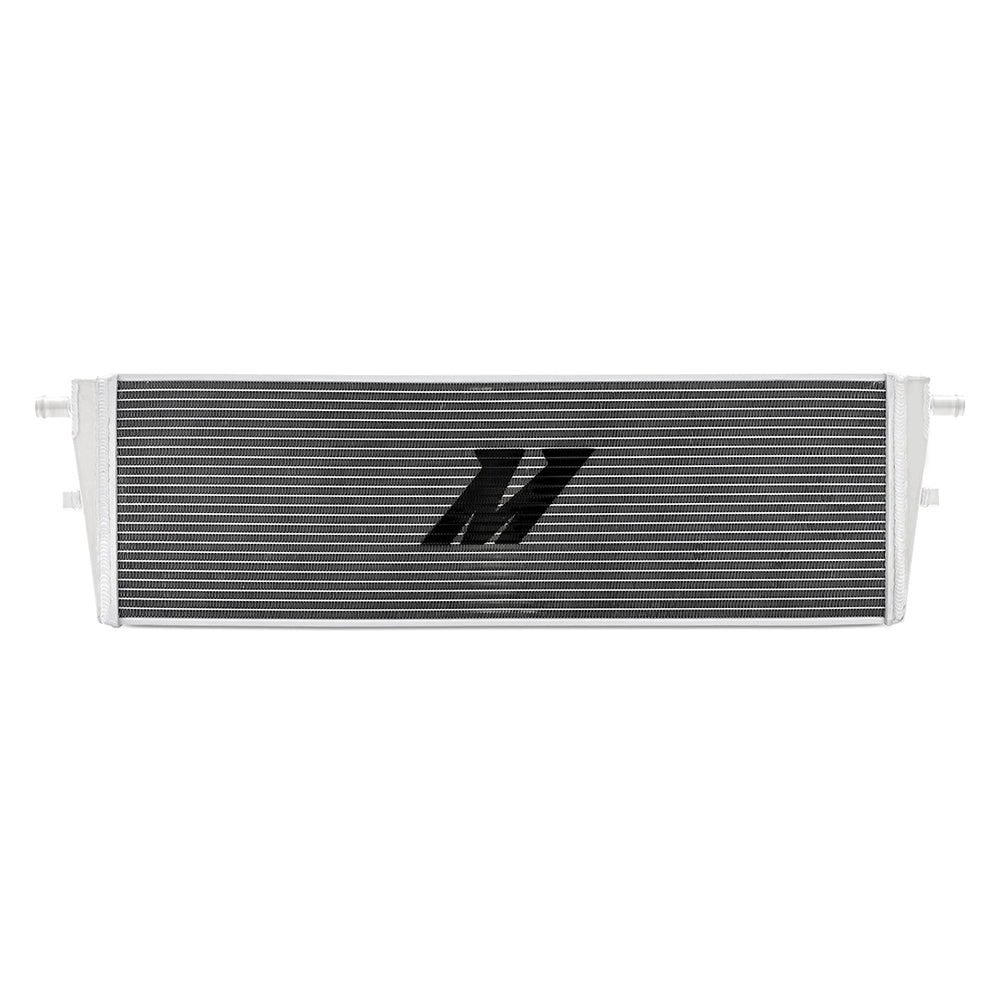

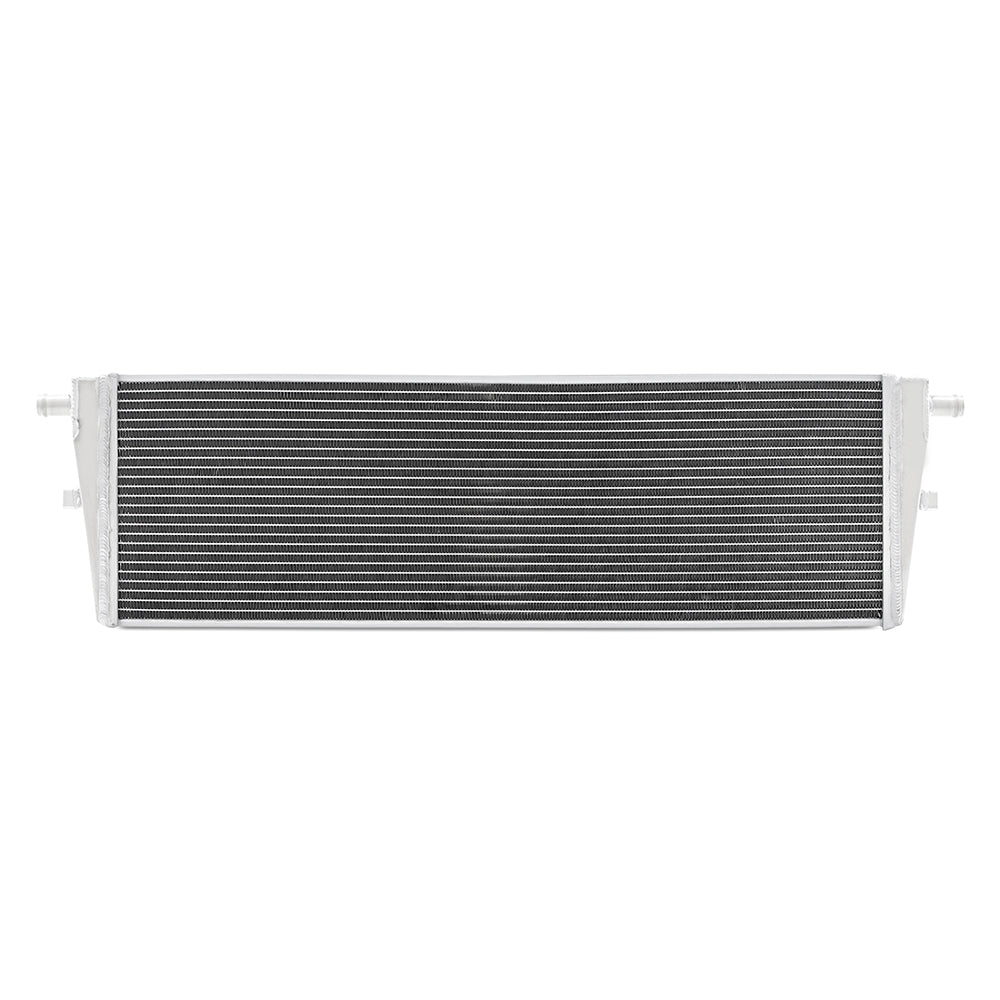

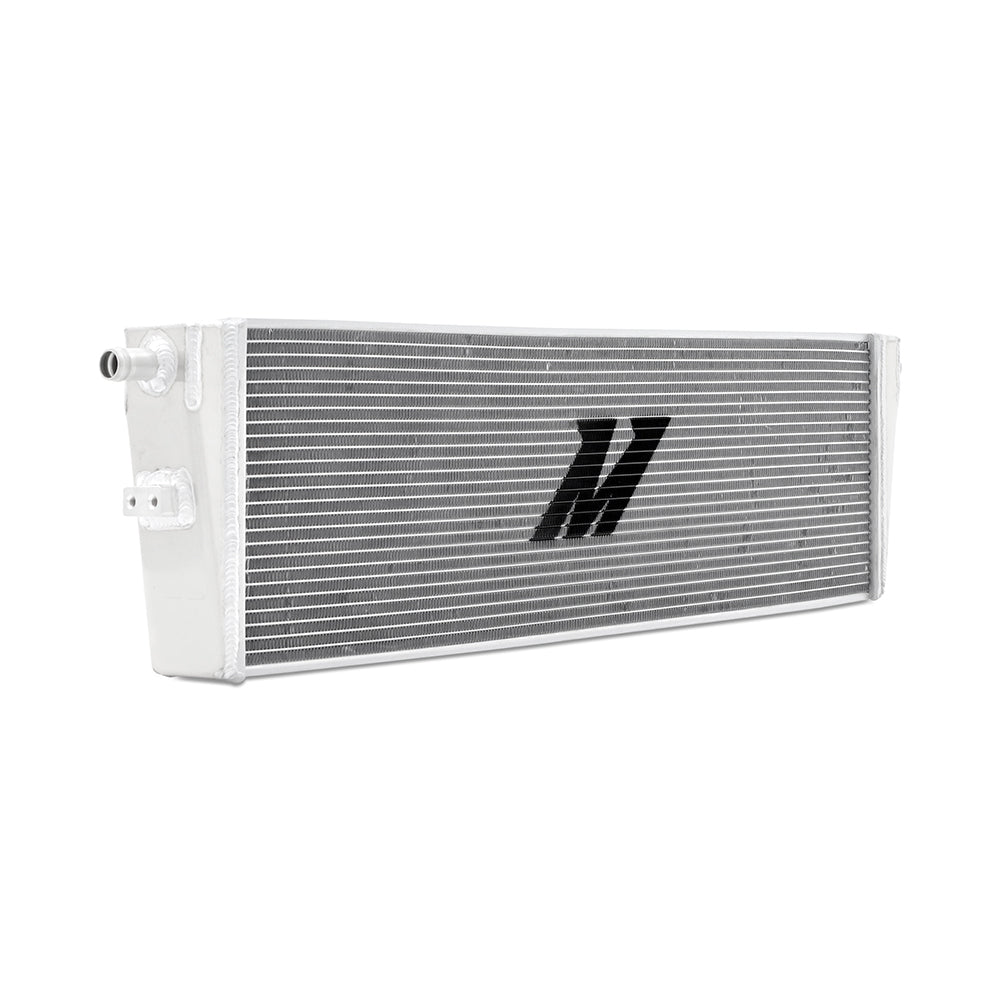

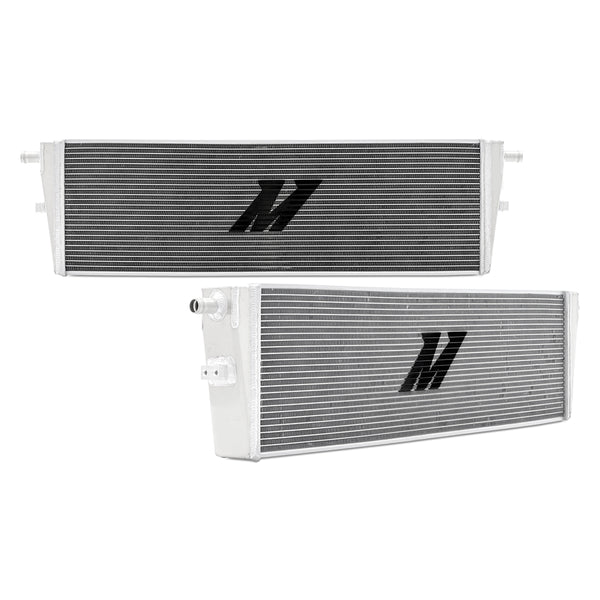

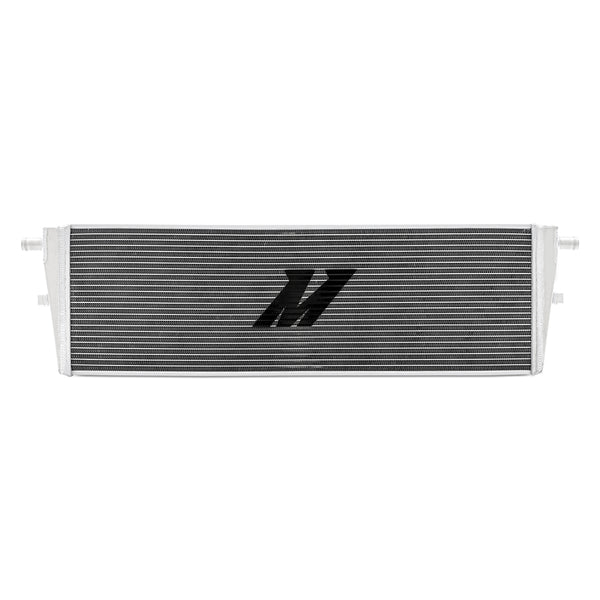

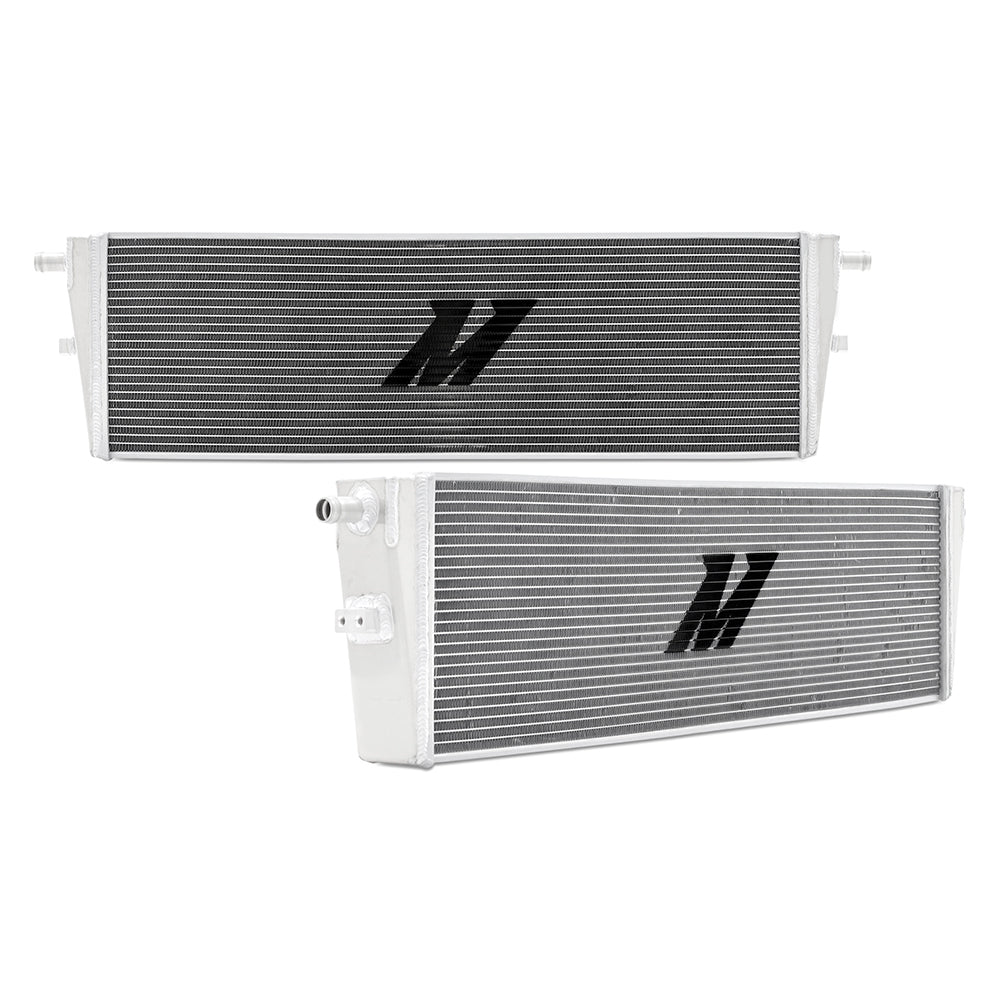

The Mishimoto Universal Air-to-Water Heat Exchanger is designed to enhance the efficiency of charge-air cooling systems, particularly in turbocharged vehicles. With overall dimensions of 31.85 inches in length, 8.55 inches in height, and 2.67 inches in depth, this heat exchanger is built to support builds up to 1,500 horsepower. Its three-row core design maximizes flow and heat dissipation, ensuring that coolant temperatures are effectively reduced before entering the intercooler.

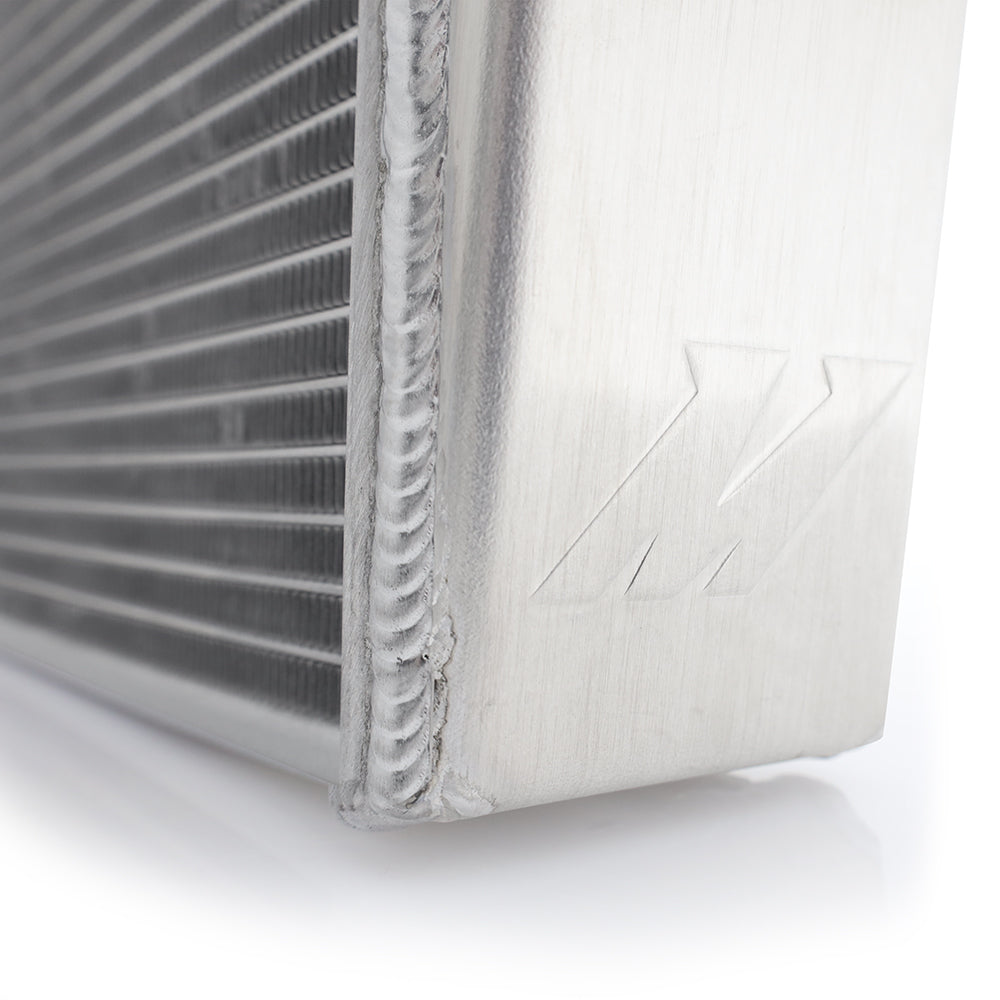

Constructed from all-aluminum materials, the Mishimoto heat exchanger features precision TIG-welded end tanks that provide superior strength and durability. The robust 1/2 inch thick mounting bosses on each end tank facilitate easy installation, while the bead rolled 3/4 inch inlet and outlet ensure a leak-free connection. This heat exchanger is a critical component for any forced induction build, offering reliable performance and longevity.

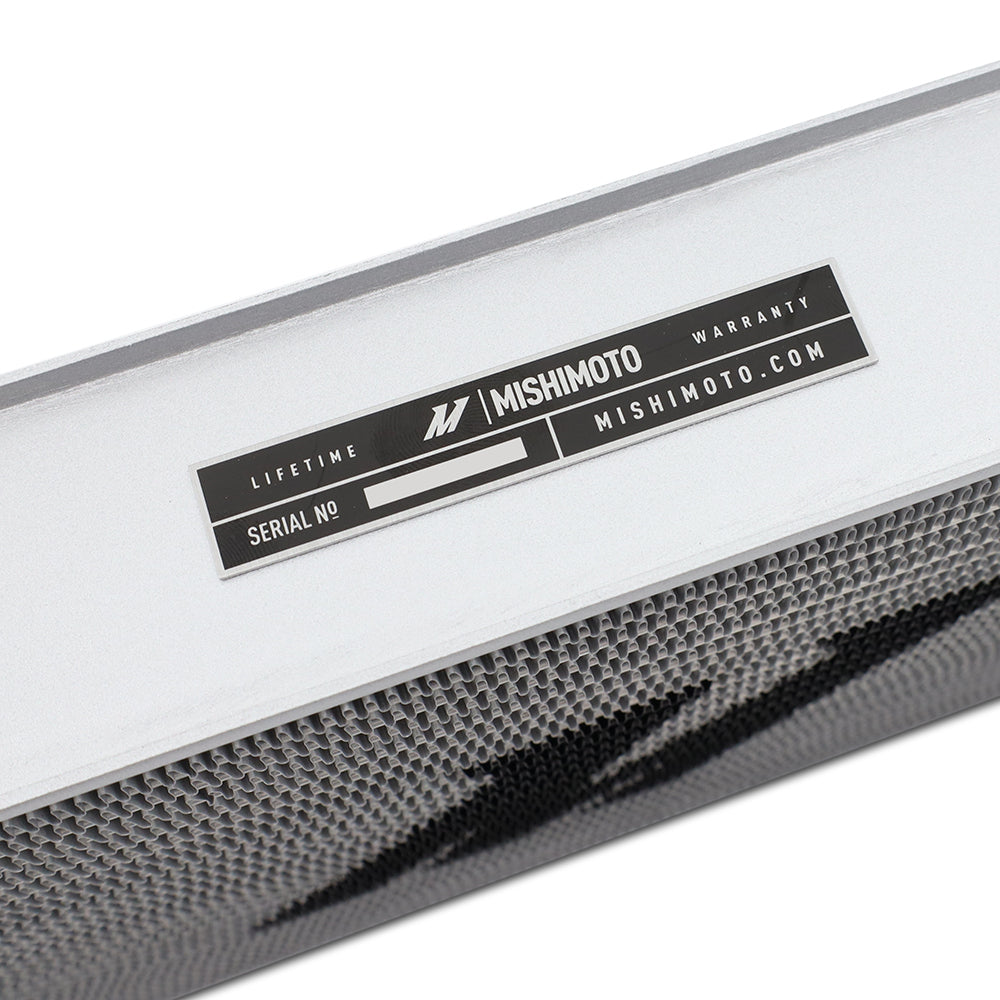

Mishimoto's commitment to quality is evident in this product, which is backed by a lifetime warranty. The universal design allows for multiple sizes to accommodate various project needs, making it a versatile choice for automotive enthusiasts looking to optimize their air-to-water intercooling systems.
Features
- Universal Heat Exchanger For Use With Air To Water Intercooler Systems
- Provides Effective Cooling Support For Charge Air Cooling Systems Up To 500 Horsepower
- Strategically Designed 3 Row Core Offers Maximum Flow And Heat Dissipation
- All Aluminum Construction Yields Superior Strength And Durability
- Precision TIG Welded End Tanks For Improved Durability And Pressure Tolerance
- Robust 1/2 Inch Thick Universal Mounting Bosses On Each End Tank
- Bead Rolled 3/4 Inch Inlet And Outlet Provide A Leak-Free Connection
- Multiple Sizes To Choose From To Fit The Needs Of Your Project
Specifications
- Manufacturer: Mishimoto
- Manufacturer Part Number: MMRAD-HE-02
- Overall Length (IN): 31.85 Inch
- Overall Height (IN): 8.55 Inch
- Overall Depth (IN): 2.67 Inch
- Core Rows: Three
- Core Material: Aluminum
- Inlet Size (IN): 3/4 Inch
- Outlet Size (IN): 3/4 Inch
- Color: Silver
- Core Length (IN): 25.98 Inch
- Core Height (IN): 7.81 Inch
- Core Depth (IN): 2.04 Inch
- Tank Material: Aluminum
