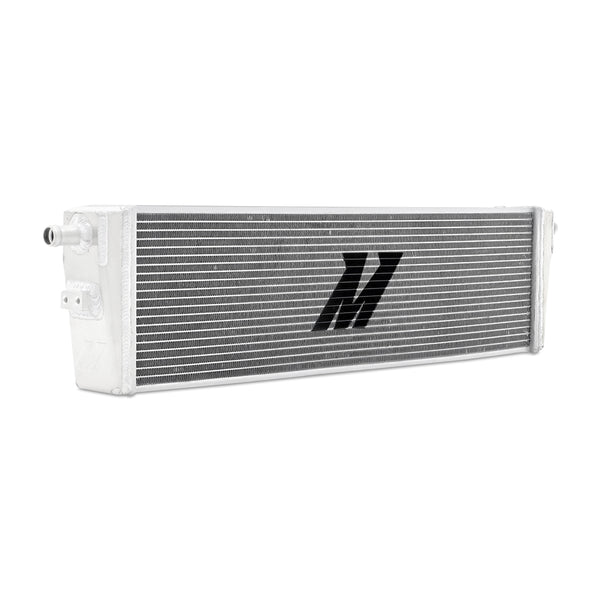

Mishimoto Universal Air-to-Water Heat Exchanger (MPN: MMRAD-HE-01)

Engineered for optimal cooling in high-performance builds.

The Mishimoto Universal Air-to-Water Heat Exchanger is designed to enhance the efficiency of charge-air cooling systems, particularly in turbocharged vehicles. With overall dimensions of 29.48 inches in length, 7 inches in height, and 2.67 inches in depth, this heat exchanger features a robust three-row core made from high-quality aluminum, ensuring superior strength and durability. The strategically designed core maximizes flow and heat dissipation, making it suitable for builds up to 1,500 horsepower.

This heat exchanger is equipped with precision TIG-welded end tanks that improve durability and pressure tolerance, while the bead rolled 3/4 inch inlet and outlet provide a leak-free connection. The inclusion of half-inch thick threaded mounting bosses on each end tank simplifies installation, making it a practical choice for various projects. Mishimoto offers multiple sizes and configurations, allowing for customization to meet specific cooling needs.

As part of Mishimoto's comprehensive line of air-to-water products, this heat exchanger is a critical component for anyone looking to optimize their forced induction system. With a focus on performance and reliability, the Mishimoto Universal Air-to-Water Heat Exchanger is backed by a lifetime warranty, ensuring peace of mind for users.

Features

• Universal Heat Exchanger For Use With Air To Water Intercooler Systems
• Provides Effective Cooling Support For Charge Air Cooling Systems Up To 500 Horsepower
• Strategically Designed 3 Row Core Offers Maximum Flow And Heat Dissipation
• All Aluminum Construction Yields Superior Strength And Durability

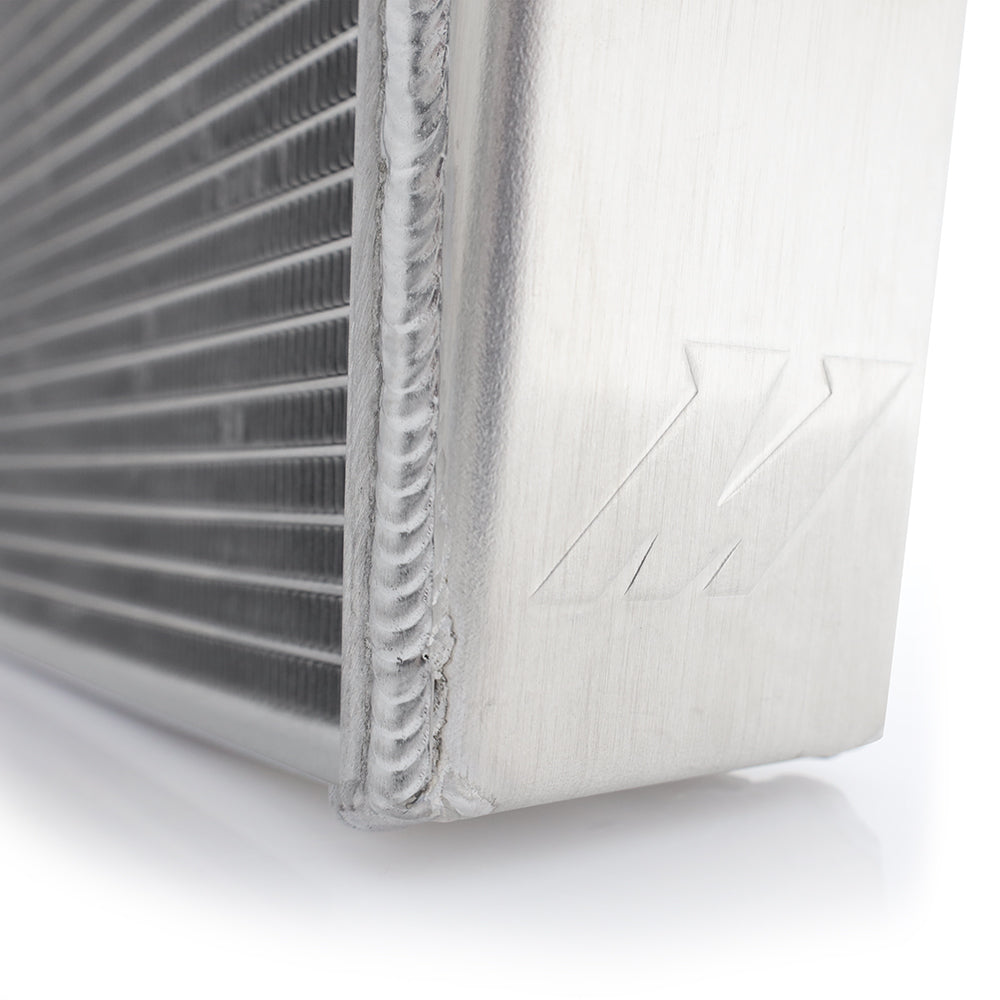

• Precision TIG Welded End Tanks For Improved Durability And Pressure Tolerance
• Robust 1/2 Inch Thick Universal Mounting Bosses On Each End Tank
• Bead Rolled 3/4 Inch Inlet And Outlet Provide A Leak-Free Connection

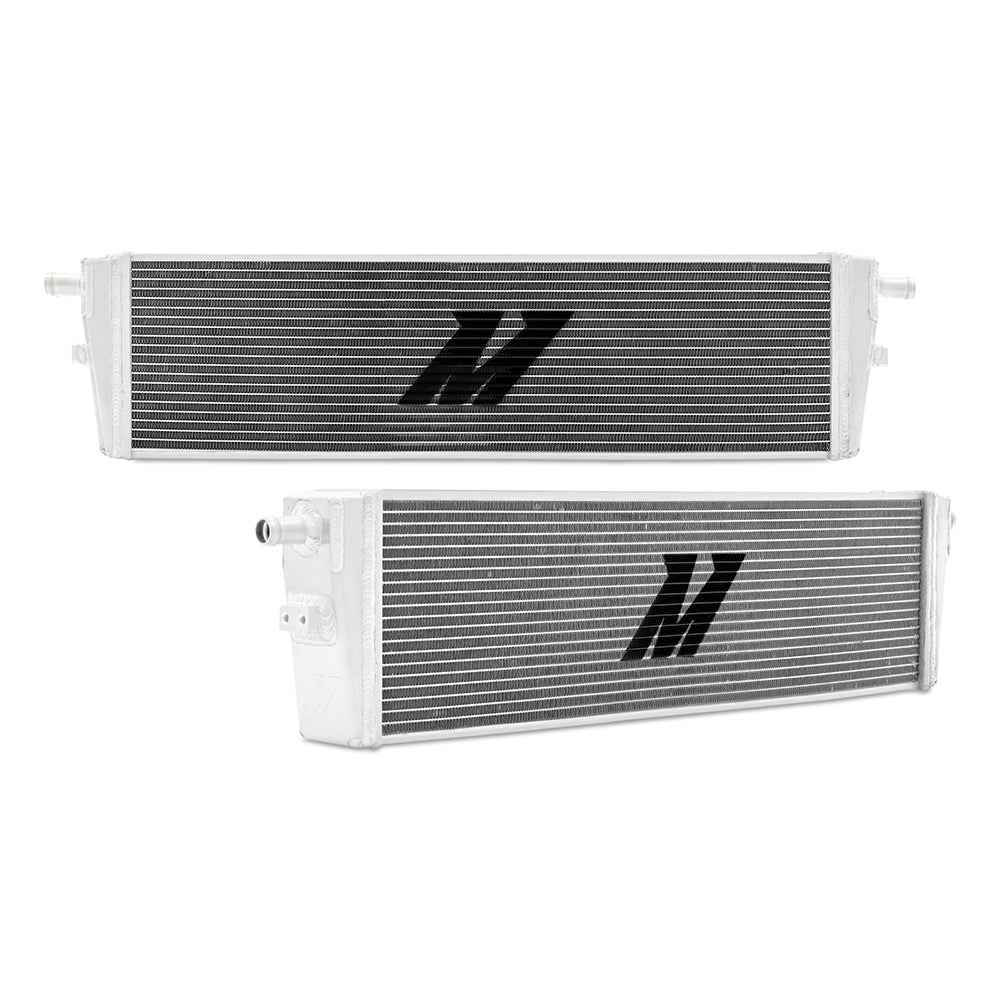

• Multiple Sizes To Choose From To Fit The Needs Of Your Project

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-HE-01
• Overall Length (IN): 29.48 Inch
• Overall Height (IN): 7 Inch
• Overall Depth (IN): 2.67 Inch
• Core Rows: Three
• Core Material: Aluminum
• Inlet Size (IN): 3/4 Inch
• Outlet Size (IN): 3/4 Inch
• Color: Silver
• Core Length (IN): 23.62 Inch
• Core Height (IN): 6.14 Inch
• Core Depth (IN): 2.04 Inch
• Tank Material: Aluminum
