Mishimoto Transmission Oil Cooler Bypass Valve (MPN: MMTC-RAM-TBVFF)

Enhance transmission cooling efficiency with full-flow design.

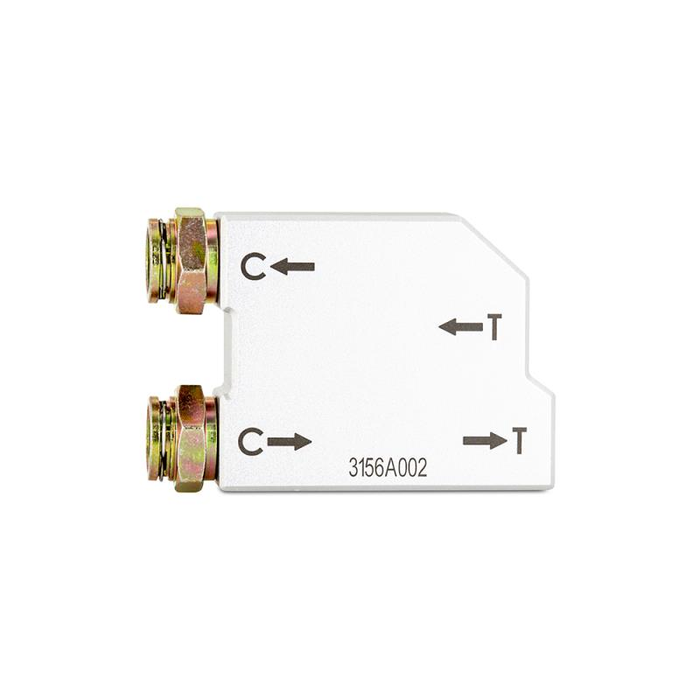

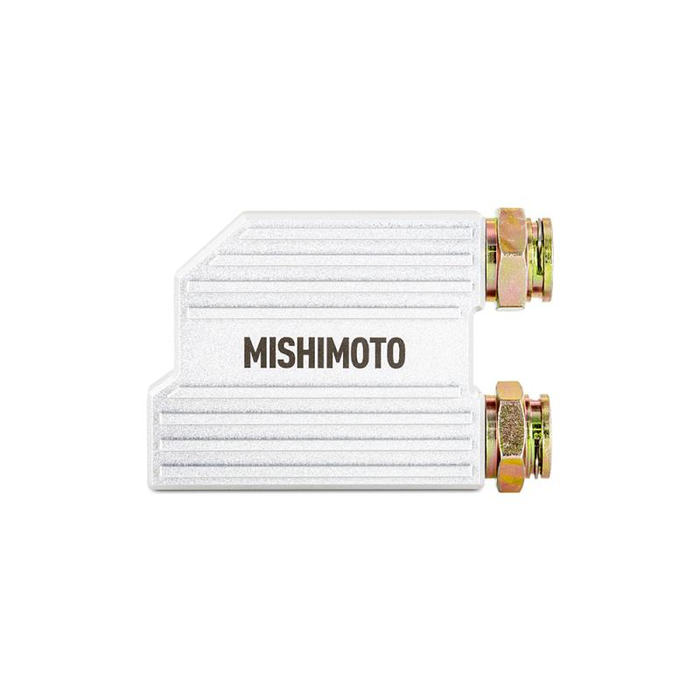

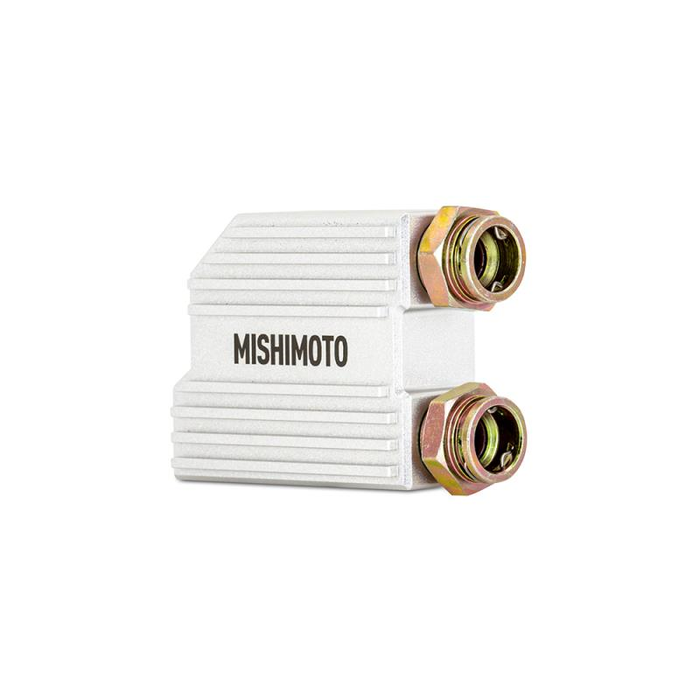

The Mishimoto Transmission Oil Cooler Bypass Valve is designed to improve the efficiency of your vehicle's transmission cooling system. This OE replacement part features a durable CNC-machined aluminum construction that not only enhances aesthetics but also performance. By eliminating the failure-prone internal thermostat, this valve allows for full fluid flow to the transmission cooler under all operating conditions, which is particularly beneficial in warm climates or during heavy towing operations.

Strategically machined internal passages within the valve provide improved fluid flow compared to the stock unit, ensuring effective cooling and extending the life of the transmission. The integrated heat-sink fins not only contribute to the unique styling of the valve but also enhance heat dissipation, further preventing overheating. Installation is straightforward, requiring no modifications to stock transmission cooler piping and can be completed in less than one hour.

Features

• Durable CNC-Machined Billet Aluminum Construction
• Eliminates Failure-Prone Bypass Valve
• Full-Flow Bypass Allows The Transmission Cooler To Operate At Maximum Efficiency
• Helps Extend Transmission Life And Prevent Overheating
• For With Stock Transmission Cooler Piping, Requiring No Modification For Installation
• Integrated Heat-Sink Fins Provide Unique Styling And Added Heat Dissipation
• Durable Anodized Finish
• Installs In Less Than 1 Hour

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMTC-RAM-TBVFF
• Number Of Ports: 2 Inlet/ 2 Outlet Port
• Includes: With 3/4-inch x 16 Quick-Disconnect Transmission Line Fittings

Compatibility / Fit

• 2013-2018 Ram 2500
• 2013-2018 Ram 3500

Technical Documents

• mmtcl-dmax-01_install-guide_revb.pdf
