Mishimoto Performance Transmission Cooler (MPN: MMTC-RAM-19)

Enhance your truck's cooling capacity with advanced design features.

The Mishimoto Performance Transmission Cooler is engineered to provide superior cooling for transmission fluid, utilizing a robust stacked-plate design that ensures maximum durability and efficiency. With a core volume that is 521 percent larger than stock and a frontal area increase of 278 percent, this cooler significantly enhances the cooling capacity of your vehicle, making it suitable for heavy towing and low-speed driving conditions.

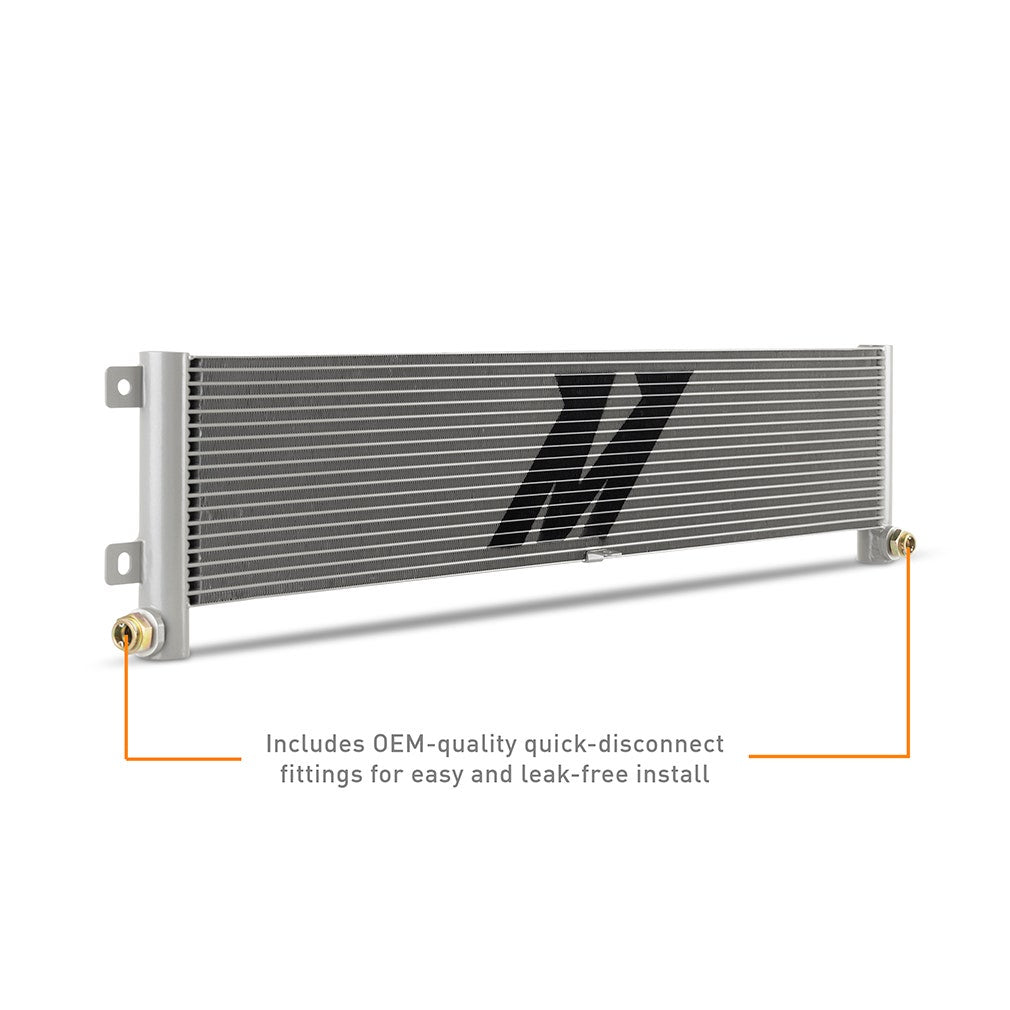

This transmission cooler features internal fins and louvered external fins that optimize heat transfer by effectively circulating cool air and fluid throughout the core. The inclusion of precision-machined -6ORB quick-disconnect fittings allows for easy connection to stock lines or the option to switch to -6AN lines, providing flexibility in installation.

An adjustable mounting bracket simplifies the installation process, allowing for setup in an hour or less. Additionally, the cooler comes with a relocation bracket for the ambient air temperature sensor, ensuring that your truck maintains full functionality. This product is designed for those who require reliable performance and enhanced cooling efficiency in their transmission systems.

Features

• 278 Percent Increase In Frontal Surface Area Transfers More Heat At Any Speed
• Stacked-Plate Core Balances Flow With Effective Cooling

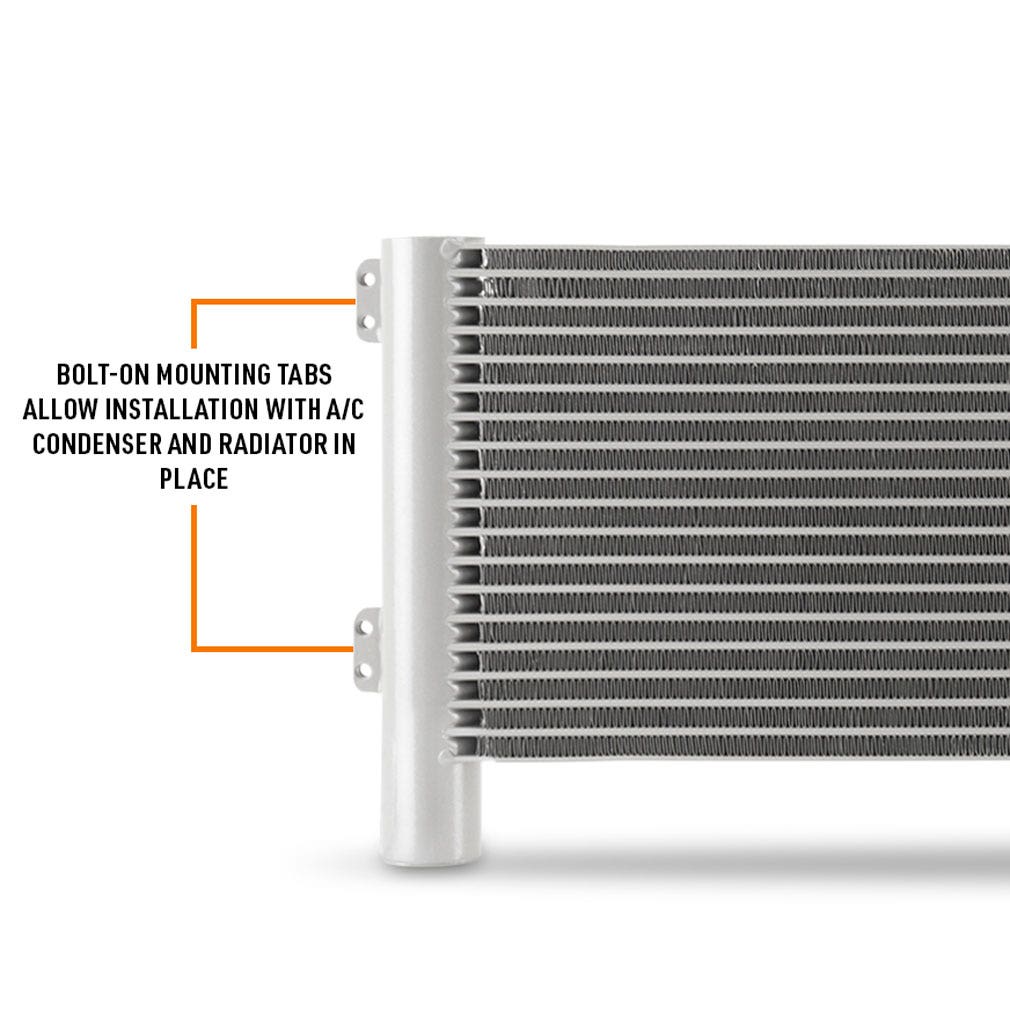

• Adjustable Bracket Makes Installation Fast And Easy
• Patent Pending Design
• 521 Percent Increase In Core Volume For Vastly Improved Cooling Capacity
• 6ORB Quick-Disconnects Can Easily Be Swapped For -6AN Fittings

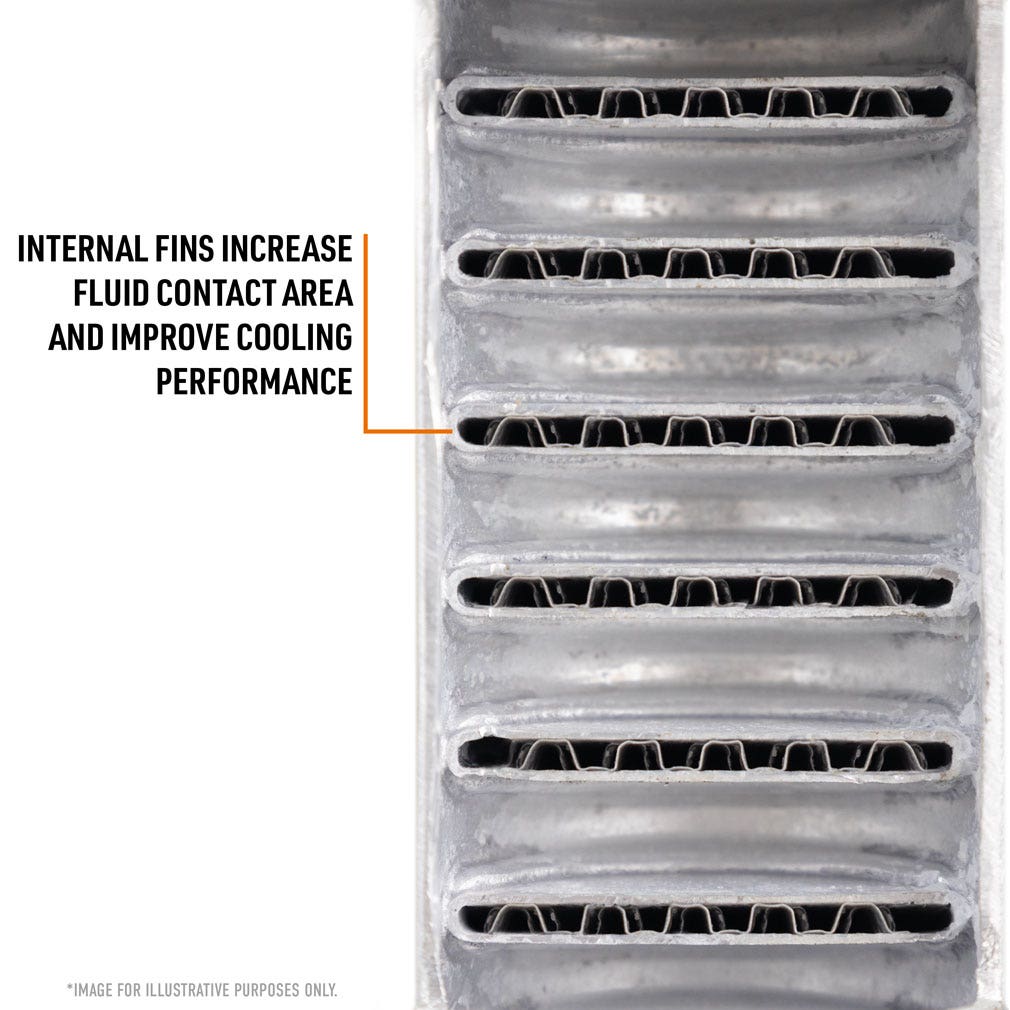

• Internal Fins And External Louvered Fins Maximize Heat Transfer
• Features Ambient Air Temperature Sensor Relocation Bracket

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMTC-RAM-19
• Condition: New
• Recommended Use: Transmission Fluid
• Construction: Stacked Plate
• Overall Height (IN): 8.58 Inch
• Overall Width (IN): 2.36 Inch
• Overall Depth (IN): OEM
• Number Of Cooling Rows: 17
• Inlet Attachment: Quick Connect
• Inlet Size: OEM
• Outlet Attachment: Quick Connect
• Outlet Size: OEM
• Color: Silver
• Material: OEM
• With Fan: No
• Fan Control: No Fan
• Core Height (IN): 34.65 Inch
• Core Width (IN): 7.13 Inch
• Core Depth (IN): 1.26 Inch
• Fan CFM Rating: No Fan
• Fan Diameter: No Fan
• Fan Amp Draw: No Fan
• With Mounting Hardware: Yes

Compatibility / Fit

• 2019-2024 Ram 2500
• 2019-2024 Ram 3500

Technical Documents

• mmtc-ram-19_installguide.pdf
