Enhance cooling efficiency for 2019 plus Ram 2500/3500 trucks.

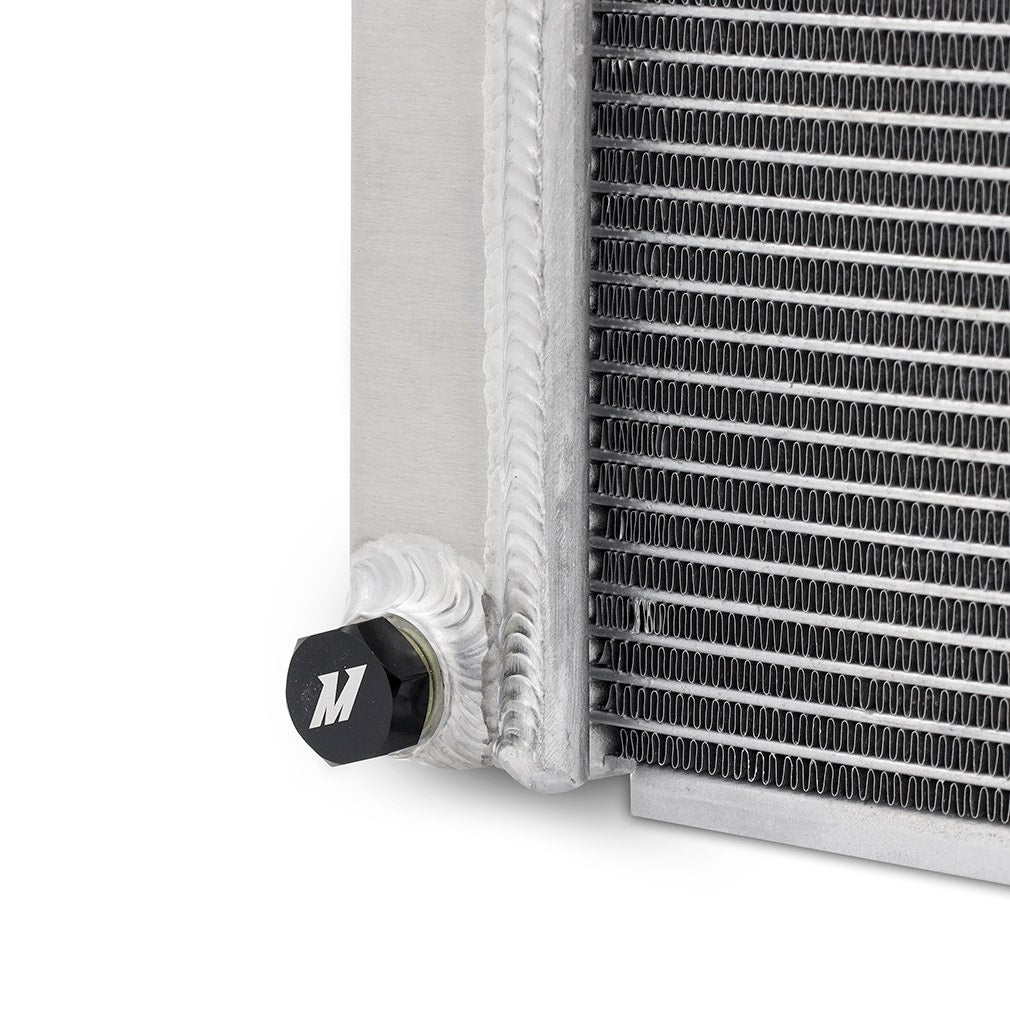

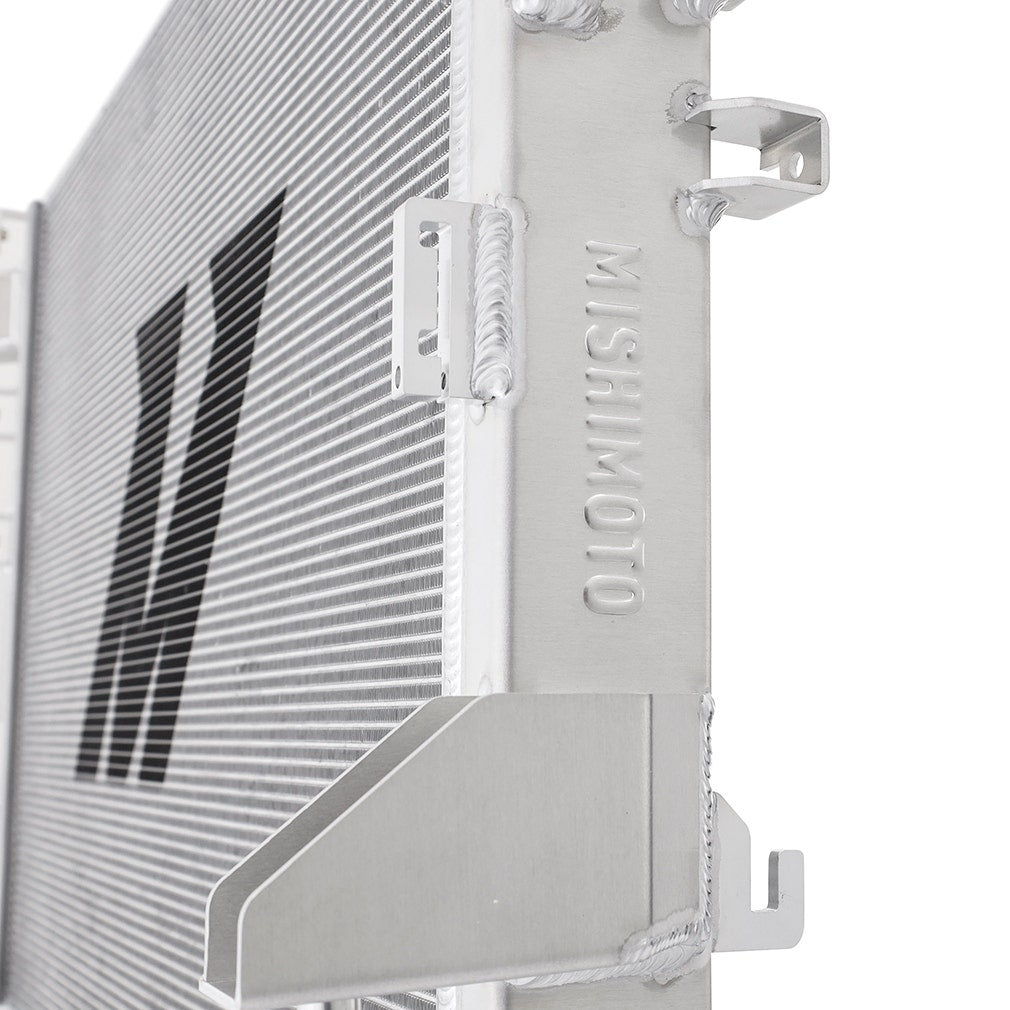

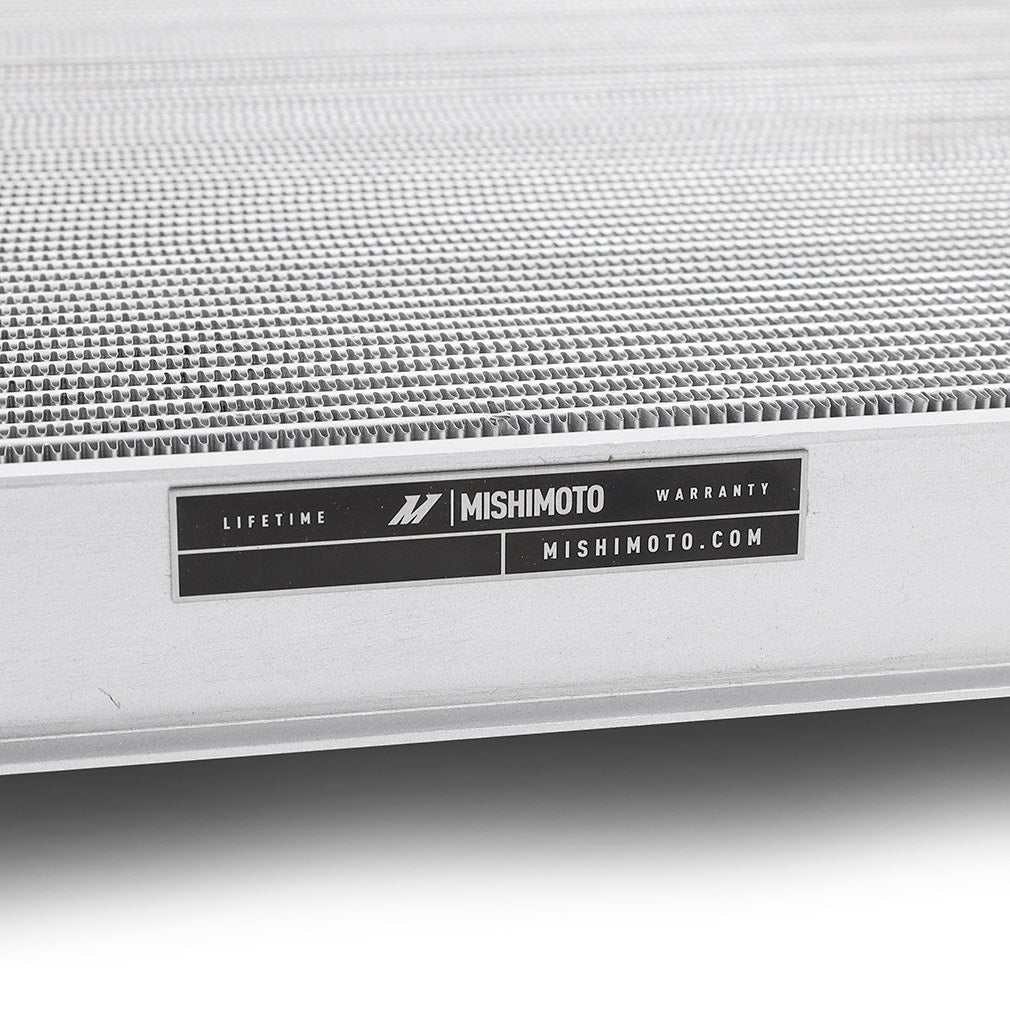

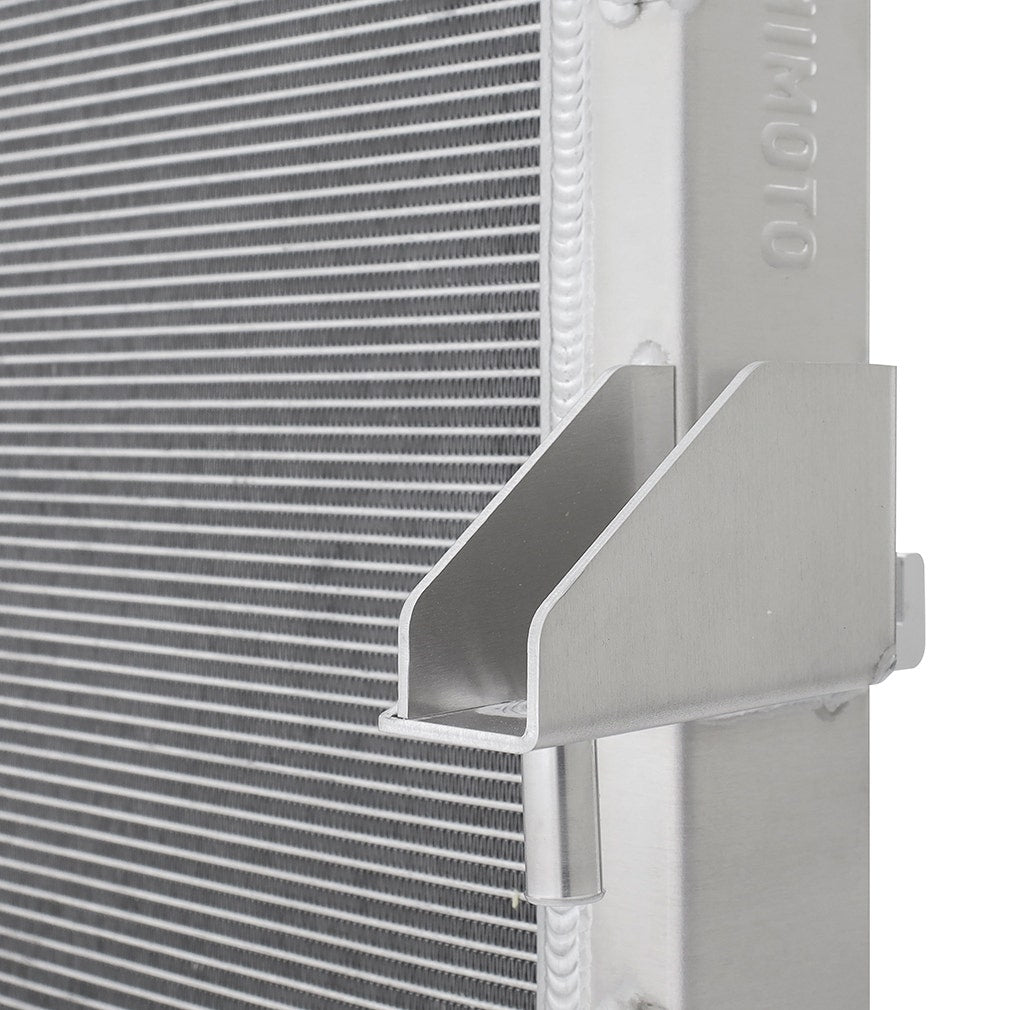

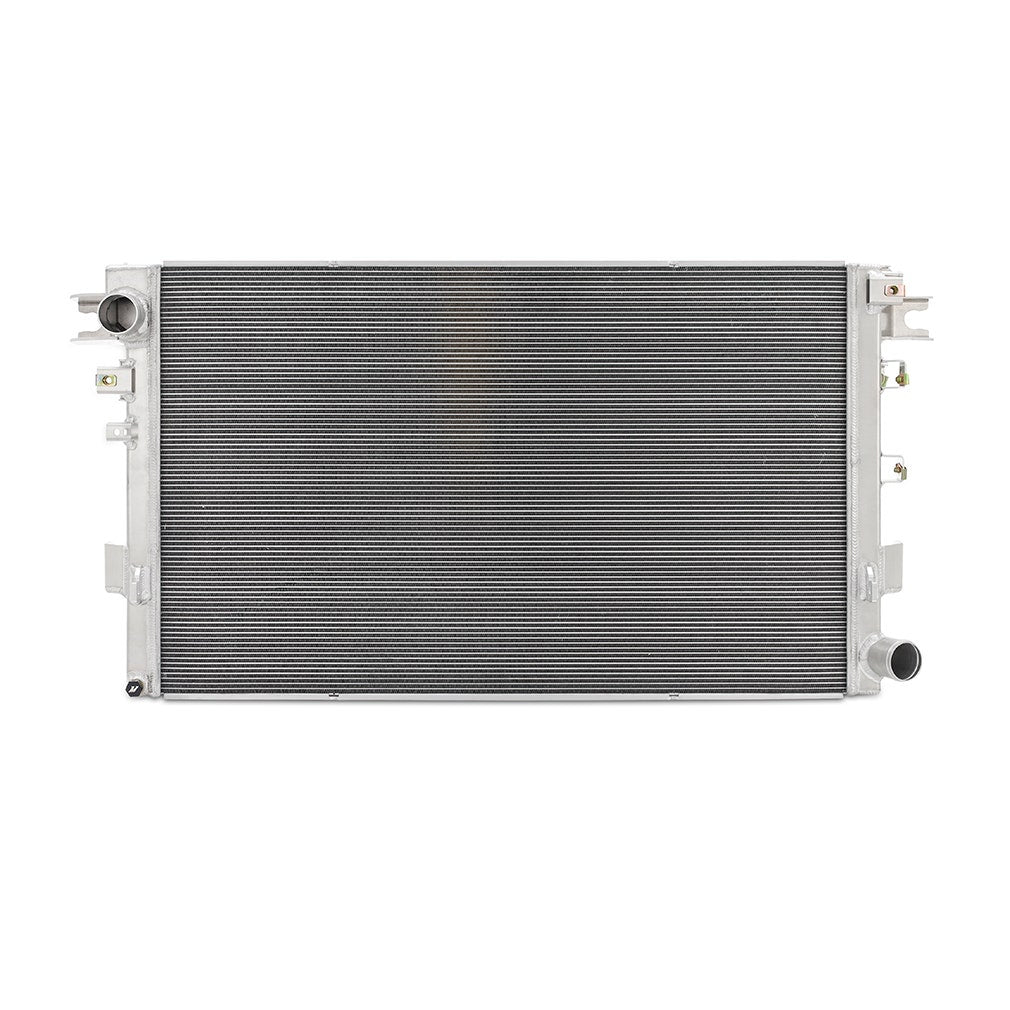

The Mishimoto Performance Radiator is designed specifically for the 2019 and newer Dodge Ram 2500 and 3500 equipped with the 6.7L Cummins engine. This radiator features a fully aluminum construction with TIG-welded end tanks, ensuring durability and reliability under demanding conditions. With an overall dimension of 43.3 inches in length, 21.48 inches in height, and 7.04 inches in width, it is engineered to fit seamlessly into your vehicle's cooling system.
One of the key benefits of the Mishimoto radiator is its 28 percent increase in fluid capacity, which significantly enhances cooling performance. This is particularly important for trucks that frequently haul heavy loads, as it helps to prevent overheating and potential engine damage. The radiator also includes bushing replacements for old or worn components, ensuring a complete and effective installation.
Additionally, the radiator is equipped with strutted tubes that provide maximum rigidity and durability, making it a reliable choice for heavy-duty applications. For optimal performance, it is recommended to pair this radiator with the Mishimoto Silicone Coolant Hose Kit, which further protects the cooling system. The louvered fins design improves heat dissipation, contributing to the overall efficiency of the cooling system.
Features
- Durable Fully Aluminum Construction With TIG-Welded End Tanks And Fittings
- Direct Fit For The 2019 Plus Ram 6.7L Cummins
- Strutted Tubes Throughout For Maximum Rigidity And Durability
- Pair With Mishimoto Silicone Coolant Hose Kit For Even Greater Cooling System Protection
- Increases Fluid Capacity By 28 Percent To Maximize Cooling

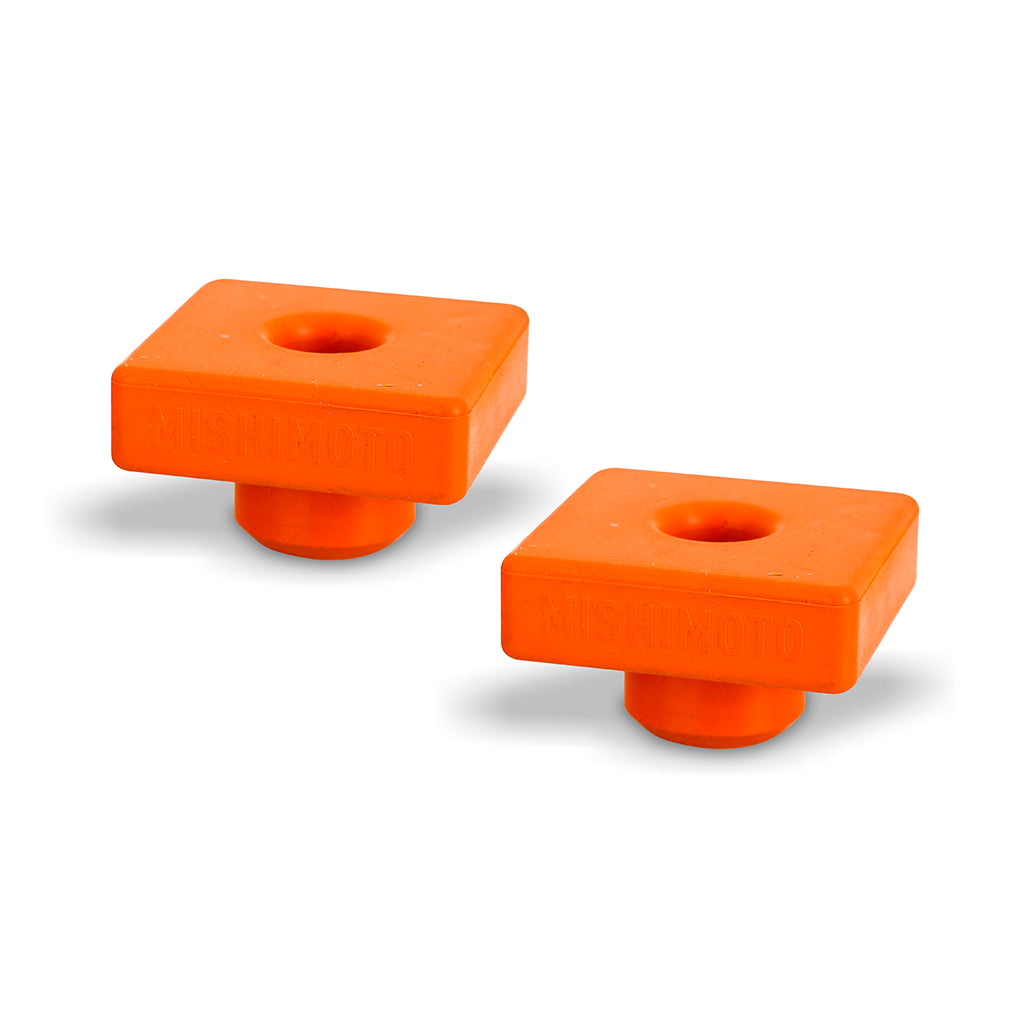

- Features Bushing Replacements For Old Or Worn Out Bushings
- Louvered Fins For Improved Heat Dissipation
Specifications
- Manufacturer: Mishimoto
- Manufacturer Part Number: MMRAD-RAM-19
- Overall Length (IN): 43.3 Inch
- Overall Height (IN): 21.48 Inch
- Overall Depth (IN): 7.04 Inch
- Core Material: Aluminum
- Outlet Size (IN): 2 Inch
- Color: Gray
- Core Length (IN): 33.39 Inch
- Core Height (IN): 20.76 Inch
- Core Depth (IN): 1.57 Inch
Compatibility / Fit
- 2019-2024 Ram 2500
- 2019-2024 Ram 3500
