Mishimoto Performance Radiator (MPN: MMRAD-CIV-22)

Enhance cooling efficiency for 2022+ Honda Civic 1.5T with advanced design.

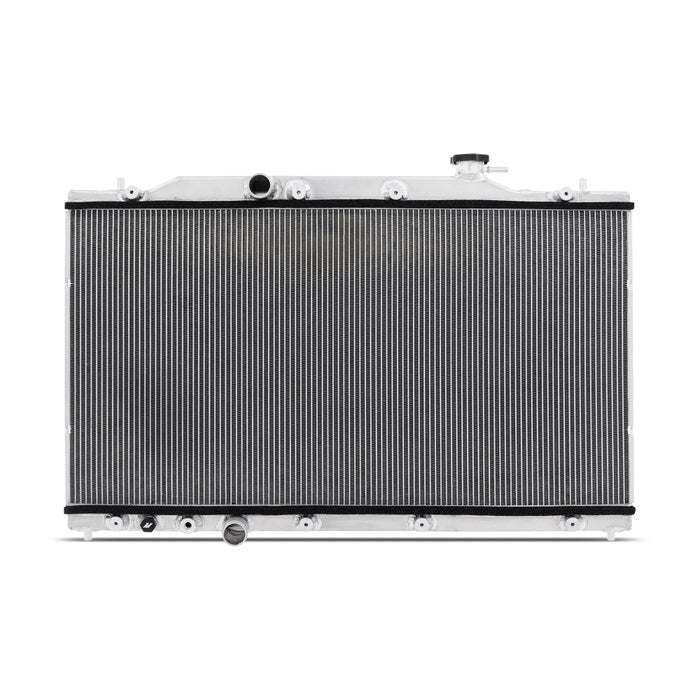

The Mishimoto Performance Radiator is designed to significantly improve the cooling system of the 2022 and newer Honda Civic 1.5T. Constructed from all aluminum, this radiator features precision TIG welded end tanks and a robust 40 millimeter thick strutted tube core, ensuring durability and resistance to chassis flex during high-performance driving. With an 85 percent increase in internal tube area and a 53 percent larger external fin area, this radiator enhances heat dissipation and transfer, maintaining optimal engine temperatures even under demanding conditions.

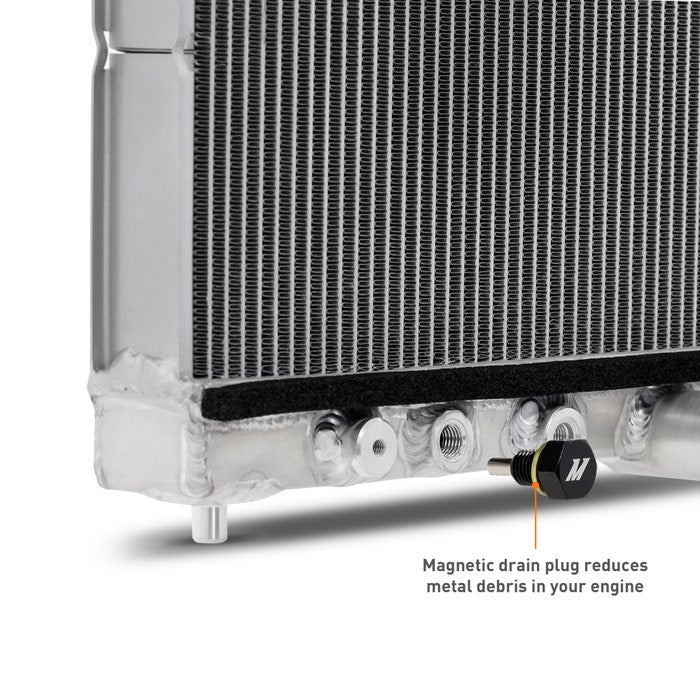

This direct-fit upgrade allows for a straightforward installation process without the need for bumper removal, making it accessible for both professional and DIY mechanics. The radiator is compatible with stock hoses as well as the Mishimoto Silicone Coolant Hose Kit, providing flexibility in your cooling system setup. Additionally, the included magnetic drain plug captures metallic debris, further protecting your cooling system and enhancing its longevity.

Overall dimensions of the radiator are 30.44 inches in length, 20.92 inches in height, and 4.38 inches in depth, with core dimensions of 29.81 inches in length, 15.82 inches in height, and 1.57 inches in depth. This radiator features dual core rows and is designed to meet the cooling demands of performance applications.

Features

• All Aluminum Design With Precision TIG Welded End Tanks
• 85 Percent Increase In Internal Tube Area For Improved Heat Dissipation
• Sturdy 40 Millimeter Thick Strutted Tube Core Resists Chassis Flex

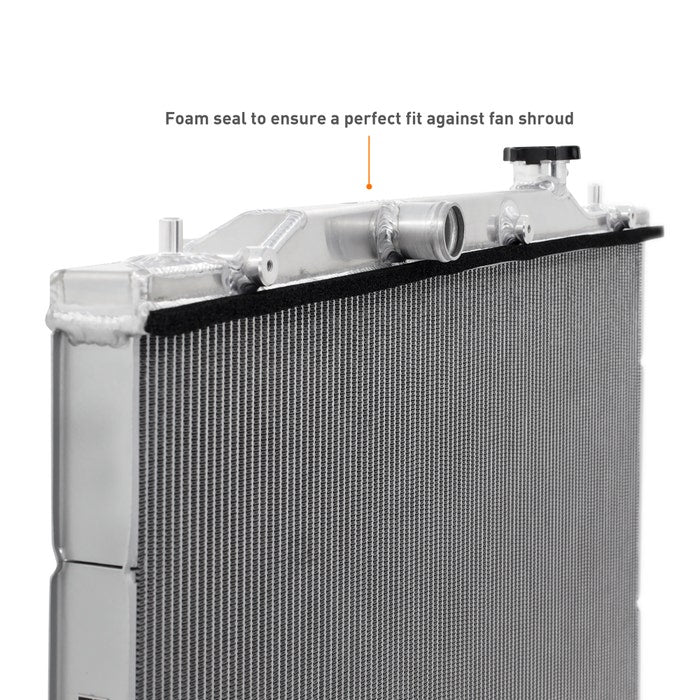

• Foam Seal Included To Ensure A Perfect Fit Against Fan Shroud
• 53 Percent Increase In External Fin Area To Efficiently Transfer Heat From Coolant
• 44 Percent Increase In Core Volume For Improved Cooling Capacity
• Plug And Play Installation Without Need For Bumper Removal

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-CIV-22
• Overall Length (IN): 30.44 Inch
• Overall Height (IN): 20.92 Inch
• Overall Depth (IN): 4.38 Inch
• Core Rows: 2
• Core Material: Aluminum
• Inlet Hose Location: Top
• Inlet Size (IN): 1.26 Inch
• Outlet Hose Location: Top
• Outlet Size (IN): 1.26 Inch
• Finish: Natural
• Color: Silver
• Core Length (IN): 29.81 Inch
• Core Height (IN): 15.82 Inch
• Core Depth (IN): 1.57 Inch
• Tank Material: Aluminum

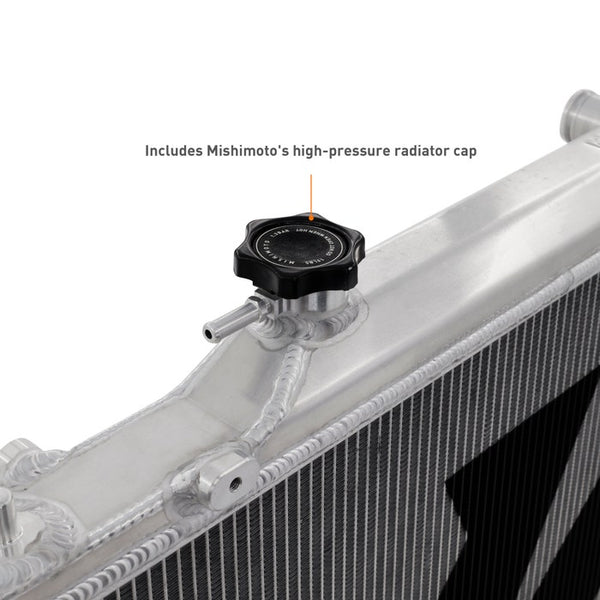

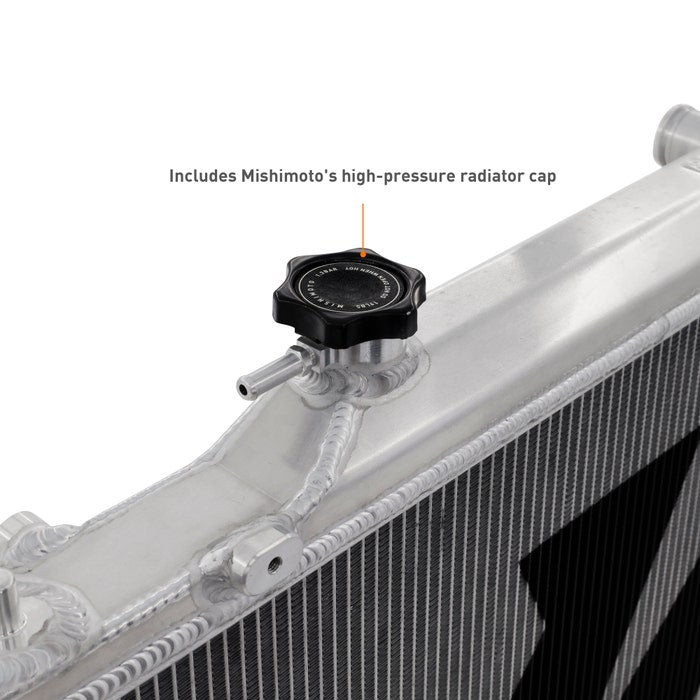

• With Radiator Cap: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2023-2026 Acura Integra
• 2023-2024 Honda Accord
• 2022-2026 Honda Civic
