Enhance cooling efficiency and durability for your Subaru WRX or STI.

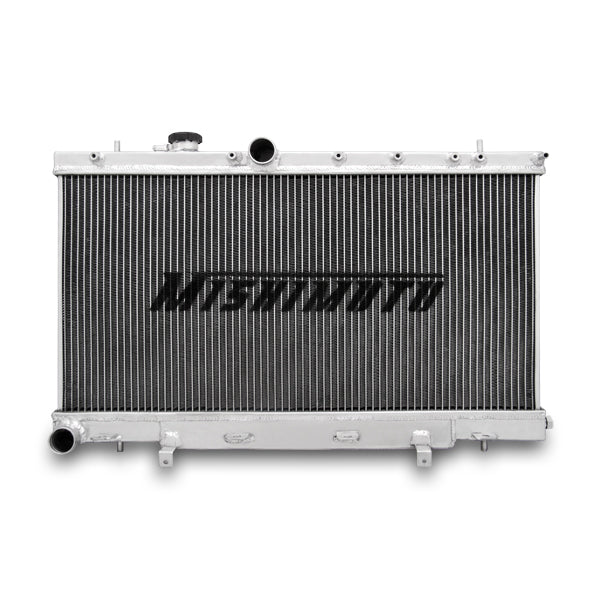

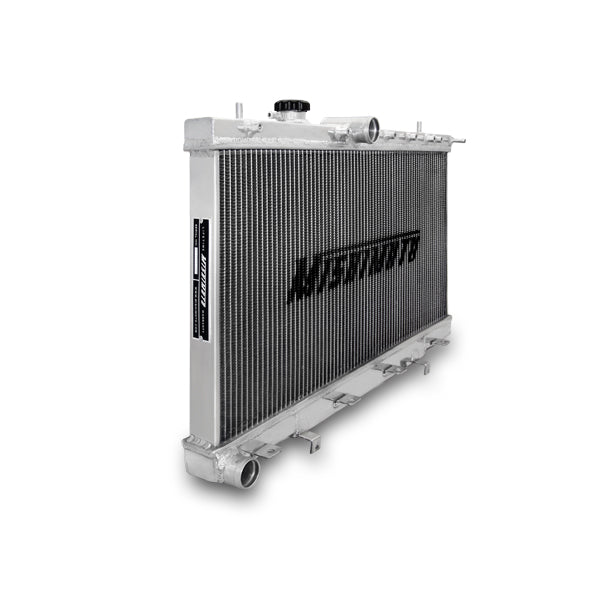

The Mishimoto performance radiator is designed specifically for the Subaru WRX and STI, addressing the common weaknesses of stock radiators. With an overall dimension of 28.4 inches in length, 17.2 inches in height, and 2.15 inches in depth, this radiator features a dual core design that enhances cooling efficiency. Constructed from full aluminum, it offers increased heat and pressure tolerance, ensuring reliability even under competitive driving conditions.
This radiator is equipped with robust TIG-welded end tanks that provide improved strength and extended service life. The 100 percent brazed aluminum core maximizes reliability, while the increased coolant capacity directly contributes to better cooling performance. The downflow design, with a 1-1/2 inch inlet and outlet, ensures optimal flow and heat dissipation.
Mishimoto also offers a free replacement for accidental damages, providing peace of mind for users. This radiator includes essential fittings and mounting hardware, making installation straightforward. With its powder-coated finish in silver, it not only performs well but also complements the aesthetics of your vehicle.
Features
- Full Aluminum Construction Provides Increased Heat And Pressure Tolerance, Improved Heat Dissipation, Increased Durability, And Improved Cooling Efficiency
- Manufactured With Robust Tig-welded End Tanks For Improved Strength And Extended Service
- 100 Percent Brazed Aluminum Core For Maximum Reliability
- Increased Coolant Capacity Directly Results In Improved Cooling Efficiency
- Free Replacement For Accidental Damages
Specifications
- Manufacturer: Mishimoto
- Manufacturer Part Number: MMRAD-WRX-01
- Flow Direction: Down Flow
- Overall Length (IN): 28.4 Inch
- Overall Height (IN): 17.2 Inch
- Overall Depth (IN): 2.15 Inch
- Core Rows: Two
- Core Material: Aluminum
- Inlet Hose Location: Top Center
- Inlet Size (IN): 1-1/2 Inch
- Outlet Hose Location: Bottom Left
- Outlet Size (IN): 1-1/2 Inch
- Finish: Powder Coated
- Color: Silver
- Core Length (IN): 27.24 Inch
- Core Height (IN): 13.54 Inch
- Core Depth (IN): 1.65 Inch
- Tank Material: Aluminum

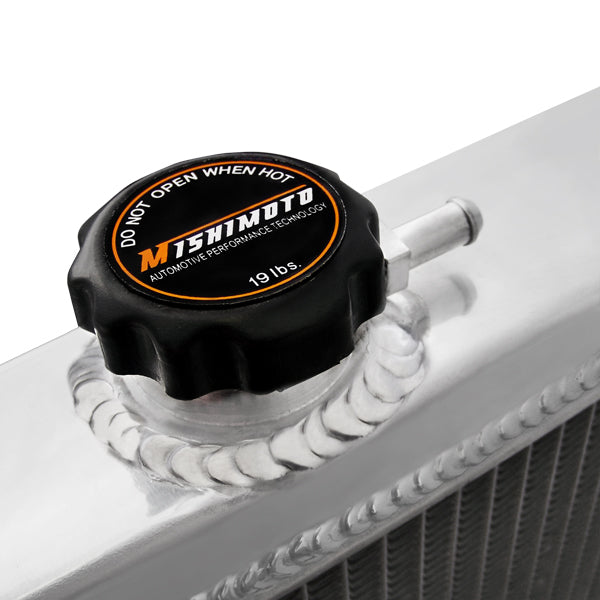

- With Radiator Cap: Yes
- With Transmission Cooler: No
- With Engine Oil Cooler: No
- Includes Fittings: Yes
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2005-2006 Saab 9-2X
- 2002-2007 Subaru Impreza
