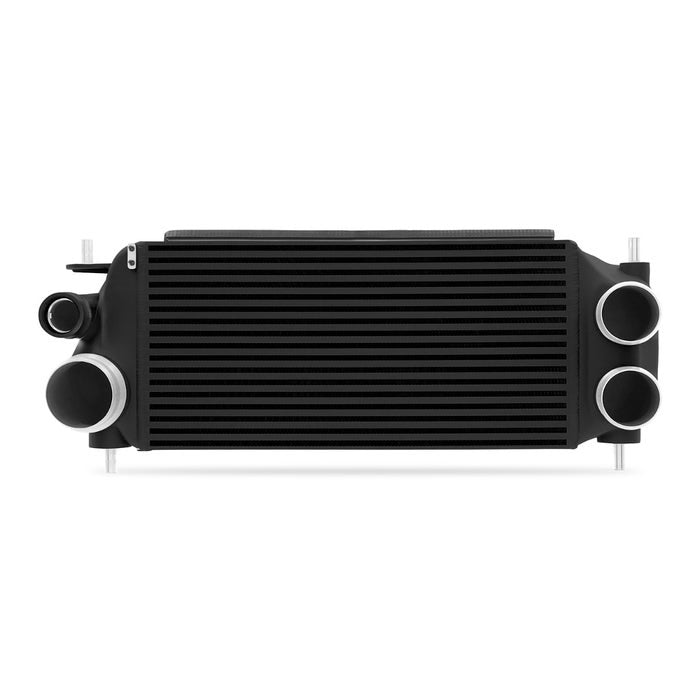

Mishimoto Intercooler (MPN: MMINT-F35T-17KBBK)

Enhance your EcoBoost performance with superior airflow and durability.

The Mishimoto Intercooler is designed to improve the performance of your EcoBoost engine by providing a significant increase in airflow and cooling efficiency. With overall dimensions of 29 inches in length, 9.5 inches in height, and 7 inches in thickness, this intercooler features a core dimension of 19.6 inches in width, 9.4 inches in height, and 4.7 inches in thickness. The all-aluminum, TIG-welded construction ensures durability and longevity, while the powder-coated black finish adds a sleek appearance.

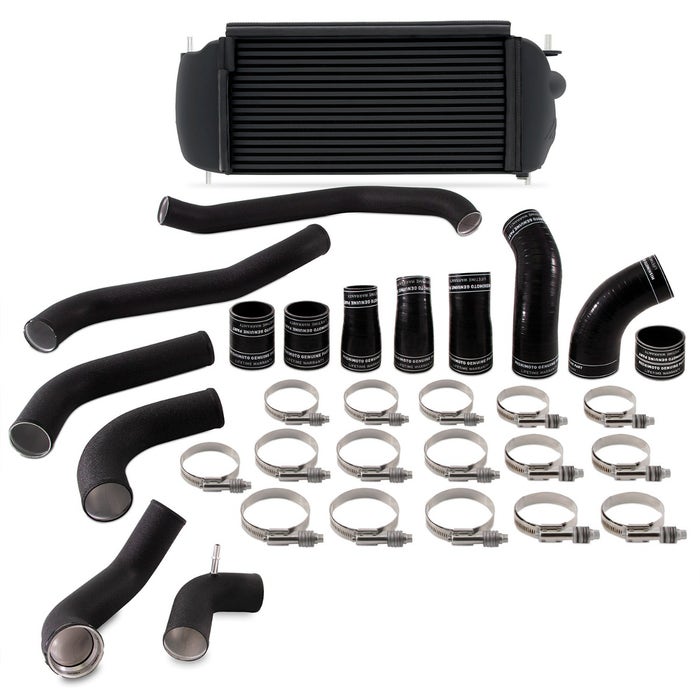

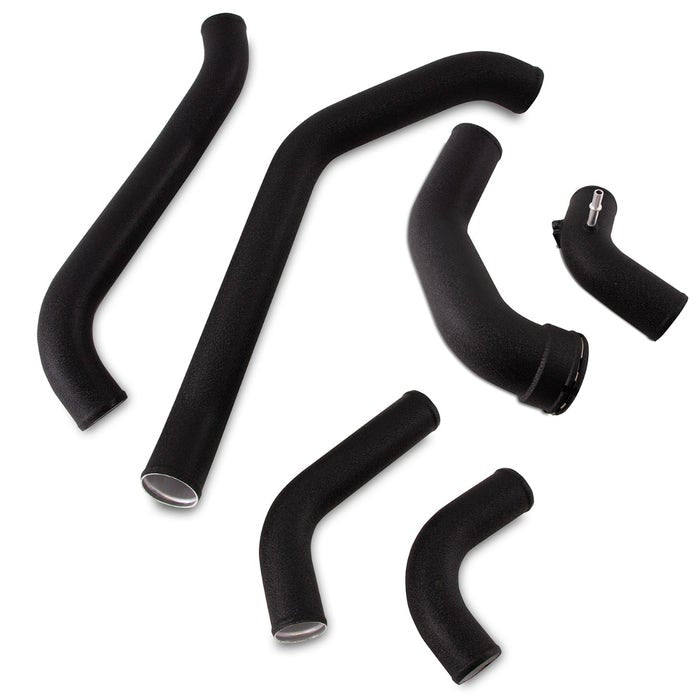

This intercooler kit replaces the factory plastic piping with robust aluminum piping and silicone boots featuring DuraCore technology. The increased volume of the intercooler pipes allows for better airflow, optimizing the performance of the twin turbochargers. The DuraCore silicone boots are engineered for superior resistance to heat, pressure, fuel, and oil, while the constant-tension worm gear clamps maintain a secure grip as the components expand and contract under pressure.

With a 10-degree Fahrenheit reduction in intake air temperature and a 77 percent increase in internal core volume, the Mishimoto Intercooler significantly enhances the cooling capacity of your engine. Additionally, the 163 percent increase in external fin surface area maximizes heat dissipation, ensuring that your engine operates efficiently under demanding conditions.

Features

• All-Aluminum, TIG-Welded Construction
• Increased Intercooler Pipe Volume Allows For Better Flow And Power Potential

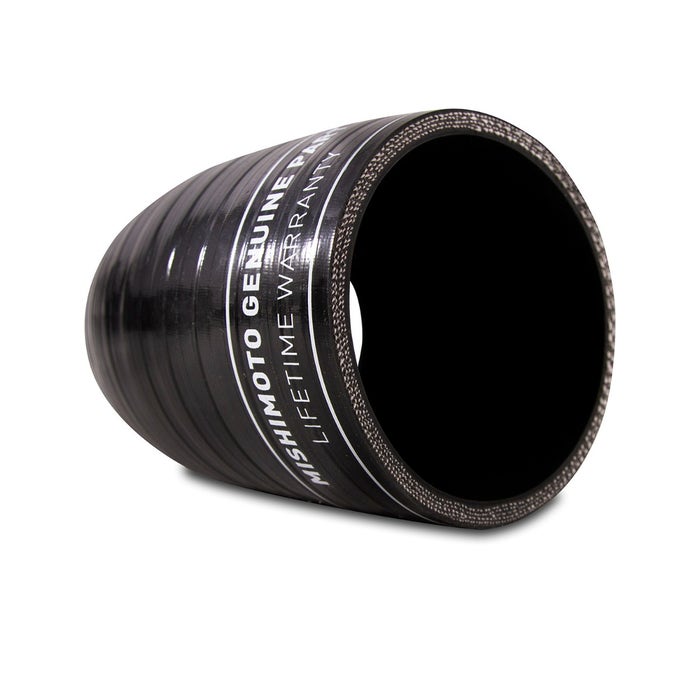

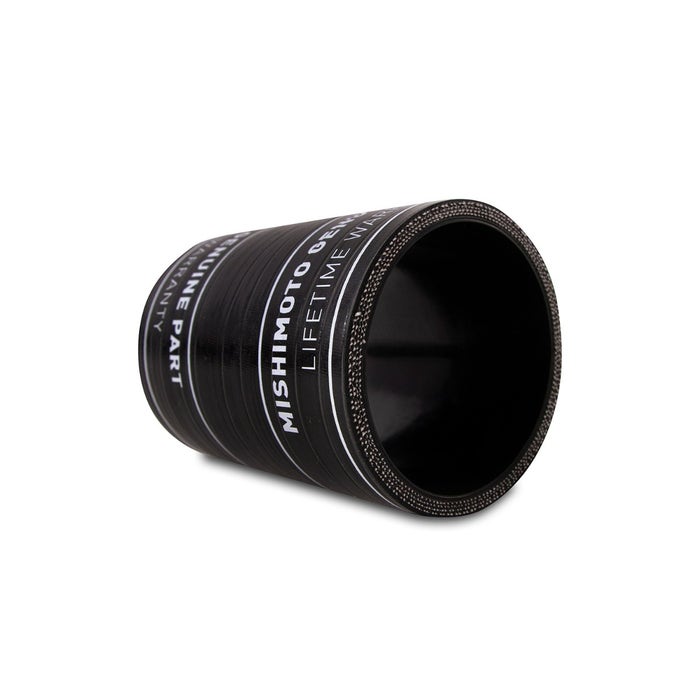

• Silicone Boots With Duracore Technology For Superior Resistance To Heat, Pressure, Fuel, And Oil
• Constant-Tension Worm Gear Clamps Keep A Strong Grip As Pipes And Boots Expand And Contract
• 10 Degree Fahrenheit (5.5 Degree Celsius) Reduction In Intake Air Temperature
• 77 Percent Increase In Intercooler Internal Core Volume
• 163 Percent Increase In External Fin Surface Area

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMINT-F35T-17KBBK
• Overall Width (IN): 29 Inch
• Overall Height (IN): 9-1/2 Inch
• Overall Depth (IN): 7 Inch
• Construction: Bar And Plate
• Inlet Size (IN): 2-1/2 Inch Inlet
• Outlet Size (IN): 3 Inch Outlet
• Core Width (IN): 19.6 Inch
• Core Height (IN): 9.4 Inch
• Core Depth (IN): 4.7 Inch
• Finish: Powder Coated
• Color: Black

Compatibility / Fit

• 2017-2023 Ford F-150

Technical Documents

• mmicp-f35t-17_installationguide.pdf
