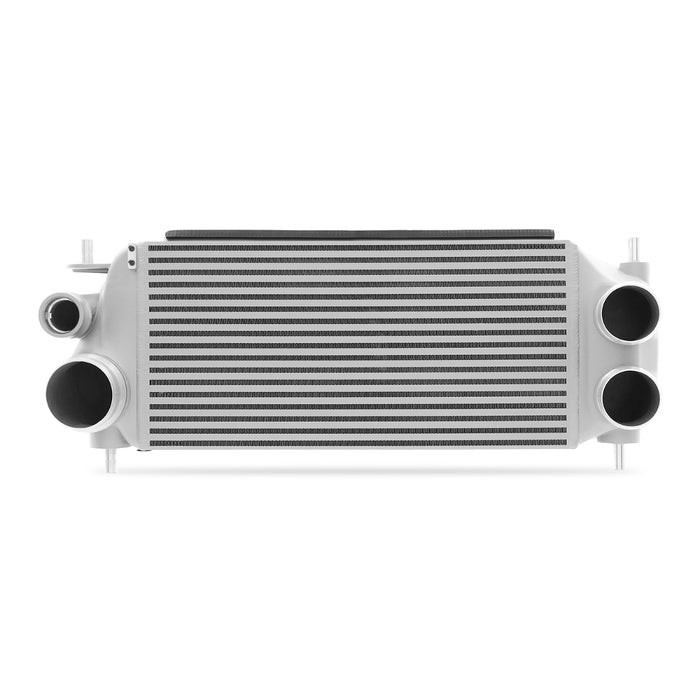

Mishimoto Intercooler Kit (MPN: MMINT-F35T-17KPSL)

Enhance performance with durable aluminum piping and superior airflow.

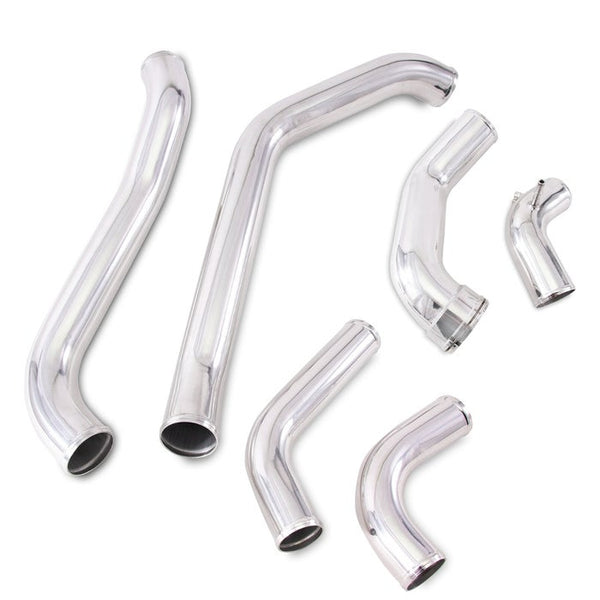

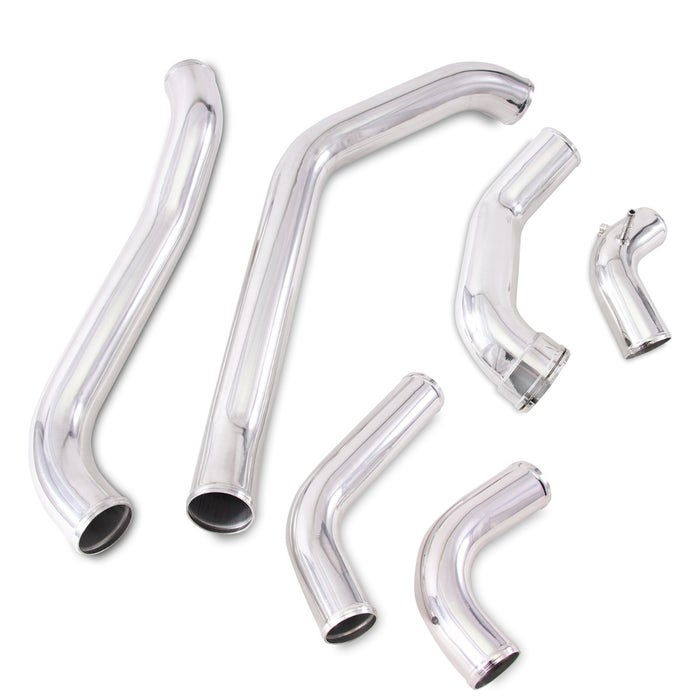

The Mishimoto Intercooler Kit is designed to improve the performance of your 2017+ 3.5 Liter EcoBoost engine. This kit features an all-aluminum, TIG-welded construction that replaces the factory plastic piping with robust aluminum piping and silicone boots utilizing DuraCore technology. The increased volume of the intercooler pipes allows for better airflow, optimizing the efficiency of the twin turbochargers and enhancing overall power potential.

With a significant reduction in intake air temperature by 10 degrees Fahrenheit, this intercooler kit ensures that your engine operates at optimal conditions. The design includes a 77 percent increase in internal core volume and a 163 percent increase in external fin surface area, which contributes to improved heat dissipation. The silicone boots are engineered for superior resistance to heat, pressure, fuel, and oil, while the constant-tension worm gear clamps maintain a secure grip as the components expand and contract under varying conditions.

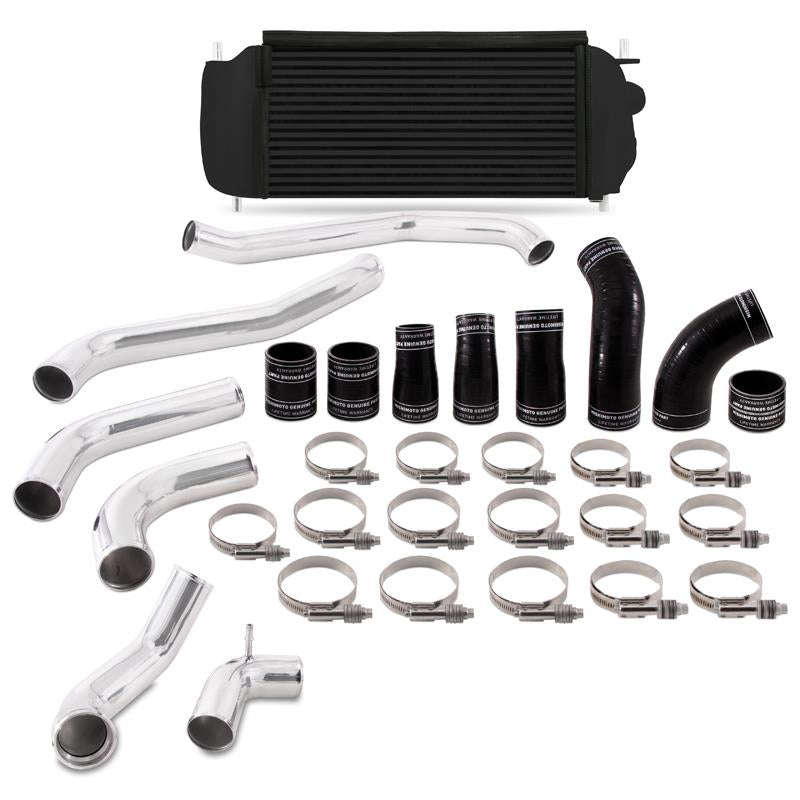

This comprehensive kit includes all necessary components for installation, including an assembled rubber trim, bypass valve bracket, and multiple aluminum pipes with CNC quick disconnect flanges. The Mishimoto Intercooler Kit is a reliable solution for those looking to enhance their vehicle's performance and efficiency.

Features

• All-Aluminum, TIG-Welded Construction
• Increased Intercooler Pipe Volume Allows For Better Flow And Power Potential

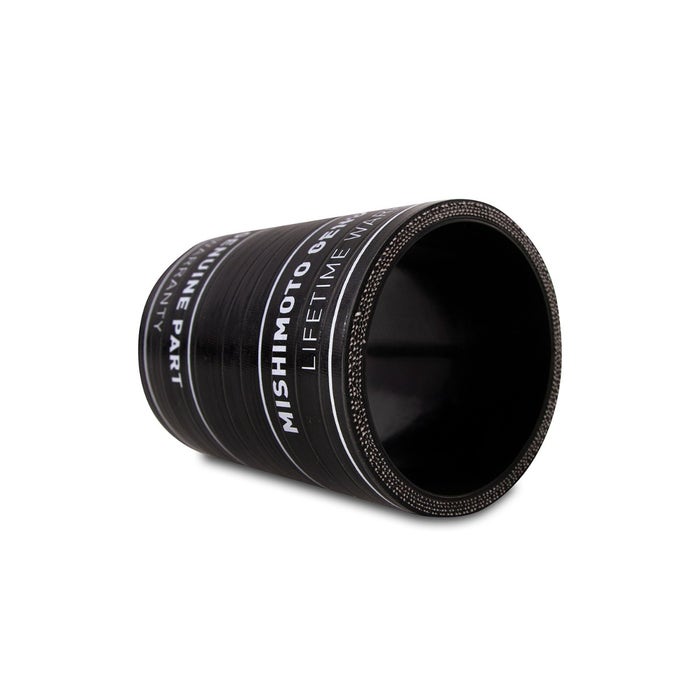

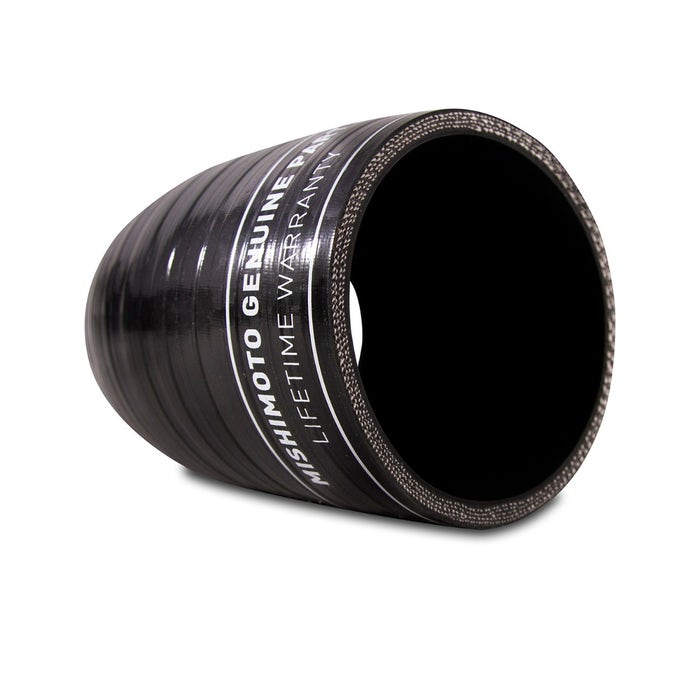

• Silicone Boots With Duracore Technology For Superior Resistance To Heat, Pressure, Fuel, And Oil
• Constant-Tension Worm Gear Clamps Keep A Strong Grip As Pipes And Boots Expand And Contract
• 10 Degree Fahrenheit (5.5 Degree Celsius) Reduction In Intake Air Temperature
• 77 Percent Increase In Intercooler Internal Core Volume
• 163 Percent Increase In External Fin Surface Area

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMINT-F35T-17KPSL
• Overall Width (IN): 29 Inch
• Overall Height (IN): 9-1/2 Inch
• Overall Depth (IN): 7 Inch
• Construction: Bar And Plate
• Inlet Size (IN): 2-1/2 Inch Inlet
• Outlet Size (IN): 3 Inch Outlet
• Core Width (IN): 19.6 Inch
• Core Height (IN): 9.4 Inch
• Core Depth (IN): 4.7 Inch
• Finish: Powder Coated
• Color: Silver

Compatibility / Fit

• 2017-2023 Ford F-150

Technical Documents

• mmicp-f35t-17_installationguide.pdf
