Mishimoto Intercooler For Dodge Ram (MPN: MMINT-RAM-13KBK)

Enhance performance with superior airflow and heat management.

The Mishimoto intercooler is designed specifically for the 2013 to 2016 Dodge Ram 6.7 Liter Cummins, featuring a robust air-to-air construction that optimizes engine performance. With overall dimensions of 33 inches in width, 12.5 inches in height, and 10 inches in thickness, this intercooler is engineered to lower air intake temperatures by 12.5 percent, ensuring efficient engine operation under various conditions. The bar-and-plate construction, complemented by cast aluminum end tanks, provides a significant increase in external fin surface area by 76.65 percent and a core volume that is 37.8 percent larger than the factory unit.

The intercooler includes mandrel-bent 3-inch polished aluminum piping that minimizes airflow restrictions, enhancing the overall efficiency of the system. The internal fins are meticulously designed to maximize heat transfer while maintaining minimal pressure drop, ensuring that your engine receives optimal airflow. Additionally, the kit comes with Mishimoto silicone boots featuring DuraCore technology, which offers superior resistance to heat, pressure, fuel, and oil, thereby extending the lifespan of the components and preventing leaks or blowouts.

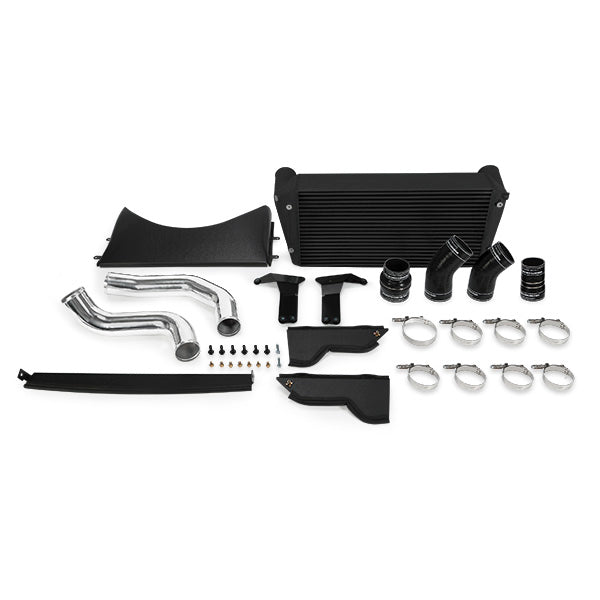

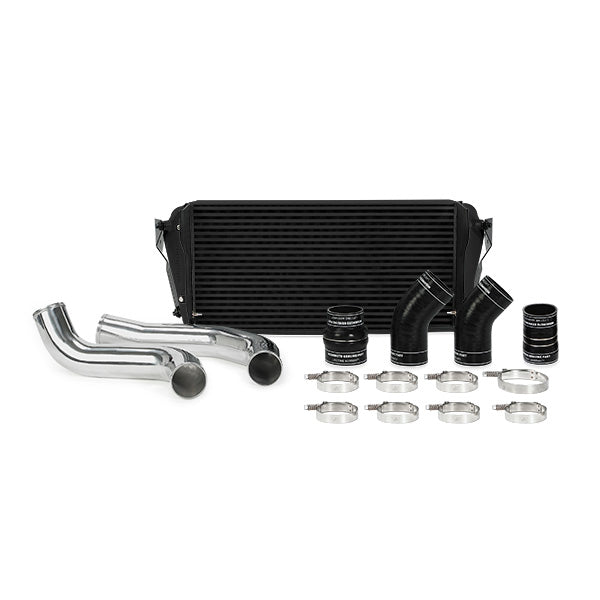

Included in the package are three air diversion panels, a replacement lower fan shroud, two mounting brackets, two aluminum pipes, four silicone boots, and eight constant tension T-bolt clamps, all engineered for durability and performance. Available in a sleek silver or stealth black finish, the Mishimoto intercooler kit is a reliable upgrade for enhancing the performance of your Dodge Ram.

Features

• Lowers AITs By 12.5 Percent
• 3 Inch Mandrel-Bent Polished Aluminum Piping
• Bar-And-Plate Construction With Cast Aluminum End Tanks
• 76.65 Percent Increase In External Fin Surface Area
• 37.8 Percent Larger Core Volume Than Factory
• End Tanks Strategically Designed For Optimal Airflow
• Internal Fins Designed For Maximum Heat Transfer With Minimal Pressure Drop
• Direct Fit For The 2013 To 2016 Dodge Ram 6.7 Liter Cummins

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMINT-RAM-13KBK
• Type: Air To Air
• Overall Width (IN): 33 Inch
• Overall Height (IN): 12-1/2 Inch
• Construction: Bar And Plate
• Inlet Size (IN): 3 Inch
• Outlet Size (IN): 3 Inch
• Core Width (IN): 25.7 Inch
• Core Height (IN): 12-1/2 Inch
• Core Depth (IN): 5 Inch
• Finish: Powder Coated
• Color: Black
• Material: Aluminum

Compatibility / Fit

• 2013-2018 Ram 2500
• 2013-2018 Ram 3500
