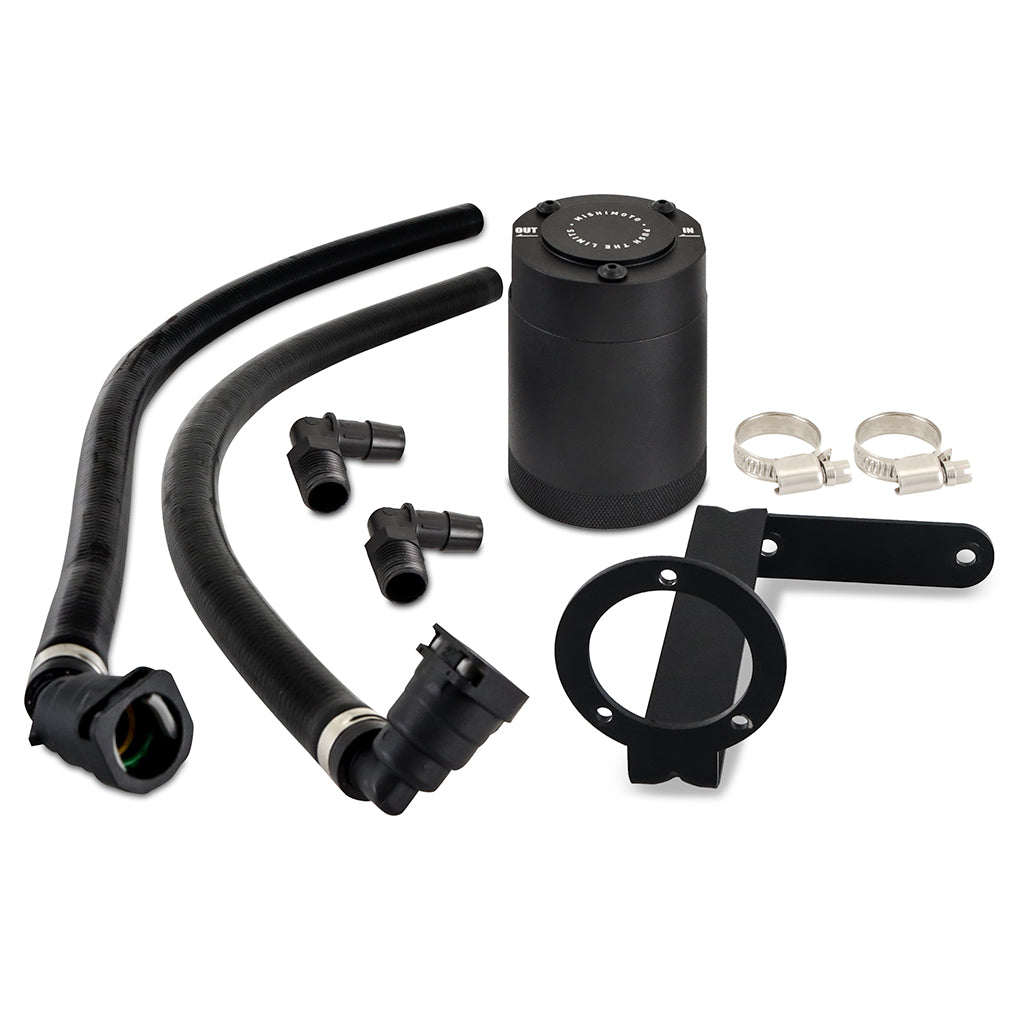

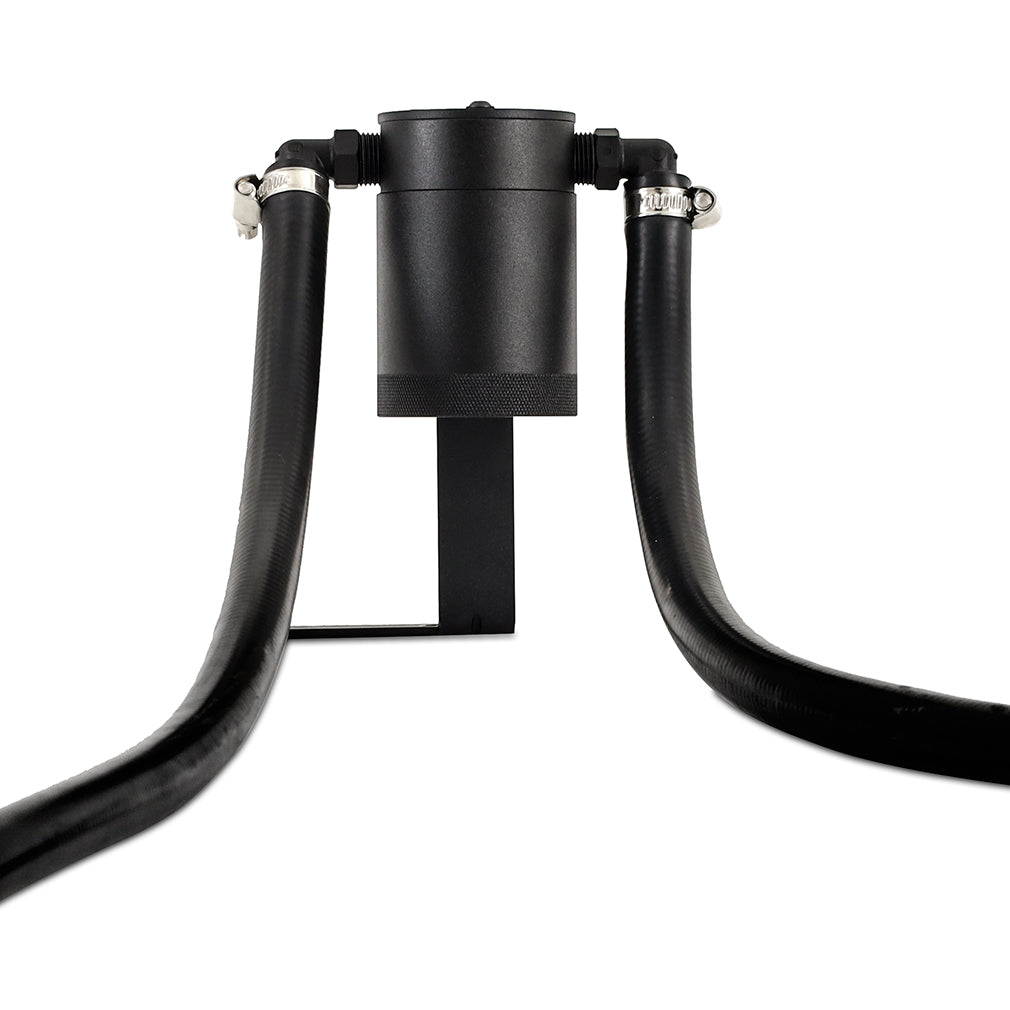

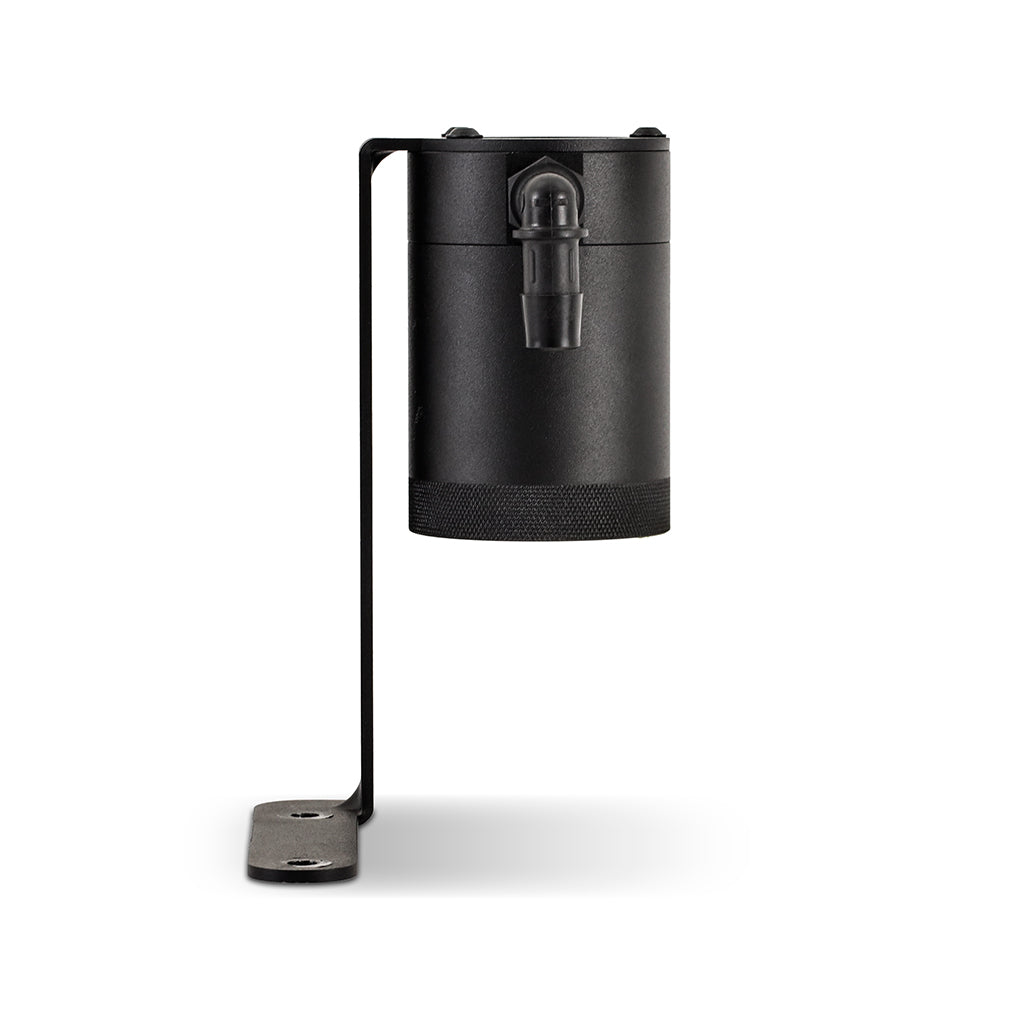

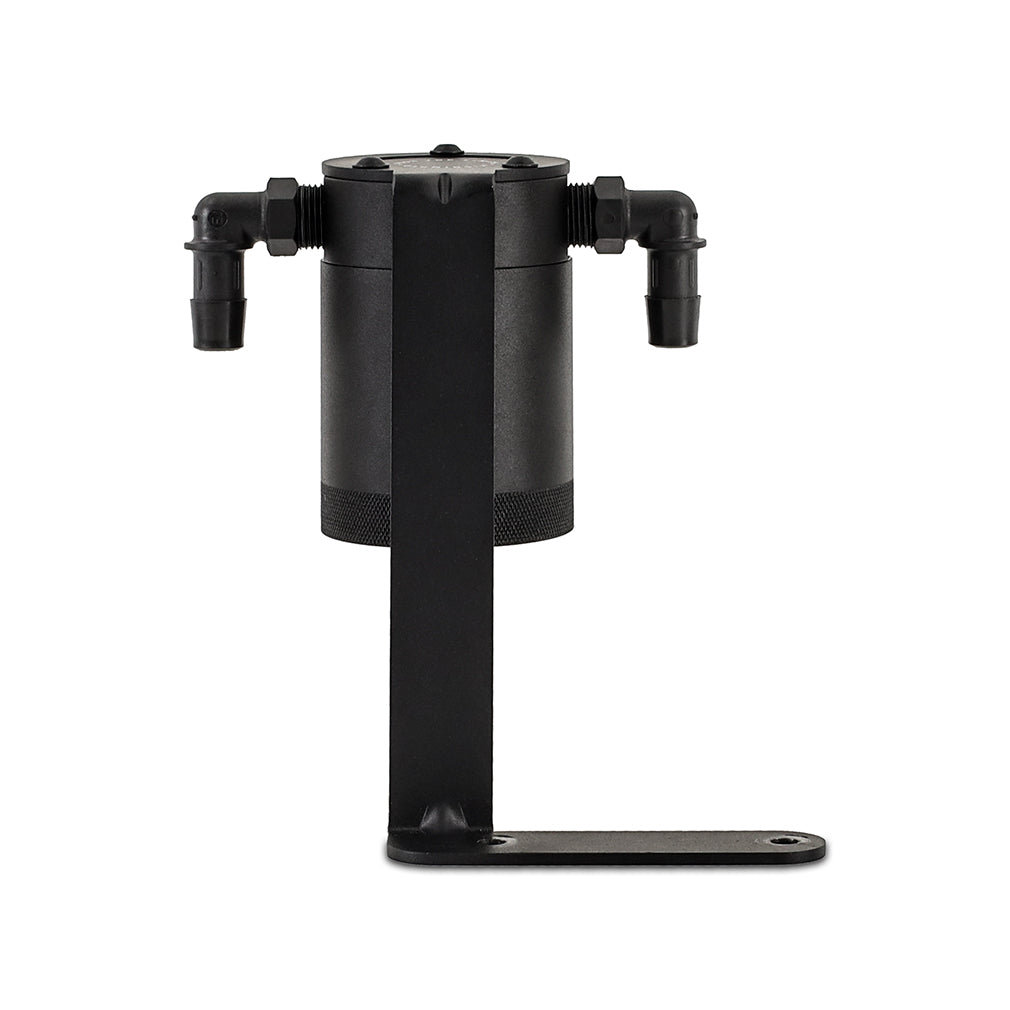

Mishimoto Direct Fit Oil Catch Can (MPN: MMBCC-FRD-11P)

Protect your engine with advanced oil separation technology.

The Mishimoto Direct-Fit Oil Catch Can system is designed specifically for 2011 and newer Ford F-150 models equipped with 2.7L, 3.5L EcoBoost, and 5.0L engines. This system addresses the issue of carbon buildup caused by the Positive Crankcase Ventilation (PCV) system, which recirculates oily vapors back into the intake system. By capturing these vapors, the catch can prevents harmful oil particles from coating the intake manifold and valves, thereby enhancing engine performance and longevity.

Constructed from anodized billet 6061 aluminum, the catch can features a robust 3-millimeter thick steel bracket for secure mounting in a serviceable location. The internal 50-micron bronze filter effectively captures oil particles, allowing them to condense and collect in the canister instead of re-entering the engine. This design not only helps maintain a clean intake system but also reduces the risk of pre-detonation and knocking caused by contaminated fuel.

Installation is straightforward with factory-style quick-disconnect fittings and application-specific pre-molded hoses that fit seamlessly with the stock engine cover. The catch can is fully serviceable, ensuring that maintenance is easy and efficient. With a capacity of 38.4 ounces, this system is an essential upgrade for any Ford F-150 owner looking to protect their engine from the detrimental effects of oil blow-by.

Features

• Direct Fit For 2011 Plus Ford F-150 2.7L/3.5L EcoBoost And 5.0L
• Robust 3 Millimeter-Thick Steel Bracket Ensures A Sturdy Mounting Point In A Serviceable Location
• Protects Intake System And Essential Engine Components By Capturing Oil Blow-By In The PCV System
• Features Factory-Style Quick-Disconnect Fittings For Easy And Secure Installation
• Internal Air Diverter Increases Air Turbulence To Improve Oil Separation
• Filter And Can Are Fully Serviceable
• Anodized Billet 6061 Aluminum Construction
• Helps Reduce Carbon Buildup On Intake Valves
• Application-Specific Pre-Molded Hoses Fit With Stock Engine Cover

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMBCC-FRD-11P
• Function: Separates Oil
• Diameter (IN): 2-1/2 Inch
• Height (IN): 3.72 Inch
• Capacity: 38.4 Ounce
• Inlet Quantity: One
• Inlet Attachment: Male Thread
• Inlet Size (IN): 3/8 Inch
• Outlet Quantity: One
• Outlet Attachment: Male Thread
• Outlet Size (IN): 3/8 Inch
• Finish: Anodized
• Color: Black
• Material: Aluminum
• With Tubing: Yes

Compatibility / Fit

• 2011-2023 Ford F-150

Technical Documents

• mmbcc-frd-11p_installationguide.pdf
