Mishimoto Aluminum Transmission Pan (MPN: MMTP-F2D-89)

Enhance your transmission's performance with increased fluid capacity and cooling.

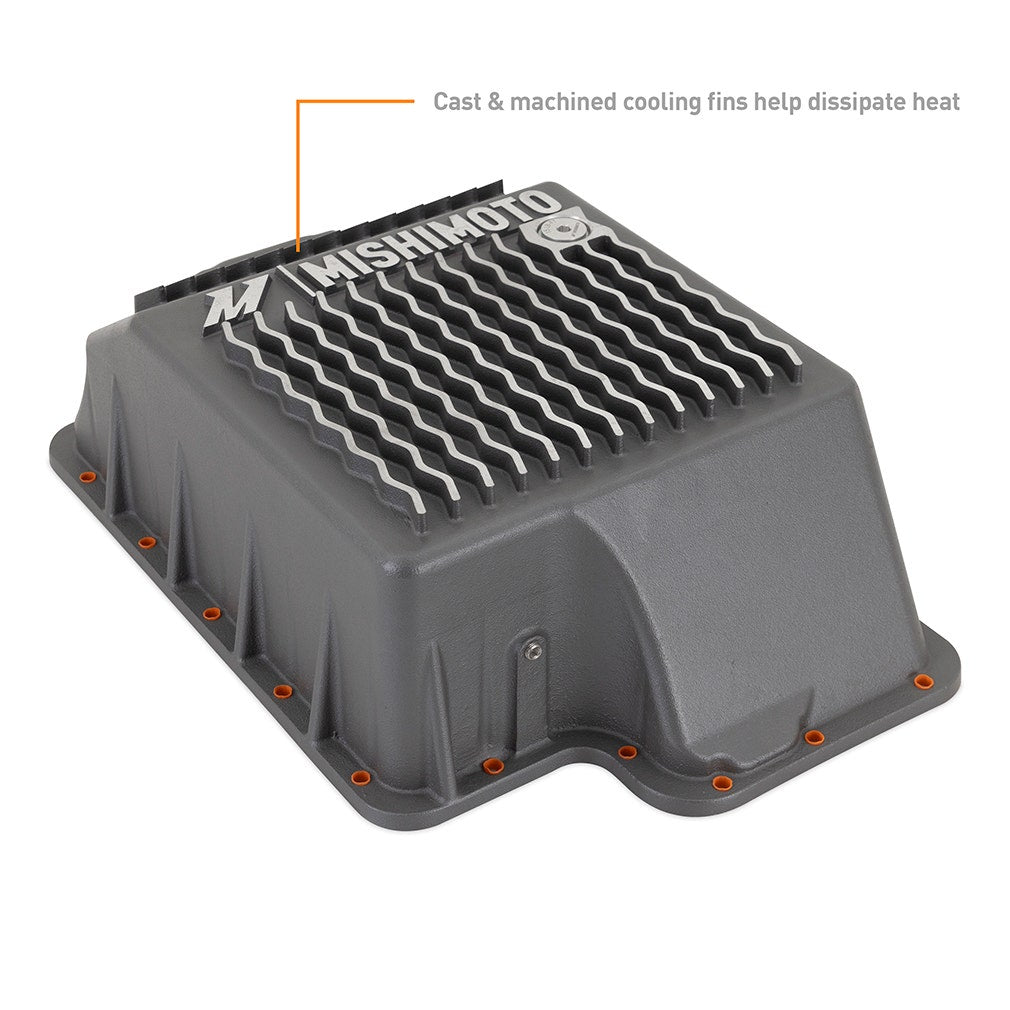

The Mishimoto Aluminum Transmission Pan is engineered for E40D, 4R-100, and 5R-110 transmissions, providing a significant upgrade in both capacity and performance. Constructed from high-quality aluminum and finished with a durable Gunmetal Gray powder coat, this pan not only enhances the aesthetic of your vehicle but also improves cooling efficiency. With an increased fluid capacity of 6.6 quarts, it helps maintain optimal transmission operation under demanding conditions.

This transmission pan features internal baffles designed to reduce fluid sloshing, which enhances heat dissipation and contributes to smoother transmission performance. The precision-machined sealing surface is compatible with factory-style gaskets or sealants, ensuring a reliable seal. Additionally, the pan is equipped with pre-installed bolt retainers that simplify installation by keeping fasteners in place, preventing them from falling during the process.

For added convenience, the Mishimoto pan includes a magnetic drain plug for easy fluid changes and a 1/8-inch NPT port for temperature sensor installation. This thoughtful design makes monitoring and servicing your transmission straightforward and efficient. The robust construction and innovative features of the Mishimoto Aluminum Transmission Pan make it a practical choice for those looking to enhance their vehicle's transmission system.

Features

• Increases Fluid Capacity By 6.6 Quarts Over The Stock Transmission Pan For More Cooling Capacity

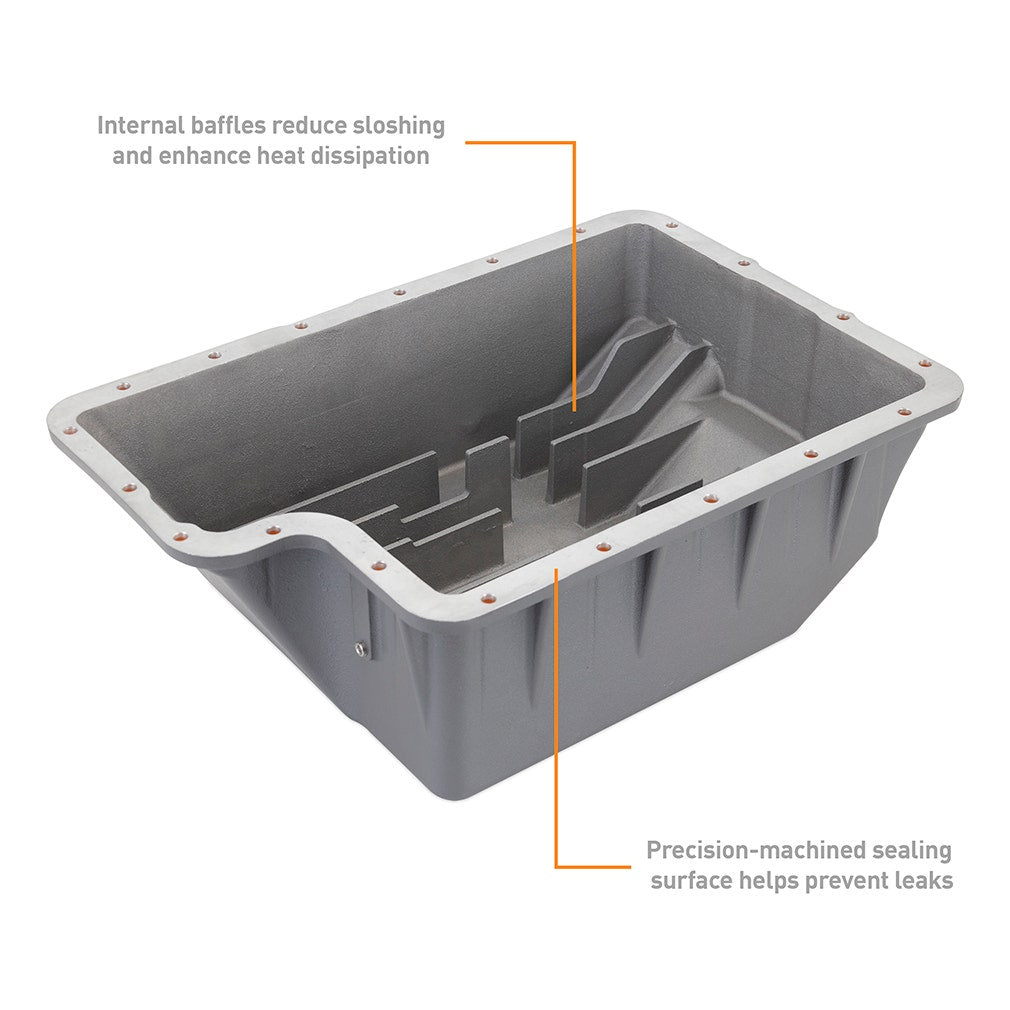

• Internal Baffles Reduce Sloshing And Enhance Heat Dissipation For Smoother, More Efficient Transmission Operation

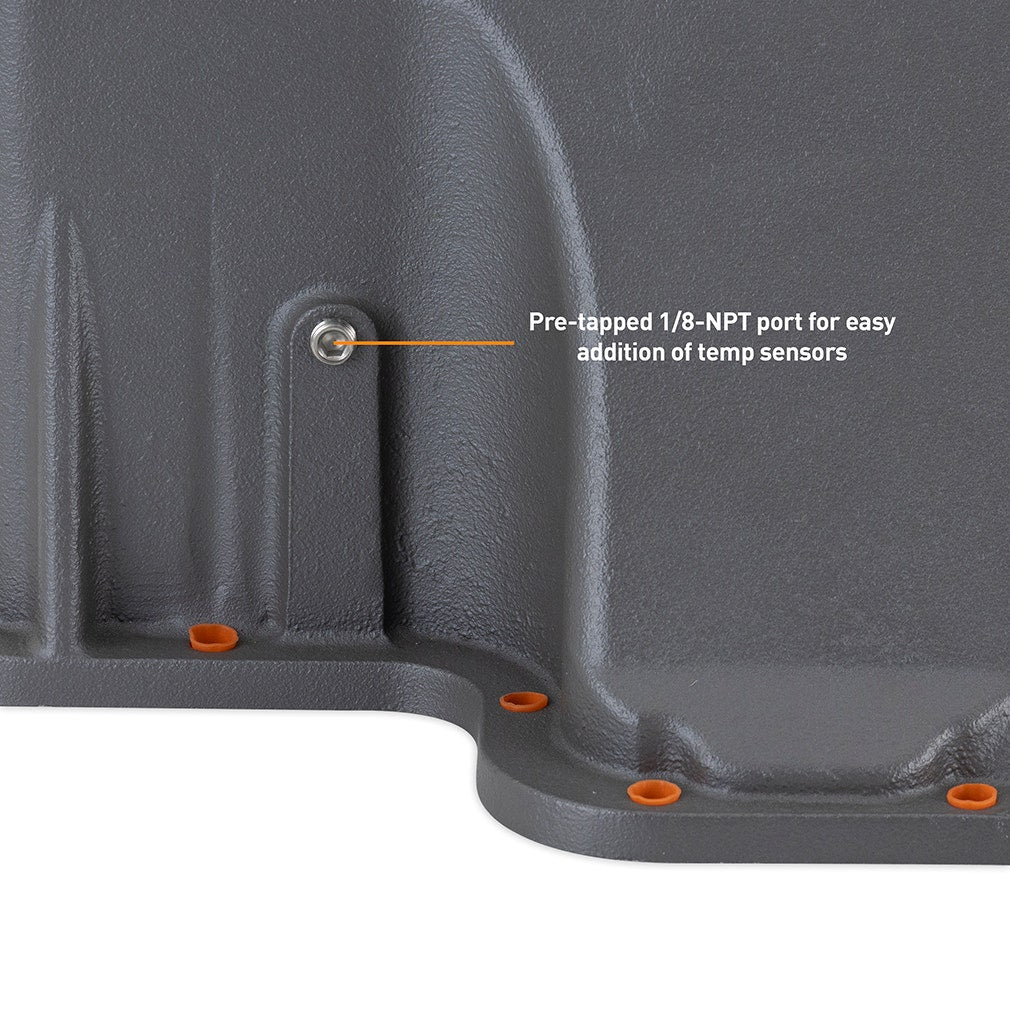

• 1/8-Inch NPT Port Makes Adding A Temp Sensor Fast And Easy
• Gunmetal Gray Powder Coat Finish Adds Style And Function To Your Truck’s Undercarriage
• Durable Cast-Aluminum Construction For Long-Lasting Performance

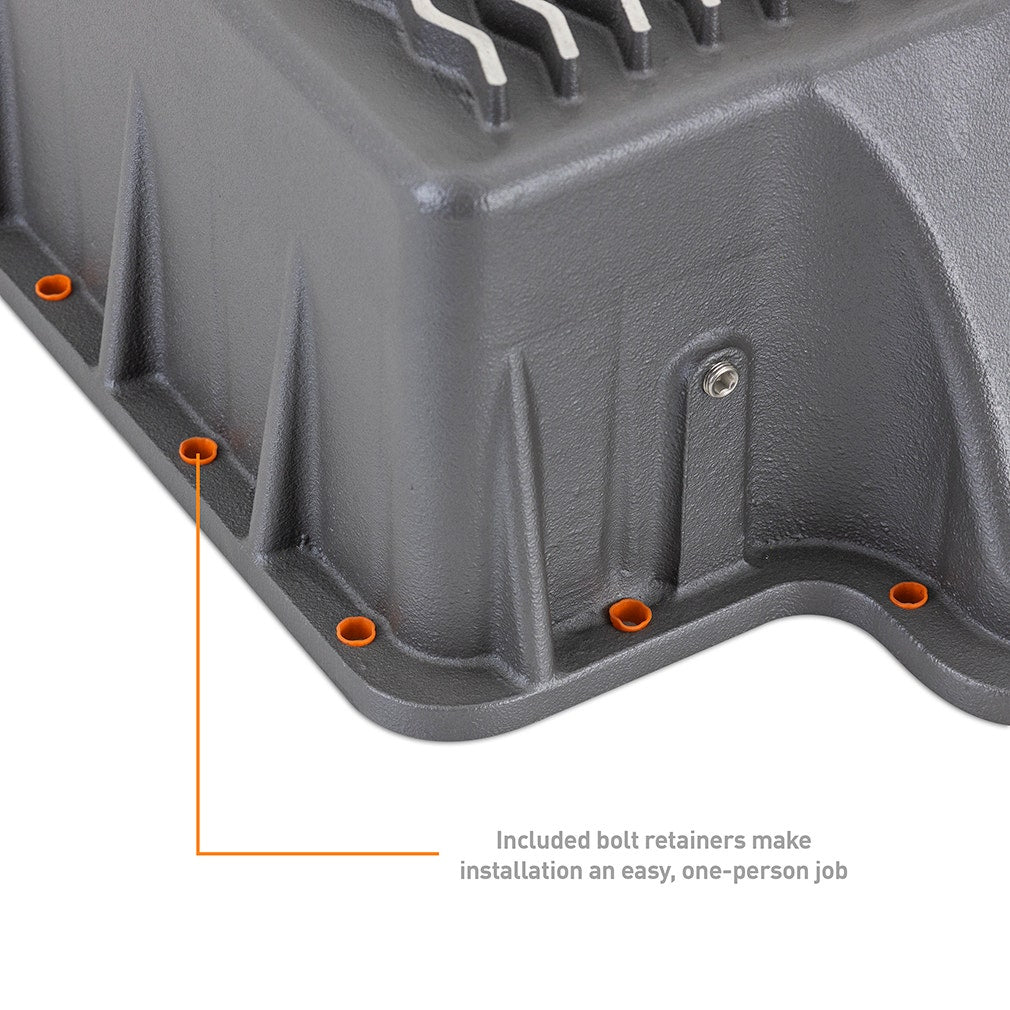

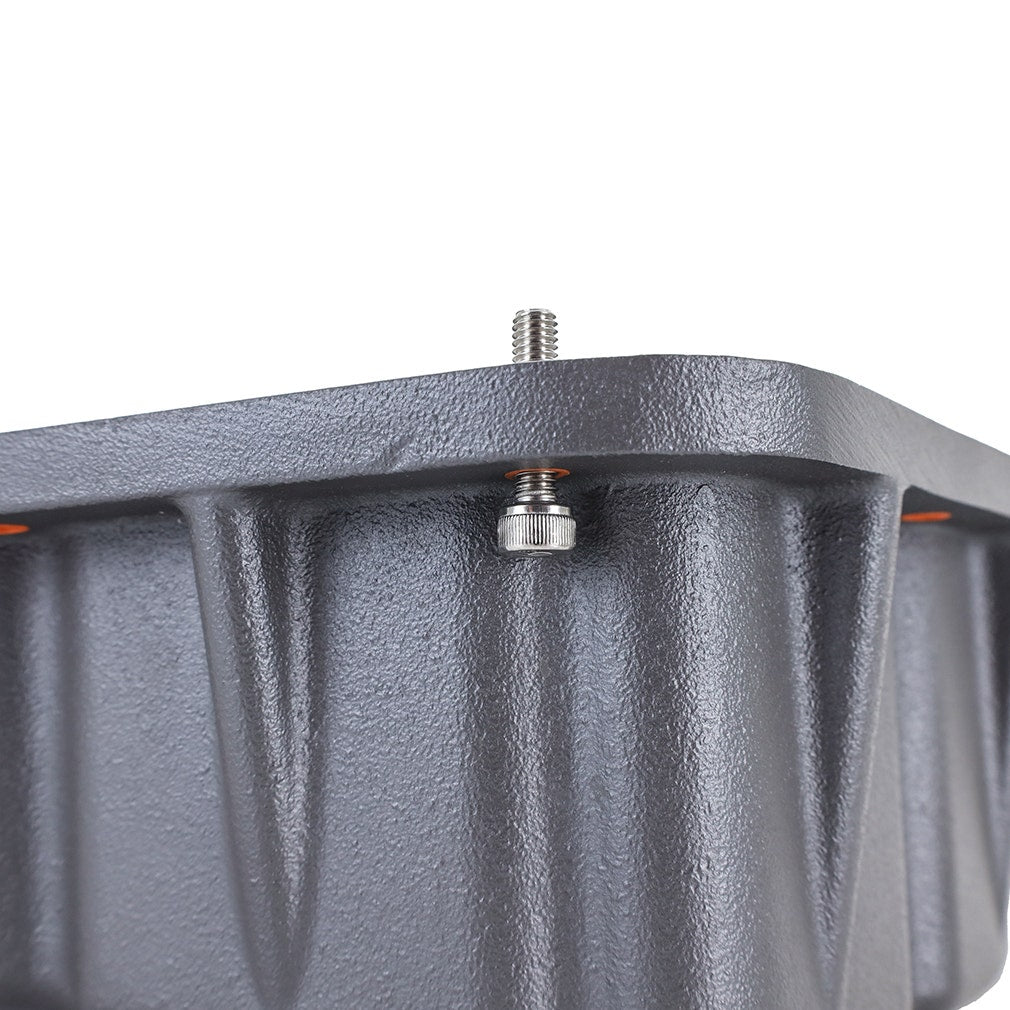

• Bolt Retainers Hold Fasteners In Place For Easy Installation
• Dovetail-Style Groove With O-Ring Seal Ensure A Fool-Proof, Reliable Seal

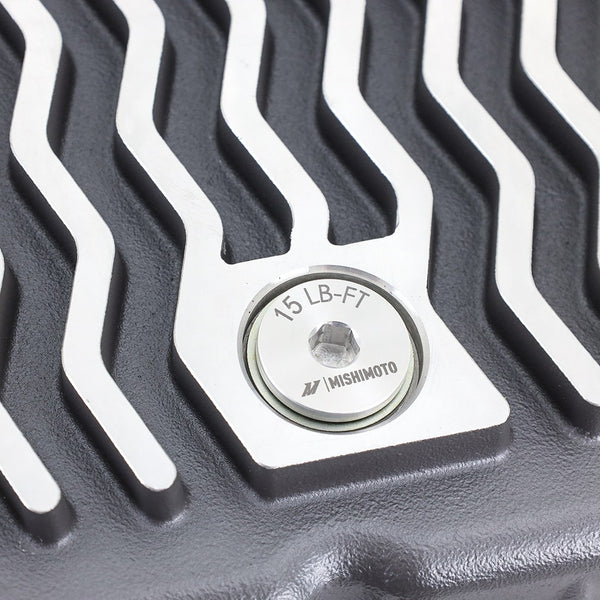

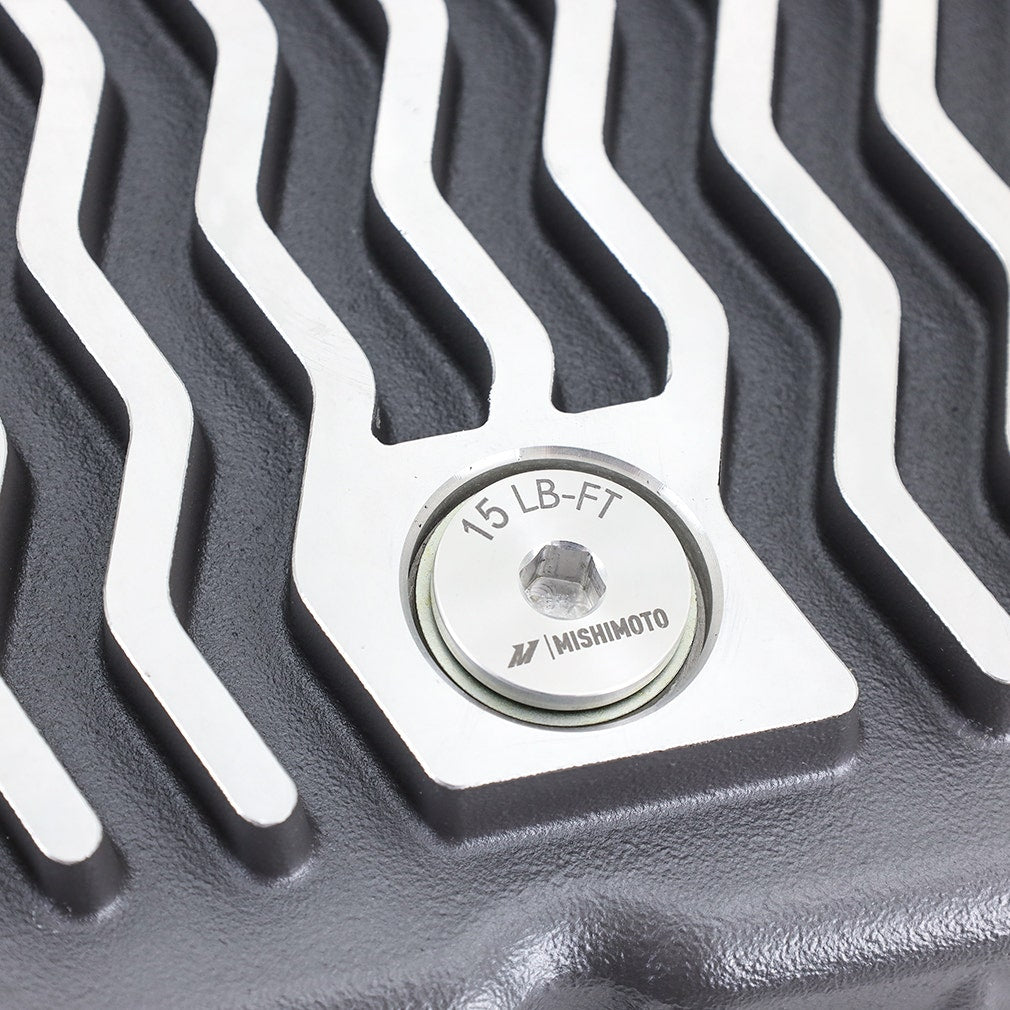

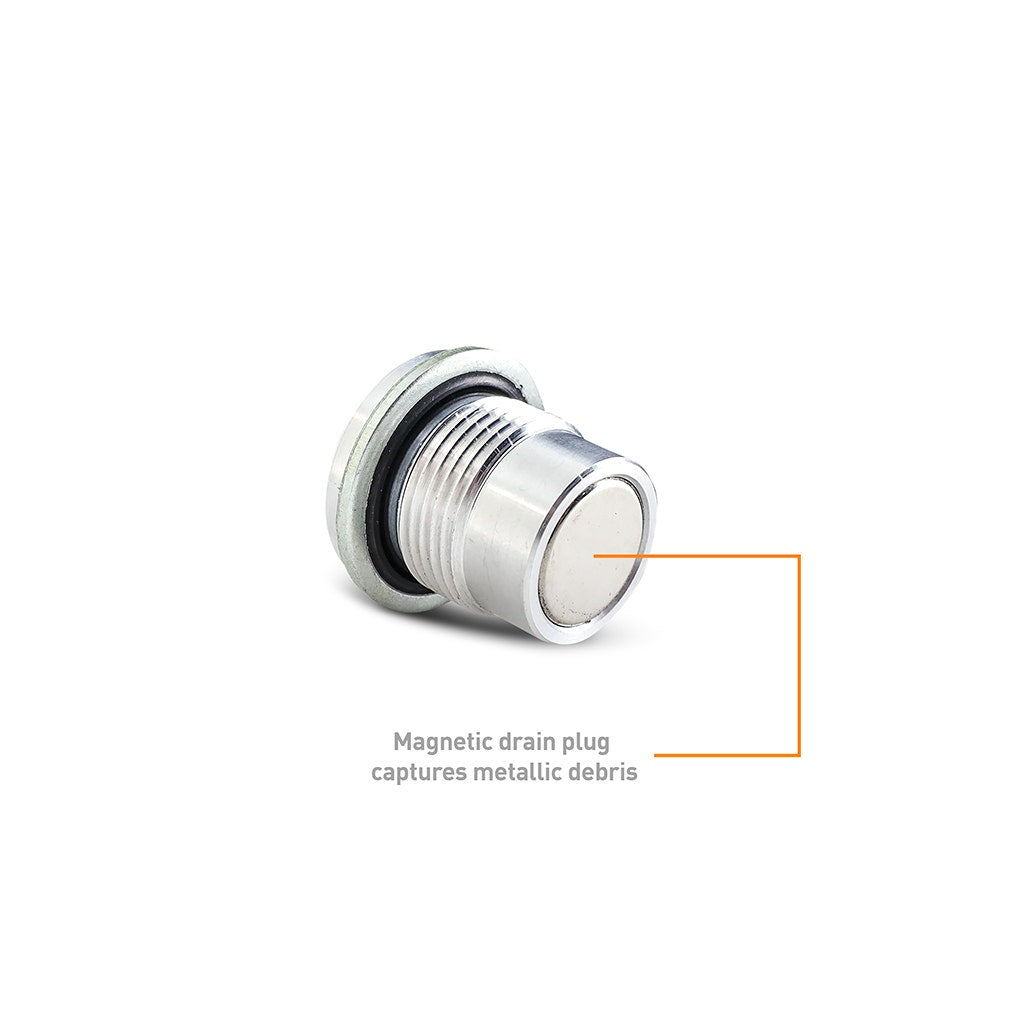

• Magnetic Drain Plug Makes Servicing Your Transmission A Breeze
• Requires The Use Of A Deep-Pan Transmission Filter

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMTP-F2D-89
• Transmission Model: E40D/4R-100/5R-110
• Capacity Increase Over OEM (QT): 6.64 Quart
• Finish: Powder Coated
• Color: Gray
• Material: Aluminum
• Includes Drain Plug: Yes
• Includes Filter: No
• Includes Filter Extension: No
• Includes Gaskets: No

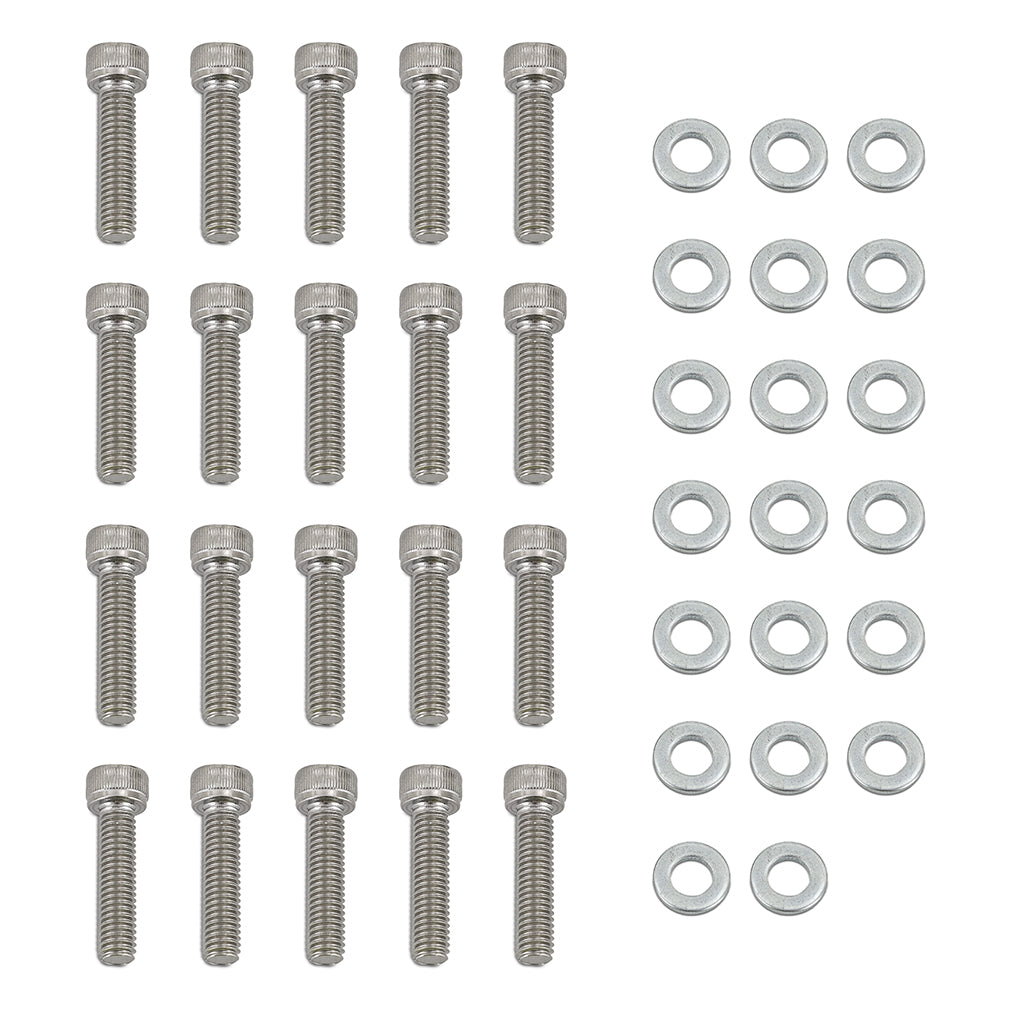

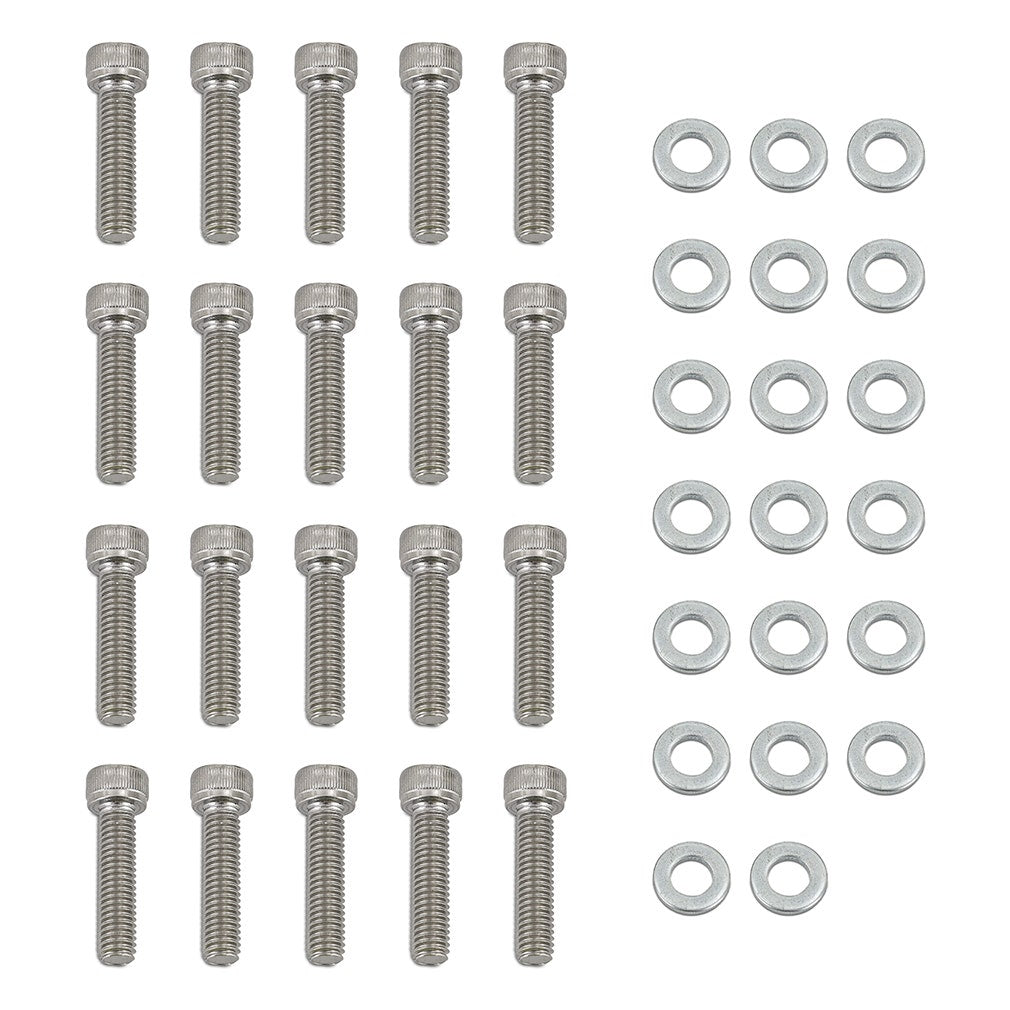

• Includes Bolts: Yes
• Pan Quart Capacity (QT): 13.64 Quart

Compatibility / Fit

• 2008-2014 Ford E-150
• 2008-2014 Ford E-250
• 2003-2005 Ford E-350 Club Wagon
• 1992-1998 Ford E-350 Econoline
• 1992-2002 Ford E-350 Econoline Club Wagon
• 1999-2016 Ford E-350 Super Duty
• 2000-2005 Ford Excursion
• 2000-2002 Ford Expedition
• 1999-2010 Ford F-250 Super Duty
• 1999-2004 Ford F-350 Super Duty
• 2008-2010 Ford F-350 Super Duty
• 2000-2004 Lincoln Navigator

Technical Documents

• mmtp-f2d-89_installguide.pdf
