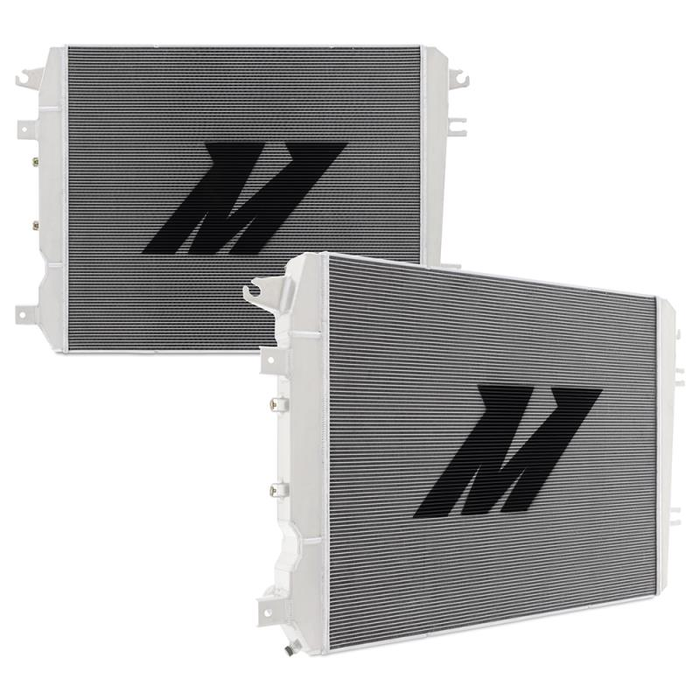

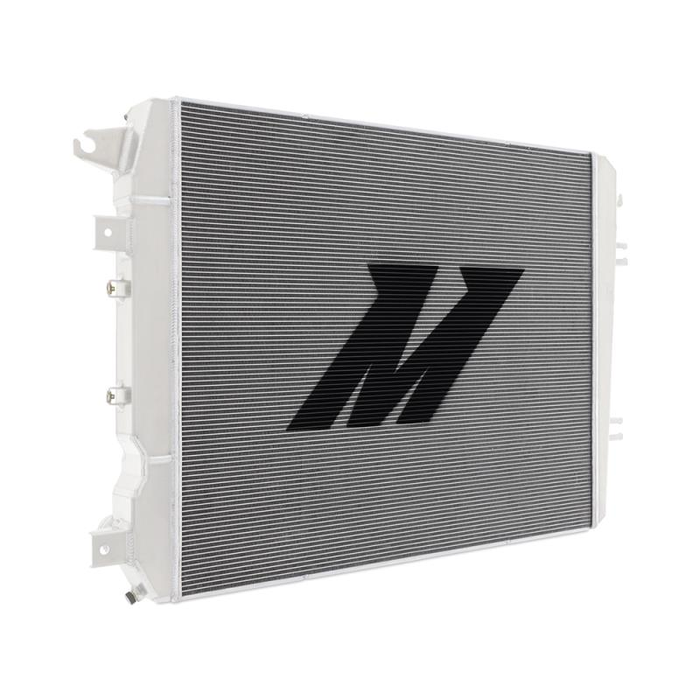

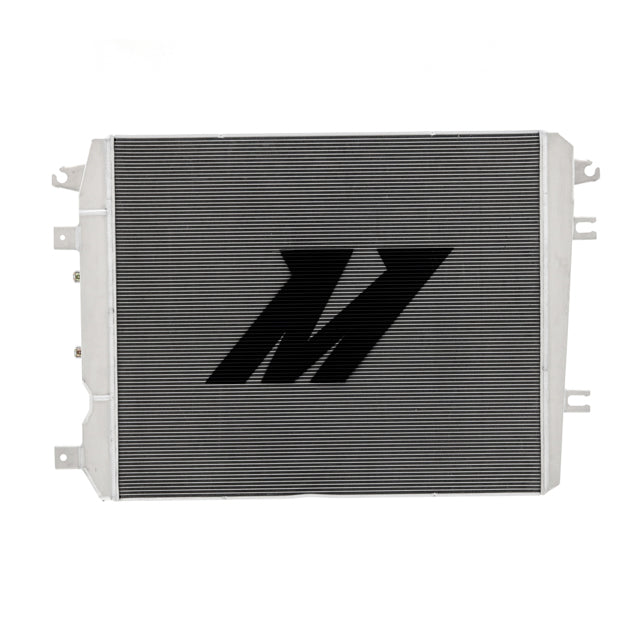

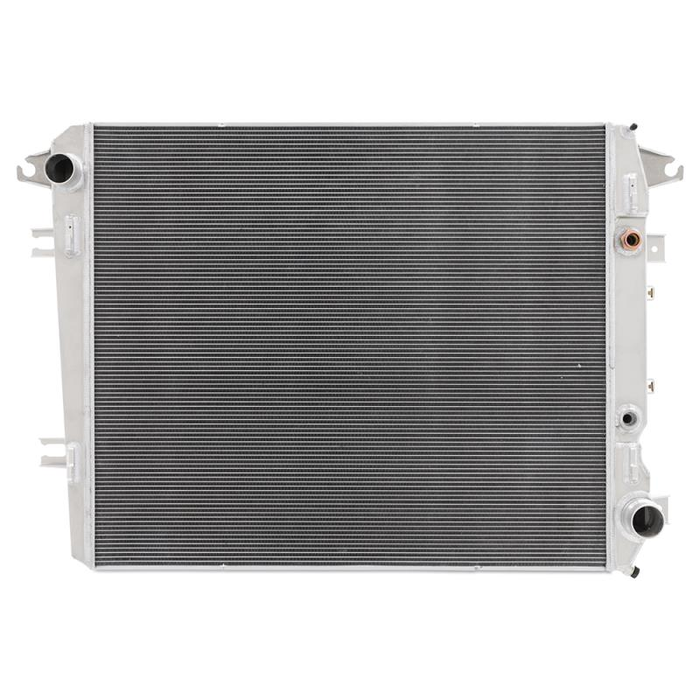

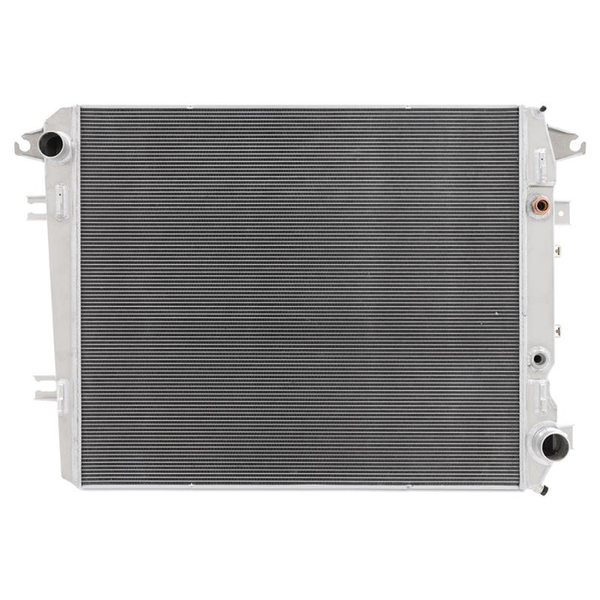

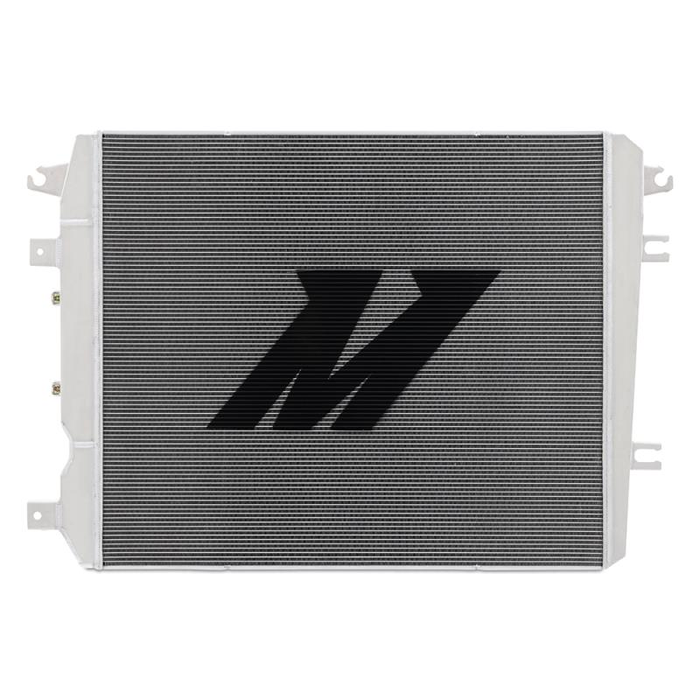

Mishimoto Aluminum Radiator (MPN: MMRAD-DMAX-17)

Enhanced cooling performance with superior aluminum construction and design.

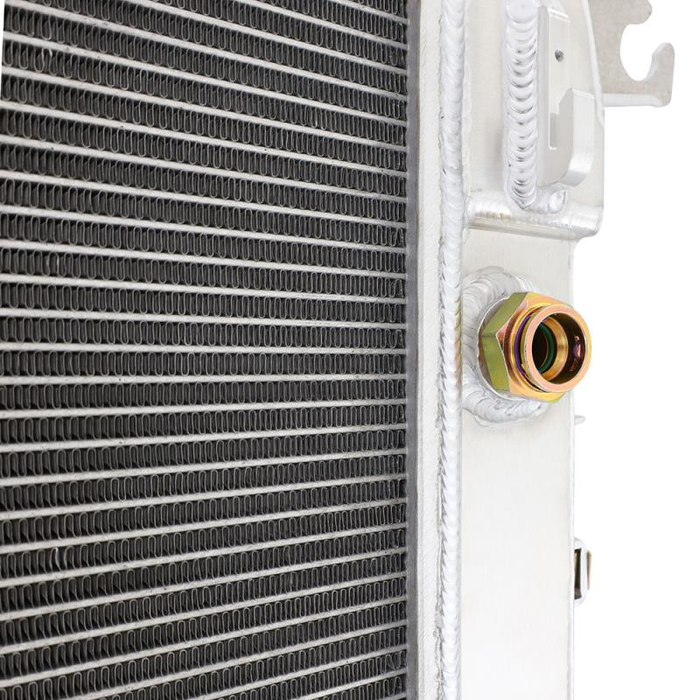

The Mishimoto aluminum radiator is engineered for optimal cooling efficiency and durability. With an all-aluminum design and precision TIG-welded end tanks, this radiator provides a robust solution for heat dissipation. It features a substantial 25 percent increase in coolant capacity and a 14 percent increase in total core volume compared to stock radiators, ensuring enhanced cooling performance for your vehicle.

This radiator utilizes a crossflow design and includes strategically strutted tubes for maximum rigidity and durability. The louvered fins are designed to improve heat dissipation, making it an effective choice for high-performance applications. Additionally, the radiator comes equipped with a Mishimoto Magnetic Drain Plug, which captures metallic debris in the coolant, thereby extending the lifespan of your cooling system components.

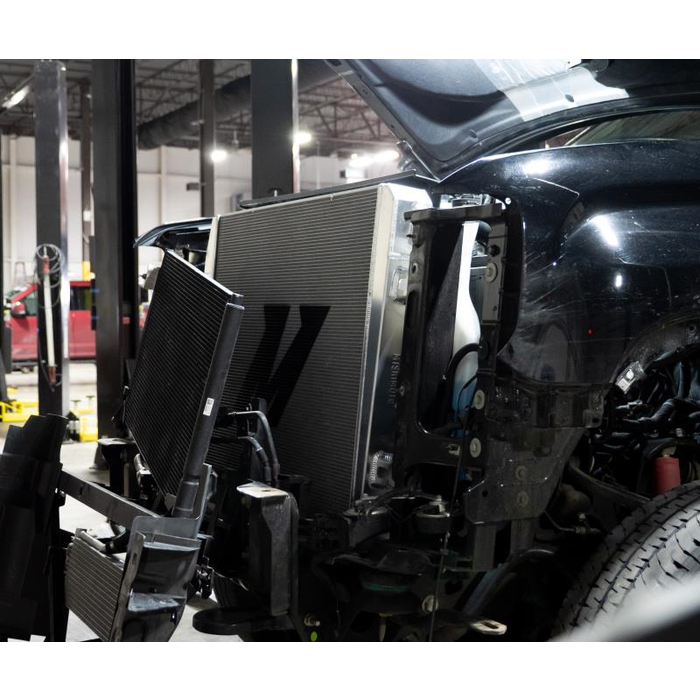

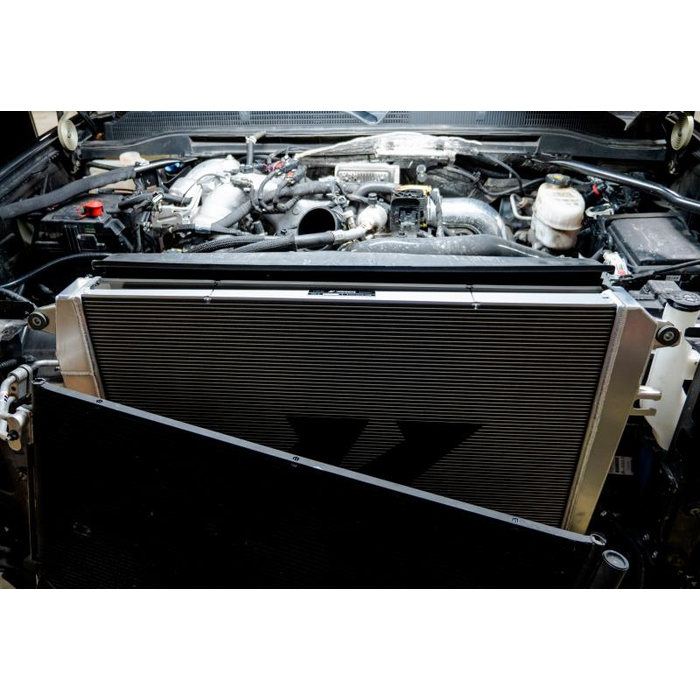

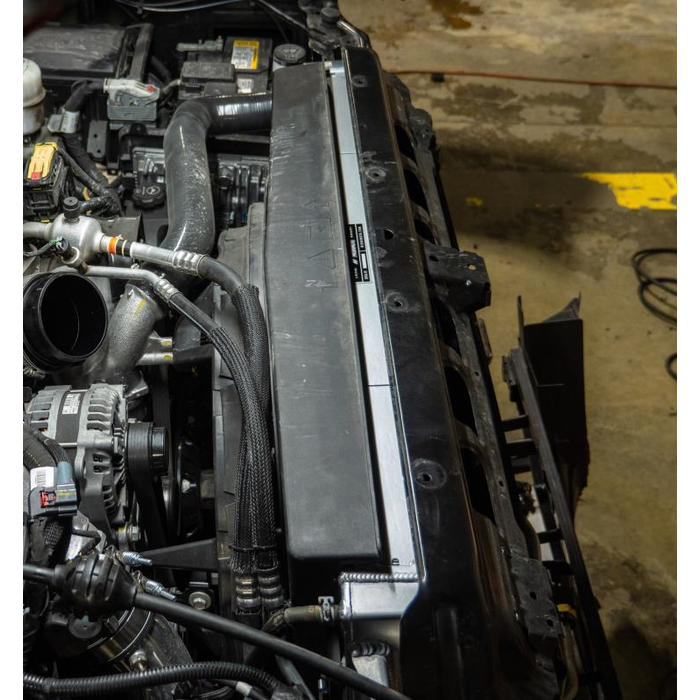

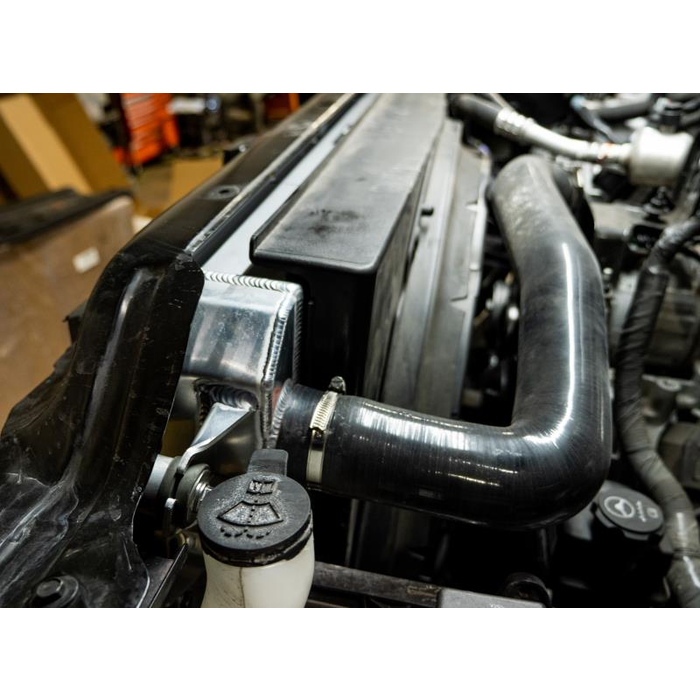

Installation is straightforward, requiring only minor trimming of the radiator fan shroud to accommodate the thicker core. The Mishimoto aluminum radiator is compatible with various vehicles and is an essential upgrade for those seeking improved cooling efficiency and reliability.

Features

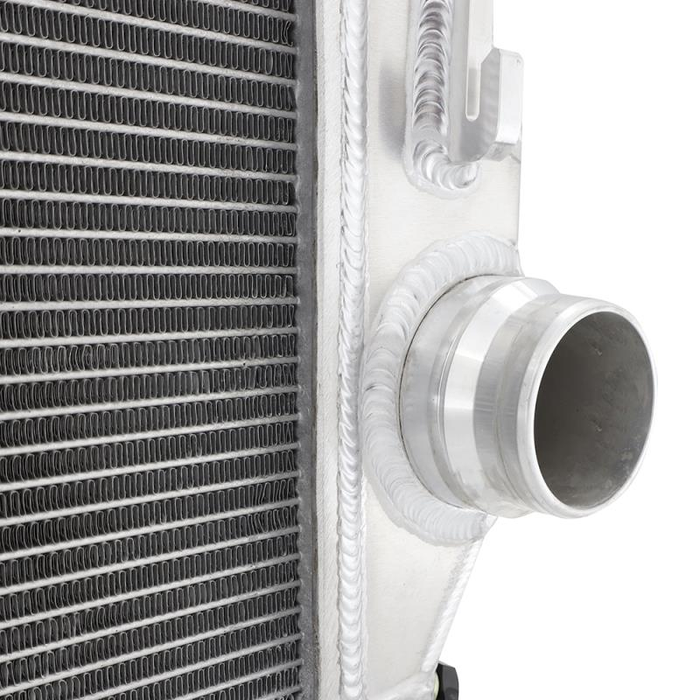

• All-Aluminum Design With Precision TIG-Welded End Tanks

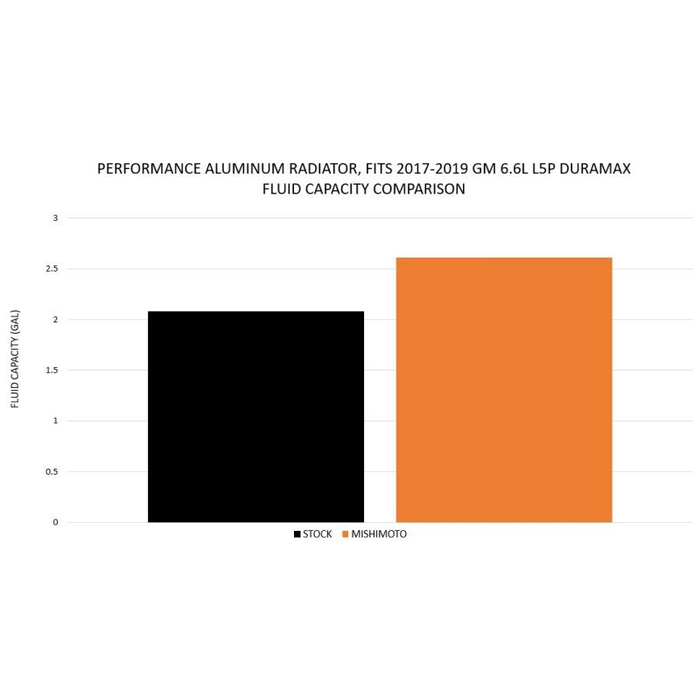

• Substantial 25-Percent Increase In Coolant Capacity Over Stock Radiator

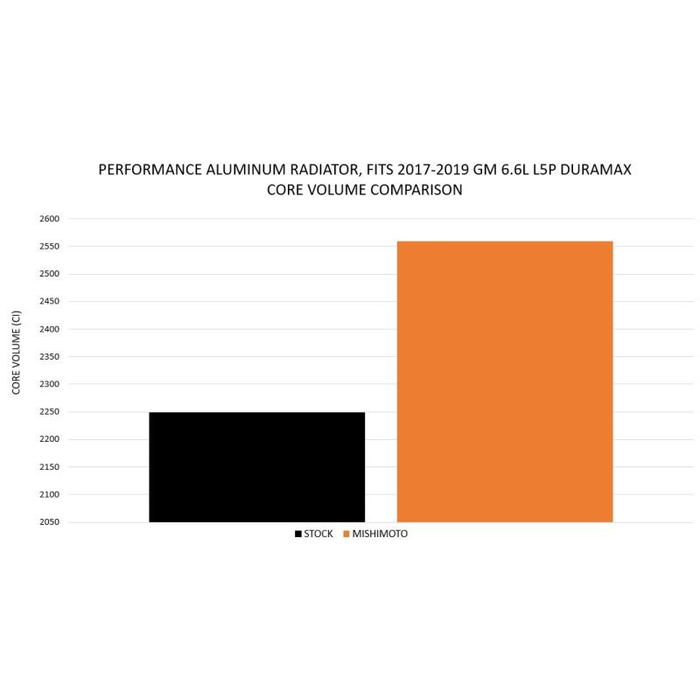

• 14-Percent Increase In Total Core Volume Over Stock Radiator
• Strutted Tubes Throughout For Maximum Rigidity And Durability
• Louvered Fins For Improved Heat Dissipation
• Pair With Mishimoto Silicone Coolant Hose Kit For Even Greater Cooling System Protection
• Features Mishimoto Magnetic Drain Plug To Capture Metallic Debris Within Cooling System
• Patent Pending

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-DMAX-17
• Flow Direction: Crossflow
• Overall Length (IN): 44.37 Inch
• Overall Height (IN): 29.29 Inch
• Overall Depth (IN): 5.41 Inch
• Core Rows: 2
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 2 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 2 Inch
• Finish: Bare
• Color: Silver
• Core Length (IN): 33.45 Inch
• Core Height (IN): 28.58 Inch
• Core Depth (IN): 2.67 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No

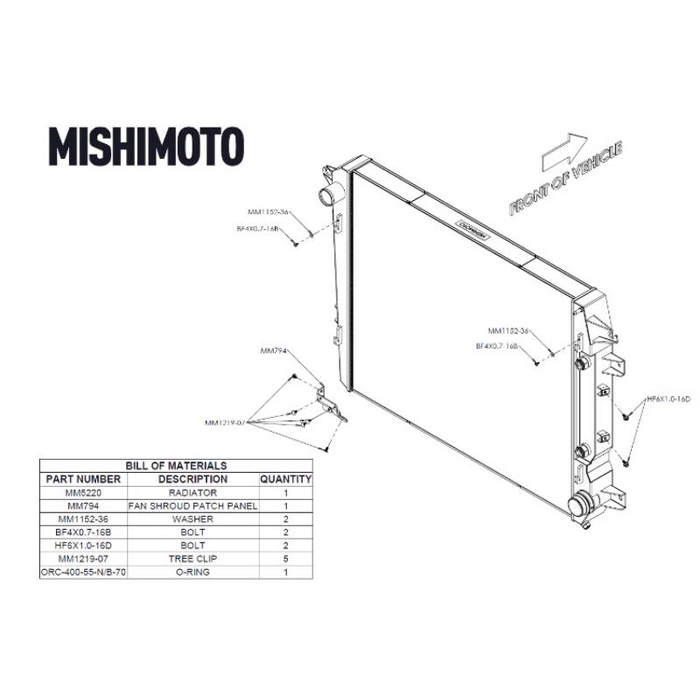

• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 2017-2019 Chevrolet Silverado 2500 HD
• 2017-2019 Chevrolet Silverado 3500 HD
• 2017-2019 GMC Sierra 2500 HD
• 2017-2019 GMC Sierra 3500 HD

Technical Documents

• mmrad-dmax-17_installationguide.pdf
