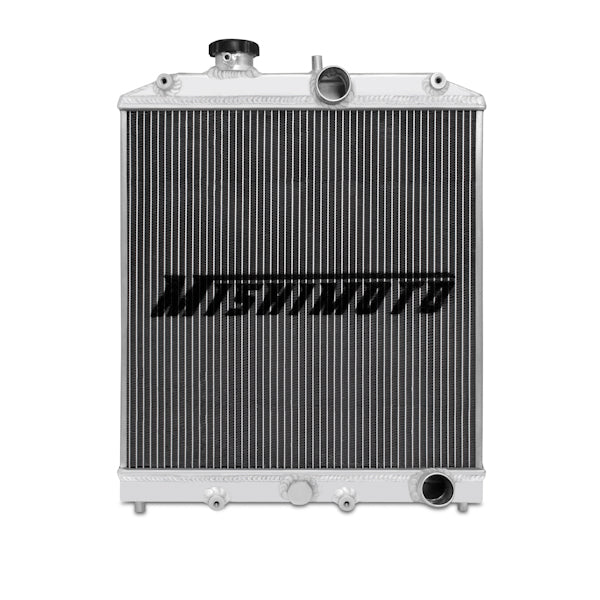

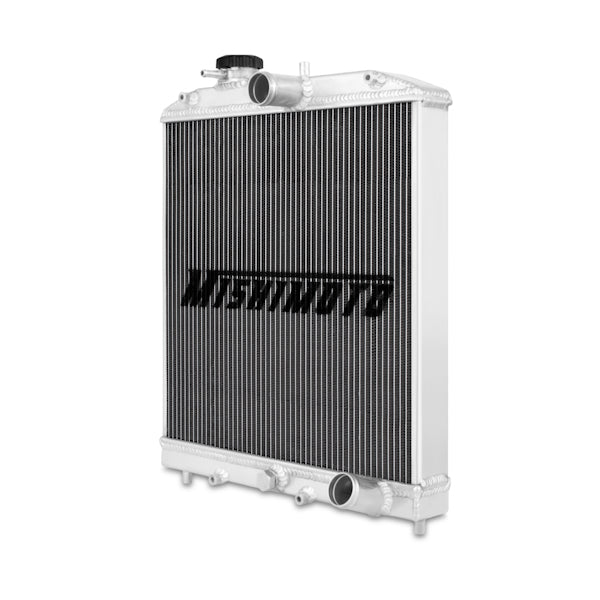

Mishimoto Aluminum Radiator (MPN: MMRAD-CIV-92)

High-performance aluminum radiator for enhanced cooling efficiency.

The Mishimoto Aluminum Radiator is engineered to provide superior cooling performance for a variety of vehicles. With an overall dimension of 14.6 inches in length, 18.5 inches in height, and 2.15 inches in depth, this radiator features a dual core design that enhances heat dissipation and durability. Constructed from 100 percent brazed aluminum, it is designed to withstand high pressure and temperature, making it suitable for both daily driving and competitive racing applications.

This radiator is fully TIG welded, ensuring robust end tanks that contribute to its strength and longevity. The increased coolant capacity directly results in improved cooling efficiency, which is critical for maintaining optimal engine temperatures during operation. The Mishimoto radiator is designed to meet original equipment specifications, making it a reliable replacement for OEM radiators.

Additionally, Mishimoto offers a free replacement for accidental damages, providing peace of mind for users. With features such as a polished finish and compatibility with various vehicle models, this aluminum radiator is a trusted choice among performance enthusiasts and professional drivers alike.

Features

• Full Aluminum Construction Provides Increased Heat And Pressure Tolerance, Improved Heat Dissipation, Increased Durability, And Improved Cooling Efficiency

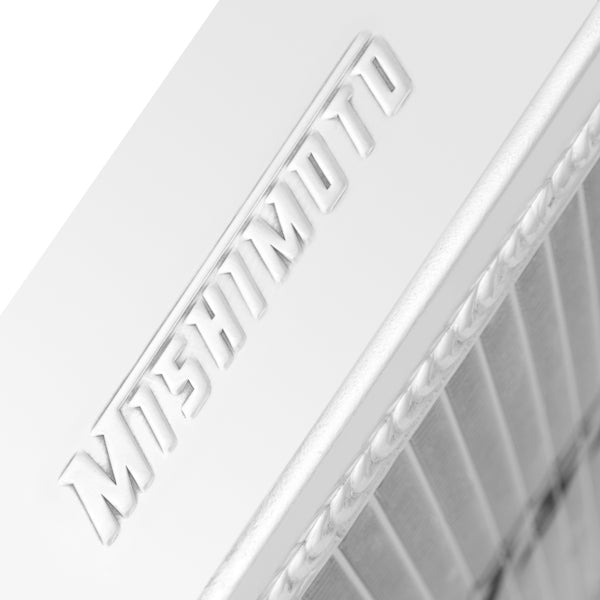

• Manufactured With Robust Tig-welded End Tanks For Improved Strength
• 100 Percent Brazed Aluminum Core For Maximum Reliability
• Increased Coolant Capacity Directly Results In Improved Cooling Efficiency And Engine Temperature Reduction
• Designed To Original Equipment Specifications
• Free Replacement For Accidental Damages

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-CIV-92
• Flow Direction: Down Flow
• Overall Length (IN): 14.6 Inch
• Overall Height (IN): 18-1/2 Inch
• Overall Depth (IN): 2.15 Inch
• Core Rows: Two Tube
• Core Material: Aluminum
• Inlet Hose Location: Top Center
• Inlet Size (IN): 1-1/4 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1-1/4 Inch
• Finish: Raw
• Color: Silver
• Core Length (IN): 13.78 Inch
• Core Height (IN): 14.09 Inch
• Core Depth (IN): 1.65 Inch
• Tank Material: Aluminum

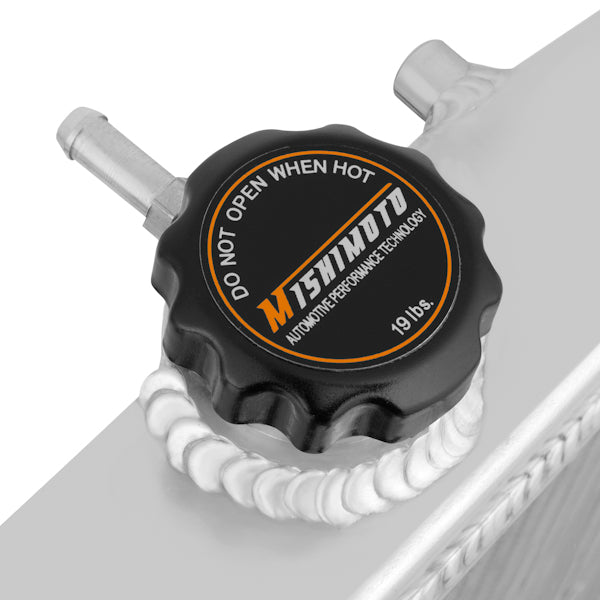

• With Radiator Cap: Yes
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: Yes
• Includes Mounting Hardware: No

Compatibility / Fit

• 1992-2000 Honda Civic
• 1993-1997 Honda Civic del Sol

Technical Documents

• mmrad-civ-92_installguide.pdf
