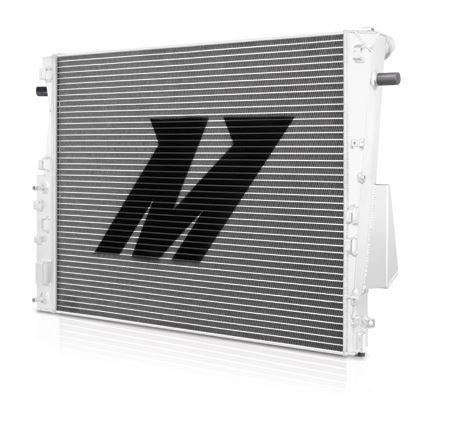

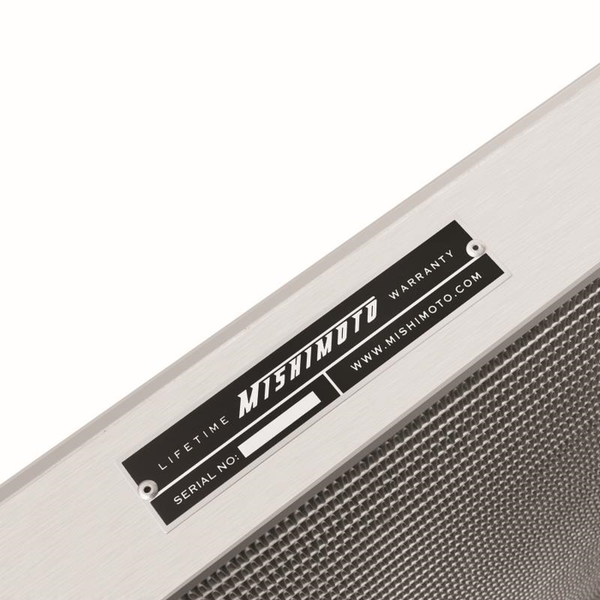

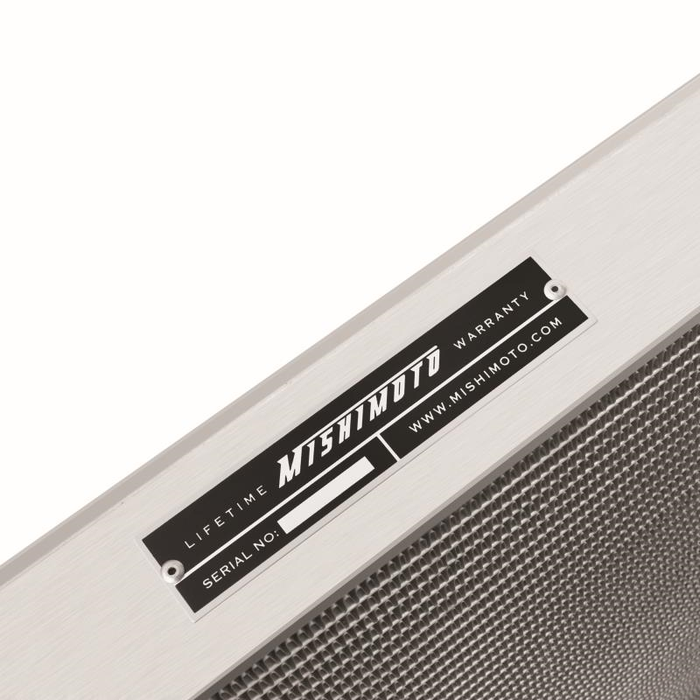

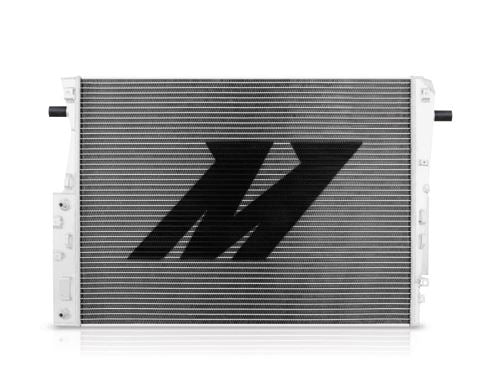

Mishimoto Aluminum Radiator for 6.4 Powerstroke (MPN: MMRAD-F2D-08V2)

Engineered for durability and enhanced cooling performance in your truck.

The Mishimoto Aluminum Radiator for the 6.4 Powerstroke is designed to provide superior cooling efficiency and durability. Constructed from high-quality aircraft-grade aluminum, this radiator features a 100 percent brazed aluminum core and TIG-welded end tanks, ensuring long-lasting performance under high pressure and temperature conditions. The innovative design includes co-molded aluminum and rubber mounting pegs that minimize torque transfer from the truck to the radiator, reducing the risk of damage and failure.

With a significant increase in coolant capacity, this radiator is equipped with dual core rows and internally strutted tubes that enhance strength and reliability. The CNC-machined factory-style quick-disconnect inlet and outlet facilitate easy installation, while the strengthened core support plates prevent core torquing and bending. This radiator is a practical solution for those seeking to eliminate coolant leaks and maintain optimal engine temperatures.

Mishimoto stands behind its products with a lifetime warranty, offering free replacement for accidental damages, ensuring peace of mind for users. This radiator is compatible with the Mishimoto 6.4 Powerstroke Silicone Coolant Hose Kit, providing a comprehensive cooling solution for your vehicle.

Features

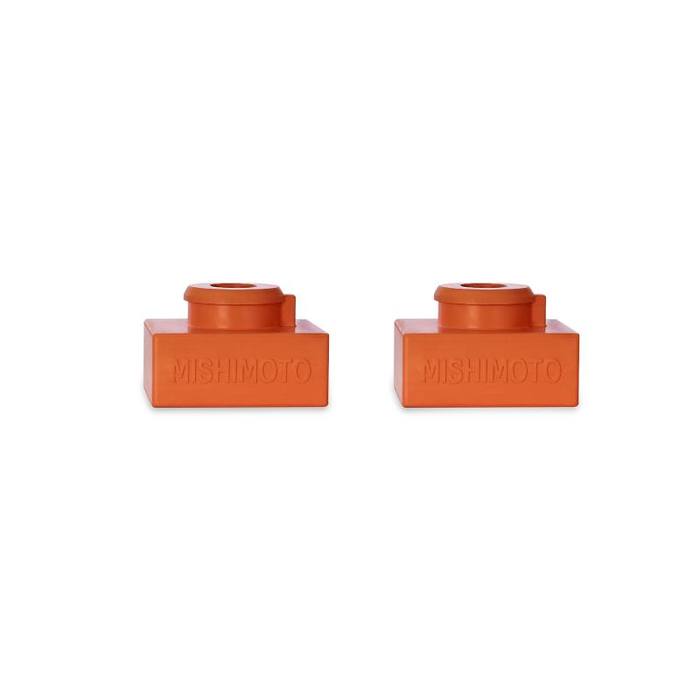

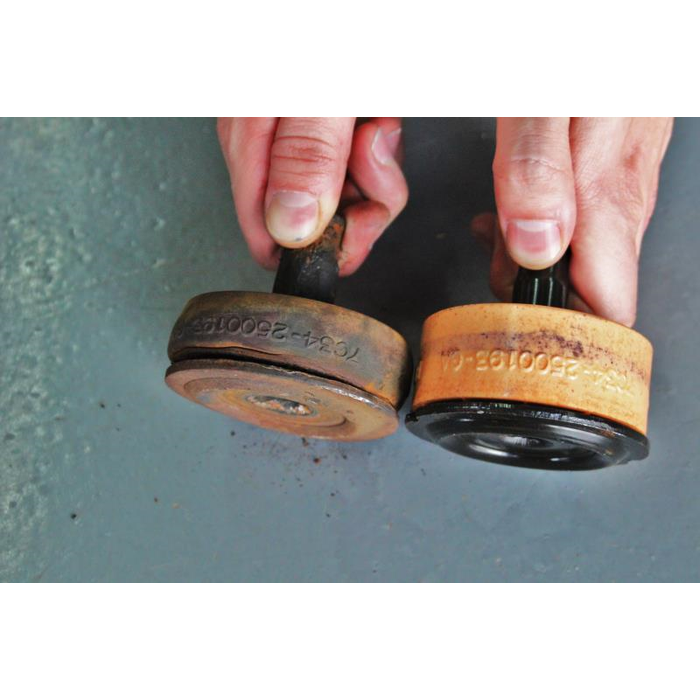

• Incorporates Co-molded Aluminum/rubber Mounting Pegs To Reduce The Truck’s Torque Transfer To The Radiator

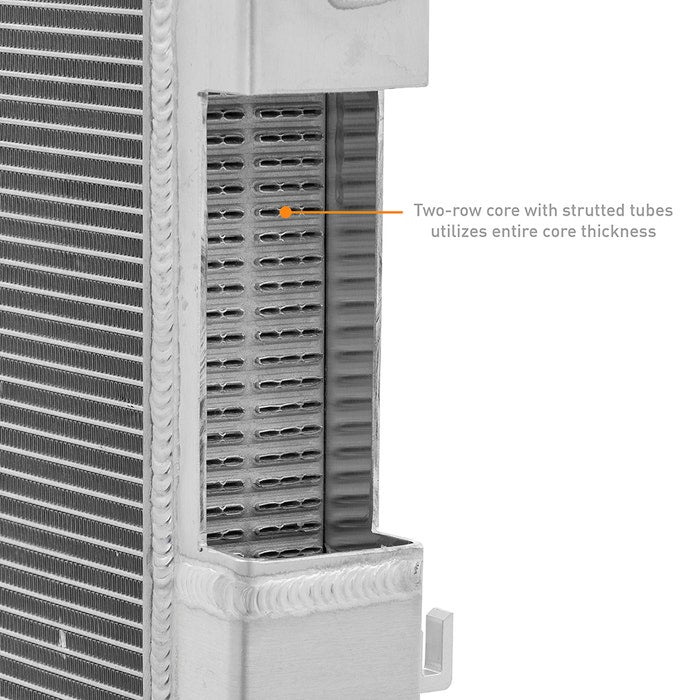

• Incorporates Internally Strutted Tubes In The Top And Bottom 8 Rows For Increased Strength Against High Pressure And Temperature

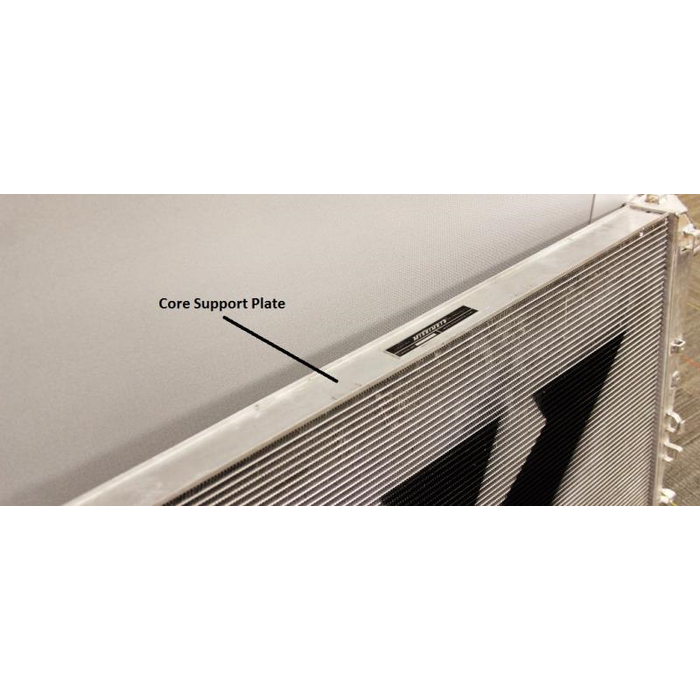

• Strengthened Top And Bottom Core Support Plates Prevent Core Torquing And Bending
• 100 Percent Increase In Coolant Capacity

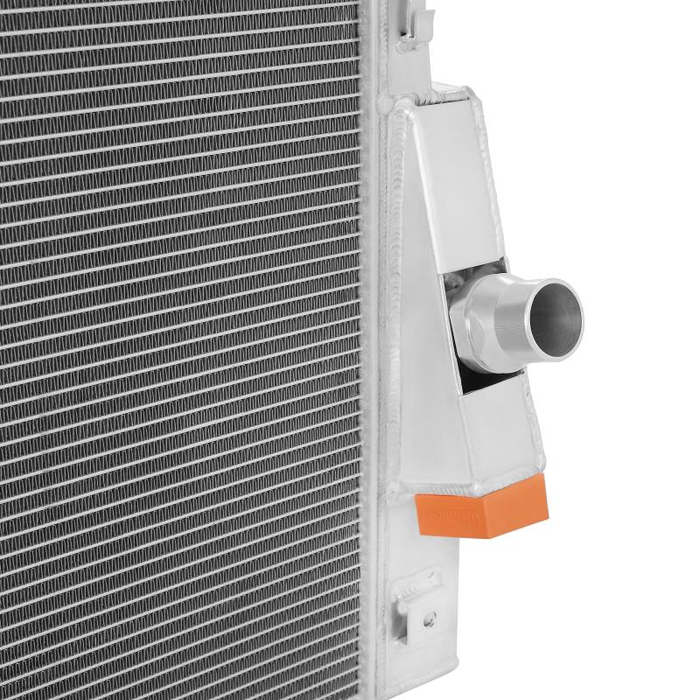

• Cnc-machined Factory-style Quick-disconnect Inlet And Outlet

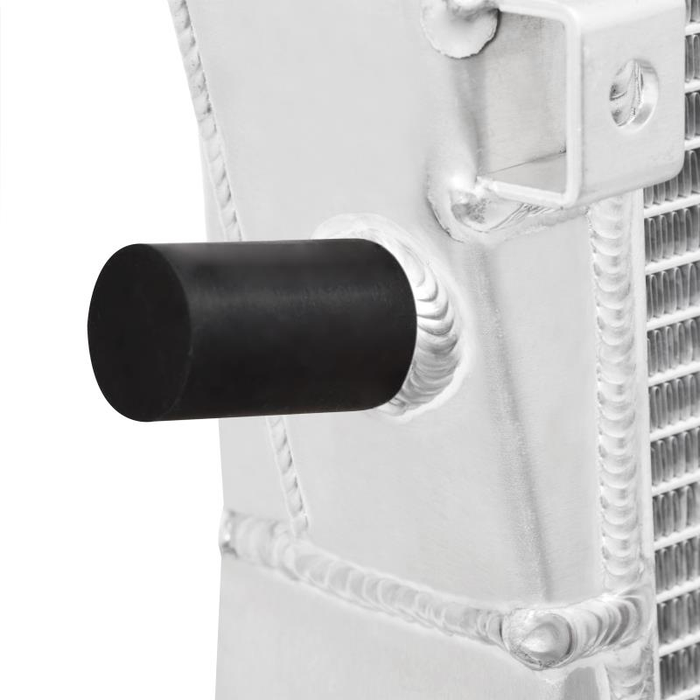

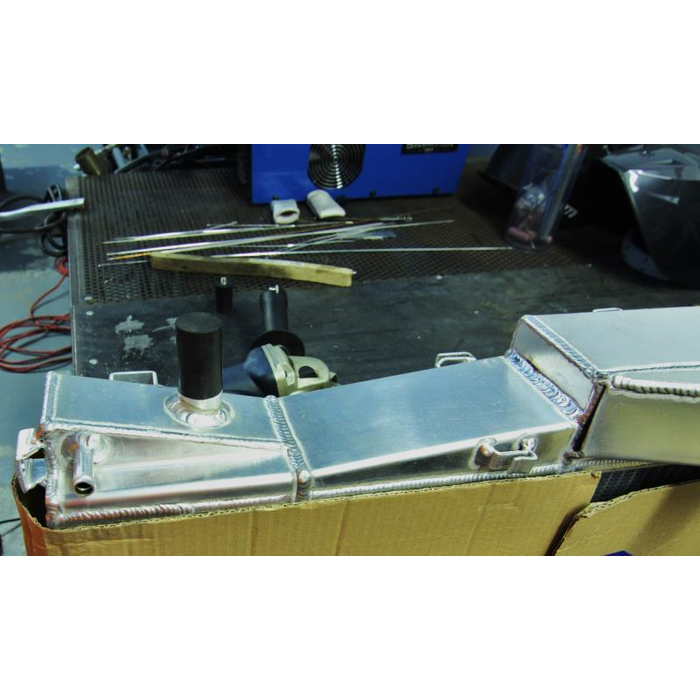

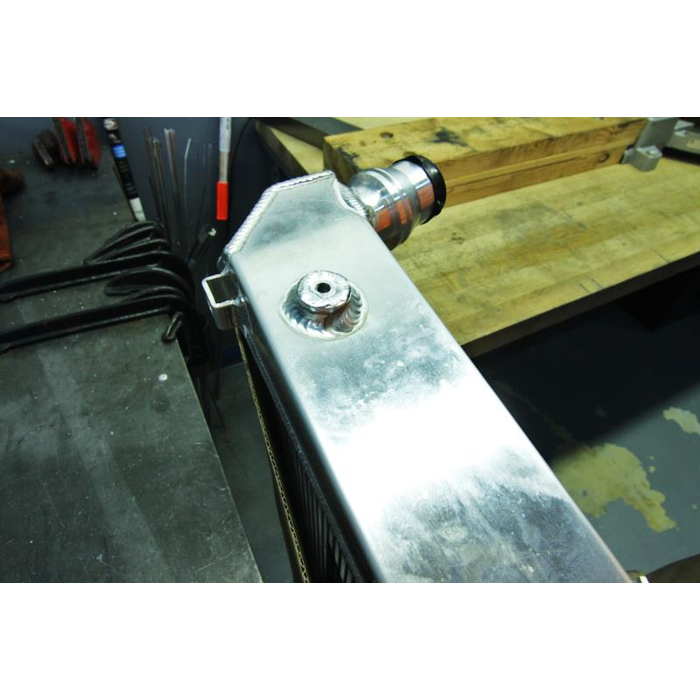

• Tig-welded To Perfection
• Free Replacement For Accidental Damages

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-F2D-08V2
• Flow Direction: Cross Flow
• Overall Length (IN): 28.7 Inch
• Overall Height (IN): 45.7 Inch
• Overall Depth (IN): 8.9 Inch
• Core Rows: Dual
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Outlet Hose Location: Bottom Right
• Finish: Brushed
• Color: Silver
• Core Length (IN): 27.48 Inch
• Core Height (IN): 37.01 Inch
• Core Depth (IN): 2.76 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: No
• With Engine Oil Cooler: No
• Includes Fittings: Yes
• Includes Mounting Hardware: Yes

Compatibility / Fit

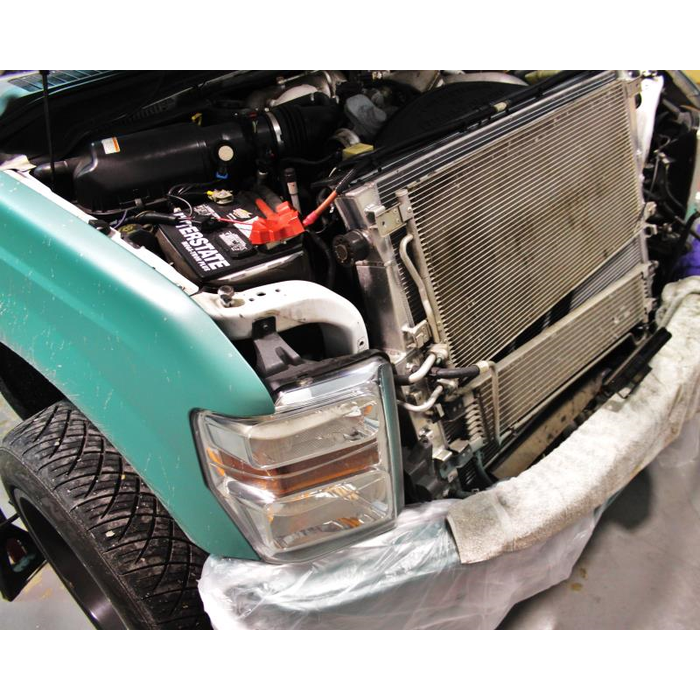

• 2008-2010 Ford F-250 Super Duty
• 2008-2010 Ford F-350 Super Duty

Technical Documents

• mmrad-f2d-08v2x_installguide.pdf
