Mishimoto Aluminum Performance Radiator (MPN: MMRAD-TTN-04)

Enhance cooling efficiency with durable aluminum construction and advanced design.

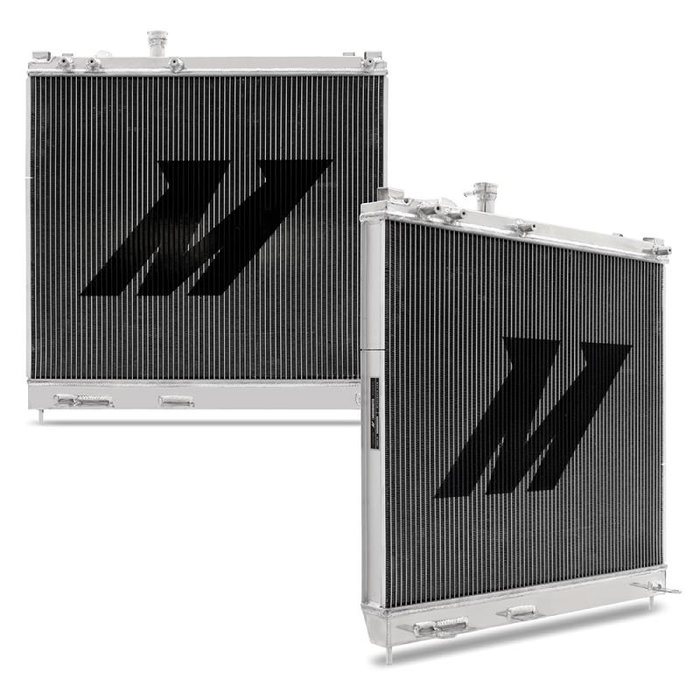

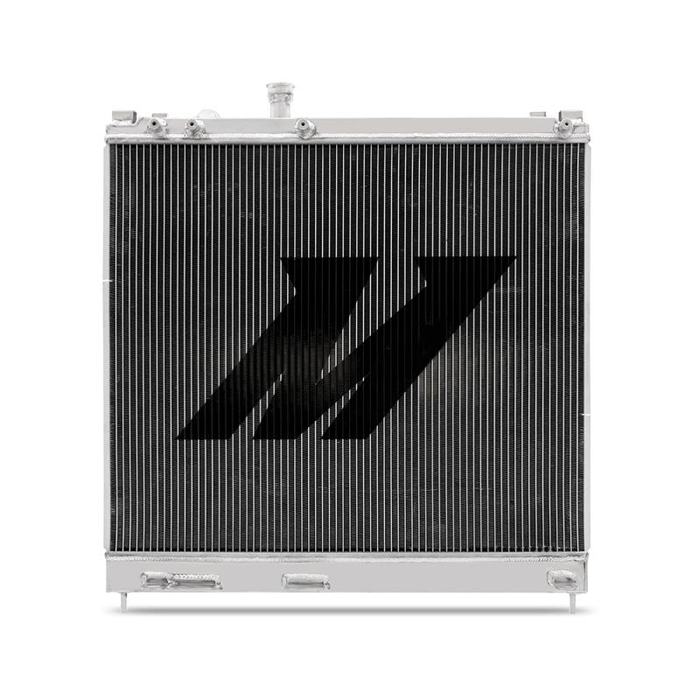

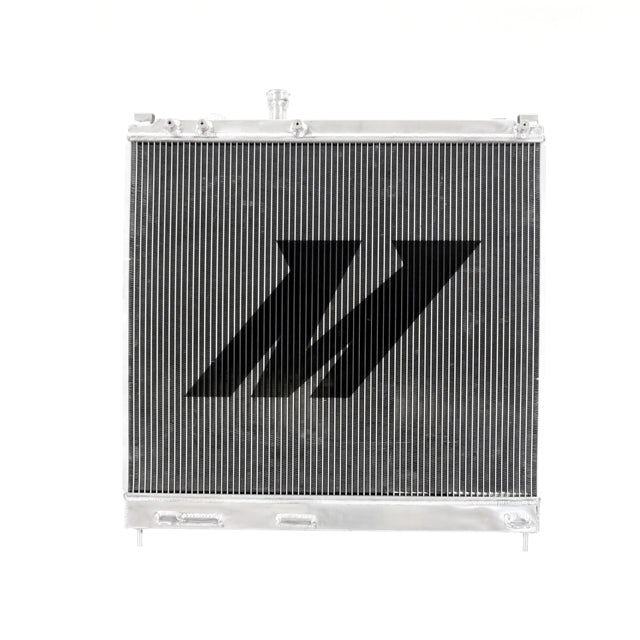

The Mishimoto Aluminum Performance Radiator is engineered to provide superior cooling performance for your vehicle. With overall dimensions of 27.08 inches in length, 27.87 inches in height, and 3.34 inches in depth, this radiator features a dual core design that is 38 percent thicker than stock radiators, resulting in a 37 percent increase in core volume. This enhancement significantly improves heat transfer and cooling capacity, ensuring optimal engine performance under various conditions.

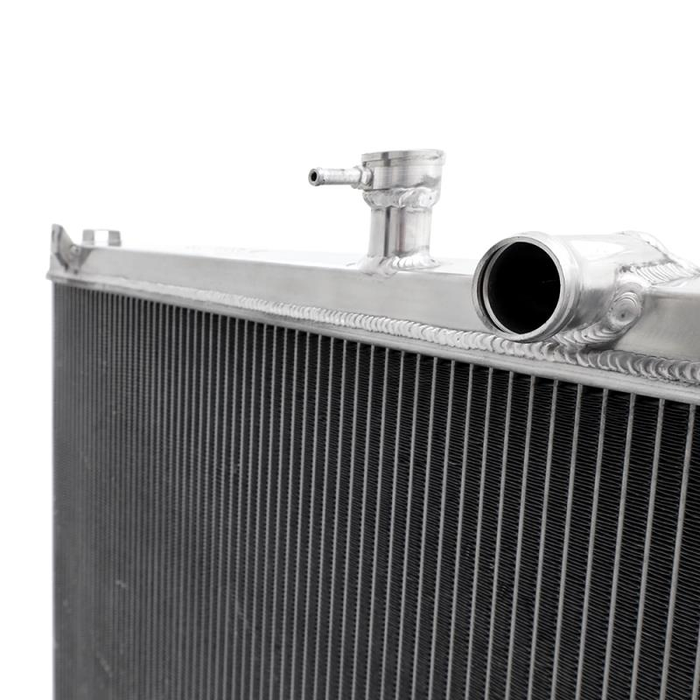

Constructed from aircraft-grade aluminum, the precision TIG-welded end tanks of the Mishimoto radiator eliminate the risk of cracking associated with stock plastic tanks. The internal transmission cooler effectively reduces transmission fluid temperatures, while CNC-machined fittings prevent the mixing of coolant and transmission fluid, safeguarding against potential damage. Additionally, the magnetic drain plug captures ferrous debris, helping to maintain a clean cooling system.

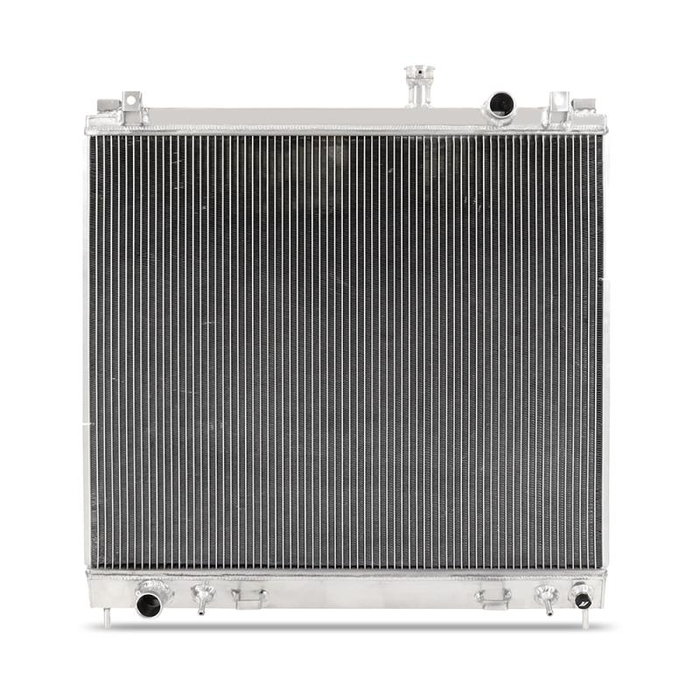

This radiator is designed for downflow applications and includes a top side inlet and bottom side outlet, both measuring 1.41 inches. The robust construction and thoughtful design make the Mishimoto Aluminum Performance Radiator a reliable choice for enhancing your vehicle's cooling system.

Features

• Precision TIG-Welded Aluminum End Tanks Won't Crack Like Stock Plastic Tanks

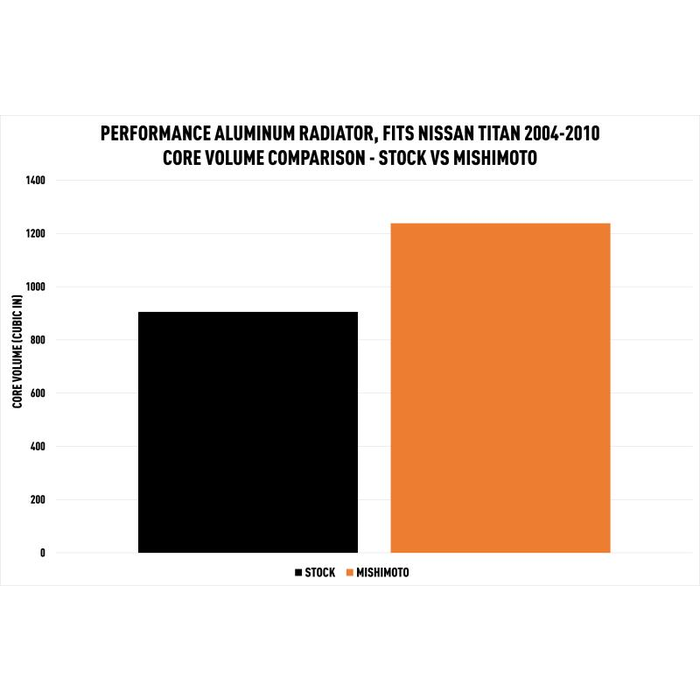

• 37-Percent Increase In Core Volume Over Stock For Improved Cooling Capacity
• 2-Row Core Is 38-Percent Thicker Than Stock For Improved Heat Transfer
• Internal Transmission Cooler Effectively Reduces Transmission Fluid Temps
• CNC-Machined Transmission Cooler Fittings Prevent Mixing Of Coolant And Trans Fluid
• Magnetic Drain Plug Captures Ferrous Debris, Preventing It From Clogging Cooling System

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-TTN-04
• Flow Direction: Down Flow
• Overall Length (IN): 27.08 Inch
• Overall Height (IN): 27.87 Inch
• Overall Depth (IN): 3.33 Inch
• Core Rows: 2
• Core Material: Aluminum
• Inlet Hose Location: Top Left
• Inlet Size (IN): 1.41 Inch
• Outlet Hose Location: Bottom Right
• Outlet Size (IN): 1.41 Inch
• Finish: Bare
• Color: Black/ Silver
• Core Length (IN): 27.08 Inch
• Core Height (IN): 23.22 Inch
• Core Depth (IN): 1.96 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: No
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

• 2004-2013 Infiniti QX56
• 2005-2014 Nissan Armada
• 2004-2014 Nissan Titan
