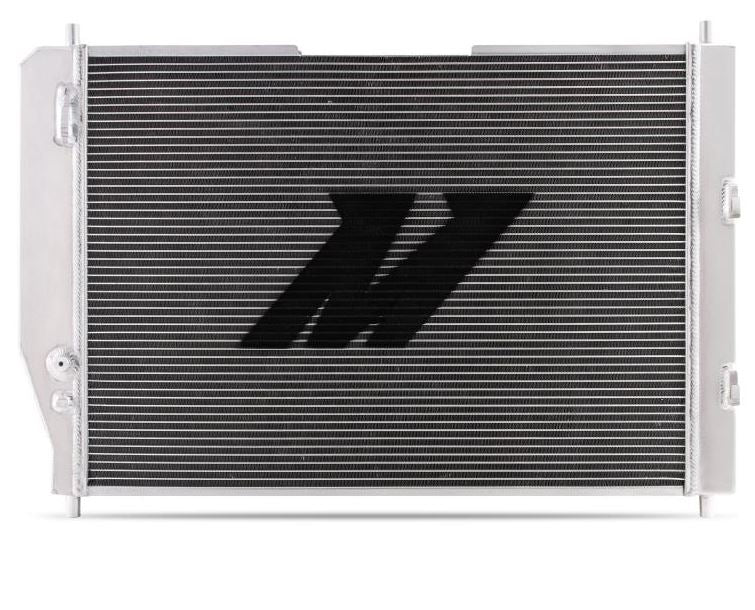

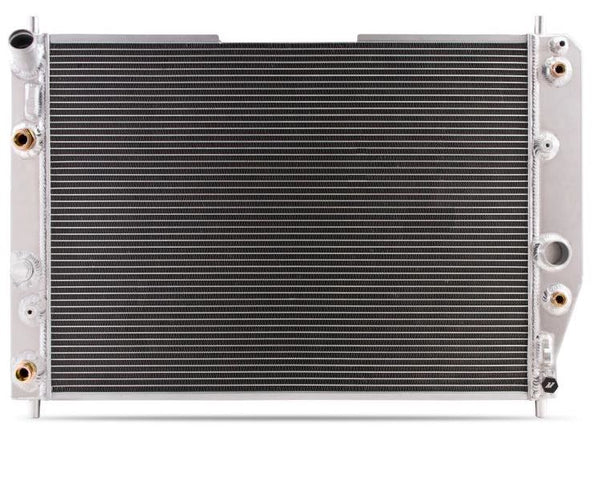

Mishimoto Aluminum Performance Radiator (MPN: MMRAD-C6-05)

Enhance cooling efficiency with advanced aluminum construction and dual core design.

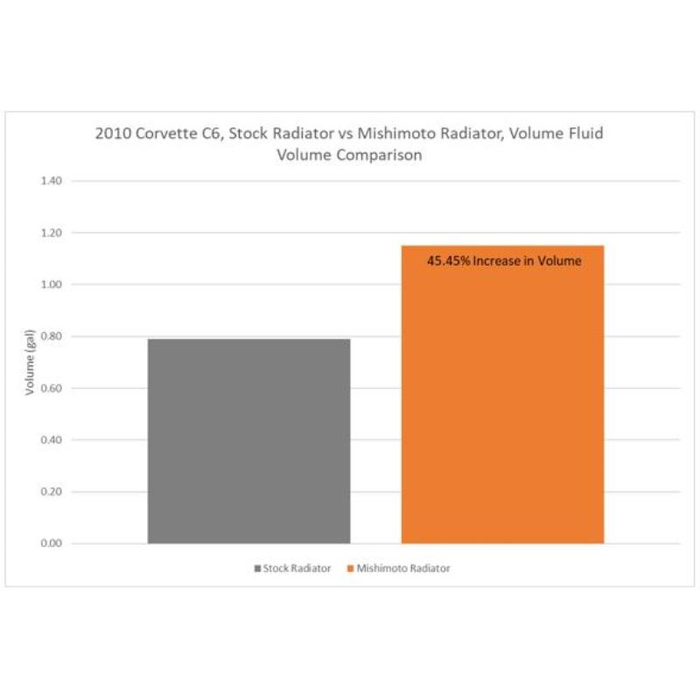

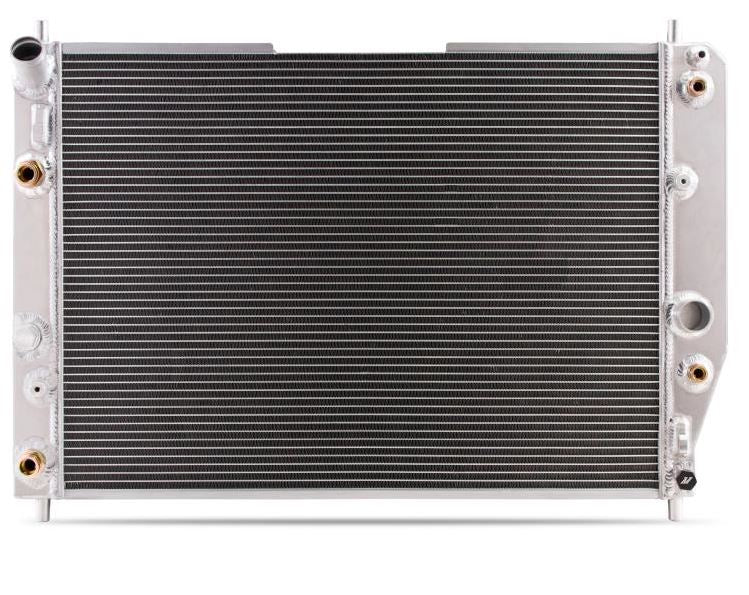

Mishimoto presents an all-aluminum performance radiator designed to replace stock plastic radiators. This radiator features TIG-welded aluminum end tanks, which enhance durability and longevity compared to traditional plastic tanks. The core has been engineered with dual rows of coolant passages and a thickness of 2 inches, resulting in a significant increase in fin surface area by 56 percent and a 45 percent increase in coolant volume, leading to superior cooling performance.

The integrated oil and automatic transmission coolers work in tandem to maintain optimal fluid temperatures, dropping outlet temperatures by 5 degrees Fahrenheit across the powerband. This radiator is suitable for both street and track use, ensuring that your vehicle operates efficiently under various conditions. Additionally, the design includes specialized AC condenser tabs for straightforward installation and a cut-out in the header plate for compatibility with larger aftermarket intakes.

With a powder-coated finish in silver, this radiator not only performs well but also adds a sleek look to your engine bay. The top right inlet and bottom right outlet hose locations are designed for easy integration into your vehicle's cooling system. Overall, the Mishimoto aluminum performance radiator is a robust solution for enhancing your vehicle's cooling capabilities.

Features

• Full Aluminum Construction With Durable, TIG-Welded End Tanks

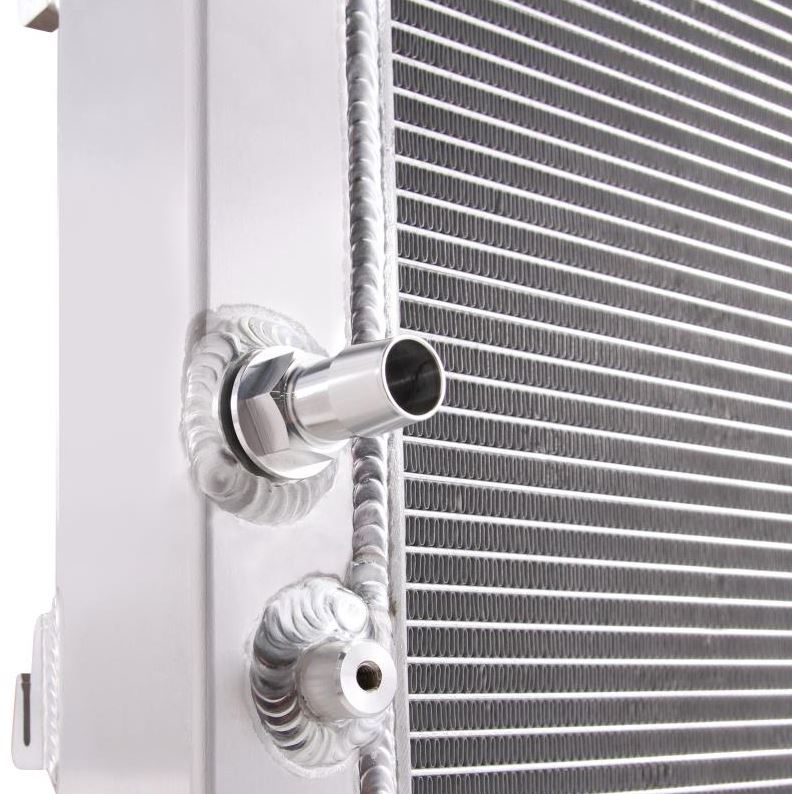

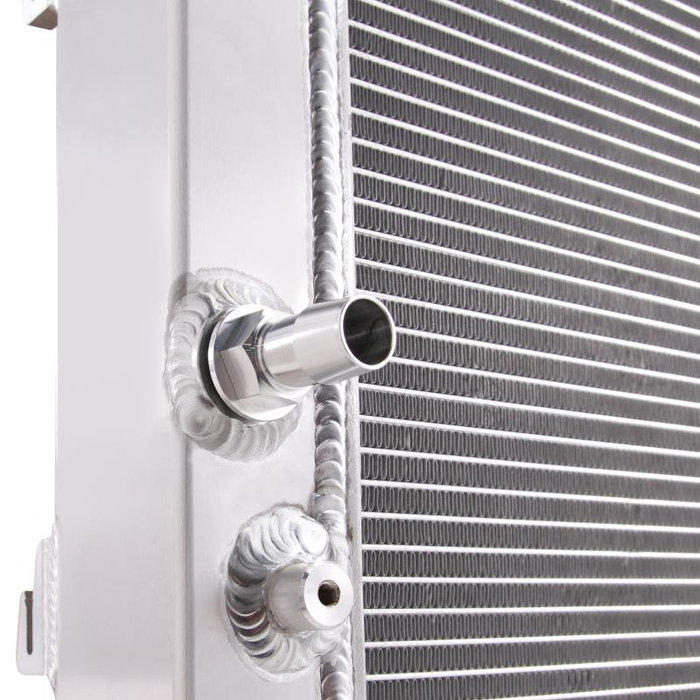

• Integrated End Tank Oil And Automatic Transmission Coolers

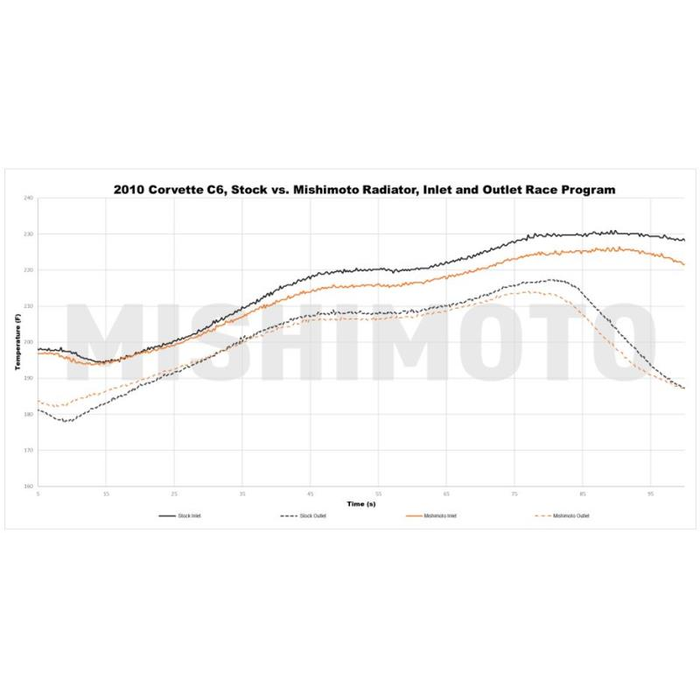

• Drops Outlet Temperature By 5 Degree Fahrenheit Across Powerband
• Two-Row, 2 Inch Thick Brazed Aluminum Core, Providing Ideal Fluid Temperatures On The Street And At The Track

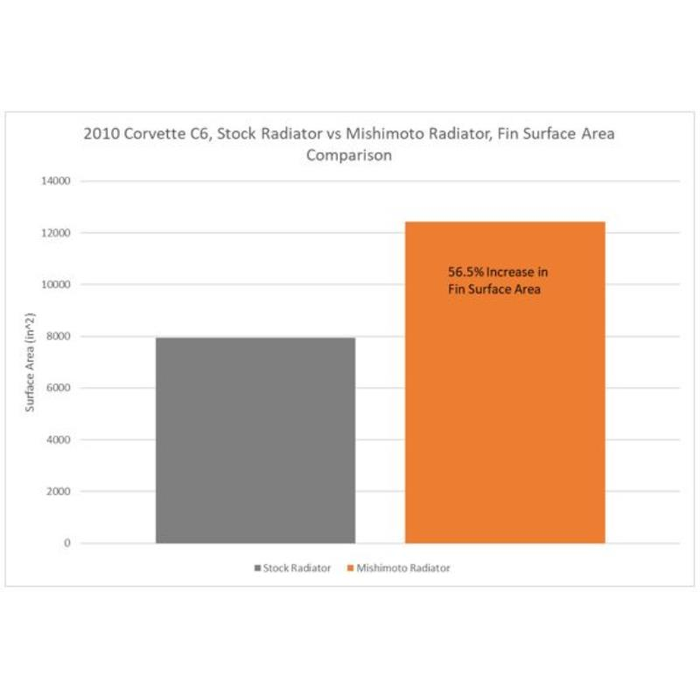

• 56 Percent Increase In Fin Surface Area For Optimal Cooling Properties
• Cut Out Incorporated Into Header Plate For Fitment Of Larger Aftermarket Intakes
• Specialized AC Condenser Tabs For Easy Installation

Specifications

• Manufacturer: Mishimoto
• Manufacturer Part Number: MMRAD-C6-05
• Flow Direction: Cross Flow
• Overall Length (IN): 24 Inch
• Overall Height (IN): 17 Inch
• Overall Depth (IN): 2 Inch
• Core Rows: Dual
• Core Material: Aluminum
• Inlet Hose Location: Top Right
• Outlet Hose Location: Bottom Right
• Finish: Powder Coated
• Color: Silver
• Core Length (IN): 24 Inch
• Core Height (IN): 17 Inch
• Core Depth (IN): 2 Inch
• Tank Material: Aluminum
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: No
• Includes Mounting Hardware: No

Compatibility / Fit

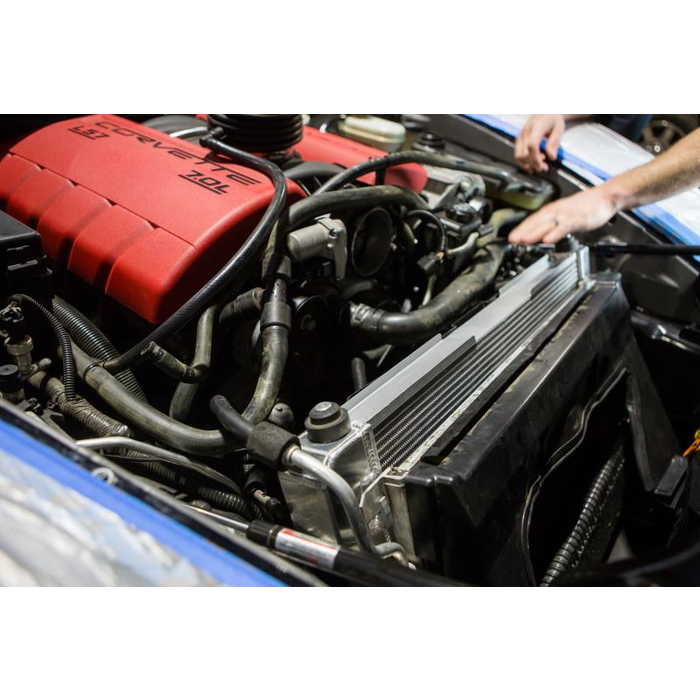

• 2005-2013 Chevrolet Corvette

Technical Documents

• mmrad-c6-05_installationguide.pdf
