Mile Marker Waterproof ATV UTV Winch (MPN: 77-53105BW)

High-performance winch with advanced features for reliable recovery.

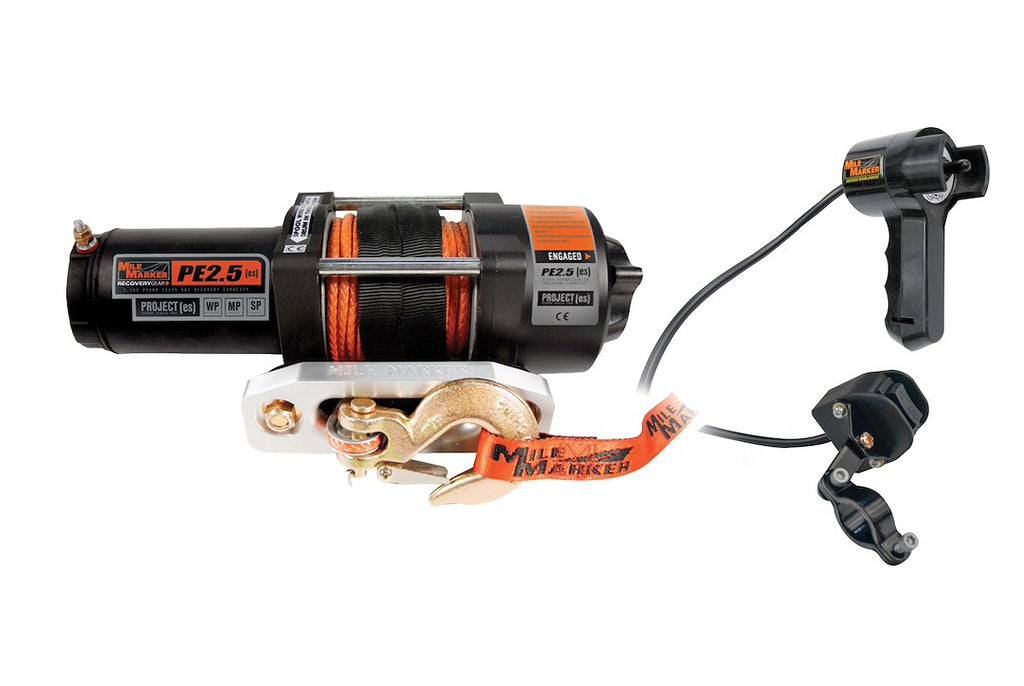

The Mile Marker PE2.5 is a robust vehicle-mounted winch designed for ATV and UTV applications. This 12-volt electric winch offers a line pull capacity of 2500 pounds, making it suitable for various recovery tasks. It features a 50-foot synthetic rope and a roller fairlead, ensuring smooth operation and durability in challenging environments. The integrated solenoid and all-metal, 3-stage planetary gear drive provide reliable performance and longevity, even under heavy loads.

This winch is equipped with a new 300 Ampere rated solenoid, enhancing its duty cycle and efficiency. The fast line speeds and redesigned braking system contribute to its effectiveness in recovery situations. The PE2.5 also includes marine-grade remote control connectors, ensuring reliable operation in wet conditions. With a corrosion-resistant design, this winch is built to withstand the elements, making it a dependable choice for outdoor enthusiasts.

The Mile Marker PE2.5 is engineered for ease of use, featuring free spooling and a load holding brake for added safety. Its universal mounting pattern allows for straightforward installation on a variety of vehicles. With a gear reduction ratio of 241:1 and a maximum amp draw of 212 amps at full capacity, this winch delivers powerful performance when needed most.

Features

• Fast Line Speeds. Redesigned Braking System
• All Metal Planetary Gearing
• Submersible, 300 Ampere Rated Solenoid
• Center Focused Drum; Fast Line Speeds
• Free Spooling
• Roller Fairlead; Load Holding Brake
• Corrosion-Resisitant
• Marine Grade Remote Control Connectors

Specifications

• Manufacturer: Mile Marker
• Manufacturer Part Number: 77-53105BW
• Winch Rating: 2500 Pound
• Recommended Use: ATV/ UTV
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: Yes
• Line Length (FT): 50 Feet
• Line Material: Synthetic
• Remote Type: Wired
• Universality: Fully Universal
• Mounting Pattern Size: 4.9 Inch Length X 3 Inch Width
• Max Amp Draw: 212 Amp Draw At 2500 Pound
• Gear Reduction Ratio: 241:1
• Includes Mounting Hardware: No
• Thermal Shutoff: No
• Color: Black
• Motor Horsepower: 2 Horsepower
• Fairlead Type: Hawse
• Line Speed At Max Pull: 7.5 Feet Per Minute At 2500 Pound
• Electrical Control Type: Solenoid
• Motor Type: Permanent Magnet
• Drive Gear Type: Planetary
• Line Diameter (IN): 3/16 Inch
• Mounting Hole Quantity: 4
• Drum Material: Steel
• Estimated Install Time (Hours): 2

Technical Documents

• PE25_rope_instructions.pdf
